Tekbox TBCP2-750 RF Current Monitoring Probe
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Characterized frequency range: 1 kHz to 1 GHz
- Aperture diameter: 32 mm
- Outside diameter: 73 mm
- Height: 20 mm
- Weight: 320 g
- Connector type: N female
- Transfer impedance: 20 dBΩ in the flat region, typ.
- 3 dB bandwidth: 1.5 MHz to 850 MHz, typ.
- Max. primary current (DC – 400 Hz): 80 A
- Max. primary current (RF): 3 A
- Max. core temperature: 125 °C
Discover the possibilities
More information
Description

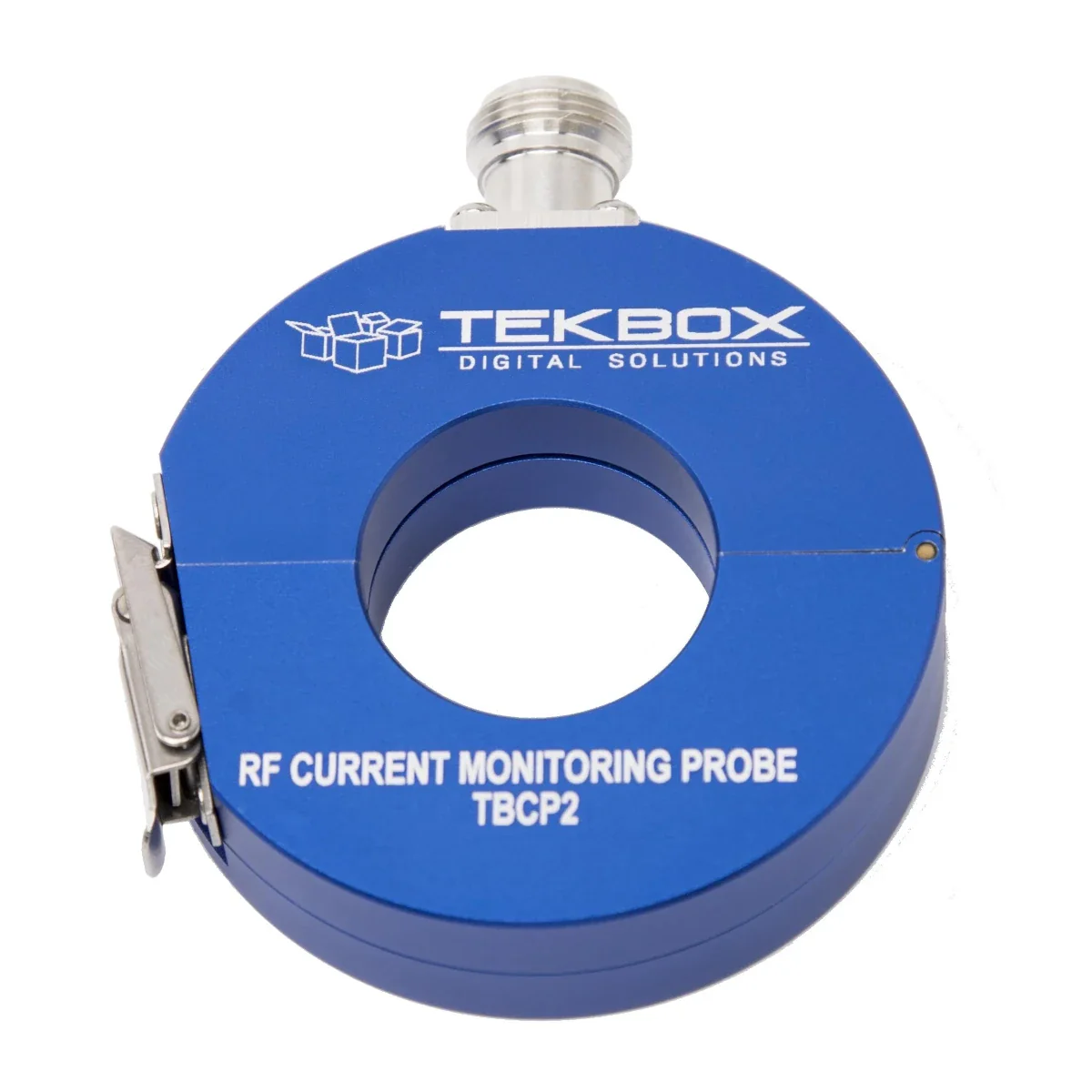

The TBCP2-750 is a snap-on RF current monitoring probe. The probe has a very flat response with a 3dB bandwidth of 850 MHz and is characterized and useable in the frequency range from 1 kHz to 1 GHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 20 dB Ohm with a 3dB bandwidth from 1.5 MHz to 850 MHz.
Specifications:
- Characterized frequency range: 1 kHz to 1 GHz
- Aperture diameter: 32 mm
- Outside diameter: 73 mm
- Height: 20 mm
- Weight: 320 g
- Connector type: N female
- Transfer impedance: 20 dBΩ in the flat region, typ.
- 3 dB bandwidth: 1.5 MHz to 850 MHz, typ.
- Max. primary current (DC – 400 Hz): 80 A
- Max. primary current (RF): 3 A
- Max. core temperature: 125 °C
