Tekbox TBCP2-30K400 32mm RF Current Monitoring Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Characterized frequency range - 10 Hz to 500 MHz
- Aperture diameter - 32 mm
- Outside diameter - 73 mm
- Height - 20 mm
- Weight - 320 g
- Connector type - N female
- Transfer impedance - 3 dB Ohm in the flat region, typ.
- 3 dB bandwidth - 30 kHz to 400 MHz, typ.
- Max. primary current (DC – 400 Hz) - 25 A
- Max. primary current (RF) - 2 A
- Max. core temperature - 125 °C
Discover the possibilities
More information
Description

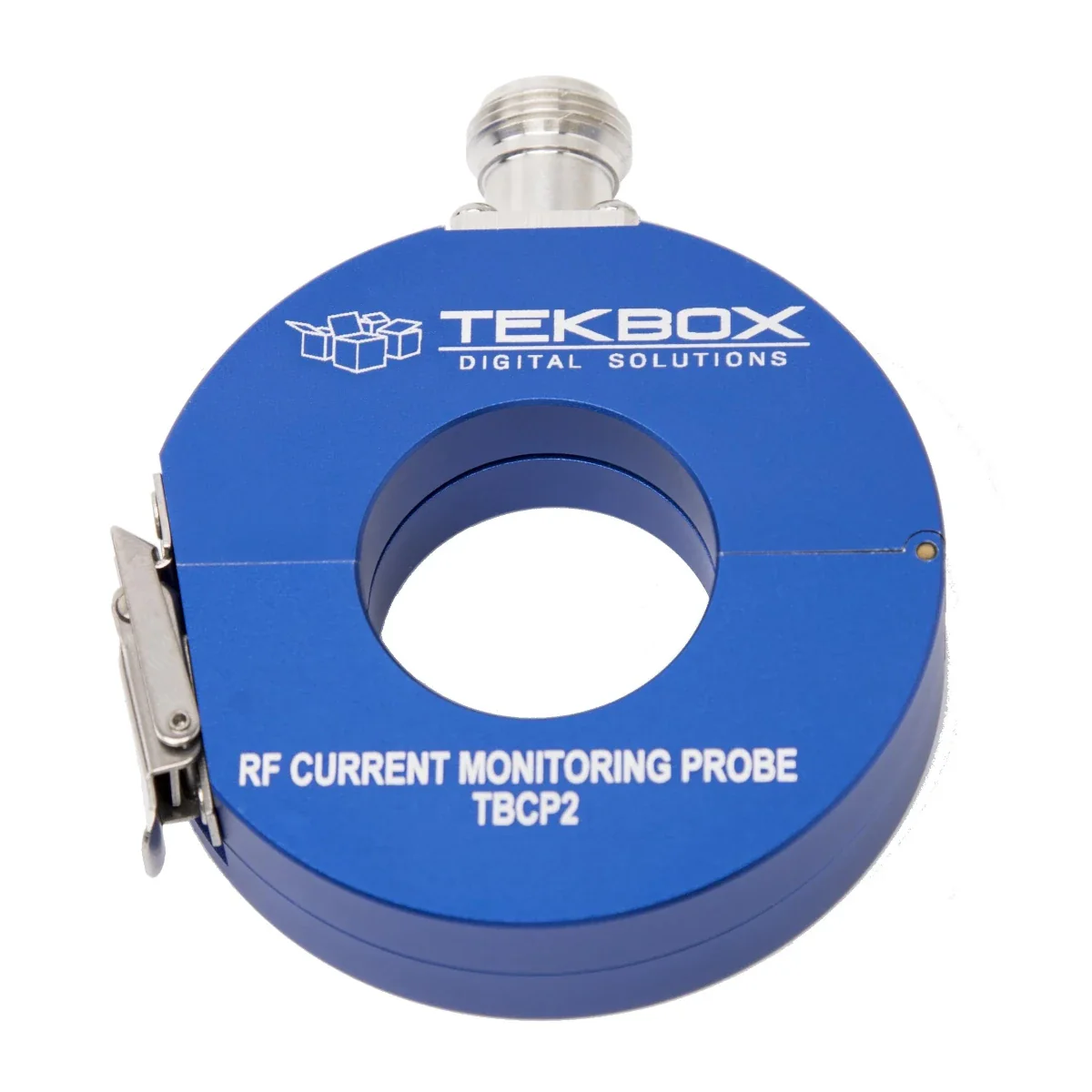

The TBCP2-30K400 is a snap-on RF current monitoring probe.
The probe has a very flat response from 30kHz to 400 MHz and is characterized over the frequency range from 10 Hz to 500 MHz. The TBCP2-30K400 is for RF current monitoring applications that need higher sensitivity in the low frequency range, compared to our other current monitoring probe series. The higher sensitivity at low frequencies comes at the cost of a slightly reduced overall trans-impedance.
The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 3 dB Ohm with a 3dB bandwidth from 30kHz to 400 MHz

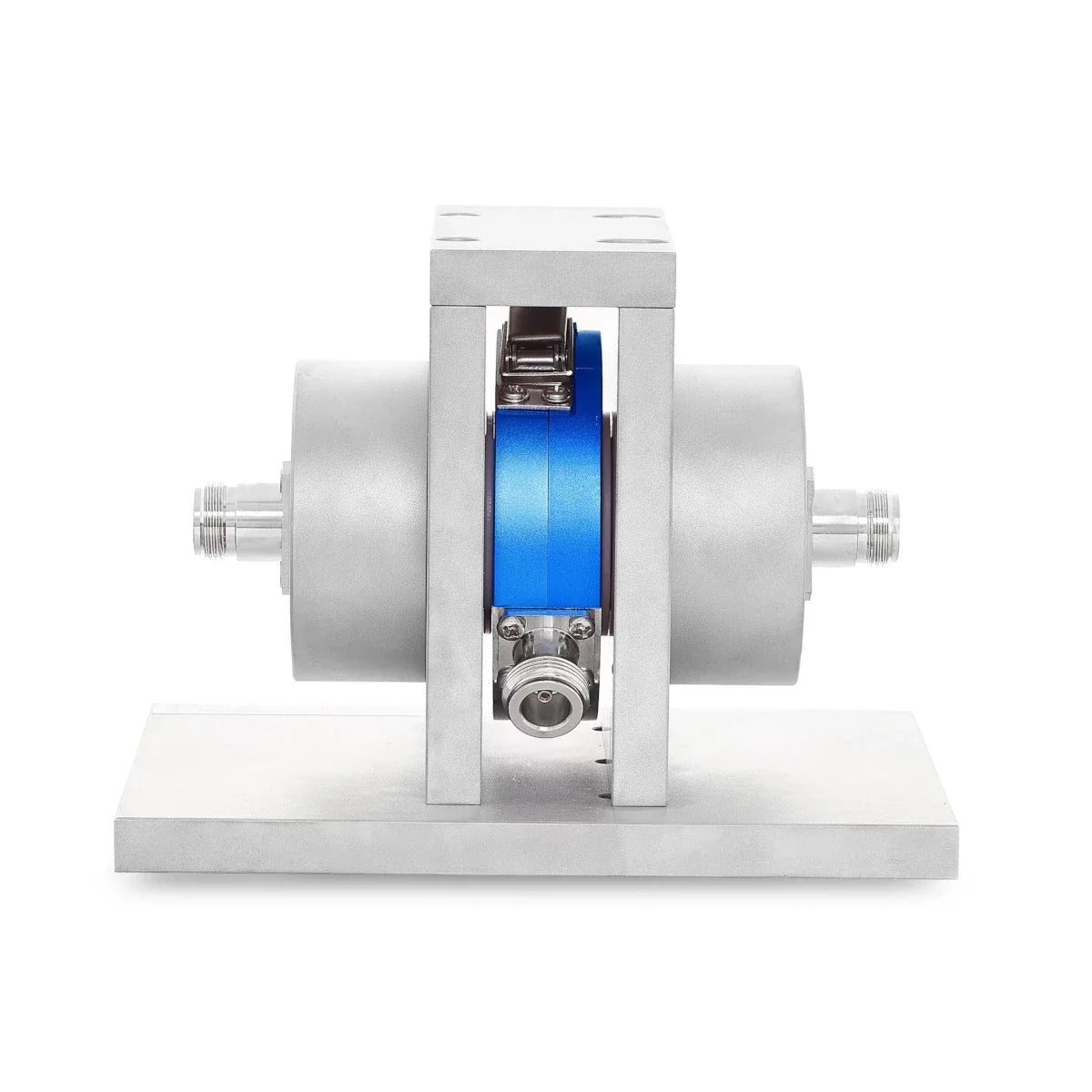

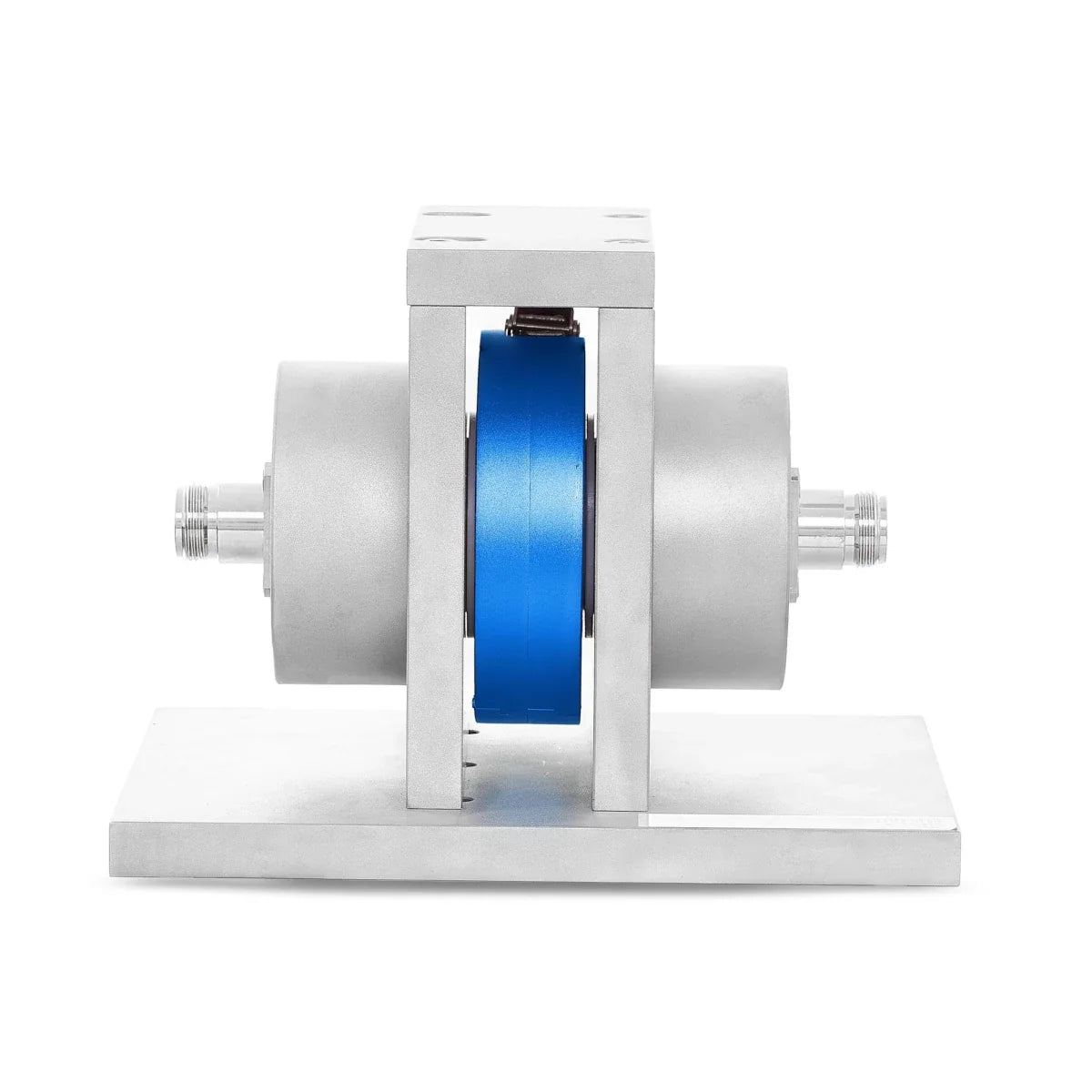

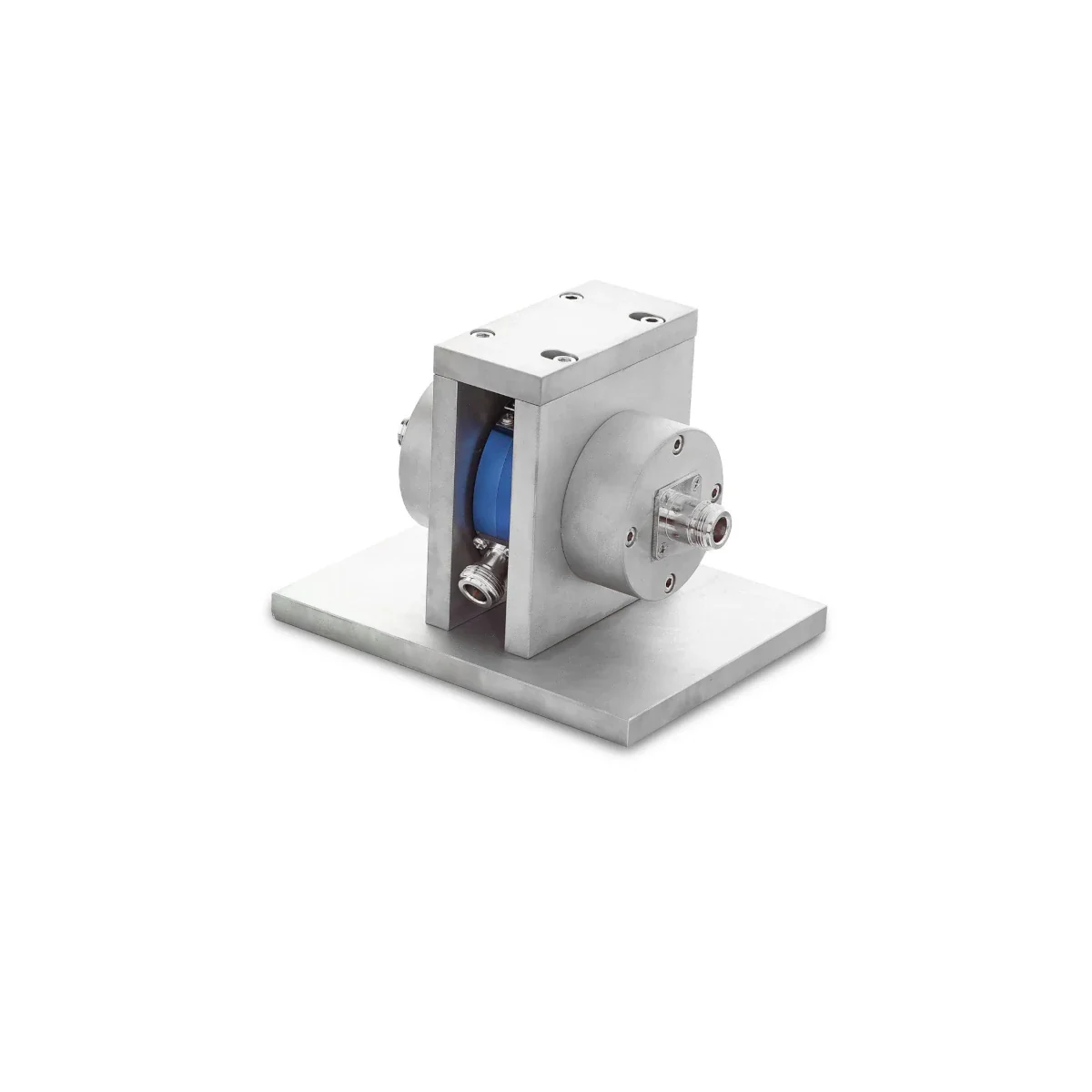

Tekbox supplies a calibration fixture corresponding with the TBCP2 series of snap on current probes.
