Tekbox TBCP2-500 32mm RF Current Monitoring Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Characterized frequency range - 1 kHz to 600 MHz
- Aperture diameter - 32 mm
- Outside diameter - 73 mm
- Height - 20 mm
- Weight - 320 g
- Connector type - N female
- Transfer impedance - 16 dBΩ in the flat region, typ.
- 3 dB bandwidth - 1 MHz to 500 MHz, typ.
- Max. primary current (DC – 400 Hz) - 80 A
- Max. primary current (RF) - 3 A
- Max. core temperature - 125 °C
Discover the possibilities
More information
Description

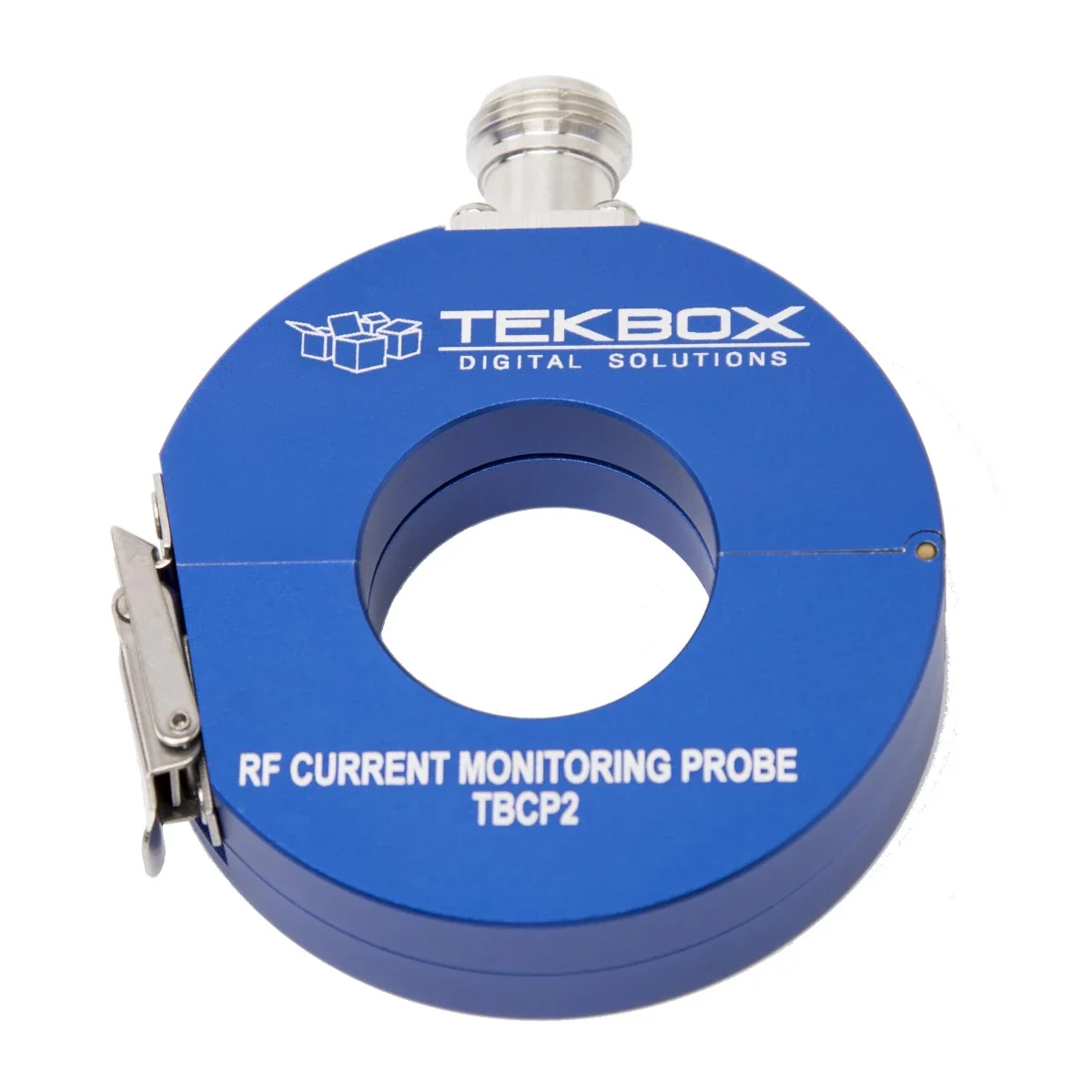

The TBCP2-500 is a snap-on RF current monitoring probe. The probe has a ver flat response with a 3dB bandwidth of 500 MHz and is characterized and useable in the frequency range from 1 kHz to 600 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 16 dB Ohm with a 3dB bandwidth from 1 MHz to 500 MHz.

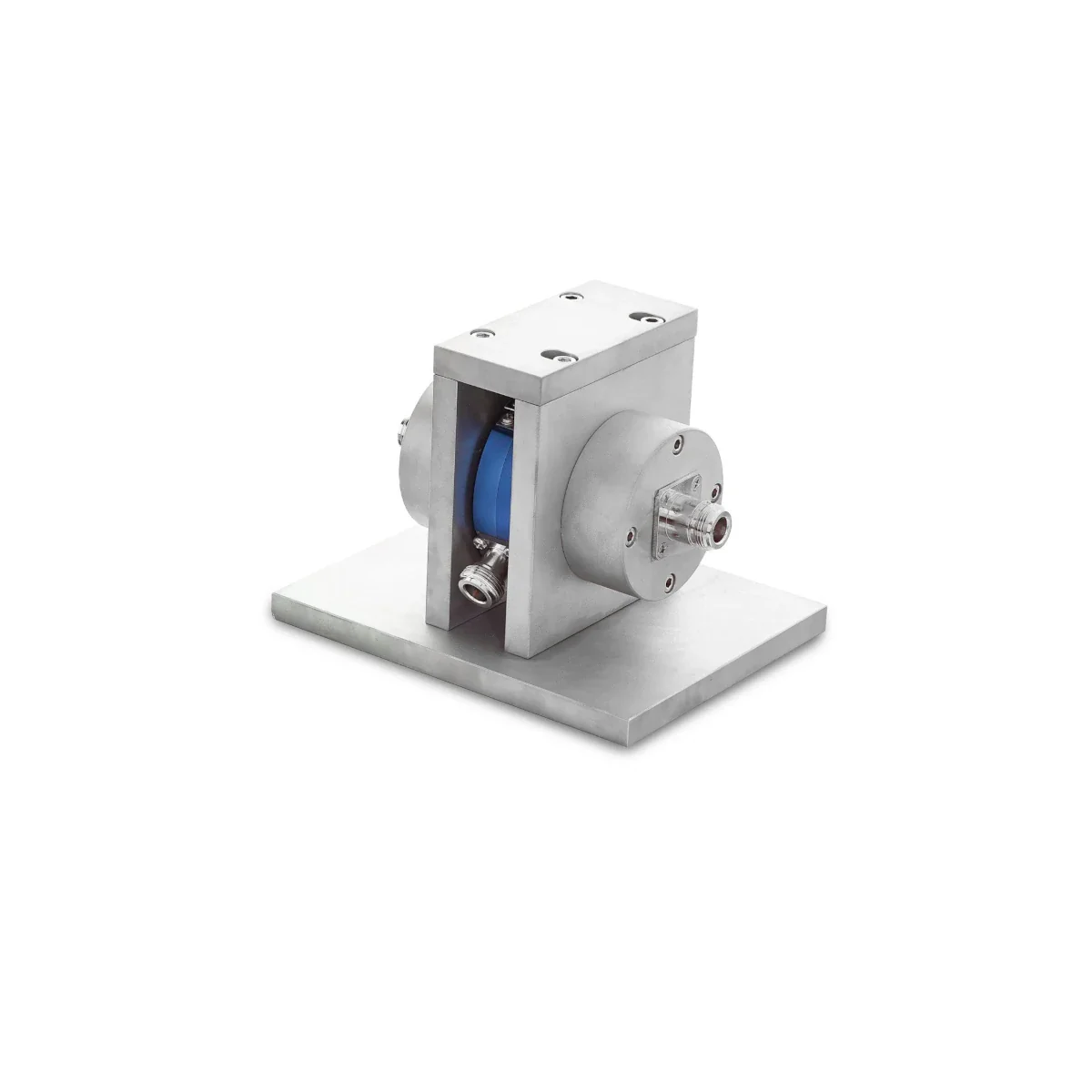

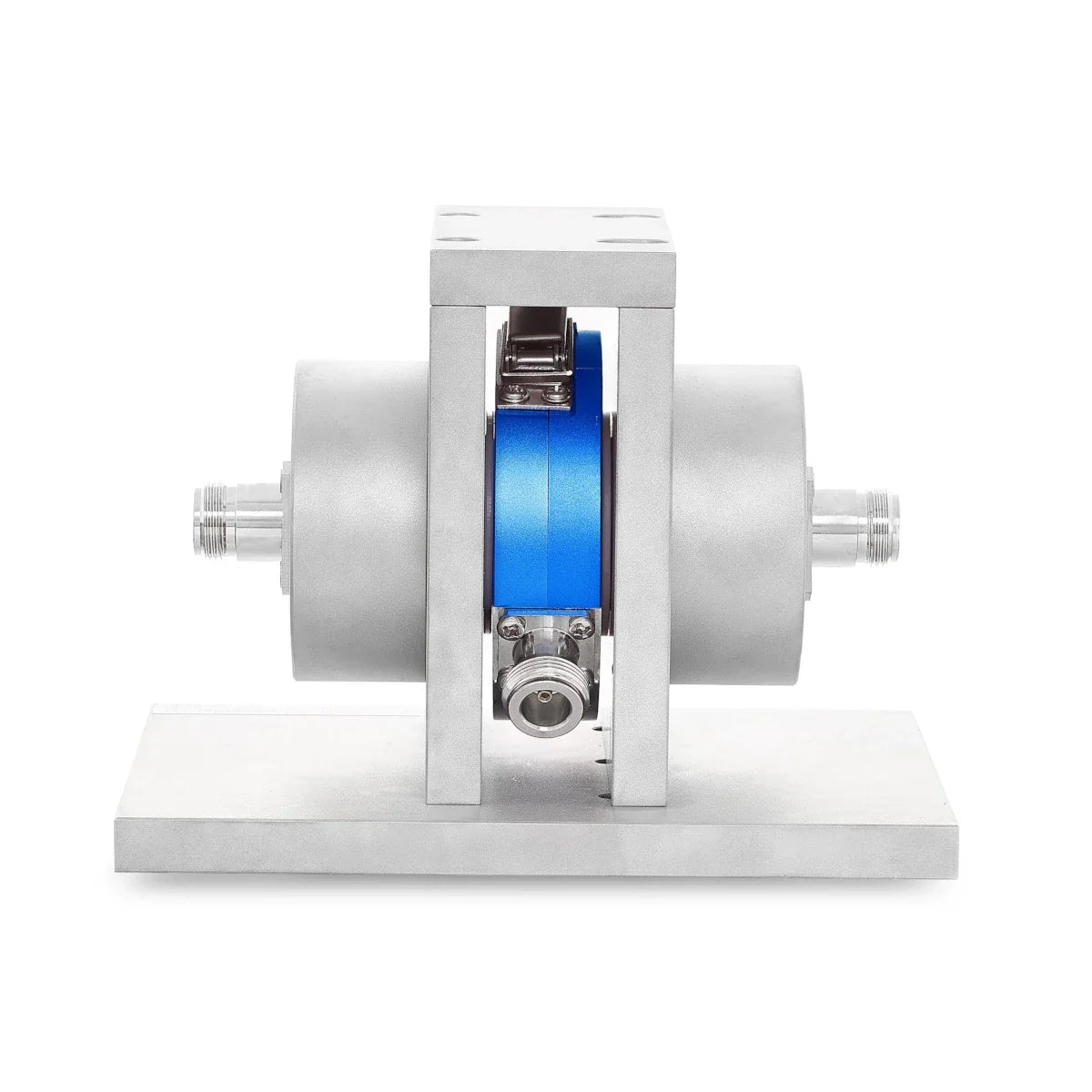

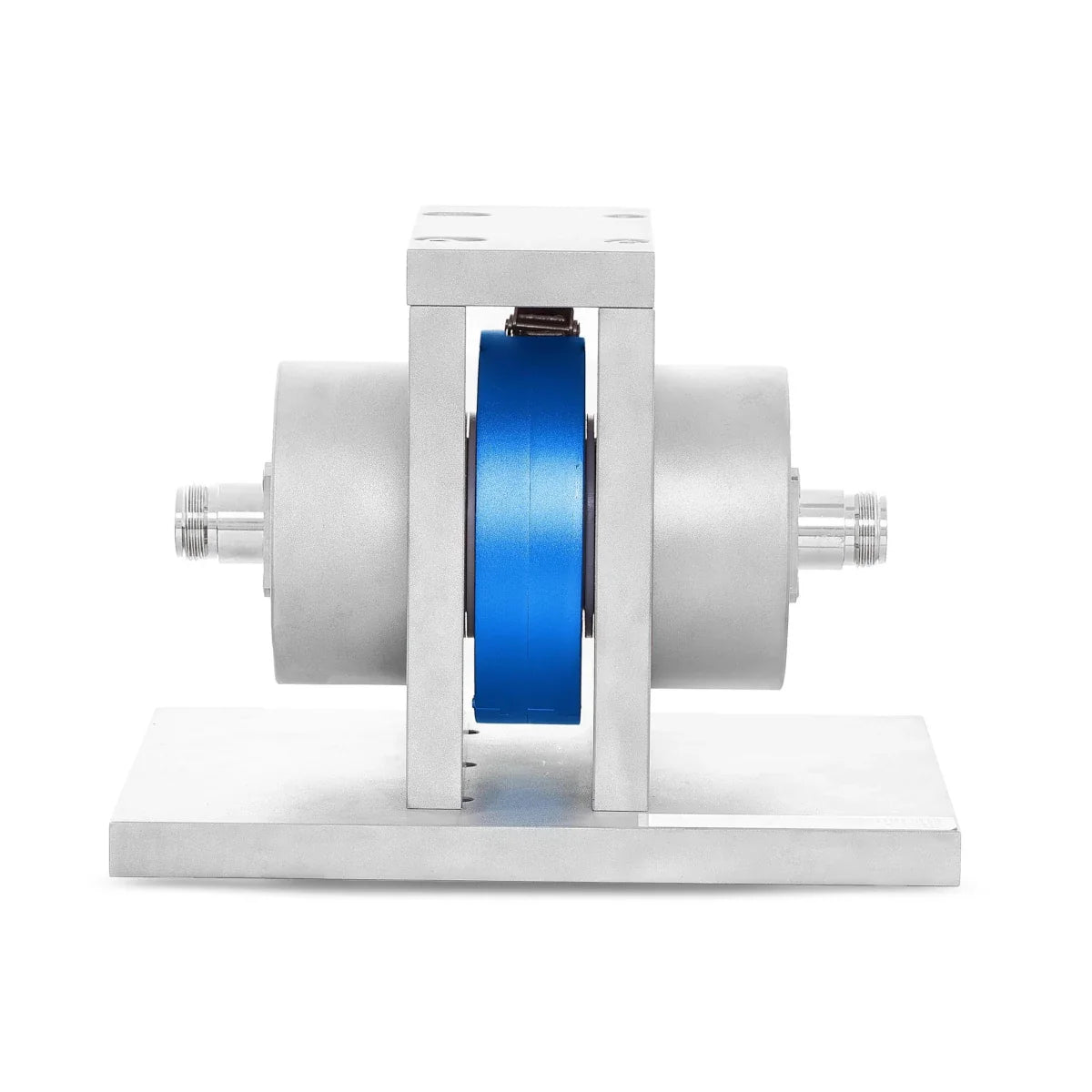

Tekbox supplies a calibration fixture corresponding with the TBCP2 series of snap on current probes.
For more information: Tekbox
Documents
Options
Video
The TBCP2-500 is a snap-on RF current monitoring probe. The probe has a ver flat response with a 3dB bandwidth of 500 MHz and is characterized and useable in the frequency range from 1 kHz to 600 MHz. The aperture of the RF current monitoring probe is 32 mm. Its transfer impedance is 16 dB Ohm with a 3dB bandwidth from 1 MHz to 500 MHz.
Tekbox supplies a calibration fixture corresponding with the TBCP2 series of snap on current probes.
