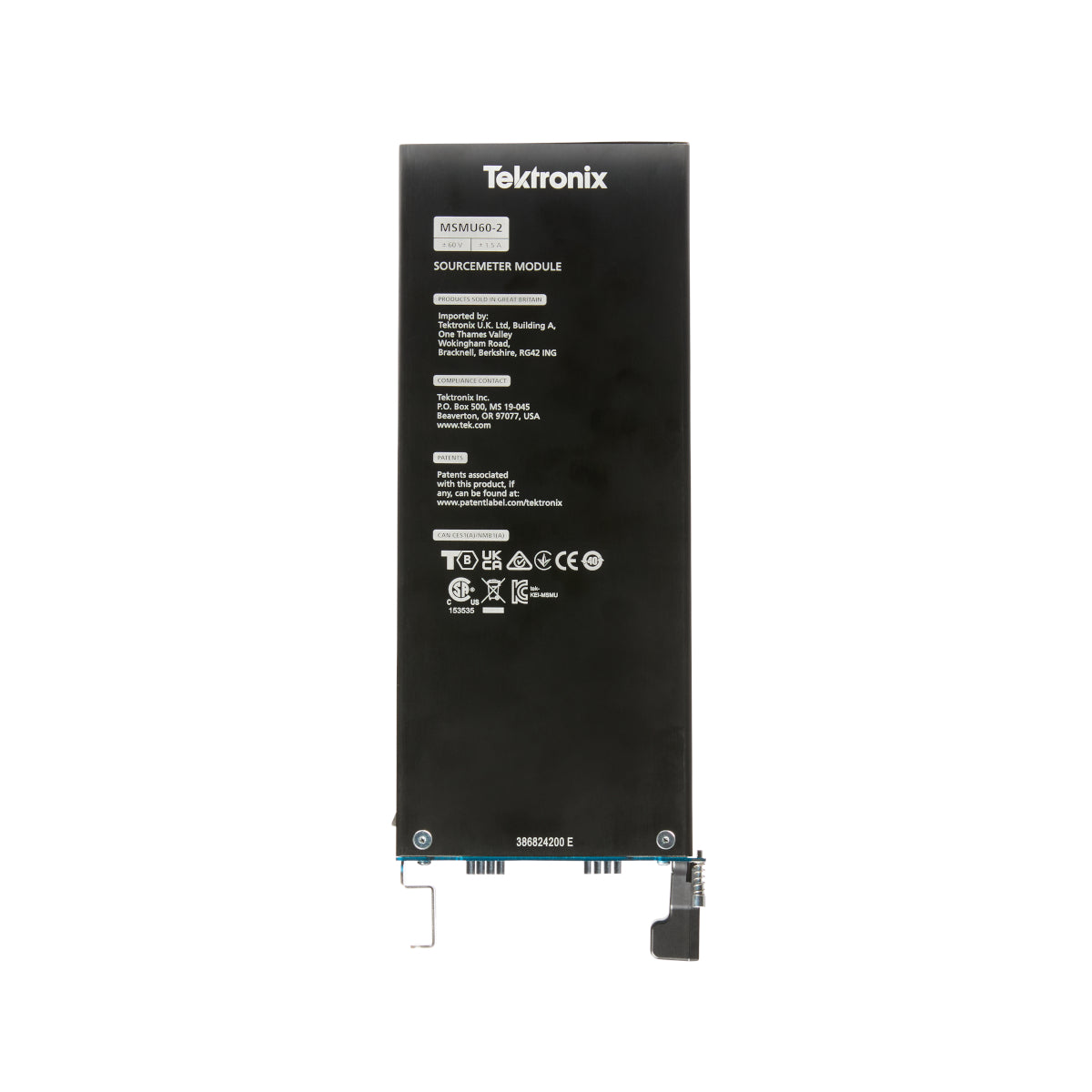

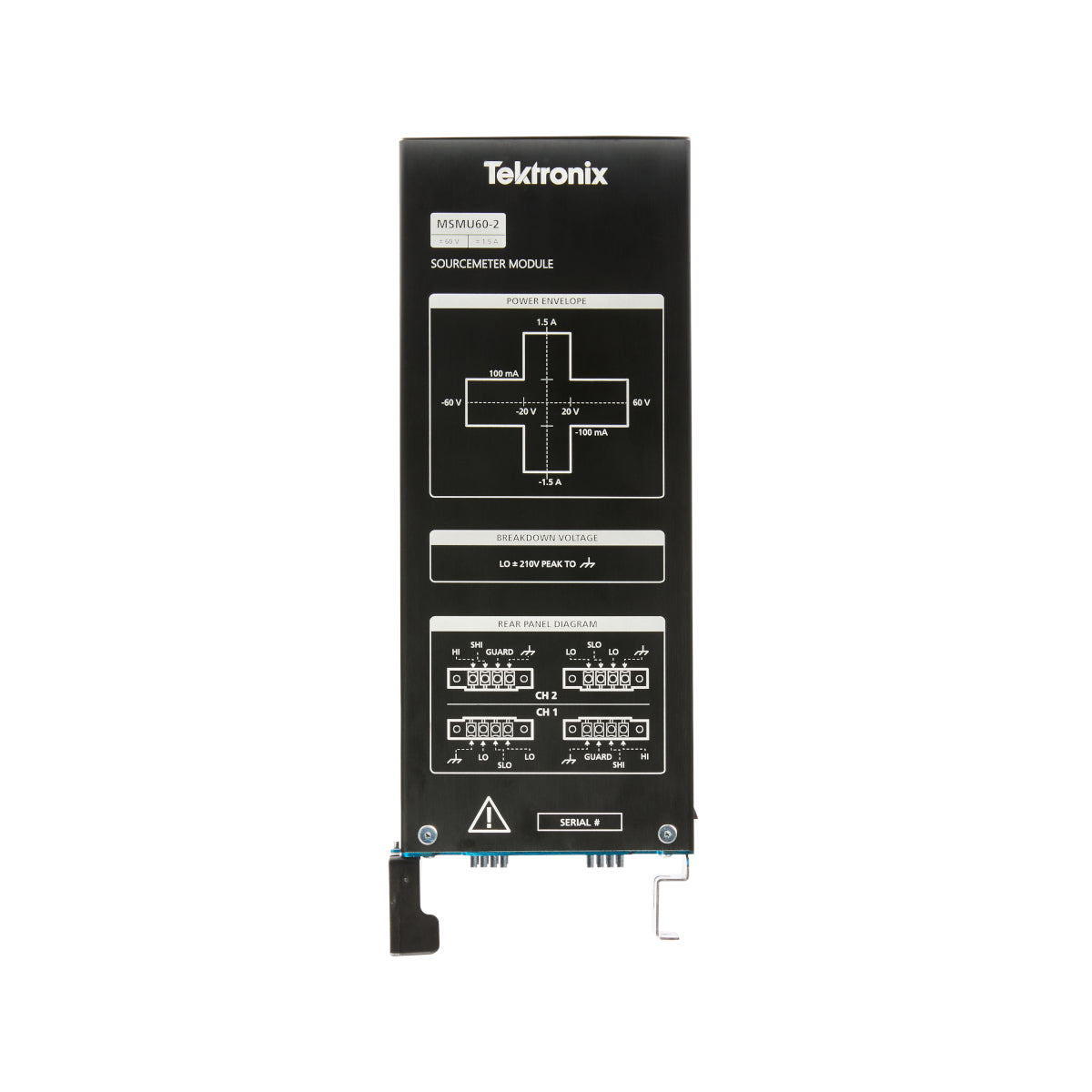

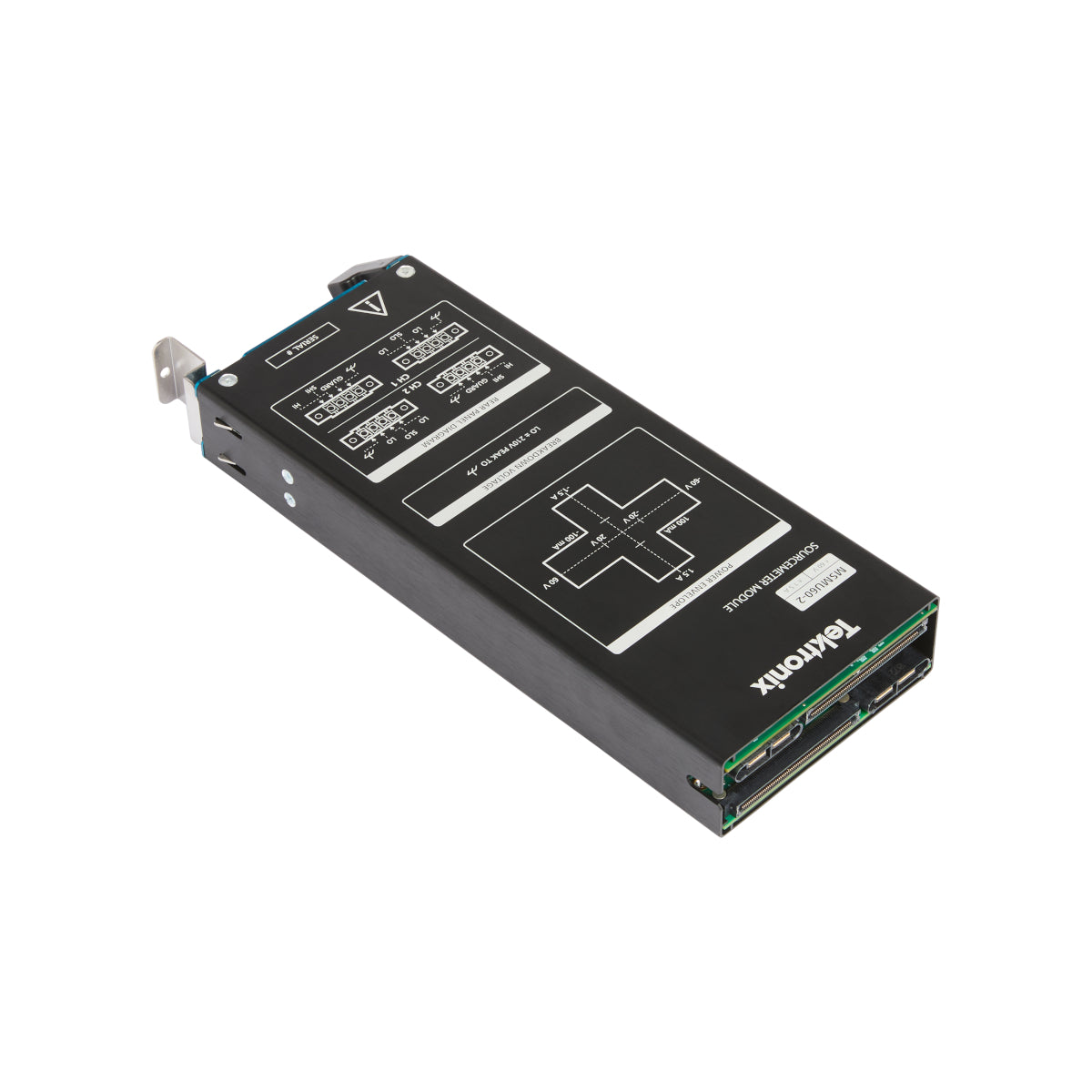

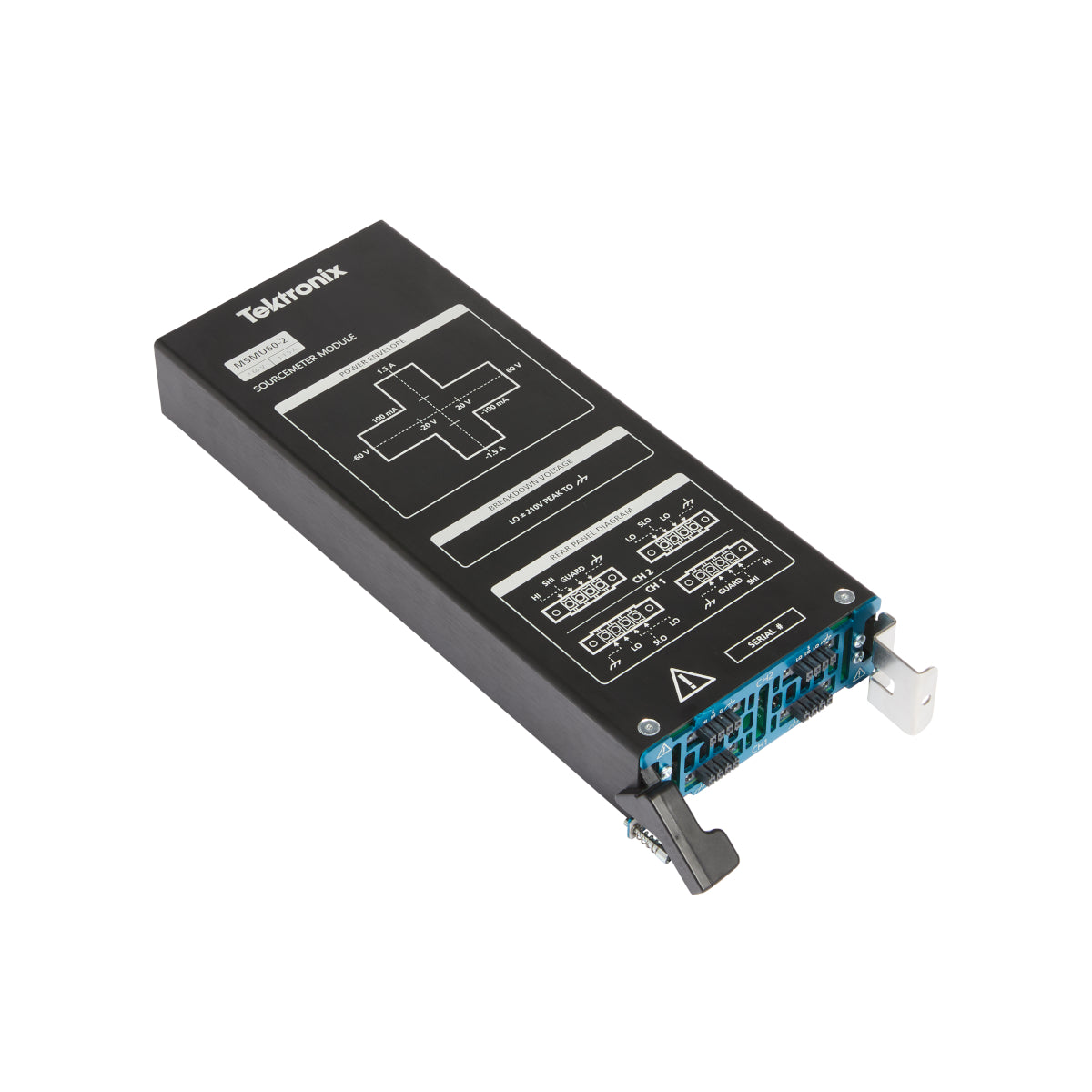

Tektronix MSMU60-2 SMU Module
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

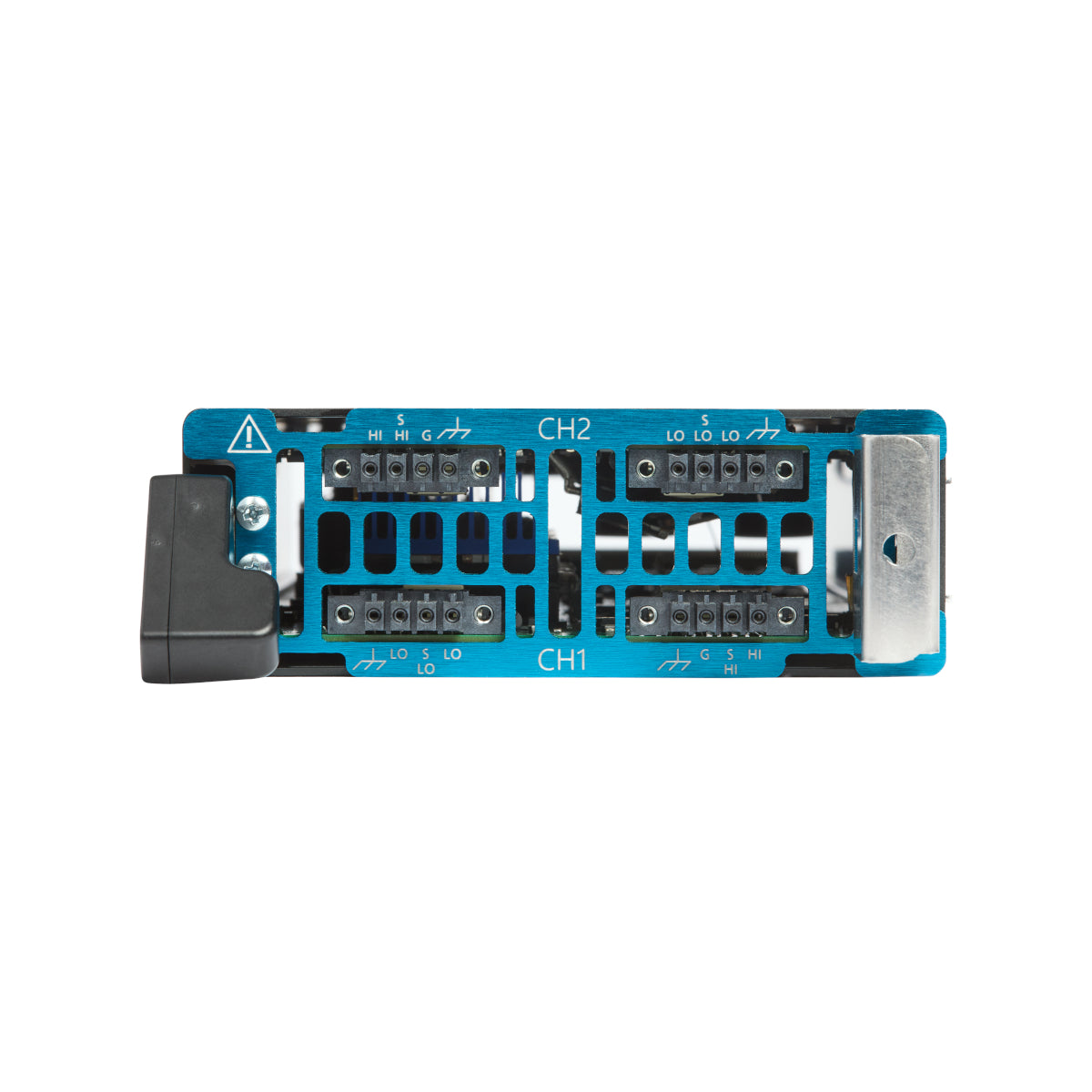

- 2 SMU channels per module, 6 channels per mainframe
- Up to 60V and up to 1.5 A per channel
- Offers 4-quadrant voltage/current source and measureor each channel with 6½-digit measure resolution down to 100 femtoamps
- Integrated 1 MSa/s ADCs for both voltage and current measurements using fast sample rates
- Up to 6 V between force and sense allowing users more flexibility in cabling and test setup
- User selectable auto-sense resistor prevents excessive voltage at Force Hi if there are contact errors
- Asymmetric Compliance: Configure independent positive and negative limit values
Discover the possibilities
More information
Description
The Tektronix MP5000 Modular Precision Test System accommodates all your sourcing needs within a 1U rack space. This top-tier automated test equipment (ATE) optimizes rack space by incorporating multiple source measure units (SMUs) and power supplies with adaptable module options. Featuring three slots and dual-channel modules, it offers up to six parallel channels. For higher channel count applications, TSP-Link™ provides a solution to connect mainframes in a master-subordinate configuration, effectively allowing them to function as one unit. This facilitates the creation of an optimized source and measurement system suitable for a wide range of applications, from validating design and debugging to complex parallel test systems used in ATE.
Customers can mix and match module configurations to optimize cost, throughput, and accuracy. For applications where low current measurements and sinking capabilities aren’t required, power supplies can be a cost-effective solution. For applications in which true current sourcing and high-speed measurements are required, consider an SMU module. The system supports a wide array of applications, and its high-density design conserves valuable rack space and reduces cost per channel. It’s engineered to deliver fast throughput for high-channel parallel testing, saving both cost and time for production and validation test users.
Specifications
Documents
Options
Video
MP5000 Series Highlights
The MP5000 Modular Test System from Tektronix is a next-generation sourcing solution designed to maximize space utilization and test throughput. Mix and match SMU and PSU modules in the same 1U mainframe with 6 total channels to expedite validation, reliability or high production test.
MP5000 Series Overview
Introducing the MP5000 Modular Test System from Tektronix. With six channels per mainframe, the MP5000 enables users to mix and match Power Supply Units and Source Measurement Units in the same mainframe. Easily swap modules to adapt to changing test needs while maximizing power and throughput.
Chapter 1: MP5000 Series Maximize Rack Space Utilization
Modular. Swappable. Rackable. Watch this video on the groundbreaking form factor of the new MP5000 Series Modular Precison Test System to see the shape of testing to come.
Chapter 2: MP5000 Series Minimize Set Up and Testing Time
Set up and get testing quickly with the MP5000 Series Modular Precision Test System. No code required. Make quick measurement configuration and diagnostics on the low-profile touchscreen display or make measurements and view readings from your PC with a simple user interface.
Chapter 3: MP5000 Series Maximize Automation Control
Integrate the MP5000 seamlessly into your existing automation environment with software frameworks like Python, C# and Labview or with compatible instrument drivers. Or go farther and enable faster test speeds with native TSP Scripting built with TSP Toolkit, a Visual Studio Code extension.
