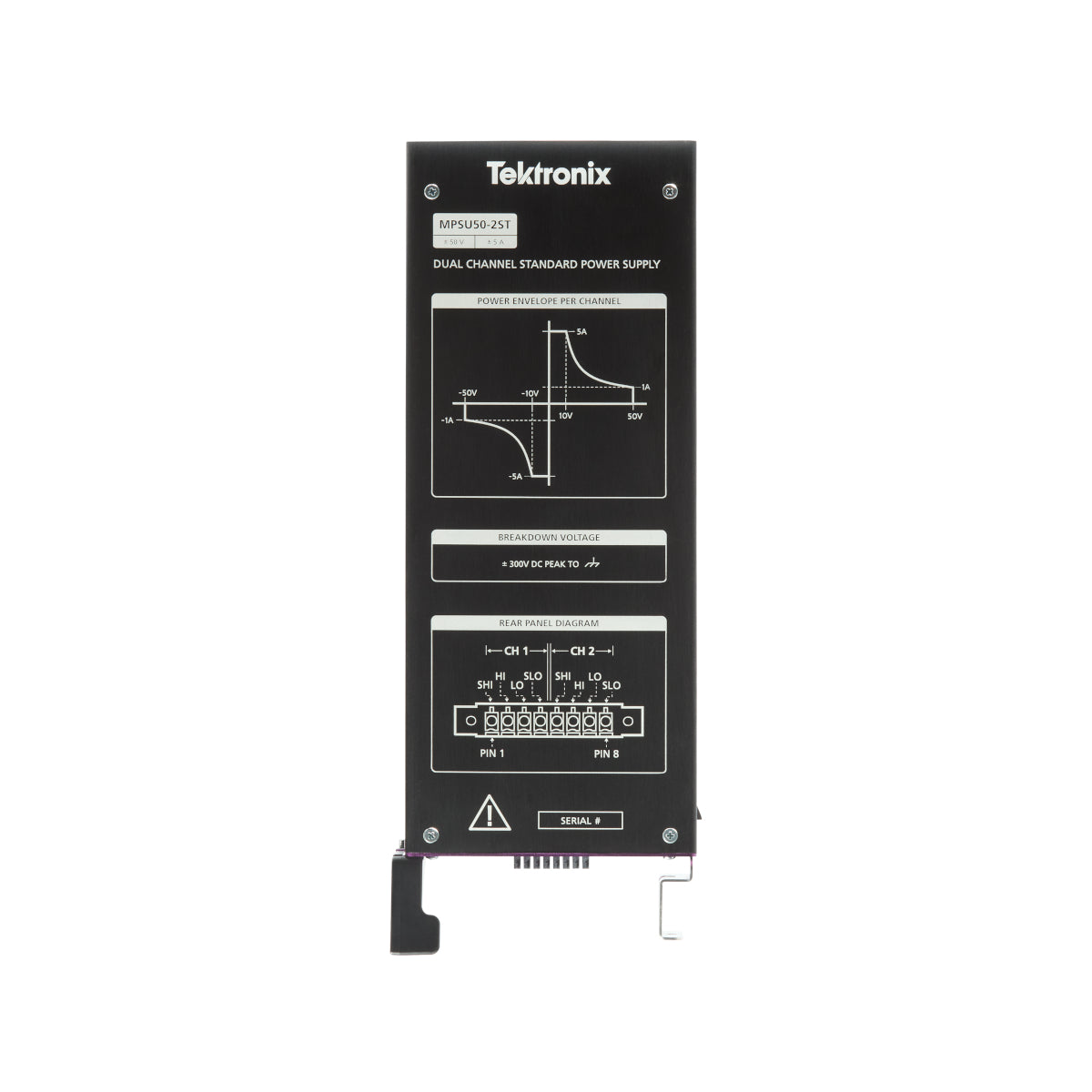

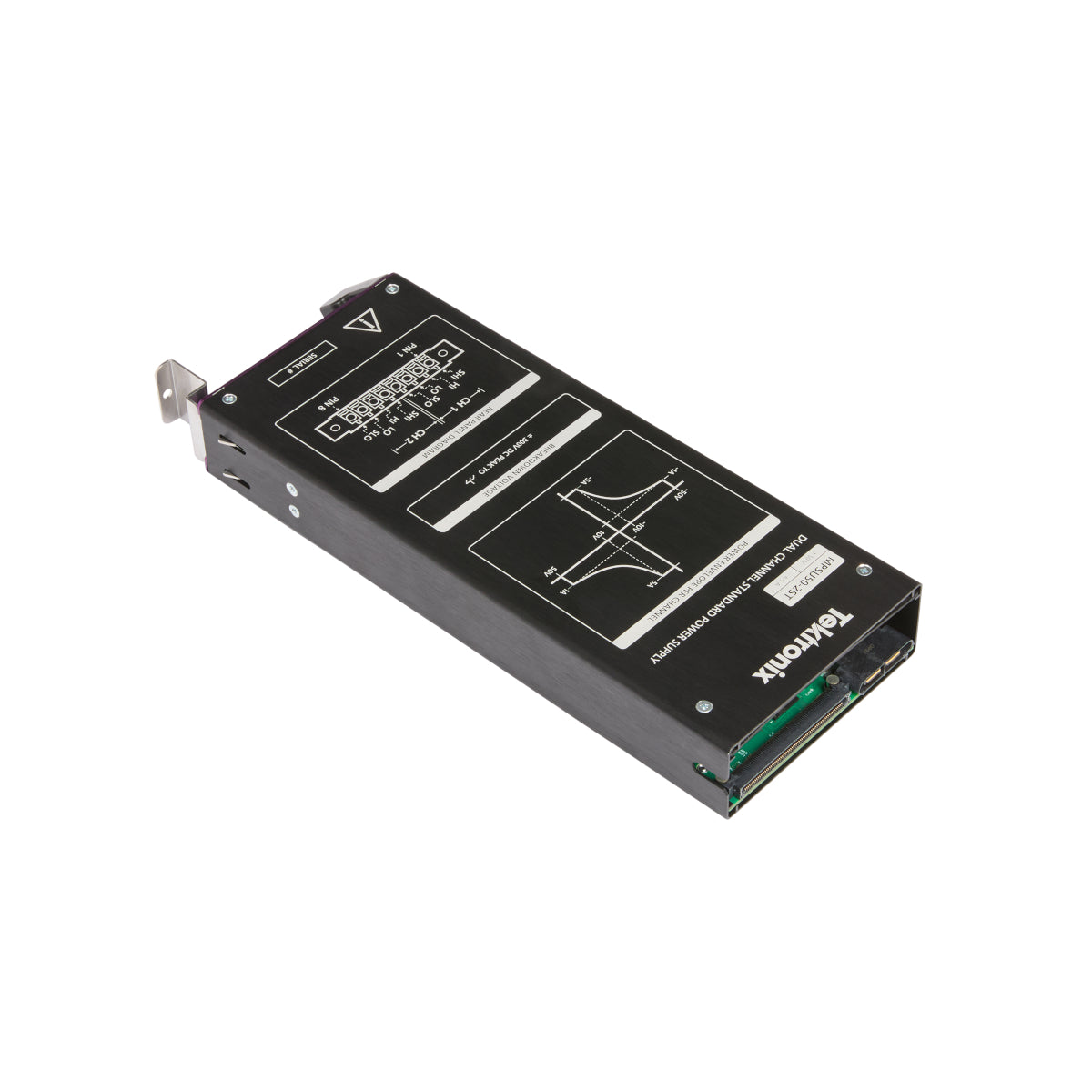

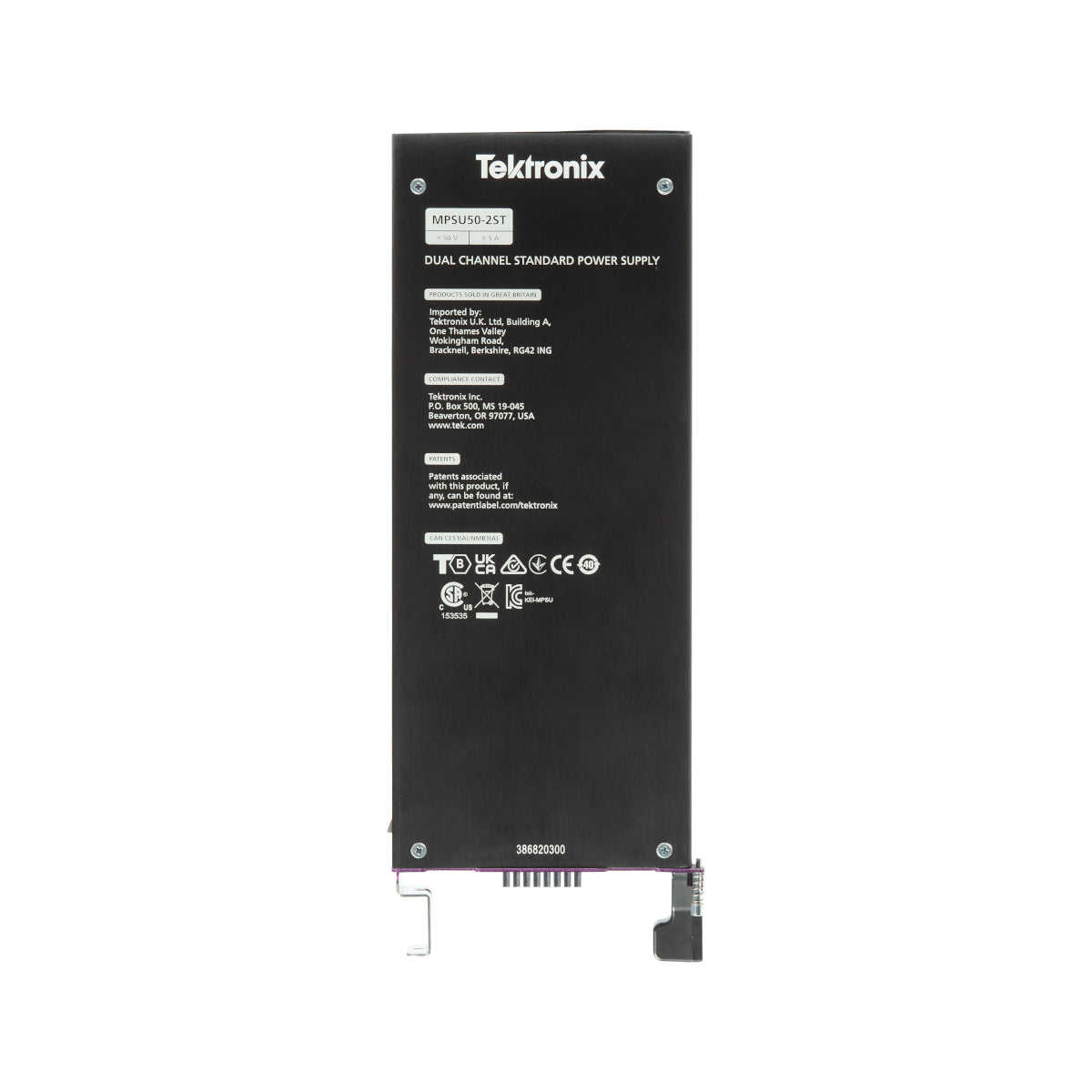

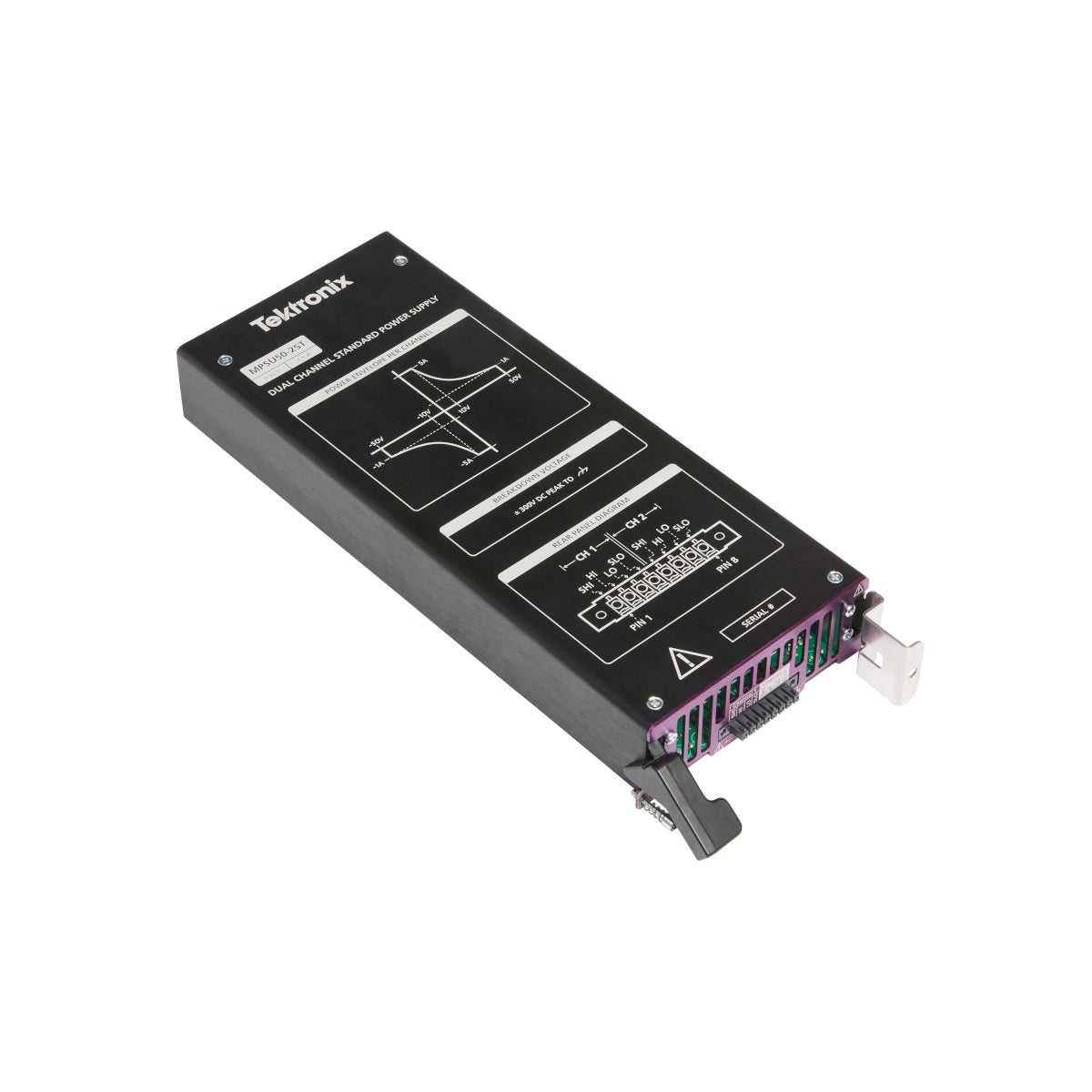

Tektronix MPSU50-2ST PSU Module
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

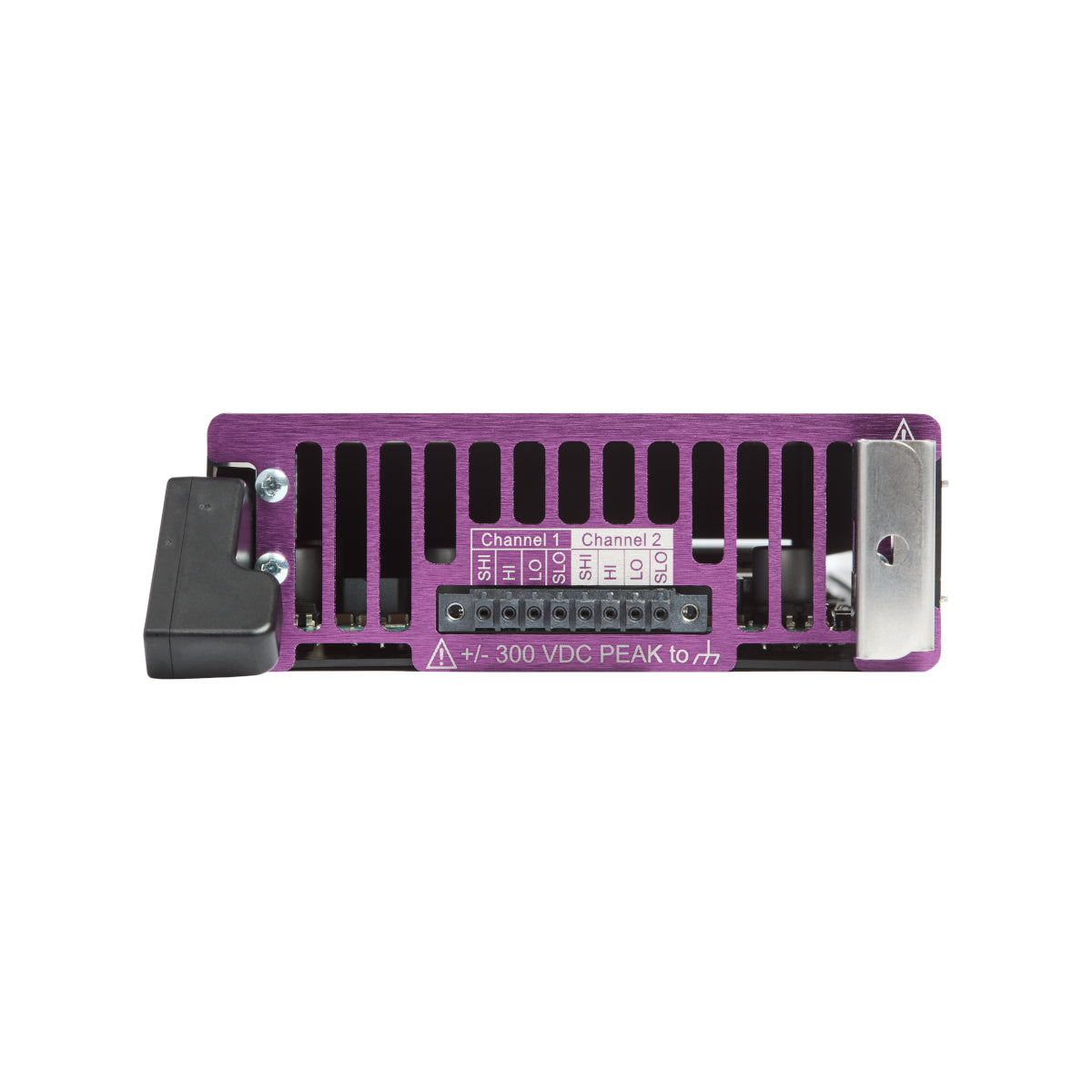

- 2 isolated channels per module, 6 channels per mainframe
- Up to 50 V and up to 5 A per channel
- Extended voltage and current ranges with up to 100 V and up to 10 A when channels are stacked in series or parallel.
- Bipolar output capability without switching the output leads
- Built-in output disconnect relay for each channel physically disconnects device under test when PSU is off
- OVP & OCP protects device from damaging signals by hardware limiting maximum voltage and current available from the PSU
- Remote sense (4-wire) for accurate voltage output at device by compensating for voltage drops at the leads
Discover the possibilities
More information
Description
The Tektronix MP5000 Modular Precision Test System accommodates all your sourcing needs within a 1U rack space. This top-tier automated test equipment (ATE) optimizes rack space by incorporating multiple source measure units (SMUs) and power supplies with adaptable module options. Featuring three slots and dual-channel modules, it offers up to six parallel channels. For higher channel count applications, TSP-Link™ provides a solution to connect mainframes in a master-subordinate configuration, effectively allowing them to function as one unit. This facilitates the creation of an optimized source and measurement system suitable for a wide range of applications, from validating design and debugging to complex parallel test systems used in ATE.
Customers can mix and match module configurations to optimize cost, throughput, and accuracy. For applications where low current measurements and sinking capabilities aren’t required, power supplies can be a cost-effective solution. For applications in which true current sourcing and high-speed measurements are required, consider an SMU module. The system supports a wide array of applications, and its high-density design conserves valuable rack space and reduces cost per channel. It’s engineered to deliver fast throughput for high-channel parallel testing, saving both cost and time for production and validation test users.
Specifications
Documents
Options
Video
The Tektronix MP5000 Modular Precision Test System accommodates all your sourcing needs within a 1U rack space. This top-tier automated test equipment (ATE) optimizes rack space by incorporating multiple source measure units (SMUs) and power supplies with adaptable module options. Featuring three slots and dual-channel modules, it offers up to six parallel channels. For higher channel count applications, TSP-Link™ provides a solution to connect mainframes in a master-subordinate configuration, effectively allowing them to function as one unit. This facilitates the creation of an optimized source and measurement system suitable for a wide range of applications, from validating design and debugging to complex parallel test systems used in ATE.
Customers can mix and match module configurations to optimize cost, throughput, and accuracy. For applications where low current measurements and sinking capabilities aren’t required, power supplies can be a cost-effective solution. For applications in which true current sourcing and high-speed measurements are required, consider an SMU module. The system supports a wide array of applications, and its high-density design conserves valuable rack space and reduces cost per channel. It’s engineered to deliver fast throughput for high-channel parallel testing, saving both cost and time for production and validation test users.
