Your Solution for High-Precision Data Acquisition – Save 20% Now!

Valid until 19. December 2025

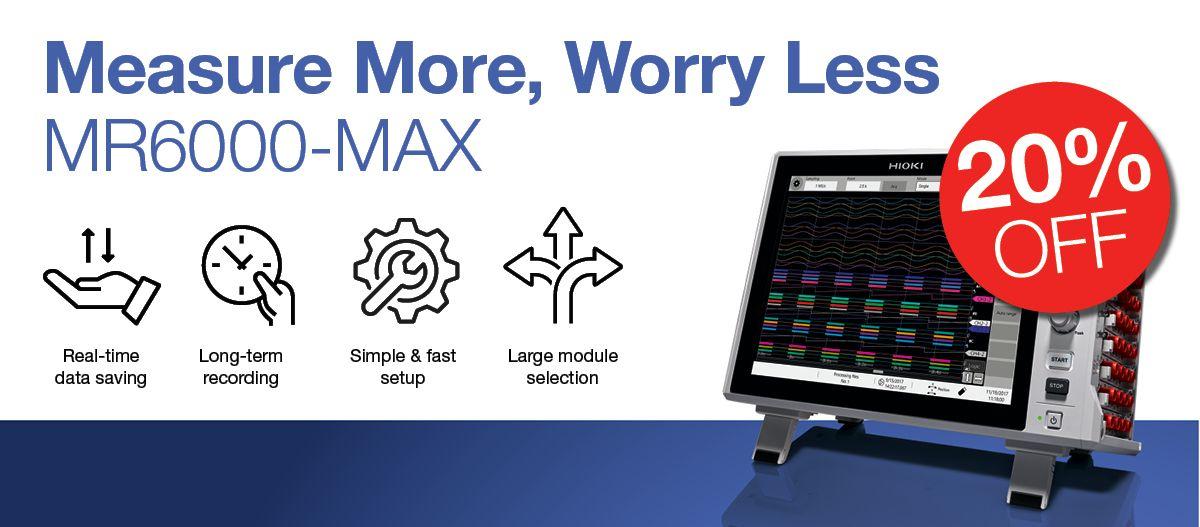

Get 20 % off the MR6000-01 Memory Recorder with our limited-time bundle MR6000-MAX. Experience unmatched accuracy, reliability, and efficiency in data acquisition – faster and more powerful than ever before.

MR6000-MAX Bundle: Boost your productivity

Get the most powerful data acquisition setup and save 20%(1) with our limited-time bundle MR6000-MAX.

This bundle includes the powerful MR6000-01 Memory Recorder, the U8332 SSD Unit, and the Z5021 Probe Power Unit. This combination provides you with everything you need to maximize your DAQ measurement performance and take your workflow to the next level.

(1) The 20% savings result from the MR6000-MAX bundle price compared to the list price of the MR6000-01 Memory Recorder, U8332 SSD Unit, and Z5021 Probe Power Unit. Please note that modules and accessories are not included in this promotion, allowing you the flexibility to tailor your setup to your specific measurement needs.

Take action now and elevate your measurement quality!

The Powerful Trio: Max Precision, Max Storage, Max Simplicity

1. MR6000-01 Memory Recorder

The MR6000-01 Memory Recorder is a high-performance waveform recorder designed for capturing high-speed, high-accuracy data across multiple channels. Its modular design ensures versatility for various applications, while the 12.1-inch touchscreen and intuitive software provide optimum functionality and user experience.

• Up to 200 MS/s sampling
• 8 slots & up to 32 isolated channels
• Selection from 15 input & 3 output modules
• 12.1-inch capacitive touch screen for intuitive operation and enhanced analysis capabilities
• Real-time saving function for seamless, uninterrupted data capture


2. U8332 SSD Unit

The U8332 SSD Unit is a high-performance storage solution tailored for uninterrupted, long-duration data acquisition. With its 256 GB capacity, it ensures long-term real-time saving at speeds as high as 20 MS/s. The recorded data remains uncompromised even if the device is powered off.

• 256 GB SSD for extended recording and secure storage
• Supports long-term data recording at high speeds of up to 20 MS/s

3. Z5021 Probe Power Unit

The Z5021 Probe Power Unit simplifies the integration of current sensors and differential probes by providing power to up to 8 current probes or differential probes directly. This reduces the complexity of your measurement setups significantly.

• Simplifies connections by eliminating the need for external power supplies.
• Powers up to 8 BNC current sensors or probes, streamlining setup.
• Enables compatibility with a wide range of HIOKI current clamps, e.g. CT67xx Series.
• Supplies power up to 8 differential probes (e.g. HIOKI 9322).


Real-time saving: what's in it for me?

Real-time data saving ensures reliable data recording without the risk of losing any data, even for applications that require long-term measurements and the precision of the full data spectrum.

My Advantages

🌪️ Long-term recording with up to 20 MS/s

⌛ Extended recording durations, limited only by the storage capacity of the external device

💾 Record on the SSD, USB stick or choose any other device (via FTP)

⚡ Non-volatile memory guarantees data integrity and ensures that recorded data stays secure and ready for retrieval, even when the device is powered off

One DAQ Solution - Infinite Applications

Aerospace and Defense

Ensure mission-critical reliability with high-speed data acquisition for avionics, radar systems, components testing.

Railway and Transportation

Safeguard and enhance railway operation through reliable monitoring of propulsion, braking systems, power supply or other key components.

Automotive Testing

Precisely measure and analyze high-speed signals and long-term performance in ICE- and electric vehicles, batteries, and inverters.

Energy and Power Systems

Monitor power fluctuations and renewable energy systems with real-time data logging and analysis.

Industrial and Manufacturing

Optimize and maintain industrial processes and machinery with long-term monitoring and diagnostics.

Build your ideal DAQ setup with extensive MR6000 module range

Input Modules

Combine up to 8 modules in total to achieve a powerful data recording setup, selecting from 15 input and 3 output modules to perfectly match your application needs.

1. Voltage modules

Equip your Memory Recorder with your individual combination from a wide range of versatile input modules for precise voltage measurement. The MR6000 even offers options for high-speed, high-sensitivity, and high-voltage applications.

• U8976 - High-speed Analog Module: 2 ch., 200 MS/s, DC to 30 MHz, 12 bits, 400 VDC, BNC terminal
• U8974 - High-voltage Module: 2 ch., 1 MS/s, DC to 100 kHz, 16 bits, 1000 VDC, 700 VAC, banana input
• 8966 - Analog Module: 2 ch., 20 MS/s, DC to 5 MHz, 12 bits, 400 VDC, BNC terminal
• U8975 - 4 ch Analog Module: 4 ch., 5 MS/s, DC to 2 MHz, 16 bits, 200 VDC, BNC terminal
• U8978 - 4 ch Analog Module: 4 ch., 5 MS/s, DC to 2 MHz, 16 bits, 40 VDC, BNC terminal
• 8968 - High-resolution Module: 2 ch., 1 MS/s, DC to 100 kHz, 16 bits, 400 VDC, BNC terminal
• 8972 - DC/RMS Unit: 2 ch., 1 MS/s, DC to 400 kHz, 12 bits, 400 VDC, BNC terminal
• MR8990 - Digital Voltmeter Module: 2 ch., 2 ms, 24 bits, 500 VDC, banana input


2. Current modules

HIOKI offers two designated modules for current measurement. HIOKI current clamps and sensors with ME15W or PL23 connectors can be directly plugged and powered through the modules. The current clamps and sensors are automaitcally recognized by the MR6000-01. The wide range of current sensing solutions is further extended by combining the analog units with BNC current sensors (e.g. CT671x Series).

• U8977 - 3 ch Current Module: 3 ch., 5 MS/s, DC to 2 MHz, 16 bits, ME15W terminal. For ME15W current clamps and sensors
• 8971 - Current Module: 2 ch., 1 MS/s, DC to 100 kHz, 12 bits, PL23 terminal. For PL23 current clamps and sensors; ME15W clamps and sensors can be connected via CT9901 Conversion Cable


3. Other module types

In addition to voltage and current measurement, HIOKI offers a diverse range of input modules for various measurement items – from temperature and acceleration to strain, frequency, and more.

• 8967 - Temperature Module: 2 ch., 1.2 ms, 16 bits, push-button type terminal. For thermocouples K, J, E, T, N, R, S, W, B
• U8969 - Strain Module: 2 ch., 200 kS/s, DC to 20 kHz, 16 bits, NDIS connector EPRC07-R9FNDIS.  For acceleration, load, pressure, or strain
• 8970 - Frequency Module: 2 ch., 200 kS/s, DC to 100 kHz, 400 VDC, 16 bits, BNC terminal. For frequency, rotation or pulse
• U8979 - Charge Module: 2 ch., 200 kS/s, DC to 50 kHz (DC), 1 Hz to 50 kHz (AC), 16 bits, BNC terminal.  For acceleration (piezoelectric pickup) with built-in pre-amplifier
• 8973 - Logic Module: 4 probes / 16 ch., mini DIN connector.  Compatible logic probes: 9320-01, 9327, 9321-01


Output Modules

The MR6000-01 Memory Recorder supports three output modules, including pulse and waveform generation for signal testing and simulation. These allow users to program and generate custom waveforms, ideal for reproducing and simulating anomalies. The free SF8000* software simplifies waveform creation by enabling direct data input or formula-based design and supports noise simulation or multiplying waveforms for advanced scenarios.

U8793 - Arbitrary Waveform Generator Module: 2 ch., -10 V to +15 V, output frequency: 0 Hz to 100 kHz DC, Sine wave, Square wave, Pulse wave, Triangular wave, Ramp wave

MR8790 - Waveform Generator Module: 2 ch., -10 V to +10 V, output frequency: 0 Hz to 20 kHz DC, Sine wave

MR8791 - Pulse Generator Module: Pattern output: read frequency 0 Hz to 120 kHz, 2048 logic patterns. Pulse output: frequency 0 Hz to 20 kHz, duty 0.1% to 99.9%. Logic output: 0 V to 5 V. Open collector output

Secure your MR6000-MAX bundle today!
