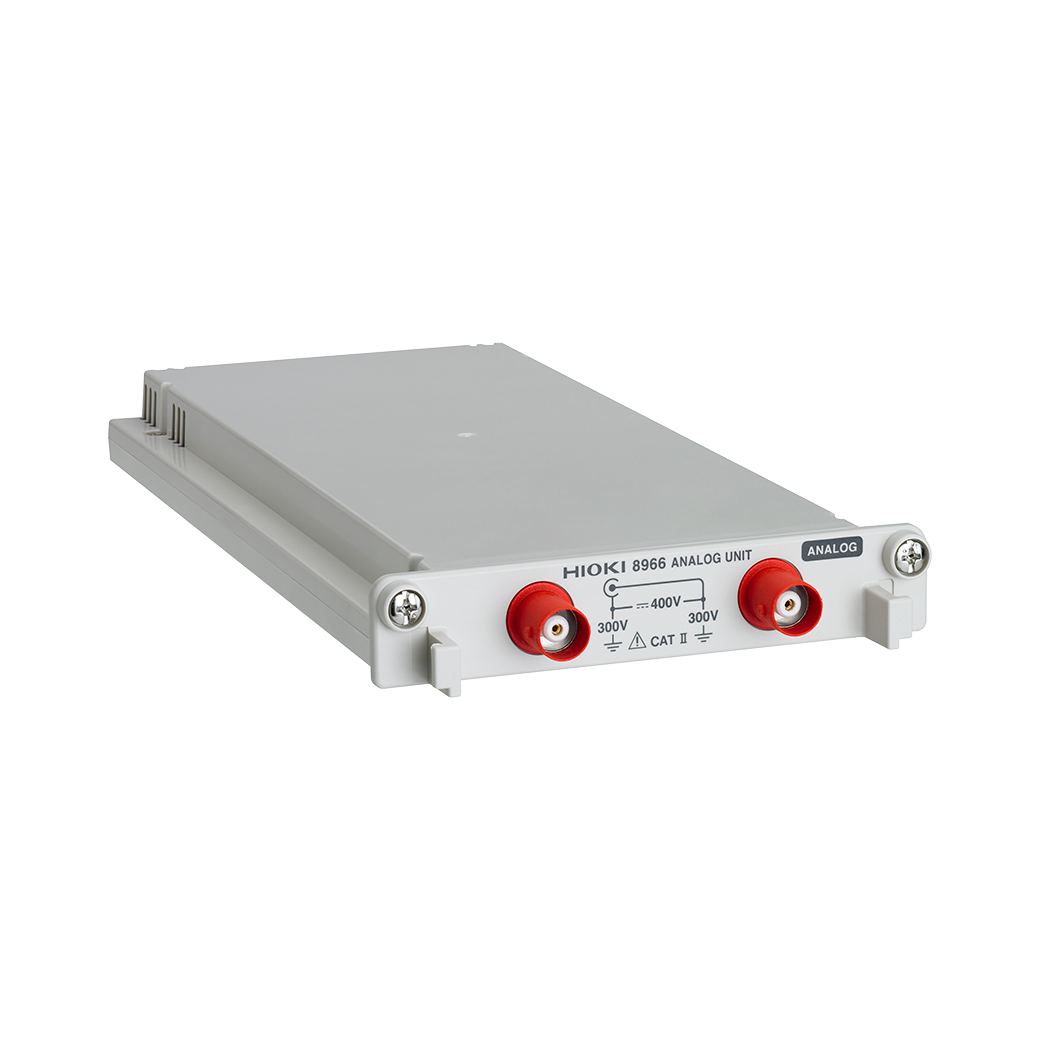

Hioki 8966 Memory HiCorder
Key Features
• 12-bit A/D resolution measurement
• Reliably capture instantaneous waveforms using high speed 20MS/s sampling and A/D converter
• Isolated input, up to 300 V AC/DC from the earth
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)
| Measurement functions | Number of channels: 2, for voltage measurement |
|---|---|
| Input connectors | Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF),Max. rated voltage to earth: 300 V AC, DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage) |
| Measurement range | 5 mV to 20 V/div, 12 ranges, full scale: 20 div, (AC voltage for possible measurement/display using the memory function: 280 V rms)Low-pass filter: 5/50/500 Hz, 5 k/50 k/500 kHz |
| Measurement resolution | 1/100 of measurement range (using 12-bit A/D conversion and when installed in the 8847) |
| Highest sampling rate | 20 MS/s (simultaneous sampling across 2 channels) |
| Measurement accuracy | ±0.5 % of full scale (with filter 5 Hz, zero position accuracy included) |
| Frequency characteristics | DC to 5 MHz -3 dB, with AC coupling: 7 Hz to 5 MHz -3dB |
| Input coupling | AC/DC/GND |
| Max. allowable input | 400 V DC (the maximum voltage that can be applied across input pins without damage) |
| Dimensions and mass | 106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz) |
| Accessories | None |
