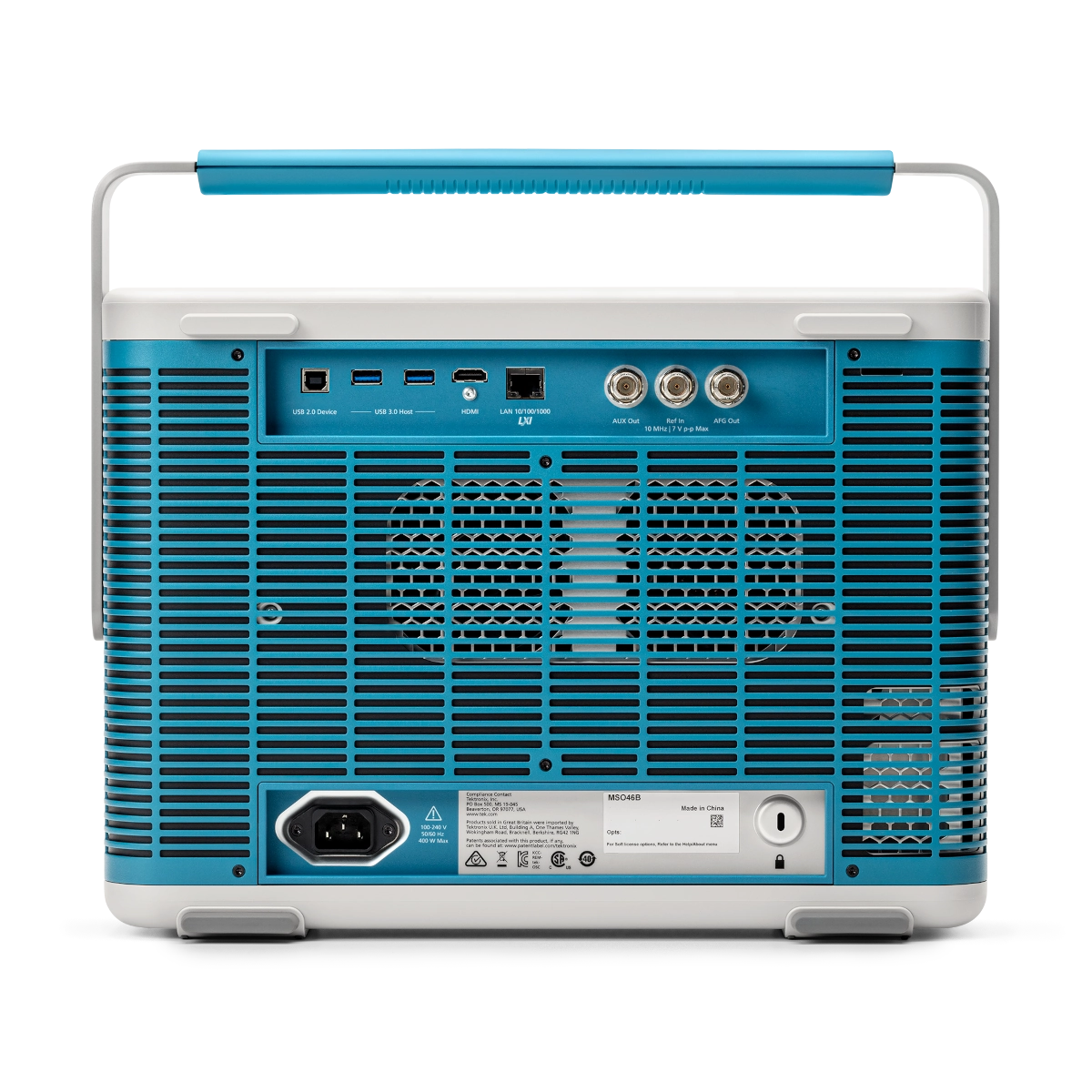

DEMO - Tektronix MSO44B 200 MHz Oscilloscope
68.180,00 incl. VAT
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Analog Bandwidth - 200 MHz
- Analog Channels - 4
- Digital Channels - Up to 32 (Optional)
- Sample Rate - 6.25 GS/s
- Record Length - 31.25 M to 62.5 M
%0ASample%20Rate%20-%206.25%20GS/s%0ARecord%20Length%20-%2031.25%20M%20to%2062.5%20M%0A
){kind=link}
Discover the possibilities
More information
Description
What’s new in the 4 Series B
- Faster processor
- > 2X more responsive UI
- > 1.5X faster data transfers
- Faster analysis and serial decoding
- New display with greater contrast and viewing angle
- Two USB 3.1 host ports
- Fast e*Scope browser-based remote access
Big HD display and award-winning user interface
With the same made-for-touch user interface technology as the award-winning 5 Series in a compact package, the 4 Series B MSO sets a new expectation of how a scope should work.
- 13.3-inch high-contrast HD display
- 6.1-inch (15.5 cm) deep bench-friendly footprint
Precise measurements and up to 6 super-flexible channels
- Fine signal detail and accurate measurements on all channels
- 12-bit vertical resolution (16-bit in high res mode)
- 6.25 GS/s on all analog and digital channels
- Up to 62.5 Mpoints record length
- Any channel can show a waveform, RF spectrum, or both
- Any input can be used to view eight digital channels by connecting a logic probe
Outstanding analysis
- Discover the capability the 4 Series B can bring to your bench
- Broad range of smart TekVPI probes
- Multi-channel spectrum analysis
- Up to 48 digital logic inputs
- Over 25 available serial protocols
- Built-in arbitrary/function generator
- AC/DC power supply measurements
- Automated double pulse testing
- 3-Phase power analysis
- Field upgradeable -- get the tools you need now or add them later, without having to return the instrument
For more information: Tektronix
