Wentworth FA Series Semi-automatic analytical probers
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Pegasus™ S200FA supports full and partial wafers to 200 mm
- Pegasus™ S300FA supports full and partial wafers to 300 mm
- Temperature ranges from -60°C to +400°C
- Compatible with a wide range of cantilever probe cards
- Motorized and manually driven manipulators
- Programmable and manual microscope mounts
- Lasers for cutting and marking
Discover the possibilities
More information
Description

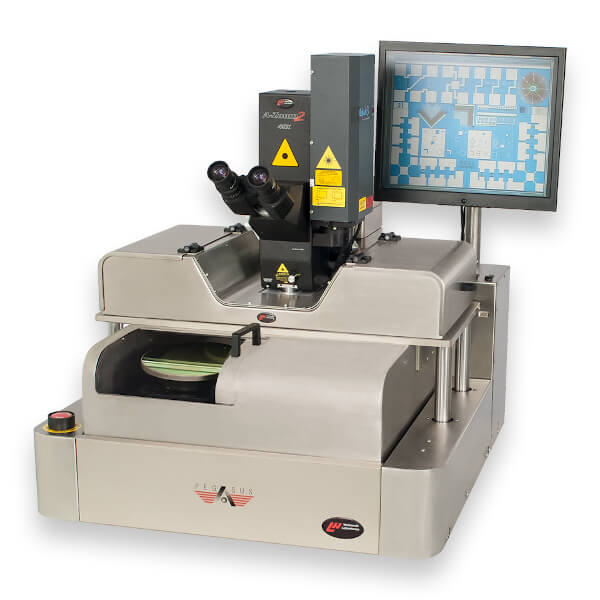

Wentworth FA Series Semi-automatic analytical probers
PEGASUS™ S200FA & S300FA
SEMI-AUTOMATIC ANALYTICAL PROBE STATIONS FOR 200 MM AND 300 MM WAFERS
Pegasus™ FA series semi-automatic wafer probers offer a remarkably versatile probing platform, designed specifically for failure analysis applications, device characterization, DC, low leakage, high voltage, radio frequency, microwave, die probing, low volume wafer probing and ultra-fine geometries at die level.
For testing of high voltage semiconductor power devices, we offer a specially configured solution, the S200FA-HV wafer prober.
FA series wafer probers set the highest standard for versatility and ease of operation. With customizable hardware, accessories and software, our solutions can be tailored to any of your specific requirements. Furthermore, this flexibility means that our probers can be upgraded at any time to meet your future probing needs and secure a solid return on your investment.
WIDE RANGE OF APPLICATIONS
- Failure analysis
- Design verification
- Thermal characterization

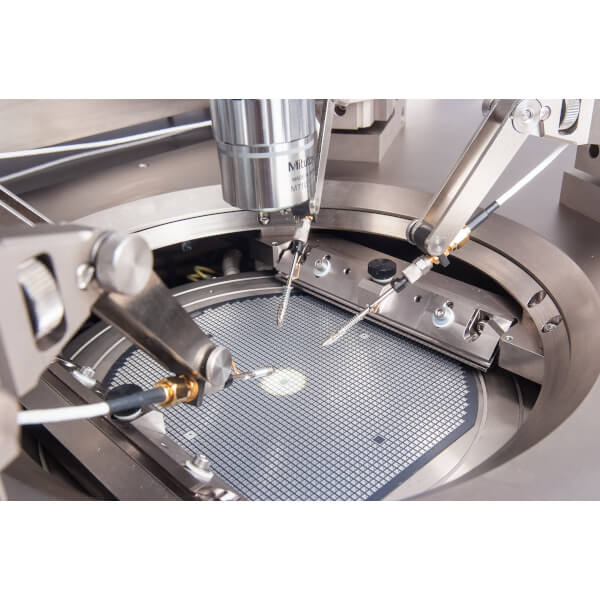

- Parametric testing
- Ideal for MEMS

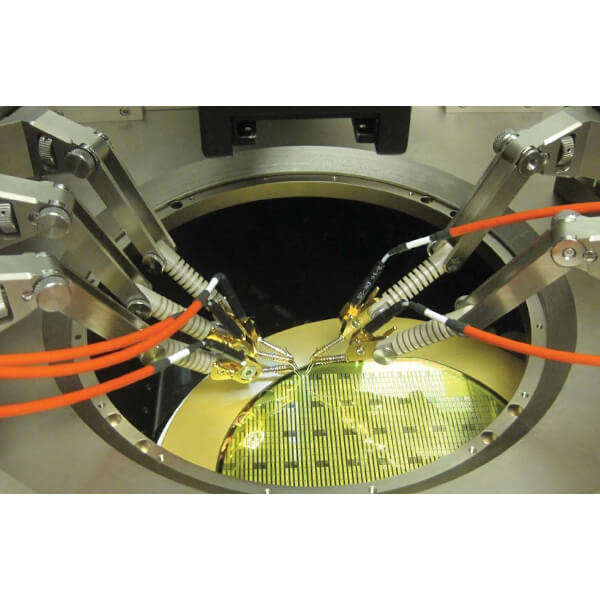

- High power testing
- RF testing
- mmWave testing
EASY TO USE
Ergonomic controls with joystick and LCD monitor make the Pegasus™ FA series one of the easiest prober platforms on the market.
Quick start up and simple menus allow users to be probing in minutes, whilst intuitive controls ensure that minimal operator training is required. Optional LabMaster™ FA software enables novice and advanced user to design sophisticated test routines.
The FA series probers can be used in ‘local’ or ‘remote’ mode. Thanks to this flexibility, the prober easily integrates with industry standard testers and data acquisition software, such as LabVIEW™.
POSITIONING ACCURACY
Precision ball-screws and stepper motors deliver repeatable accuracy over a wide temperature range thanks to Wentworth’s exclusive calibration process.
CUSTOM SOLUTIONS
With over 50 years of experience serving the semiconductor industry, we can support even the most challenging application to be managed within standard lead times and budgets.
Hardware and software solutions can be customized to your wafer prober and tester requirements. Our wide range of wafer prober accessories ensures that your prober can be configured for a variety of applications at affordable cost.
