Wavecontrol WaveMon RF-8 RF Personal Monitor
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- OVEREXPOSURE WARNING - Audible, visual and vibration alarm
- ICNIRP, 2013/35/EU, FCC AND SC6 (2015) - Weighted response to any standard
- EXPOSIMETER WITH DATALOGGER - USB downloading and configuration
- HARNESS, BELT OR ARM HOLDER - Professional and convenient
%0A-%20Weighted%20response%20to%20any%20standard%0A%0A%20%09%0AEXPOSIMETER%20WITH%20DATALOGGER%0A-%20USB%20downloading%20and%20co...
){kind=link}
Discover the possibilities
More information
Description
Wavecontrol WaveMon RF-8 RF Personal Monitor
ELECTRIC AND MAGNETIC FIELD DETECTION
Isotropic sensors with RMS response
WEIGHTED RESPONSE TO INTERNATIONAL STANDARDS
ICNIRP, European Directive 2013/35/EU, FCC and Safety Code 6 (2015)
HIGH INTENSITY AUDIBLE, VISIBLE AND VIBRATORY ALARM
With user definable trigger threshold
EXPOSIMETER WITH DATALOGGER
Data collecting and Reporting
GPS AND ALTIMETER
Geolocation of measurements
HUGE AUTONOMY
More than one month using two rechargeable AA batteries
USB COMMUNICATION PORT
Data downloading, set-up and battery charging
WEIGHTED RESPONSE
The WaveMon has a shaped (weighted) response to specific standards. It is not a single model trying to follow all standards at the same time. That approach will inevitably result in a lack of accuracy. It is available in different models with specific shaping to follow each standard, for increased accuracy.
The current available monitors are:
- WaveMon RF-8 ICN = ICNIRP version
- WaveMon RF-8 EUD = European Directive 2013/35/EU version
- WaveMon RF-8 FCC = FCC version
- WaveMon RF-8 SC6 = Safety Code 6 (2015) version
DATALOGGER
The WaveMon is a radio frequency exposimeter that have a datalogger for continuous data recording. Communication with the device is through a USB port that allows you to parametrise the device and download the recorded data. This makes it easy to create reports and allows you to keep a record of your exposure data for your safety.

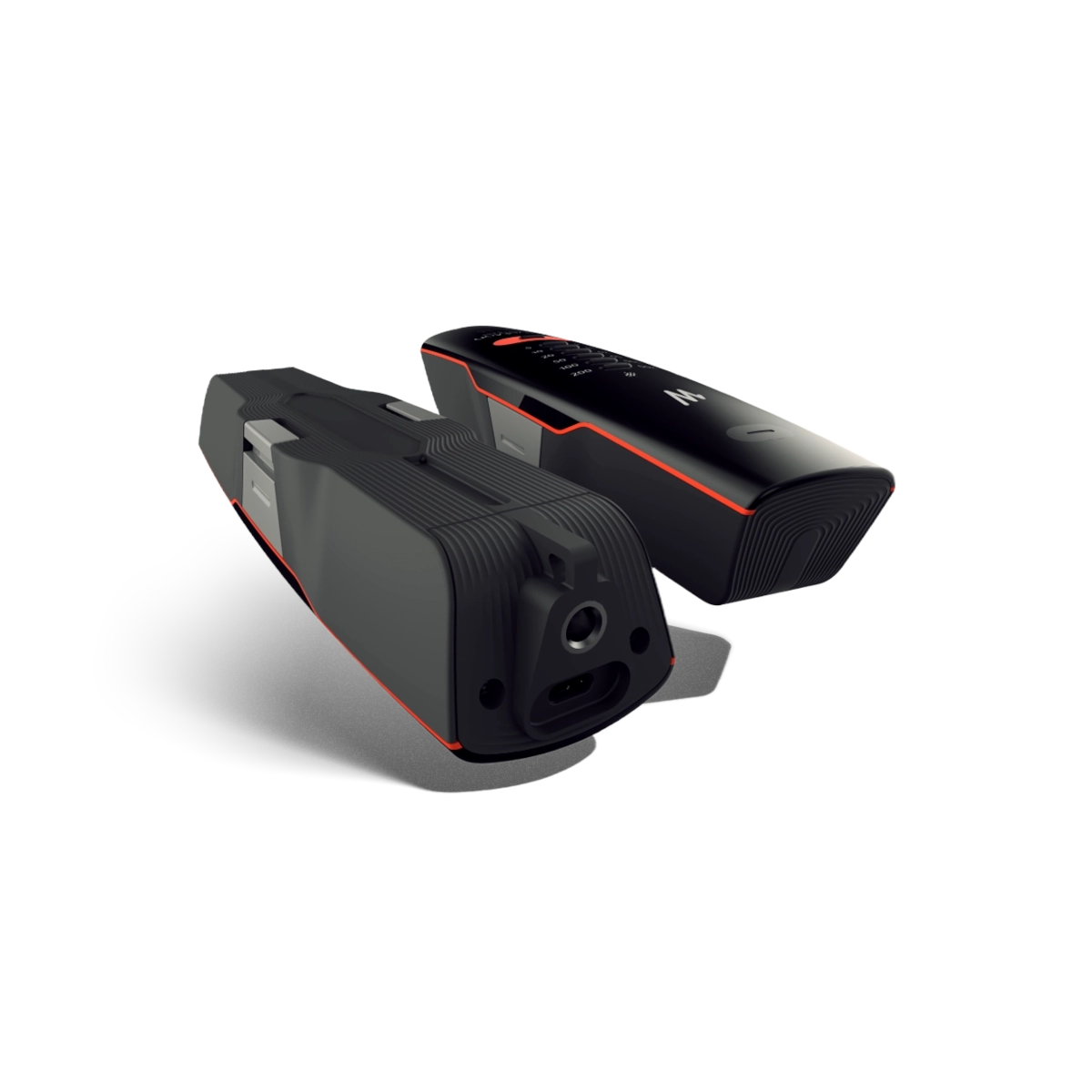

BATTERY MANAGEMENT
Small and lightweight, the exposimeter runs on to rechargeable AA batteries, charged through the USB port.
Can also be used with standard AA batteries, so that you can always find replacements.
What could be easier? We want to make sure you are always protected.

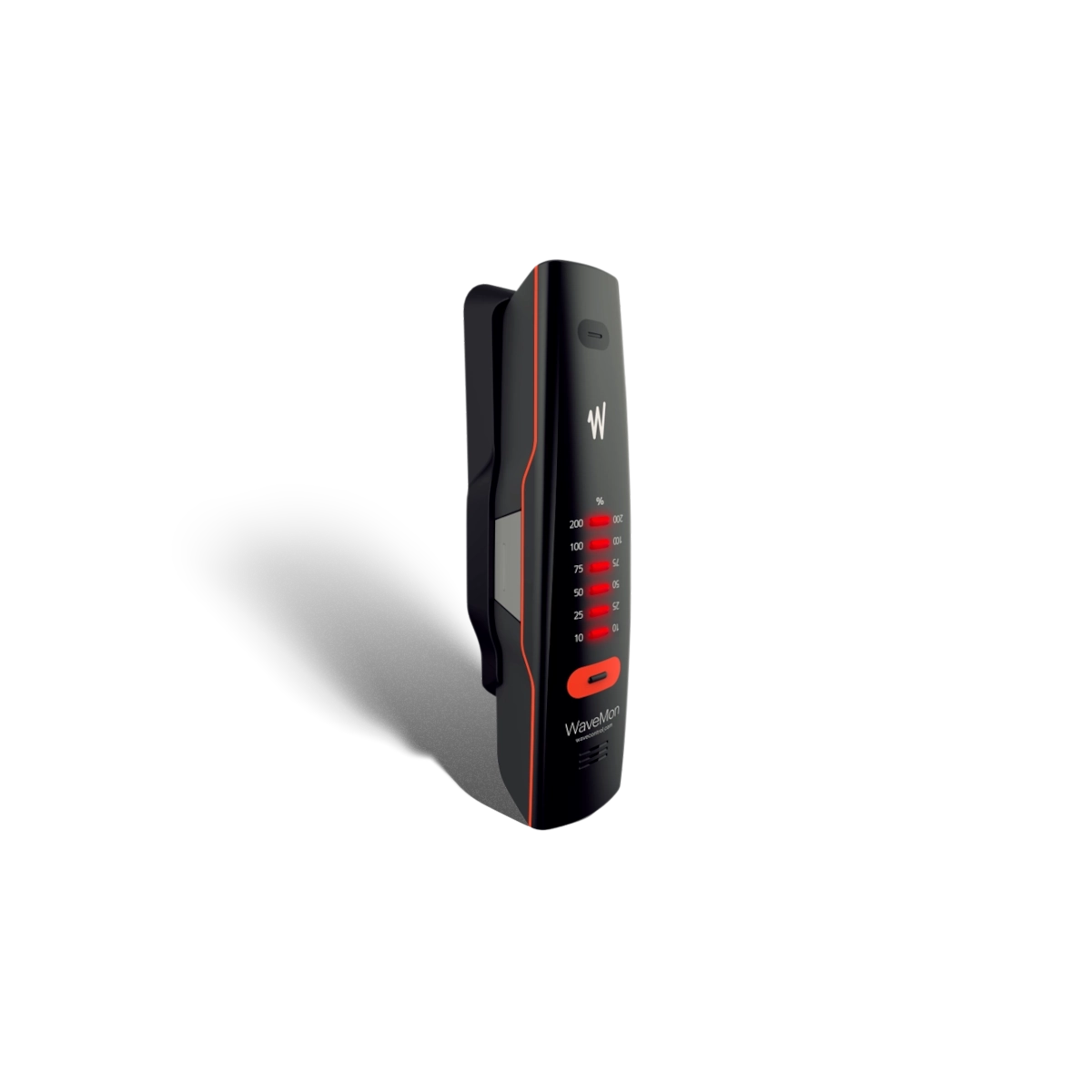

EASY TO WEAR
We have created a clip on holder that you can fasten to your harness, belt or arm, so that can take it in your hand and hold it close to a source of radiation, and then put it back easily.
You can also fasten the WaveMon RF personal monitor to a small carabiner to keep from dropping it.
FULLY COMPLIANT WITH ITU-T K.145
The Recommendation ITU-T K.145, issued by the International Telecommunication Union, recommends that RF personal monitors (exposimeters) be equipped with a list of basic features in RF safety for RF workers worldwide.The WaveMon is fully compliant with this Recommendation.
In addition, Wavecontrol is member of the National Association of Tower Erectors (NATE) in the US, organization promoting the highest standards of safety for Tower Climbers and RF Workers.
EXPOSIMETER MAIN FEATURES
- According to the international standards on EMF safety.
- E-field measurements up to 8 GHz and H-field measurements up to 1 GHz.
- Isotropic sensors.
- RMS detection.
- Weighted response for direct comparison to a specific limit: ICNIRP, European Directive 2012/35/EU, FCC or Safety Code 6 (2015).
- High intensity audible, visible and vibratory alarms.
- Optional GPS and Altimeter.
- User-defined alarm threshold.
- Datalogger for reporting and historical registry of data.
- PC USB connection for data downloading and configuration.
- Small and light.
- Powered by two standard AA batteries, disposable or rechargeable through its USB port.
- More than 200 hours autonomy.
For more information: WaveControl
Click here for related products: RF-Safety
