Wavecontrol SMP3 Electromagnetic Field Meter
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- 3 INSTRUMENTS IN 1 - Spectral Analysis, Static and Broadband Field Meter
- DIRECTIVE 2013/35/EU - Workers' safety - EMF Exposure levels
- SPECTRUM ANALYSIS - Real-time FFT up to 10 MHz
- BROADBAND MEASUREMENTS - From DC to 60 GHz (depending on probe)
Discover the possibilities
More information
Description

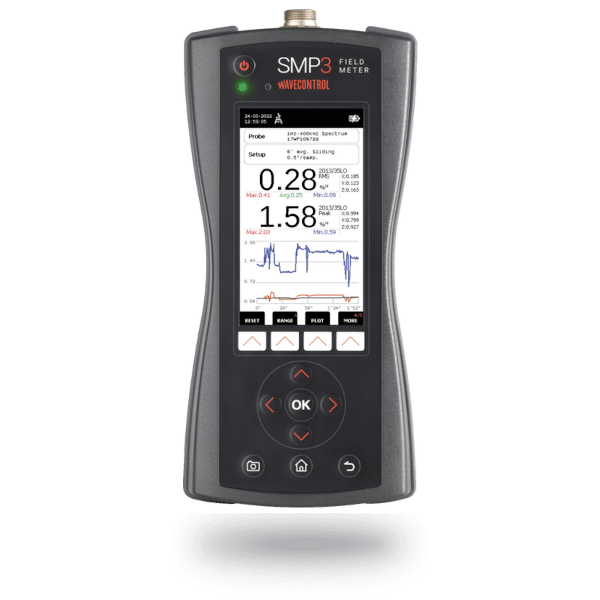

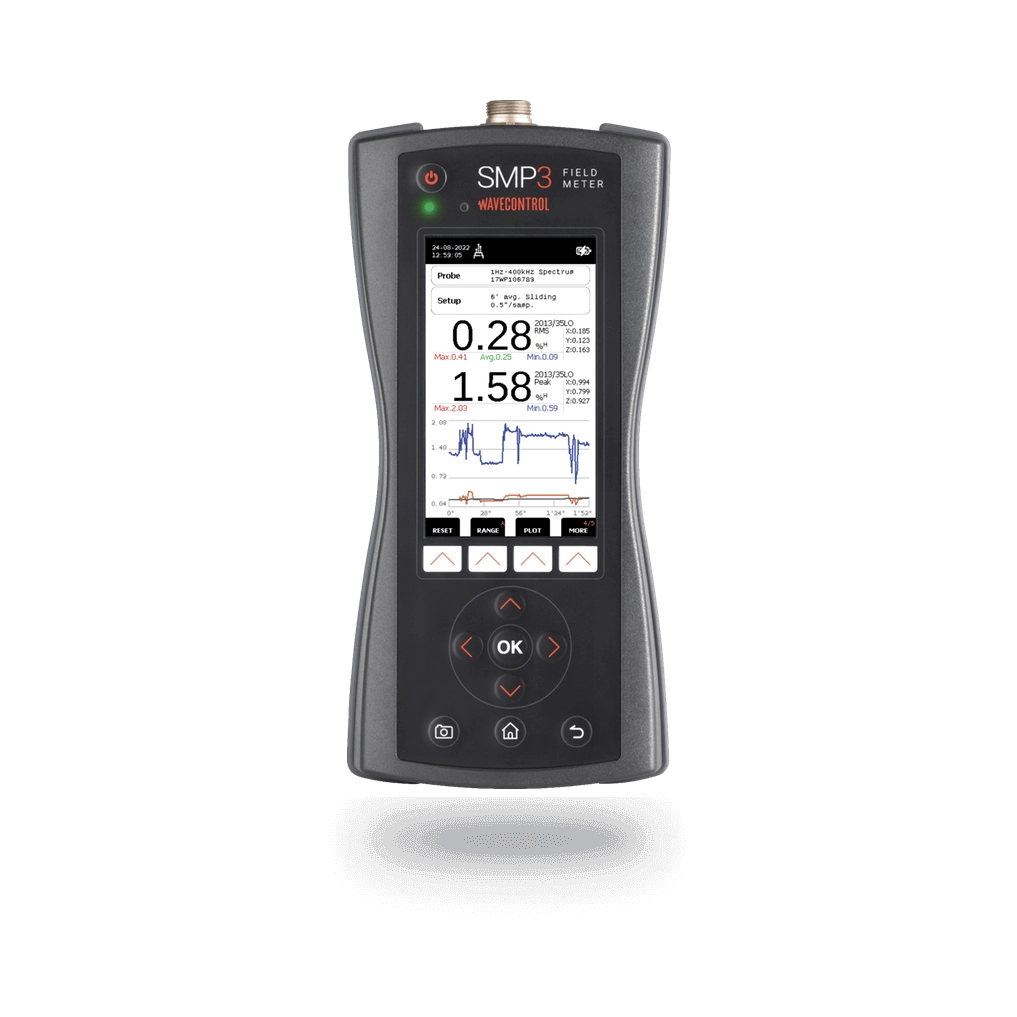

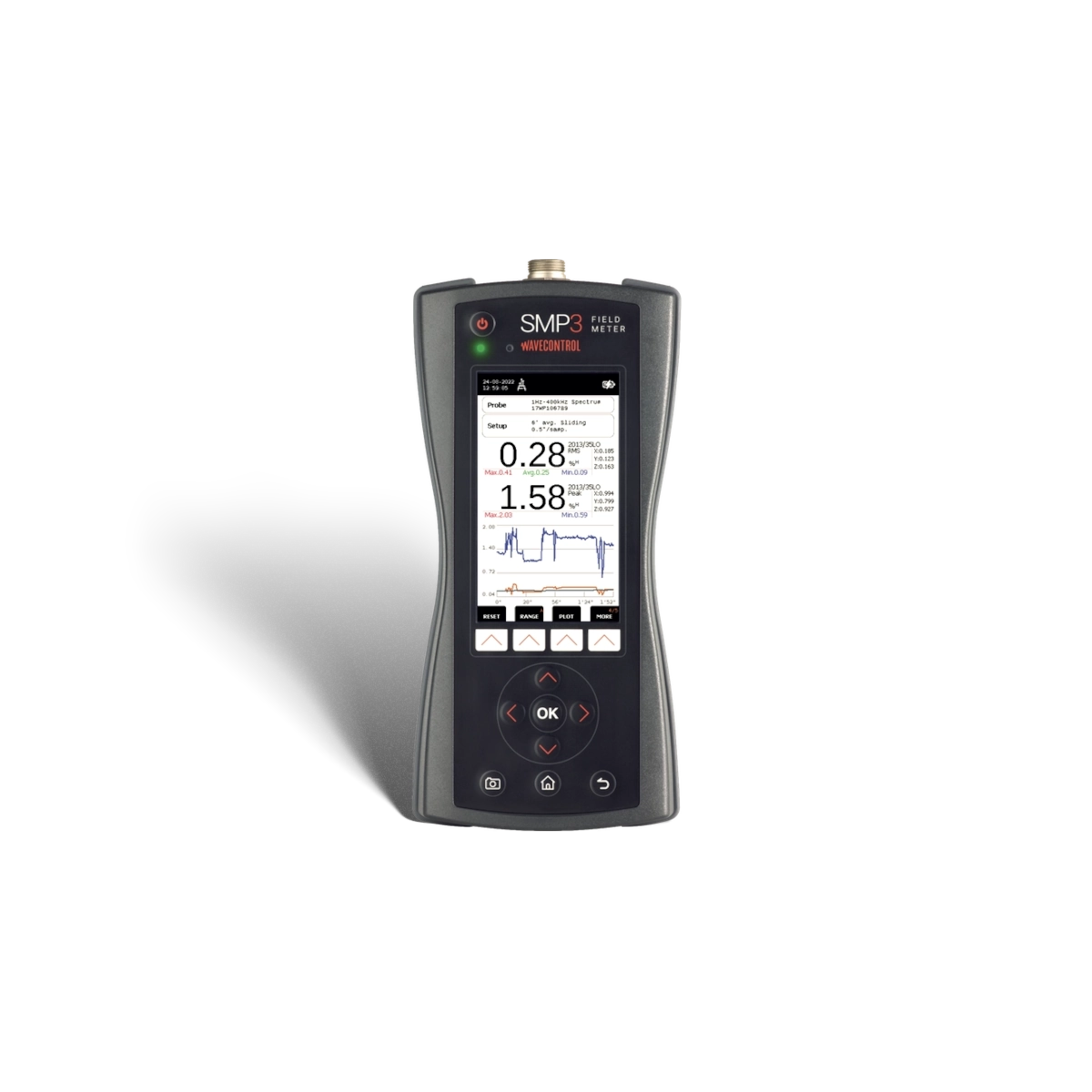

Wavecontrol SMP3 Electromagnetic Field Meter
3 INSTRUMENTS IN 1
DC Field measurements
Spectrum Analysis – FFT up to 10 MHz
Broadband measurements up to 60 GHz
WEIGHTED PEAK METHOD (WPM)
Real-time comparison in % with the selected limits up to 10 MHz
ONE SINGLE METER FOR ALL PROBES
Isotropic and high accuracy probes
Electric and Magnetic field
Probe auto-detect capability
ASSESSMENTS ACCORDING TO INTERNATIONAL STANDARDS
EU Directive 2013/35, ICNIRP, IEC, EN, IEEE, SC6, etc.
All limits embedded in a single meter
USB AND FIBER OPTIC COMMUNICATION PC software included
Data download, automatic reporting, and remote control
FIRMWARE UPGRADE
Easy and fast install to upgrade capabilities
COMPATIBLE FIELD PROBES
3-IN-1 FIELD METER
The only device that offers genuine 3-in-1 functionalities: broadband measurements (DC to 60 GHz), frequency spectrum analysis (DC to 10 MHz) and static field measurements.
The Wavecontrol SMP3 field meter provides the most advanced features and technology on the market, designed for users who need high-quality measurements, ease of use and good reporting tools.
Wavecontrol SMP3 FIELD METER FEATURES
- 3-in-1 Field Meter: spectrum analysis (DC – 10 Mhz), broadband (DC - 60 GHz) and static field measurements.
- Real-time FFT-based spectrum analysis using digital processing.
- Weighted Peak Method (WPM) for automatic and real time comparison with limits.
- Special auto-gain function for peak detection (indispensable for procedures such as welding).
- Display of results in RMS and peak values.
- Function for time domain measurement of a specific frequency.
- Automatic field probe recognition.
- E&H field selection.
- Total field value and value for each component (X, Y, Z).
- Frequency SPAN selection.
- High Pass Filters at 1 Hz, 10 Hz, 25 Hz and 100 Hz.
- Max-hold function.
- Display of maximum, minimum and average values.
- Sliding window function according to standards.
- Spatial average function.
- Adjustable measurement time from 1s to 100 hours.
- Programmable measurement to start at a given time.
- Graphic display of broadband measurement changes over time.
- Adjustable graph display from 1 s to 12 minutes.
- Programmable alarm function.
- Digital output for real time external measurements.
- USB-C and fibre optics connection.
- Large storage capacity.
- Screen-shot function for reporting.
- PC software for control and reporting.
- Results can be uploaded automatically to a web-page control centre.
- Available in several languages.
For more information:WaveControl
Click here for related products: RF-Safety
