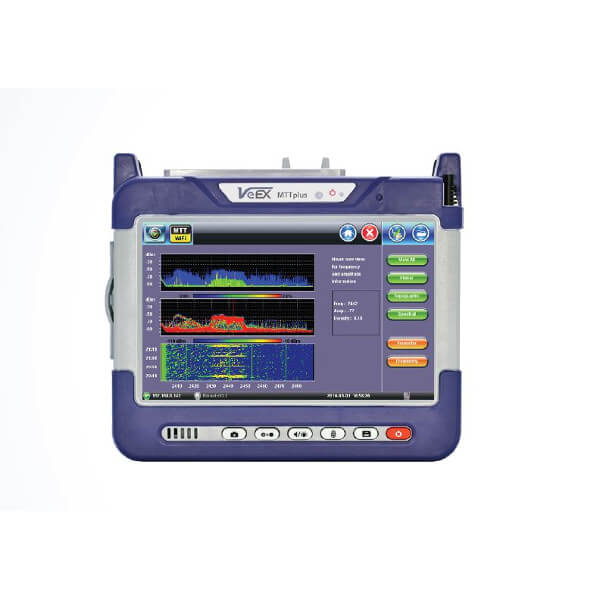

VeEX MTTplus Smart Productivity Test Platform
VeEX MTTplus Smart Productivity Test Platform
VeEX

VeEX MTTplus Smart Productivity Test Platform

Sale price0,00 DKK Price on quotation
Order Item

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

The MTT (Modular Test Toolkit) Series gives field personnel an all-in-one, low-cost platform for installing, verifying, and troubleshooting a wide variety of service technologies. The MTT family includes chassis configurations for diverse testing needs and budgets, and its upgradeable modular design means dramatically lower cost compared to purchasing separate dedicated test sets. Modules are available for multiple testing needs and applications, including metro, DSL, transport, optics, and service.

Discover the possibilities

More information

VeEX MTTplus Smart Productivity Test Platform

Modular Test Platform

The MTTplus platform builds on the legacy of the legendary MTT, providing a compact, powerful and cost-effective modular test toolkit for today’s wide range of evolving test needs. The compact MTTplus Modular Test Platform addresses the challenges of communication service providers to increase efficiency and productivity. The flexible test platform lowers operational and capital expenditures associated with handling multiple technologies required to address today’s Access, Business, Carrier Ethernet, Transport and Core services.

The following test module options are available:

PLATFORM HIGHLIGHTS

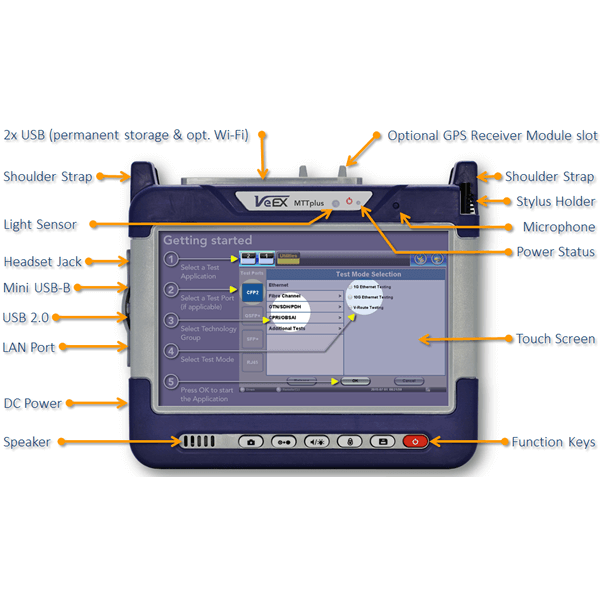

  • Modern, modular test platform with a growing range of available test modules covering legacy and modern Access (copper and fiber), FTTx, Metro, Carrier Ethernet and Transport technologies
  • Application-oriented GUI
  • Multi-technology: xDSL, Fiber Optics, Teleprotection, Datacom, DSn/PDH, SONET/SDH, OTN, Ethernet, Fibre Channel, CPRI/OBSAI
  • Expand test functions with a growing list of test modules
  • Future-proof cost-effective platform
  • The optional MTT carrier module brings forward compatibility to popular MTT test modules, protecting the original investment and facilitating easy transition
  • GUI familiarity across different test modules and other VeEX products reduces learning curve
  • Test set connectivity via USB, Ethernet, WiFi and Cellular
  • Four USB ports (3x USB A and 1x micro-USB B)
  • Fast and efficient test result transfer to USB memory stick
  • Built-in GPS option
  • Built-in Camera option for job site documentation, QR and bar codes
  • Small package and light weight
  • Field replaceable battery pack
  • Large LCD Touch Screen and ambient light sensor

SUPPORTED MODULES

SHDSL Module

Provides CPE installation, CO emulation pre-qualification, and IP/ATM services testing capabilities for SHDSL

Multi-Service Module

Full-featured test solution for OTN, SONET, SDH, PDH, DSn, 64k Codirectional, C37.94, Carrier Ethernet, Fibre Channel, SyncE, PTP and CPRI/OBSAI.

Fiber Optics Module

Offers a full range of Optical test features supporting OTDR, OPM, Light Source and VFL.

GPON Module

Designed for service activation at the ONT location, the MTTplus-420 checks optical power levels and non-intrusively decodes the messages exchanged between the OLT and ONT allowing technicians to perform advanced troubleshooting.

AnyDSL Module

Features VDSL2 and ADSLx physical layer tests and IP Services testing, including true VeTest speed test, enabling providers to ensure their services are properly delivered to end users.

WiFi Air Expert Module

The MTTplus-900 is the most complete and compact tool for WiFi networks discovery, survey, optimization, performance testing and troubleshooting.

Legacy MTT Modules

The legacy Modular Test Toolkit (MTT) family of test modules provide solutions for the installation and verification of various access networks and technologies. This includes SHDSL, UDSL, TDR/DMM, Datacom/DDS, T1 and more.
