VeEX FX300 FTTx/PON OTDR

VeEX FX300 FTTx/PON OTDR

VeEX FX300 FTTx/PON OTDR

0,00 DKK

Price on quotation

Order Item

Quantity:

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

The VePAL FX300 is a full featured Optical test solution for technicians installing, testing, troubleshooting and restoring FTTx/PON, mobile backhaul, and related converged fiber network infrastructures.

VeEX FX300 FTTx/PON OTDR

VeEX VeEX FX300 FTTx/PON OTDR

0,00 DKK

Discover the possibilities

More information

Description

VeEX FX300 FTTx/PON OTDR

Multi-Functional Test Platform for Optical Fiber Networks

The VePAL FX300 is a full featured Optical test solution for technicians installing, testing, troubleshooting and restoring FTTx/PON, mobile backhaul, and related converged fiber network infrastructures.

PLATFORM HIGHLIGHTS

Software

Flexible software architecture supports multiple applications running simultaneously
ReVeal™ PC software to maintain instrument firmware, manage test configurations, process measurement results and generate customer test reports
Fiberizer Desktop PC software for fiber trace analysis
Fiberizer Cloud based trace analysis and data management
R-server support for centralized work force management and test results repository

Hardware

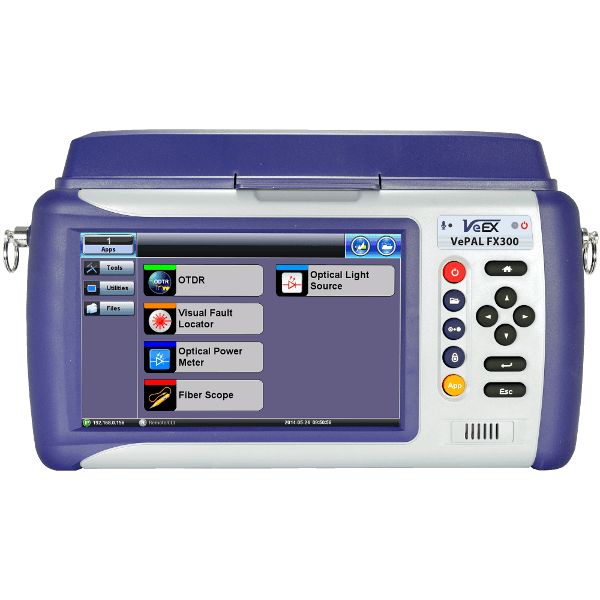

High resolution, 7” full color TFT touch-screen viewable in any lighting condition
Connectivity via 10/100Base-T Management interface, WiFi™, Bluetooth^®, or 3G Card for back office applications
Intelligent fan operation with built-in temperature sensor
Interchangeable Li-ion battery pack for extended test time
USB-A Interface for USB flash drives and fiber inspection probe connection

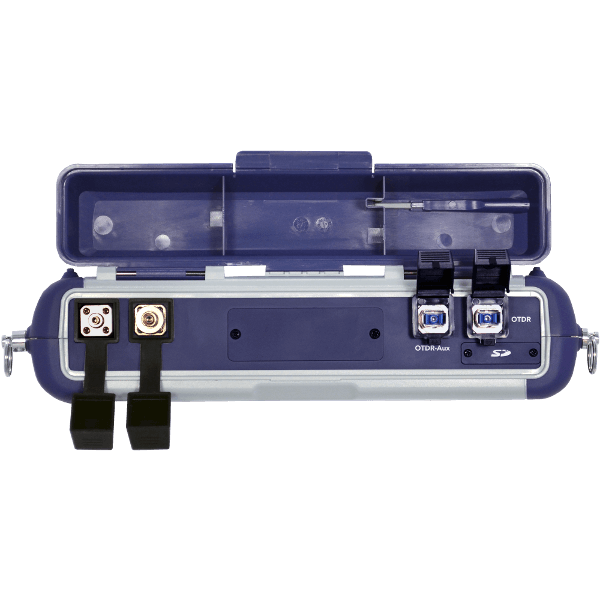

Optional Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)

KEY FEATURES

Optical Testing

Multimode and Singlemode Wavelength options - 850, 1300, 1310, 1490, 1550, 1625 & 1650 nm
Filtered 1625 or 1650 nm OTDR port for in-service measurements
OTDR ports feature live fiber detection
High dynamic range (up to 45 dB) for long haul fibers and testing through high-count PON splitters
Sampling points up to 128,000
FTTx/PON optimized test parameters for best in class dead zones
Event dead zone < 1m, Attenuation dead zone < 4m
Telcordia GR-196 and SR-4731.sor file formats

Optional V-Scout mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
Optional Built-in Visual Fault Locator
Optional Optical Power Meter
Optional Light Sources
Optional Fiber Inspection Scope (USB)
Push/Pull OTDR traces, OLTS data and Fiberscope images directly to Fiberizer Cloud via wired or wireless internet connection
Built-in G.657 launch fiber to characterize OTDR connections and short fibers used in FTTA applications
Fixed or Universal 2.5 mm adaptors, UPC or APC optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)

Documents

VeEX FX300 FTTx/PON OTDR

VeEX FX300 Datasheet

Options

Video

VeEX FX300 FTTx/PON OTDR

Multi-Functional Test Platform for Optical Fiber Networks

The VePAL FX300 is a full featured Optical test solution for technicians installing, testing, troubleshooting and restoring FTTx/PON, mobile backhaul, and related converged fiber network infrastructures.

PLATFORM HIGHLIGHTS

Software

Flexible software architecture supports multiple applications running simultaneously
ReVeal™ PC software to maintain instrument firmware, manage test configurations, process measurement results and generate customer test reports
Fiberizer Desktop PC software for fiber trace analysis
Fiberizer Cloud based trace analysis and data management
R-server support for centralized work force management and test results repository

Hardware

High resolution, 7” full color TFT touch-screen viewable in any lighting condition
Connectivity via 10/100Base-T Management interface, WiFi™, Bluetooth^®, or 3G Card for back office applications
Intelligent fan operation with built-in temperature sensor
Interchangeable Li-ion battery pack for extended test time
USB-A Interface for USB flash drives and fiber inspection probe connection
Optional Universal 2.5 mm optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)

KEY FEATURES

Optical Testing

Multimode and Singlemode Wavelength options - 850, 1300, 1310, 1490, 1550, 1625 & 1650 nm
Filtered 1625 or 1650 nm OTDR port for in-service measurements
OTDR ports feature live fiber detection
High dynamic range (up to 45 dB) for long haul fibers and testing through high-count PON splitters
Sampling points up to 128,000
FTTx/PON optimized test parameters for best in class dead zones
Event dead zone < 1m, Attenuation dead zone < 4m
Telcordia GR-196 and SR-4731.sor file formats

Optional V-Scout mode – Intelligent Link Mapping using intuitive icons derived from multiple test acquisitions
Optional Built-in Visual Fault Locator
Optional Optical Power Meter
Optional Light Sources
Optional Fiber Inspection Scope (USB)
Push/Pull OTDR traces, OLTS data and Fiberscope images directly to Fiberizer Cloud via wired or wireless internet connection
Built-in G.657 launch fiber to characterize OTDR connections and short fibers used in FTTA applications
Fixed or Universal 2.5 mm adaptors, UPC or APC optical interfaces with inter-changeable optical adaptors (SC/FC/ST/LC)
