VeEX FX160 Handheld Bidirectional Tester
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Automated bidirectional insertion loss and ORL measurement with one-way OTDR
- Supports up to 3 wavelengths
- 1310, 1550, 1625 nm OLTS/ORL and OTDR
- Insertion loss range up to 45 dB
- PON optimized OTDR option for single or cascaded splitters
- Optimized dead zones (DZ) for FTTx/PON applications
- Event 0.8 m, Attenuation 3.5 m typical
- User-defined pass-fail thresholds
- 15 second OLTS/ORL test time
- Combined OLTS and OTDR reports generated on the device
- Auto mode - setup, events detection, and trace diagnostics
- PON OTDR Smart Link Mapping for different PON link configurations - balanced, unbalanced and/or Taps
- Markers for distance, attenuation, reflectance and splice loss measurements
- Additional OPM port for loopback referencing and power measurement
- Optional VFL
Discover the possibilities
More information
Description

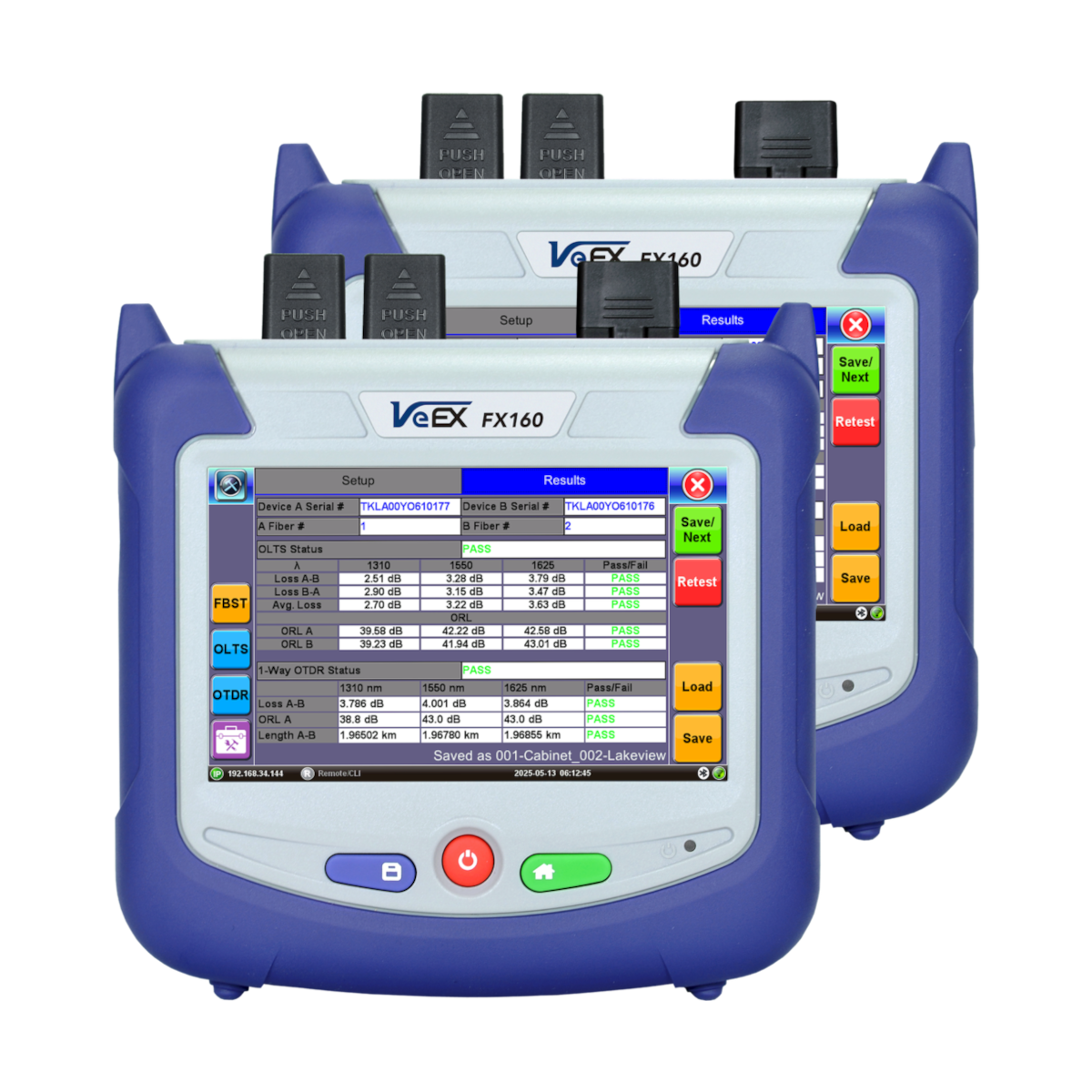

The FX160 combines bidirectional insertion loss and optical return loss (ORL) with OTDR measurement in one report with easy, automated testing. Each FX160 pair communicates using the fiber under test, allowing a single technician to perform bidirectional testing without having to return to the remote device.

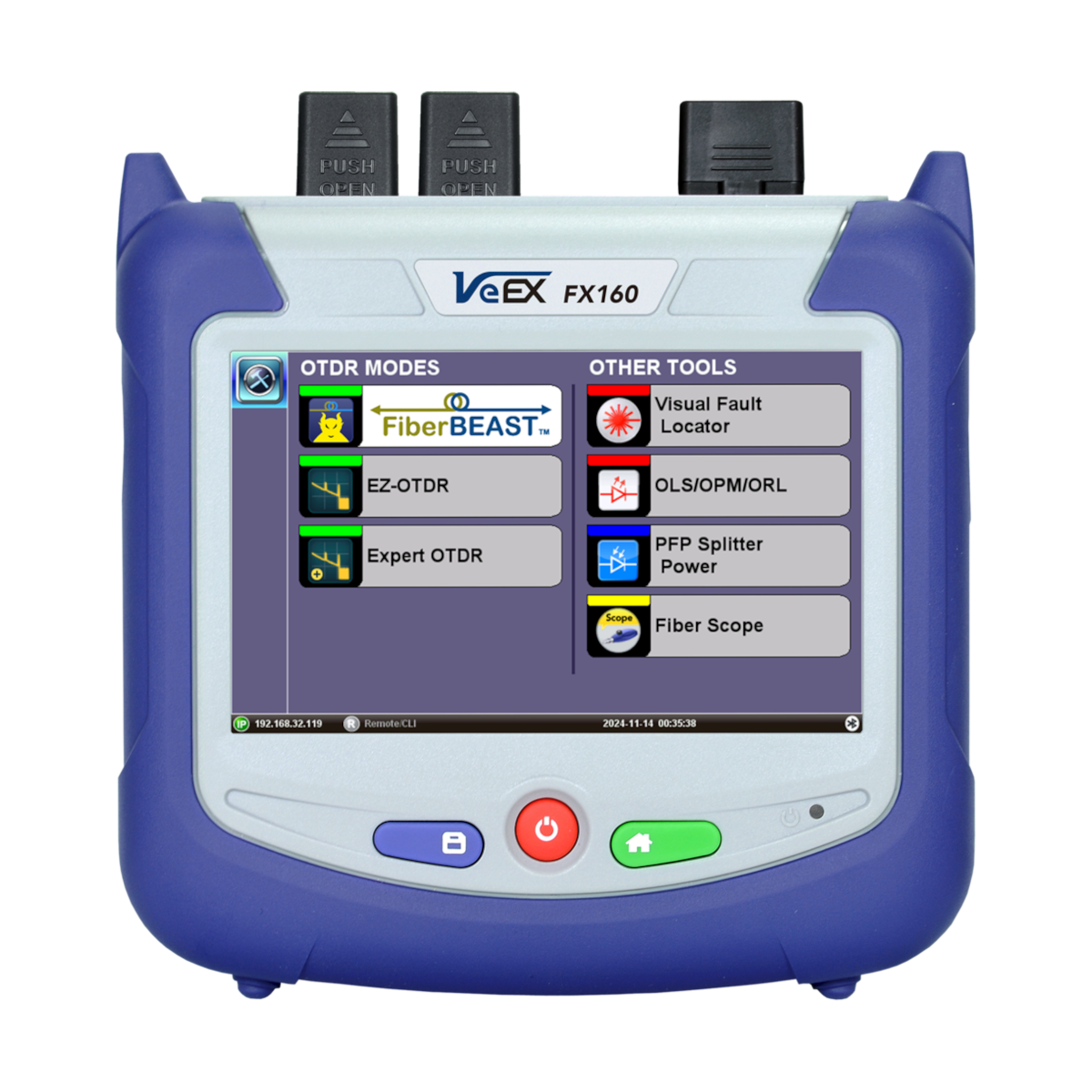

The FX160's FiberBEAST™, Bidirectional Easy Analysis by a Single Technician, test suite performs automated bidirectional insertion loss (IL), optical return loss (ORL), and unidirectional OTDR measurements for up to three wavelengths via a single test port.
Platform Highlights

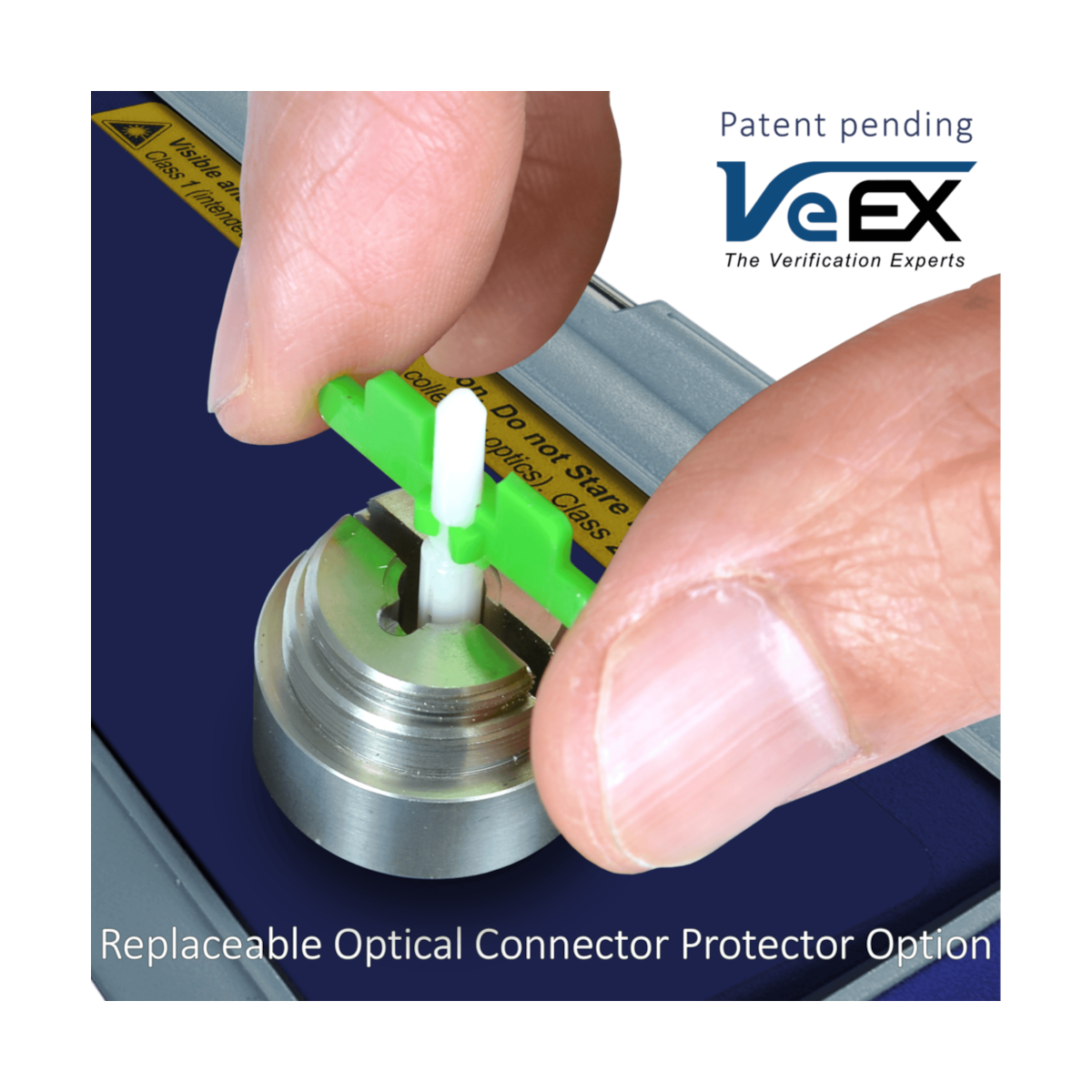

- Now available: patent pending field-replaceable Connector Protector system extends the instrument's lifespan, reduces downtime and improves productivity
- Robust, handheld design for demanding field test conditions
- High resolution, 5” TFT color touch-screen suitable for both indoor and outdoor use
- Fast boot-up for fiber troubleshooting and restoration
- Intuitive display, function keys and touchscreen for fast navigation and easy operation
- Internal data storage
- Micro-USB OTG interface for flash drives, fiber inspection probe connection and test data transfer
- Rechargeable Lithium Polymer battery with capacity indicator, low voltage alarm and Auto-off function
- Continuous operation >9 hours without recharging batteries
- Built-in Wi-Fi option:
- Perform software upgrades using Windows® PC
- Upload test data to Fiberizer® Cloud via Internet connection
- Connect wirelessly to Fiber Inspection Microscope
- Built-in Bluetooth® option:
- Pair with mobile devices/Windows® PC to transfer test results
- Remote measurement using EZ Remote, VNC, or built-in web based software
Key Features
- Automated bidirectional insertion loss and ORL measurement with one-way OTDR
- Supports up to 3 wavelengths
- 1310, 1550, 1625 nm OLTS/ORL and OTDR
- Insertion loss range up to 45 dB
- PON optimized OTDR option for single or cascaded splitters
- Optimized dead zones (DZ) for FTTx/PON applications
- Event 0.8 m, Attenuation 3.5 m typical
- User-defined pass-fail thresholds
- 15 second OLTS/ORL test time
- Combined OLTS and OTDR reports generated on the device
- Auto mode - setup, events detection, and trace diagnostics
- PON OTDR Smart Link Mapping for different PON link configurations - balanced, unbalanced and/or Taps
- Markers for distance, attenuation, reflectance and splice loss measurements
- Additional OPM port for loopback referencing and power measurement
- Optional VFL
Specifications
Documents
Options
Video
The FX160 combines bidirectional insertion loss and optical return loss (ORL) with OTDR measurement in one report with easy, automated testing. Each FX160 pair communicates using the fiber under test, allowing a single technician to perform bidirectional testing without having to return to the remote device.
The FX160's FiberBEAST™, Bidirectional Easy Analysis by a Single Technician, test suite performs automated bidirectional insertion loss (IL), optical return loss (ORL), and unidirectional OTDR measurements for up to three wavelengths via a single test port.
Platform Highlights
- Now available: patent pending field-replaceable Connector Protector system extends the instrument's lifespan, reduces downtime and improves productivity
- Robust, handheld design for demanding field test conditions
- High resolution, 5” TFT color touch-screen suitable for both indoor and outdoor use
- Fast boot-up for fiber troubleshooting and restoration
- Intuitive display, function keys and touchscreen for fast navigation and easy operation
- Internal data storage
- Micro-USB OTG interface for flash drives, fiber inspection probe connection and test data transfer
- Rechargeable Lithium Polymer battery with capacity indicator, low voltage alarm and Auto-off function
- Continuous operation >9 hours without recharging batteries
- Built-in Wi-Fi option:
- Perform software upgrades using Windows® PC
- Upload test data to Fiberizer® Cloud via Internet connection
- Connect wirelessly to Fiber Inspection Microscope
- Built-in Bluetooth® option:
- Pair with mobile devices/Windows® PC to transfer test results
- Remote measurement using EZ Remote, VNC, or built-in web based software
Key Features
- Automated bidirectional insertion loss and ORL measurement with one-way OTDR
- Supports up to 3 wavelengths
- 1310, 1550, 1625 nm OLTS/ORL and OTDR
- Insertion loss range up to 45 dB
- PON optimized OTDR option for single or cascaded splitters
- Optimized dead zones (DZ) for FTTx/PON applications
- Event 0.8 m, Attenuation 3.5 m typical
- User-defined pass-fail thresholds
- 15 second OLTS/ORL test time
- Combined OLTS and OTDR reports generated on the device
- Auto mode - setup, events detection, and trace diagnostics
- PON OTDR Smart Link Mapping for different PON link configurations - balanced, unbalanced and/or Taps
- Markers for distance, attenuation, reflectance and splice loss measurements
- Additional OPM port for loopback referencing and power measurement
- Optional VFL
