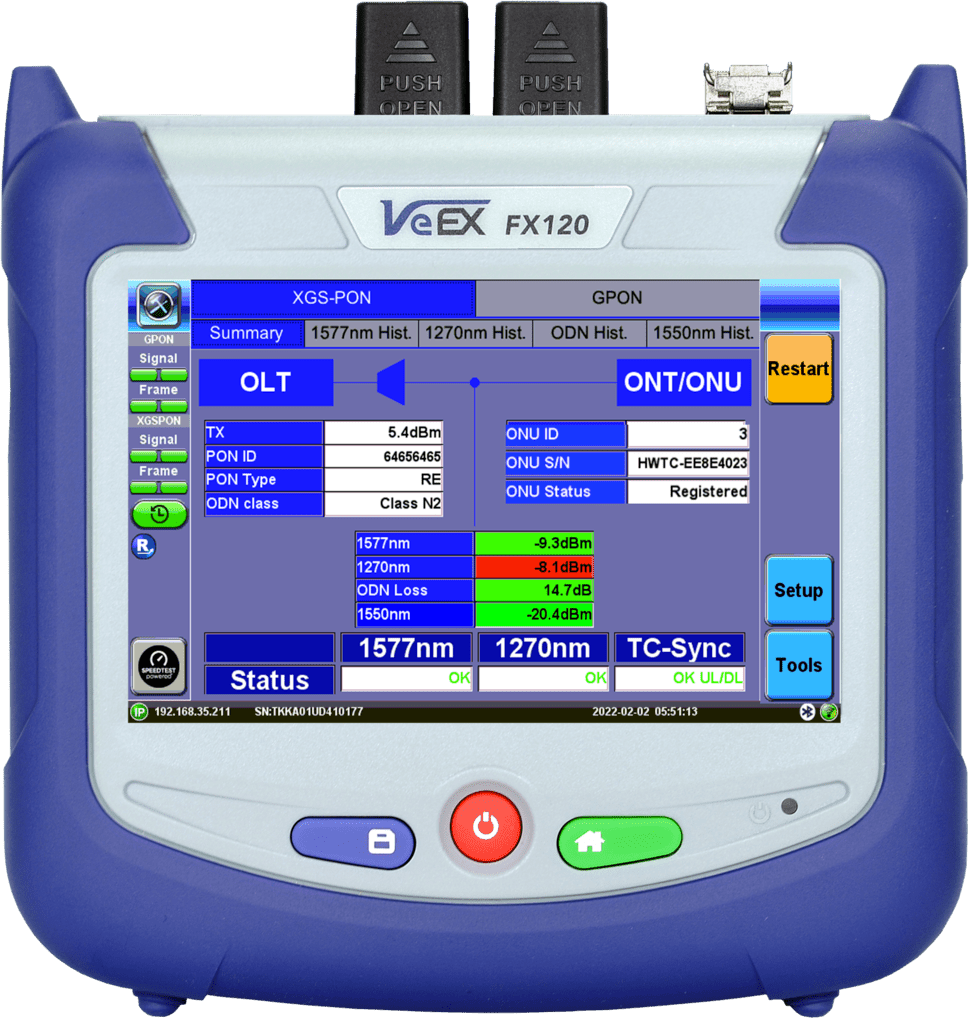

The VeEX FX120 XG(S)-PON Analyzer is the ideal tool for service technicians tasked with service activation and resolving service complaints at customer premises by identifying root cause of service issues.
-PON%20Analyzer%C2%A0is%20the%20ideal%20tool%20for%20service%20technicians%20tasked%20with%20service%20activation%20and%20resolving%20service%20complaints%20at%20customer%20premises%20by%20identifying%20root%20cause%20of%20service...
){kind=link}
Discover the possibilities
More information
Description
VeEX FX120 XG(S)-PON Analyzer
The VeEX FX120 XG(S)-PON Analyzer makes real time data analysis provides downstream/upstream power levels, PON-ID including OLT-ID, ODN class and Tx power, ONU/ONT-ID as well as rogue ONUs that can cause service disruptions to all subscribers sharing a PON-ID.- Optimized for activating, verifying/troubleshooting PON business/residential services
- Compatible with GPON and XG(S)-PON networks
- Robust, handheld chassis packed with powerful and flexible features
- 5-inch LCD Touch Screen with ambient light sensor
- SFP+ cage to support 1G/2.5G/5G/10G Ethernet throughput, ping, and trace route
- V-TEST Speedtest
- Field upgradeable or result transfer using USB stick
- Field easily replaceable and rechargeable Li-ion battery pack lasts for up to 12 hours of continuous use
- Test set connectivity via micro-B USB and optional built- in WiFi and Bluetooth® wireless interfaces; USB-A and 10/100BASE-T are also available via OTG cables
- Easy report generation and data transfer using R-Server for workflow and results management
- Fiber tool accessory options: OPX-BOXe OTDR, DI-1000/1000MPO/3000 Fiber Scope and FX40/45/80 series OPM
- Remote access/control via web browser and VNC® client. Compatible with VeEX EZ Remote collaboration services. User defined test profiles and Pass/Fail ITU-T thresholds enable fast, efficient, and consistent turn-up of services.
KEY FEATURES

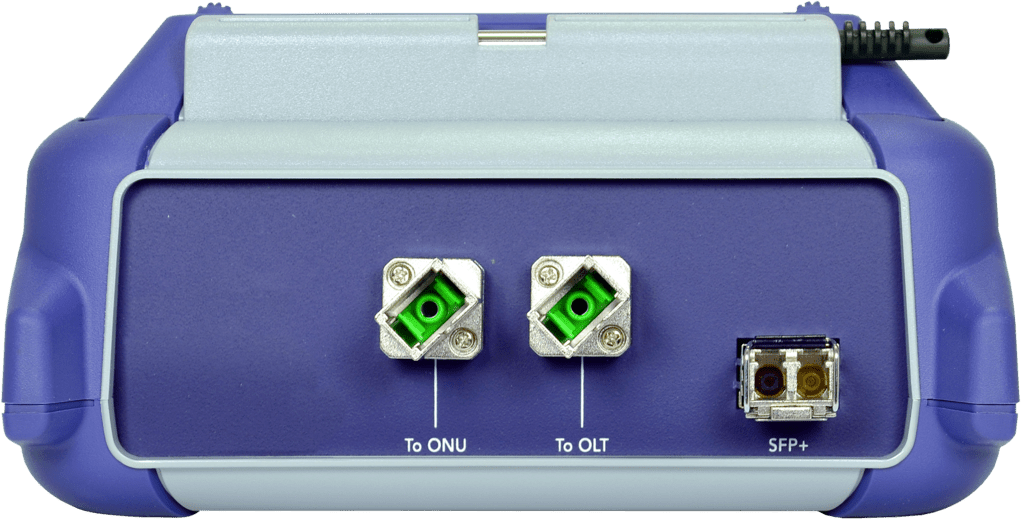

Basic OPM Mode- Dual port wavelength filtered, through-meter for simultaneous 1G and 10G ONT/ONU service verification
- Upstream/Downstream LED status indicators for signal and Frame
- TC Sync per ITU-T
- Automatic PON-ID detection* including OLT-ID, ODN class, Tx power, power level and ODN link pass/fail per ITU-T
- ONU/ONT ID and serial number; rogue and alien ONU detection
- Low insertion loss: ≤1.5 dB typ.
Advanced Function Mode
- Track/manage active ONT IDs and serial numbers
- PLOAM Capture/Decode
PON Standard Compliance
- G-PON (ITU-T G984.2)
- XG(S)-PON (ITU-T G.9807.1)
- RF video signals 1550 nm (ANSI/SCTE 174 2010)
* Please note the this requires activation of PON-ID functionality in PON system per ITU-T G.984.3 Amd 3
