TESEQ SW 6012 Series Switch Solution for ITS 6006 Manual RF

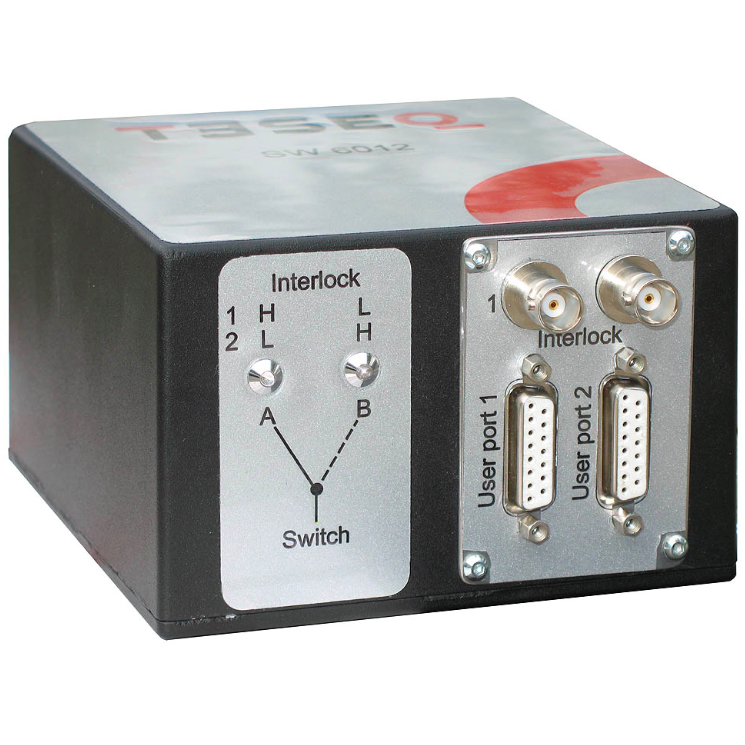

The SW 6012 adds two SPDT switches to the built-in switching network of the ITS 6006. It is fully powered and controlled by the ITS 6006. Interlock connections are provided for switching the amplifier gain on/off. Additionally the SW 6012 is supplied with a second user port socket for various applications. The SW 6012 can be controlled by the NSG 4070B (NSG 4070 and NSG 4070A require SW 4070.).The SW 6012-MAN is a system independent RF switch with manual operation and its own power supply unit. Interlock connections are provided for switching the amplifier gain on/off.
| Parameter | Value |
|---|---|
| Power supply | 12 V DC, 300 mA |
| Connector type | Sub-D, 15 pins (for ITS 6006 user port) |
| Response time | typical <20 ms |
| Relay type | 2x SPDT, N sockets 50 Ω |
| Power handling | Cold switching only |
