TESEQ SW 4070 Series RF-Switch Solution for NSG 4070
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Two relays SPDT
- Low insertion loss
- Direct control via NSG 4070 user port or manual version
Discover the possibilities
More information
Description

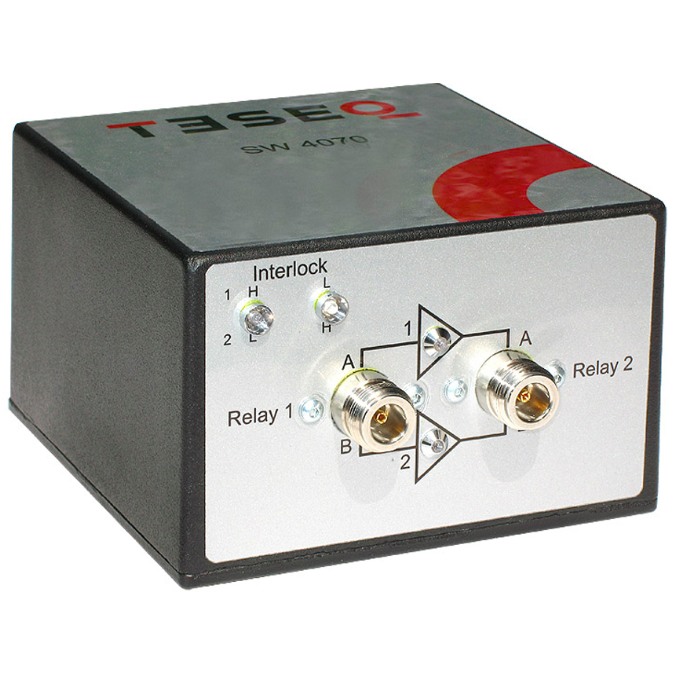

TESEQ SW 4070 Series RF-Switch Solution for NSG 4070
The advanced use of the NSG 4070 may require the operation with two power amplifiers. The SW 4070 allows to switch the signal paths for having a remote controlled system and is fully powered and controlled by the NSG 4070. Interlock connections provide to switch off the amplifier gain. Additionally the SW 4070 is supplied with a second user port socket for connecting, e.g. the MD 4070 or using the EUT monitoring functions of the NSG 4070’s user port.| Parameter | Value |
|---|---|
| Power supply | 12 VDC, 170 mA |
| Connector type | Sub-D, 15 pins (for NSG 4070 user port) |
| Response time | typical 20 ms |
| Relay type | 2x SPDT |
| Power handling | Cold switching only |
Options
SW 4070- option for NSG 4070 RF-Switch network 2x SPDT
SW 4070-MAN
- RF-Switch network 2x SPDT for max. 2 GHz with power supply unit with Euro, UK, US, JP, AUS country version and manual control
