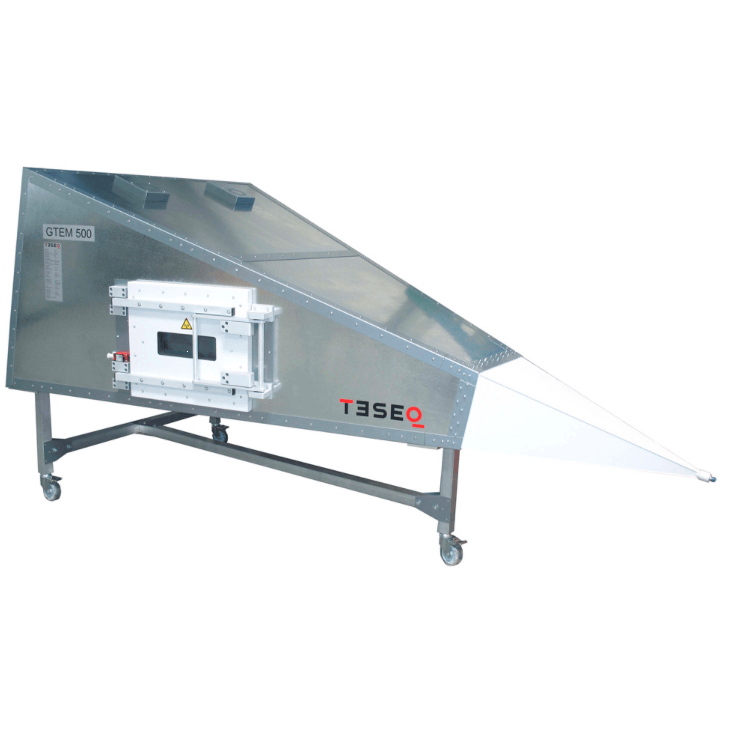

TESEQ GTEM 500-Series Cells for Emissions and Immunity Testing
A GTEM (Gigahertz Transverse Electro Magnetic) cell is a test site for efficiently performing both radiated immunity and emissions testing in a single, controllable and shielded environment. Compared to other test sites, GTEM testing is faster with high accuracy and excellent reproducibility. In principle, the GTEM cell is a coaxial line expanding pyramidally and having an impedance of 50 Ω. At its end, the line is terminated by a combination of termination resistors and RF absorbers designed and constructed to match the above mentioned impedance. The GTEM 500 has a maximum septum height of 500 mm and is suitable for emissions and immunity testing.
| Parameter | Value |
|---|---|
| Max. septum height | 500 mm |
| Septum height at marker position | 433 mm |
| Dimension (LxWxH) | 2.95 x 1.48 x 1.61 m |
| Weight | approx. 242 kg |
| Height H1 of cell corpus | 1.04 m |
