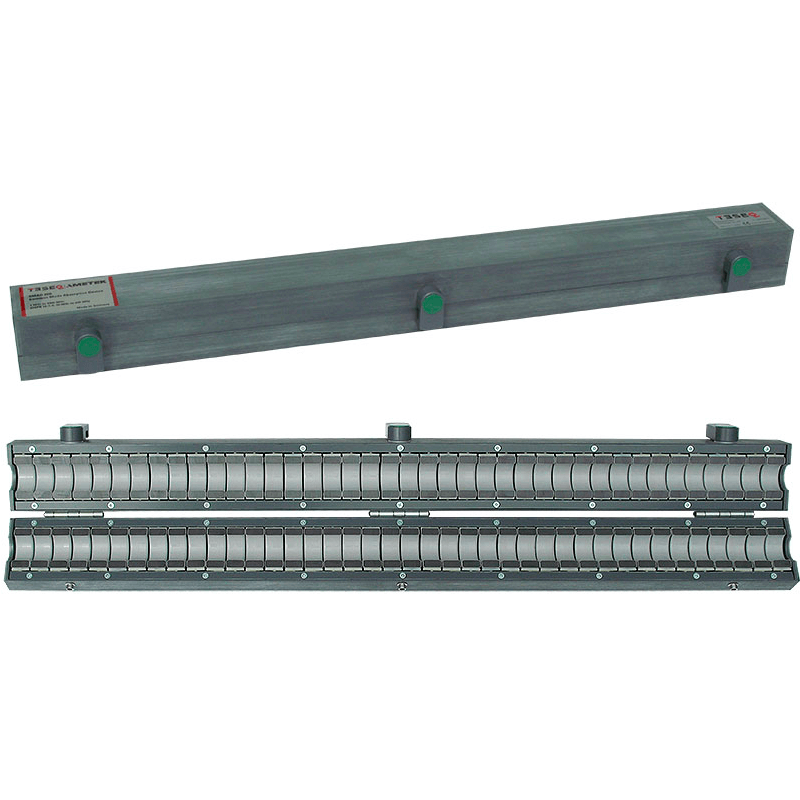

TESEQ CMAD 20B Common Mode Absorption Device

Sale price0,00 DKK Price on quotation
Available

Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk


  • Frequency range 1 MHz to 1 GHz
  • Frequency range 30 MHz to 200 MHz (CISPR 16-1-4)
  • Max. cable diameter 20 mm
  • Conform with CISPR 16-1-4, CISPR 16-2-3, CISPR 11

Discover the possibilities

More information

TESEQ CMAD 20B Common Mode Absorption Device



Reproducible emissions measurements require a defined line termination for the frequency range where connected lines provide a significant influence on the emissions. The key parameter is the asymmetrical impedance (common-mode impedance) which can be seen as the common mode impedance to the reference ground.




ParameterValue
Frequency range as required in CISPR 16-1-430 MHz to 200 MHz
Frequency range for general use1 MHz to 1000 MHz
Maximum cable diameter20 mm
Dimension (LxWxH)670 mm x 78 mm x 58 mm
Weightapprox. 3.4 kg
