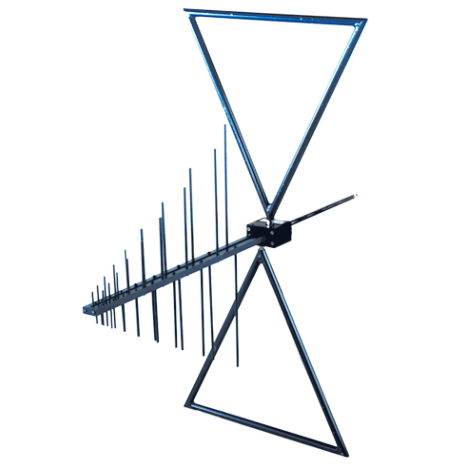

TESEQ CBL 6111D BiLog® Antenna 30 MHz to 1 GHz
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Ideal for compliance emission testing
- One antenna - one sweep
- Saves up to 30% test time
- Excellent symmetry
- Common carrier shippable
Discover the possibilities
More information
Description
TESEQ CBL 6111D BiLog® Antenna 30 MHz to 1 GHz
The ‘Classic’ BiLog® Antenna
The CBL 6111 is a high performance ultra wideband BiLog® antenna for emission and immunity EMC testing. This is the original ‘classic’ BiLog® combining two antennas in one, making savings of at least 20 - 30% on test time and reducing measurement errors due to cable and connector wear.
| Parameter | Value |
|---|---|
| Frequency range | 30 MHz to 1 GHz |
| Typical gain | 5 dB |
| Impedance (nominal) | 50 Ω |
| Maximum continuous power | 300 W |
| Connector | N type female |
Documents
TESEQ CBL 6111D BiLog® Antenna 30 MHz to 1 GHz
CBL_6111DOptions
Video
TESEQ CBL 6111D BiLog® Antenna 30 MHz to 1 GHz
The ‘Classic’ BiLog® Antenna
The CBL 6111 is a high performance ultra wideband BiLog® antenna for emission and immunity EMC testing. This is the original ‘classic’ BiLog® combining two antennas in one, making savings of at least 20 - 30% on test time and reducing measurement errors due to cable and connector wear.
| Parameter | Value |
|---|---|
| Frequency range | 30 MHz to 1 GHz |
| Typical gain | 5 dB |
| Impedance (nominal) | 50 Ω |
| Maximum continuous power | 300 W |
| Connector | N type female |
