Tektronix SignalVu-PC RF Spectrum Analyzer Software
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Real-time analysis with Tektronix RSA signal analyzers
- Wideband analysis with Tektronix oscilloscopes
- Offline analysis of waveforms captured by all Tektronix spectrum analyzers and oscilloscopes
Discover the possibilities
More information
Description
Comprehensive Vector Signal Analysis
SignalVu-PC brings advanced RF analysis to Windows PCs or oscilloscopes and a consistent user experience across hardware platforms.
- As a powerful user interface for Tektronix RSA spectrum analyzers

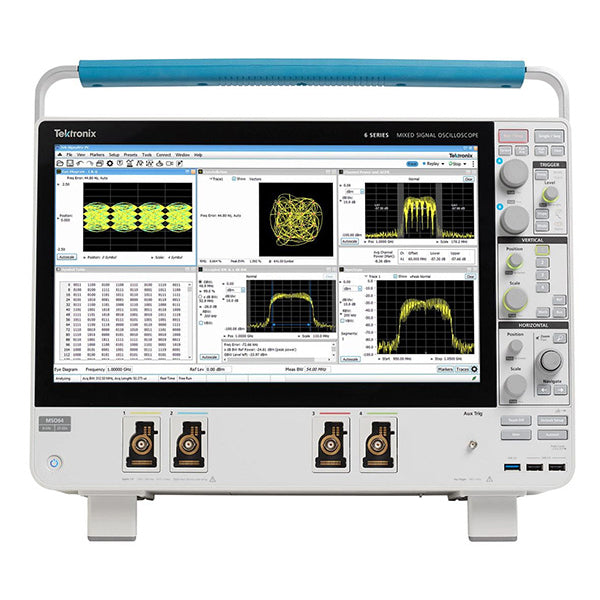

- On 5 and 6 Series B MSOs, installed directly on the oscilloscopes’ optional Windows 10 drives
- For offline analysis of RF signals acquired by Tektronix oscilloscopes or real-time spectrum analyzers
A version of SignalVu for advanced vector signal analysis is also available as an option for MSO/DPO70000 Series oscilloscopes.
Modules tailored to your RF application

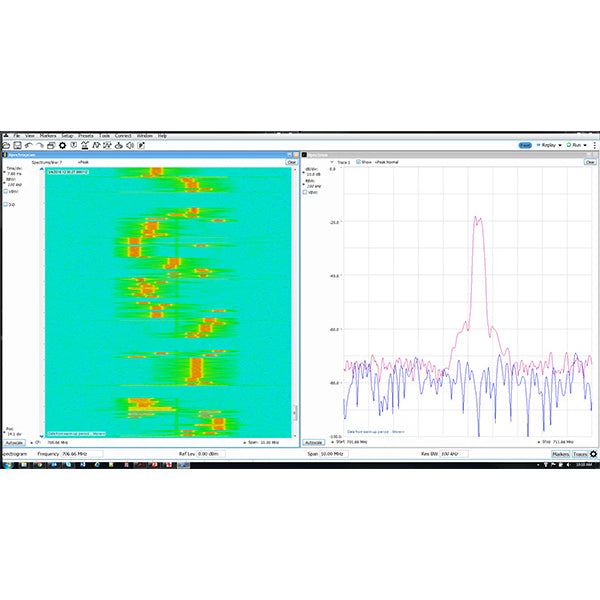

The base version of SignalVu-PC software, offered as a free download, enables spectrum analysis, RF power and statistics, spectrograms, amplitude, frequency or phase vs. time, and analog modulation measurements. Optional licenses unlock digital modulation analysis, pulse analysis, gap-free RF record and playback, and many other displays and measurements tailored to your RF application:
- Wideband radar and pulsed RF signals
- Spectrum operations and management
- Bluetooth and Wi-Fi testing
- 5G New Radio signal analysis
- EMC/EMI pre-compliance testing and debugging
Multi-channel RF analysis on your oscilloscope
For multi-channel, fully synchronized time domain and RF analysis, consider SignalVu-PC software together with a 5 or 6 Series B MSO oscilloscope.
- Up to 8 RF inputs unlock insight and accelerate development of multi-signal and multi-DUT systems
- Analyze complex scenarios with cross-domain analysis, pinpoint triggering, and independent channel controls
- Over 30 automated pulse parameter measurements and statistics deliver insights into multi-channel radar or EW systems
- Digital modulation analysis provides EVM and modulation accuracy for a broad range of communication systems
Spectrum analyzer software for EMI/EMC pre-compliance testing
Don’t fear EMI/EMC and RF product compliance testing. EMCVu pre-compliance application option gives you a fast, accurate and affordable way to determine if your product designs are ready to submit to the more costly test house for full EMI/EMC radiated or conducted emissions compliance testing. It features a step-by-step setup wizard, 3rd party accessory support, reporting tools, and push-button support for IEC/CISPR, CENELEC/EN, FCC, MIL/DEF, or custom standards. This allows you to quickly perform pre-compliance scans of products, troubleshoot, and compare various scans in the comfort of your own lab.
