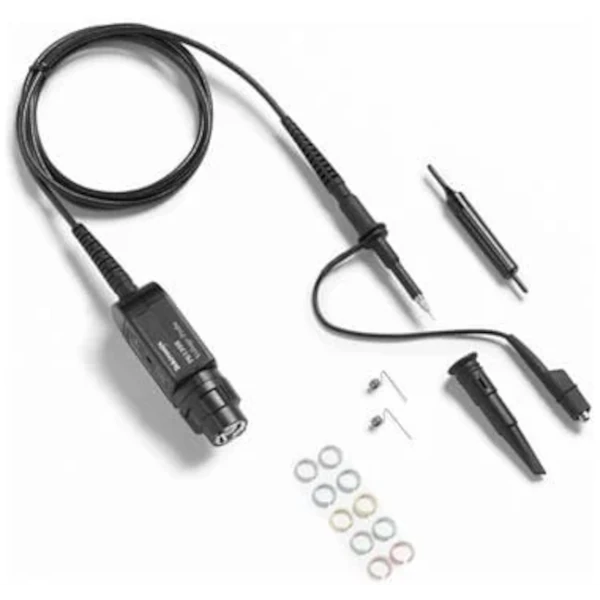

Tektronix P2221 Passive Probe
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Attenuation - 1X / 10X
- Bandwidth - 10X: 200 MHz, 1X: 6 MHz
- Input Impedance - 10X: 10 MΩ || 110 pF, 1X: 1 MΩ || 17 pF
-
Maximum Voltage - 10X: 300 Vrms CAT II, 1X: 150 Vrms CAT II
Discover the possibilities
More information
Description
Tektronix passive probe solutions provide high reliability and testing accuracy for basic oscilloscope measurements. The P2220 and P2221 are compact passive probes with selectable 1X/10X attenuation designed for use with selected Tektronix oscilloscopes.
Key features
- 1x/10x attenuation
- 200 MHz bandwidth
- 1.5 m length
- UL3111-1, CSA1010.1, EN61010-1, EN61010-2-031, and IEC61010-2-031
Applications
- Relative low-frequency measurements
- Low-frequency computer and telecom measurements
- Power supplies
- Low-frequency amplifiers
P2220 P2221 passive voltage probes
The P2220 and P2221, 200 MHz passive voltage probes permit selection of 1x or 10x attenuation, using a switch located on the probe head.
The P2220 probe is compatible with TDS200, TDS1000, TDS1000B, TDS2000, TDS2000B, and TPS2000 Series oscilloscopes. The P2220 probe also provides floating measurement capability up to 30 VRMS with TPS2000 Series oscilloscopes only. (Note: Do not float with TDS2000, TDS2000B, TDS1000, TDS1000B, or TDS200 Series oscilloscopes.)
The P2221 is compatible with MSO2000 and DPO2000 Series oscilloscopes.
For more information: Tektronix
