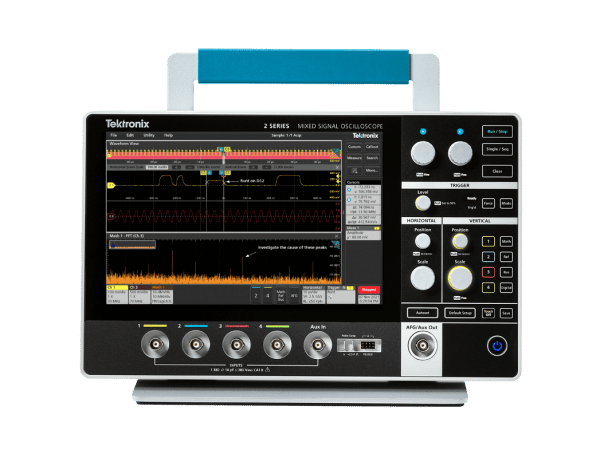

Tektronix MSO24 70 MHz Oscilloscope
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Analog Channels - 4
- Bandwidth - 70 MHz
- Record Length - 10 m
- Sample Rate - Up to 2.5 GS/s
- Digital Channels - 16
Discover the possibilities
More information
Description
Compact oscilloscope for daily debug and test
The Tektronix MSO24, though small enough to fit into a laptop bag, it offers bandwidth of 70 MHz with a max sample rate of 2.5 GS/s and is available with 4 analog channels. The front and the side I/O enable easy access and connectivity. The optional detachable battery pack gives you flexibility for bench or field use.
If you wan't you can watch a short video

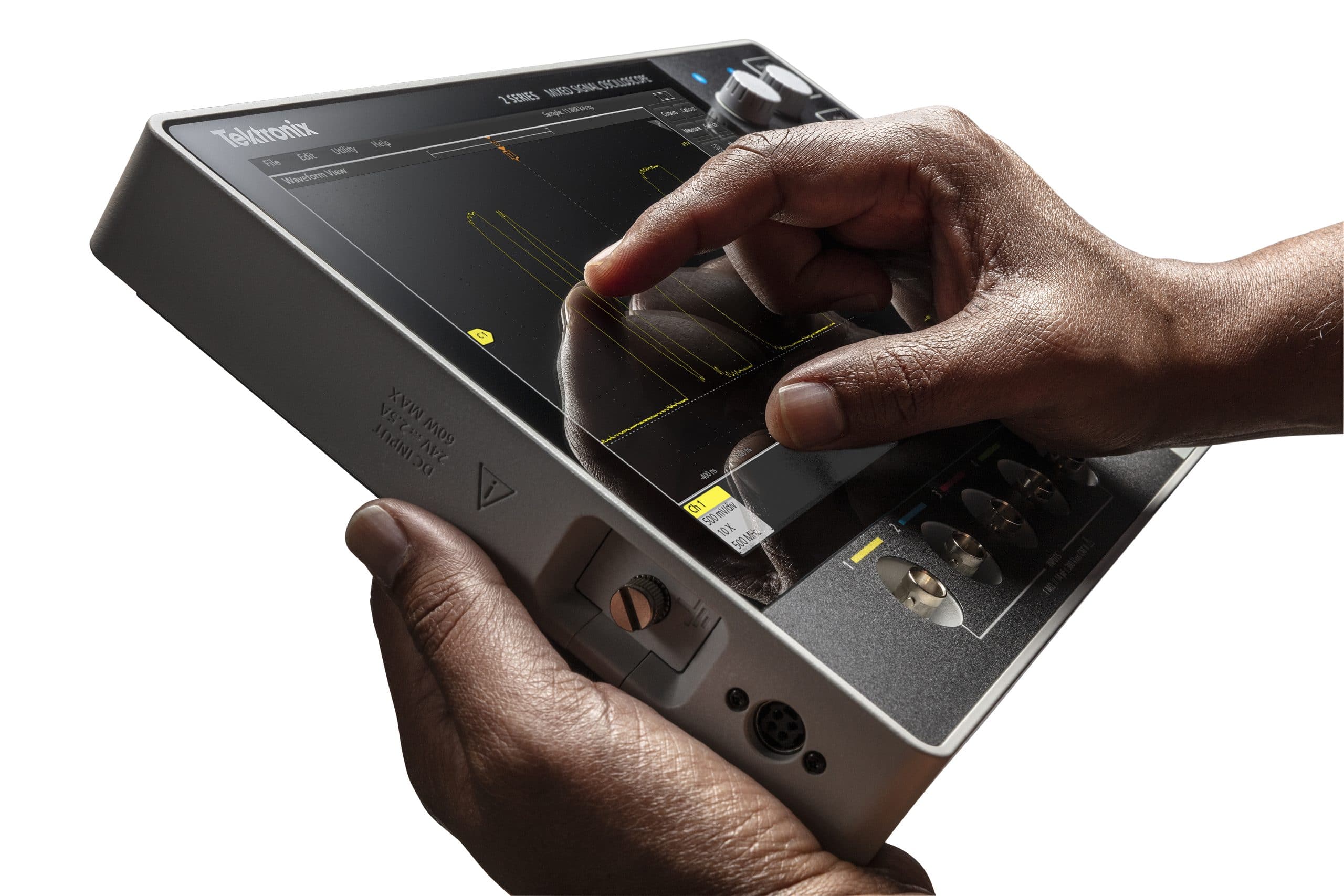

Simple touchscreen interface and controls
The MSO24 offers the same award-winning touchscreen user interface and simplified control panel you’ve come to expect on the most advanced Tektronix oscilloscopes.
- Simplified front panel with only the most critical controls
- Colored LED ring lights around the knobs indicate active sources or parameters to adjust
- Colored LED light under buttons indicate status
Comprehensive debug with one instrument
With several integrated options, the MSO24 is equipped for all your debugging needs in just one instrument.
- Built-in 16 MSO channels for testing digital circuits*
- 50 MHz AFG, 4-bit pattern generator* for simulating the circuit under test
- Supports a variety of probes to capture a wide range of signals *Available with future software releases.
Comprehensive Analysis for Fast Insight
A full suite of analysis tools provides immediate access to instrument configuration or waveform management tasks with a single tap.
- Waveform and screen-based cursors with user-selectable readout location
- Unlimited automated measurements
- Basic and advanced waveform math including arbitrary equation editing
- FFT for spectrum analysis
Optional accessories add versatility
- Two-slot battery pack supports up to eight hours of battery life and can be hot swapped in the field
- Rack mount kit attaches easily to VESA mount and allows access to all instrument ports

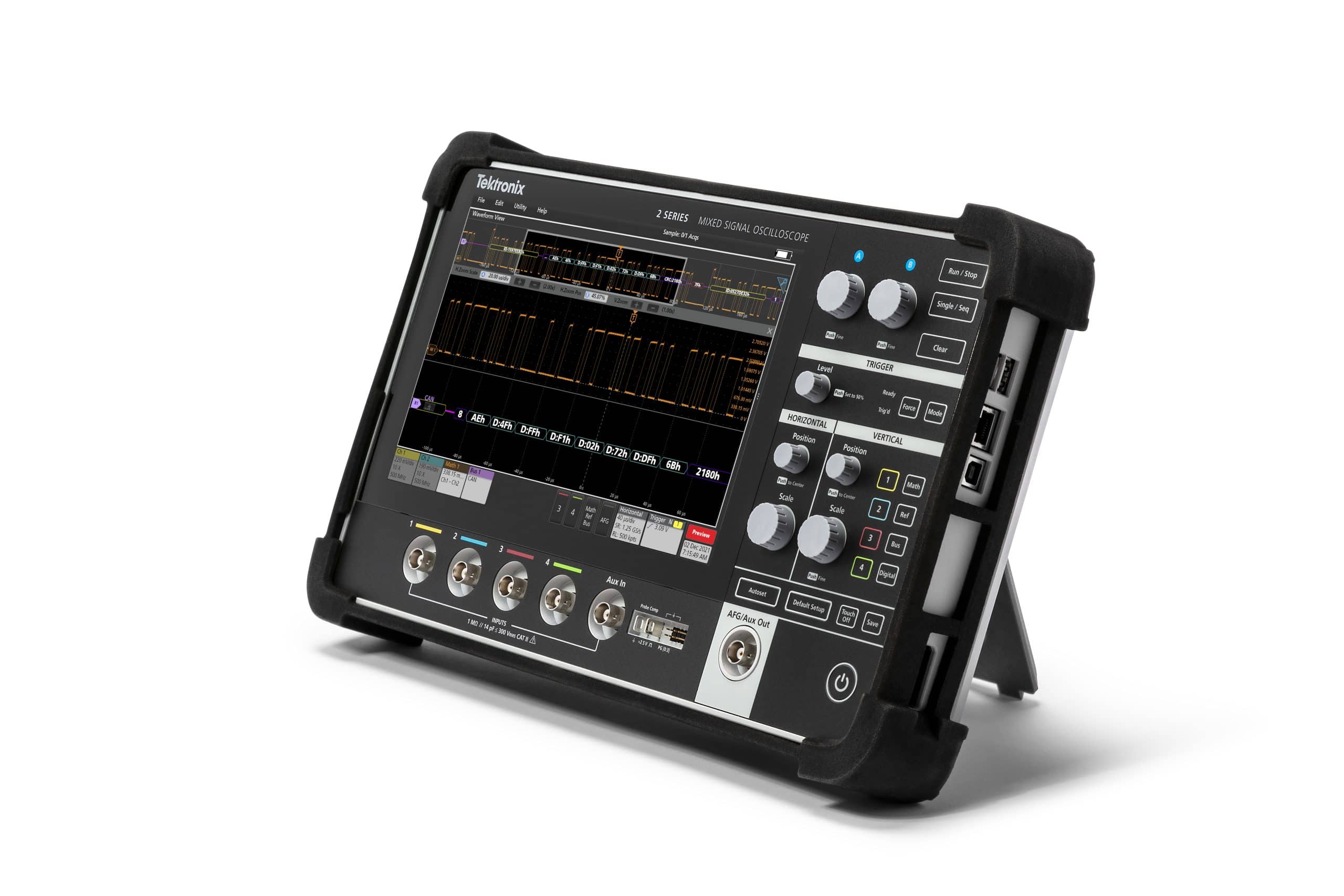

- Optional protective case safeguards instrument from drops up to 40 inches and includes kickstand and carrying bag
- Compatible with many off-the-shelf VESA accessories,including a rolling cart,cup holder mount, desk arm mount, and more
Analyze, share, collaborate with oscilloscope software
Capture data outside the lab, classroom, or any location and collaborate easily with colleagues on the next bench or in the next time-zone.
- Built-in VNC server to control instrument from devices such as PC, tablet, or phone
- TekDrive cloud storage facilitates record-keeping and collaboration
- Analyze data on or off the scope with TekScope™ PC analysis software that works just like the scope
- TekScope and TekDrive offered for six months free
Watch a short video
For more information Tektronix MSO24
Documents
Datasheet:
Options
Ordering information
Use the following steps to select the appropriate instrument and options for your measurement needs.
Step 1 – Select instrument model
Select the 2 Series instrument model
Model | Description |
---|---|
MSO22 | Mixed Signal Oscilloscope: 2 analog channels, 2.5 GS/s sample rate, 10 Mpts record length |
MSO24 | Mixed Signal Oscilloscope: 4 analog channels, 2.5 GS/s sample rate, 10 Mpts record length |
Each model includes |
---|
|
Step 2 – Configure bandwidth (required)
Configure your oscilloscope by selecting the analog channel bandwidth you need. You can also upgrade the bandwidth later by purchasing an upgrade option.
Bandwidth option | Bandwidth range |
---|---|
2-BW-70 | 70 MHz |
2-BW-100 | 100 MHz |
2-BW-200 | 200 MHz |
2-BW-350 | 350 MHz |
2-BW-500 | 500 MHz |
Step 3 – Add functionality
Additional functionality can be ordered with the instrument or later as an upgrade kit.
Probes option | Description |
---|---|
2-P6139B | Add 500 MHz, 10x probes (one per channel) |
2-MSO | Add MSO function with 16 digital channels; includes P6316 digital probe and accessories |
2-BATPK | Battery pack with 2 battery slots and 1 battery (ships with instrument) for use with 2 Series oscilloscopes |
Step 4 – Add instrument software functionality with one of the option bundles
Option bundles with different levels of functionality are being offered to suit different application needs.
Feature | Description |
---|---|
2-SOURCE | AFG (Arbitrary Function Generator) and DPG (Digital Pattern Generator) |
2-SERIAL | I2C, SPI, UART, CAN, CAN-FD, SENT, LIN serial trigger and analysis |
2-ULTIMATE | 2-SOURCE, 2-SERIAL |
Step 5 – Add additional probes and adapters
Add additional recommended probes and adapters
Passive voltage probes | Description |
---|---|
TPP0100 | 100 MHz bandwidth, 10x attenuation, BNC interface |
TPP0200 | 200 MHz bandwidth, 10x attenuation, BNC interface |
P2221 | 6 MHz to 200 MHz bandwidth, 1x / 10x attenuation, BNC interface |
P5050B | 500 MHz bandwidth, 10x attenuation, BNC interface |
P6139B | 500 MHz bandwidth, 10x attenuation, BNC interface |
P6101B | 15 MHz bandwidth, 1x attenuation, BNC interface |
P3010 | 100 MHz bandwidth, 10x attenuation, BNC interface |
THP0301 | 300 MHz bandwidth, 10x attenuation, BNC interface |
Current probes | Description |
---|---|
TCPA300 | Current probe Amplifier |
/w TCP312A | DC to 100 MHz, 1 mA |
/w TCP305A | DC to 50 MHz, 5 mA |
/w TCP303 | DC to 15 MHz, 5 mA |
TCPA400 | Current probe amplifier |
/W TCP404XL | DC to 2 MHz, 1 A |
TCP2020 | DC to 50 MHz, 10 mA |
A622 | DC to 100 KHz |
P6021A | 120 Hz to 60 MHz, 2 mA/mV, 10 mA/mV |
P6022 | 935 Hz to 120 MHz, 1 mA/mV, 10 mA/mV |
TRCP3000 | 1 Hz to 16 MHz, 2 mV/A |
TRCP0600 | 12 Hz to 30 MHz, 10 mV/A |
TRCP0300 | 9 Hz to 30 MHz, 20 mV/A |
CT1 | 25 KHz to 1 GHz, 5 mV/mA |
CT2 | 1.2 KHz to 200 MHz, 5 mV/mA |
CT6 | 250 KHz to 2 GHz, 5 mV/mA |
High voltage single ended probe | Description |
---|---|
P5100A | 500 MHz Bandwidth, 100x attenuation |
P6015A | 75 MHz Bandwidth, 1000x attenuation |
P5122 | 200 MHz Bandwidth, 100x attenuation |
P5150 | 500 MHz Bandwidth, 50x attenuation |
High voltage differential probe | Description |
---|---|
P5200A | 50 MHz Bandwidth, 50:1/500:1 attenuation |
Digital probe | Description |
---|---|
P6316 | 16 channel digital probe for MSO functionality |
Step 6 – Select accessories
Add additional recommended accessories
Optional accessories | Description |
---|---|
2-BP | Battery pack with 2 battery slots and 1 battery for use with 2 Series MSO (ships separately) |
TEKBAT-01 | Additional battery for use with battery pack 2-BP or Opt 2-BATPK |
TEKCHG-01 | Standalone battery charger for charging TEKBAT-01 battery |
2-RK | Rackmount kit |
2-PC | Carrying bag with kickstand and protective case for instrument |
2-HC | Hard carrying case |
119-9725-XX | Additional AC/DC power supply |
Step 7 – Select power cord option
Optional accessories | Description |
---|---|
A0 | North America power plug (115 V, 60 Hz) |
A1 | Universal Euro power plug (220 V, 50 Hz) |
A2 | United Kingdom power plug (240 V, 50 Hz) |
A3 | Australia power plug (240 V, 50 Hz) |
A5 | Switzerland power plug (220 V, 50 Hz) |
A6 | Japan power plug (100 V, 50/60 Hz) |
A10 | China power plug (50 Hz) |
A11 | India power plug (50 Hz) |
A12 | Brazil (60 Hz) |
A99 | No power cord |
E1 | Universal euro bundle |
Step 8 – Select service options
Protect your investment and your uptime with a service package for your 2 Series MSO. Optimize the lifetime value of your purchase and lower your total cost of ownership with a calibration and extended warranty plan for your 2 Series MSO. Plans range from standard warranty extensions covering parts, labor, and 2-day shipping to Total Product Protection with repair or replacement coverage from wear and tear, accidental damage, ESD or EOS. See the below table for specific service options available on the 2 Series MSO family of products. Compare factory service plans https://www.tek.com/en/services/factory-service-plans. Additionally, Tektronix is a leading accredited calibration services provider for all brands of electronic test and measurement equipment, servicing more than 140,000 models from 9,000 manufacturers. With 100+ labs worldwide, Tektronix serves as a global partner, delivering tailored whole-site calibration programs with OEM quality at a market price. View whole site calibration service capabilities https://www.tek.com/en/services/calibration-services.
Service options | Description |
---|---|
R3 | Standard warranty extended to 3 years. Covers parts, labor cost, and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free - a single call starts the process |
R5 | Standard warranty extended to 5 years. Covers parts, labor cost, and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free - a single call starts the process |
T3 | Three year total protection plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support |
T5 | Five year total protection plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support |
C3 | Calibration service 3 years. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2 years calibration coverage. |
C5 | Calibration service 5 years. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage. |
D1 | Calibration data report |
D3 | Calibration data report 3 years (with option C3) |
D5 | Calibration data report 5 years (with option C5) |
Ordering information post purchase
The 2 Series products offer many options to easily add functionality after the initial purchase.
Bandwidth upgrades after purchase
The analog bandwidth of the 2 Series MSO can be upgraded after the initial purchase. Bandwidth upgrades are purchased based on the current bandwidth and the desired bandwidth. All bandwidth upgrades can be performed in the field by installing a license.
Supported model | Bandwidth option | Bandwidth before upgrade | Bandwidth after upgrade |
---|---|---|---|
MSO22 | SUP2-BW70T100-2 | 70 MHz | 100 MHz |
SUP2-BW70T200-2 | 70 MHz | 200 MHz | |
SUP2-BW70T350-2 | 70 MHz | 350 MHz | |
SUP2-BW70T500-2 | 70 MHz | 500 MHz | |
SUP2-BW100T200-2 | 100 MHz | 200 MHz | |
SUP2-BW100T350-2 | 100 MHz | 350 MHz | |
SUP2-BW100T500-2 | 100 MHz | 500 MHz | |
SUP2-BW200T350-2 | 200 MHz | 350 MHz | |
SUP2-BW200T500-2 | 200 MHz | 500 MHz | |
MSO24 | SUP2-BW70T100-4 | 70 MHz | 100 MHz |
SUP2-BW70T200-4 | 70 MHz | 200 MHz | |
SUP2-BW70T350-4 | 70 MHz | 350 MHz | |
SUP2-BW70T500-4 | 70 MHz | 500 MHz | |
SUP2-BW100T200-4 | 100 MHz | 200 MHz | |
SUP2-BW100T350-4 | 100 MHz | 350 MHz | |
SUP2-BW100T500-4 | 100 MHz | 500 MHz | |
SUP2-BW200T350-4 | 200 MHz | 350 MHz | |
SUP2-BW200T500-4 | 200 MHz | 500 MHz |
Instrument functionality upgrade with one of the option bundles
Option bundles with different levels of functionality are being offered to suit different application needs.
Feature | Description |
---|---|
2-SOURCE | AFG (Arbitrary Function Generator) and DPG (Digital Pattern Generator) |
2-SERIAL | I2C, SPI, UART, CAN, CAN-FD, SENT, LIN serial trigger and analysis |
2-ULTIMATE | 2-SOURCE, 2-SERIAL |
SUP2-MSO | Add MSO function with 16 digital channels; includes P6316 digital probe and accessories |
Additional software for extended functionality
Purchase additional software with flexible licensing to extend the capabilities of your instrument for collaboration and offline analysis. Option bundles with different levels of functionality are being offered to suit different application needs. Each of these bundles can be purchased as a 1-year subscription or as a perpetual license.
Software option | Description |
---|---|
TEKSCOPE-STARTER | TekScope PC software bundles for various applications |
TEKSCOPE-PRO-AUTO | |
TEKSCOPE-PRO-SR | |
TEKSCOPE-PRO-PWR | |
TEKSCOPE-PRO-MIL | |
TEKSCOPE-ULTIMATE | |
TEKDRIVE-STARTER | TekDrive software for T&M workspace collaboration |
TEKDRIVE-PRO | |
TEKDRIVE-ULTIMATE | |
KICKSTART-SUITE | Kickstart instrument control and data analysis software |
KICKSTART-AFG | |
KICKSTART-DL | |
KICKSTART-DMM | |
KICKSTART-IVC | |
KICKSTART-PS | |
KICKSTART-SCOPE | |
KICKSTART-HRMA2 | |
KICKSTART-ACT1/2/5 |
1 500 MHz bandwidth guaranteed from 4 mV/div to 10 V/div. 2 Guaranteed, specification valid after 30 minute warm-up and Signal Path Compensation (SPC) at ambient. 3 Available in a future release.
Video
Tektronix MSO24 70 MHz Oscilloscope
Compact oscilloscope for daily debug and test
The Tektronix MSO24, though small enough to fit into a laptop bag, it offers bandwidth of 70 MHz with a max sample rate of 2.5 GS/s and is available with 4 analog channels. The front and the side I/O enable easy access and connectivity. The optional detachable battery pack gives you flexibility for bench or field use.
If you wan't you can watch a short video
Simple touchscreen interface and controls
The MSO24 offers the same award-winning touchscreen user interface and simplified control panel you’ve come to expect on the most advanced Tektronix oscilloscopes.
- Simplified front panel with only the most critical controls
- Colored LED ring lights around the knobs indicate active sources or parameters to adjust
- Colored LED light under buttons indicate status
Comprehensive debug with one instrument
With several integrated options, the MSO24 is equipped for all your debugging needs in just one instrument.
- Built-in 16 MSO channels for testing digital circuits*
- 50 MHz AFG, 4-bit pattern generator* for simulating the circuit under test
- Supports a variety of probes to capture a wide range of signals *Available with future software releases.
Comprehensive Analysis for Fast Insight
A full suite of analysis tools provides immediate access to instrument configuration or waveform management tasks with a single tap.
- Waveform and screen-based cursors with user-selectable readout location
- Unlimited automated measurements
- Basic and advanced waveform math including arbitrary equation editing
- FFT for spectrum analysis
Optional accessories add versatility
- Two-slot battery pack supports up to eight hours of battery life and can be hot swapped in the field
- Rack mount kit attaches easily to VESA mount and allows access to all instrument ports
- Optional protective case safeguards instrument from drops up to 40 inches and includes kickstand and carrying bag
- Compatible with many off-the-shelf VESA accessories,including a rolling cart,cup holder mount, desk arm mount, and more
Analyze, share, collaborate with oscilloscope software
Capture data outside the lab, classroom, or any location and collaborate easily with colleagues on the next bench or in the next time-zone.
- Built-in VNC server to control instrument from devices such as PC, tablet, or phone
- TekDrive cloud storage facilitates record-keeping and collaboration
- Analyze data on or off the scope with TekScope™ PC analysis software that works just like the scope
- TekScope and TekDrive offered for six months free
Watch a short video
For more information Tektronix MSO24
Datasheet:
Ordering information
Use the following steps to select the appropriate instrument and options for your measurement needs.
Step 1 – Select instrument model
Select the 2 Series instrument model
Model | Description |
---|---|
MSO22 | Mixed Signal Oscilloscope: 2 analog channels, 2.5 GS/s sample rate, 10 Mpts record length |
MSO24 | Mixed Signal Oscilloscope: 4 analog channels, 2.5 GS/s sample rate, 10 Mpts record length |
Each model includes |
---|
|
Step 2 – Configure bandwidth (required)
Configure your oscilloscope by selecting the analog channel bandwidth you need. You can also upgrade the bandwidth later by purchasing an upgrade option.
Bandwidth option | Bandwidth range |
---|---|
2-BW-70 | 70 MHz |
2-BW-100 | 100 MHz |
2-BW-200 | 200 MHz |
2-BW-350 | 350 MHz |
2-BW-500 | 500 MHz |
Step 3 – Add functionality
Additional functionality can be ordered with the instrument or later as an upgrade kit.
Probes option | Description |
---|---|
2-P6139B | Add 500 MHz, 10x probes (one per channel) |
2-MSO | Add MSO function with 16 digital channels; includes P6316 digital probe and accessories |
2-BATPK | Battery pack with 2 battery slots and 1 battery (ships with instrument) for use with 2 Series oscilloscopes |
Step 4 – Add instrument software functionality with one of the option bundles
Option bundles with different levels of functionality are being offered to suit different application needs.
Feature | Description |
---|---|
2-SOURCE | AFG (Arbitrary Function Generator) and DPG (Digital Pattern Generator) |
2-SERIAL | I2C, SPI, UART, CAN, CAN-FD, SENT, LIN serial trigger and analysis |
2-ULTIMATE | 2-SOURCE, 2-SERIAL |
Step 5 – Add additional probes and adapters
Add additional recommended probes and adapters
Passive voltage probes | Description |
---|---|
TPP0100 | 100 MHz bandwidth, 10x attenuation, BNC interface |
TPP0200 | 200 MHz bandwidth, 10x attenuation, BNC interface |
P2221 | 6 MHz to 200 MHz bandwidth, 1x / 10x attenuation, BNC interface |
P5050B | 500 MHz bandwidth, 10x attenuation, BNC interface |
P6139B | 500 MHz bandwidth, 10x attenuation, BNC interface |
P6101B | 15 MHz bandwidth, 1x attenuation, BNC interface |
P3010 | 100 MHz bandwidth, 10x attenuation, BNC interface |
THP0301 | 300 MHz bandwidth, 10x attenuation, BNC interface |
Current probes | Description |
---|---|
TCPA300 | Current probe Amplifier |
/w TCP312A | DC to 100 MHz, 1 mA |
/w TCP305A | DC to 50 MHz, 5 mA |
/w TCP303 | DC to 15 MHz, 5 mA |
TCPA400 | Current probe amplifier |
/W TCP404XL | DC to 2 MHz, 1 A |
TCP2020 | DC to 50 MHz, 10 mA |
A622 | DC to 100 KHz |
P6021A | 120 Hz to 60 MHz, 2 mA/mV, 10 mA/mV |
P6022 | 935 Hz to 120 MHz, 1 mA/mV, 10 mA/mV |
TRCP3000 | 1 Hz to 16 MHz, 2 mV/A |
TRCP0600 | 12 Hz to 30 MHz, 10 mV/A |
TRCP0300 | 9 Hz to 30 MHz, 20 mV/A |
CT1 | 25 KHz to 1 GHz, 5 mV/mA |
CT2 | 1.2 KHz to 200 MHz, 5 mV/mA |
CT6 | 250 KHz to 2 GHz, 5 mV/mA |
High voltage single ended probe | Description |
---|---|
P5100A | 500 MHz Bandwidth, 100x attenuation |
P6015A | 75 MHz Bandwidth, 1000x attenuation |
P5122 | 200 MHz Bandwidth, 100x attenuation |
P5150 | 500 MHz Bandwidth, 50x attenuation |
High voltage differential probe | Description |
---|---|
P5200A | 50 MHz Bandwidth, 50:1/500:1 attenuation |
Digital probe | Description |
---|---|
P6316 | 16 channel digital probe for MSO functionality |
Step 6 – Select accessories
Add additional recommended accessories
Optional accessories | Description |
---|---|
2-BP | Battery pack with 2 battery slots and 1 battery for use with 2 Series MSO (ships separately) |
TEKBAT-01 | Additional battery for use with battery pack 2-BP or Opt 2-BATPK |
TEKCHG-01 | Standalone battery charger for charging TEKBAT-01 battery |
2-RK | Rackmount kit |
2-PC | Carrying bag with kickstand and protective case for instrument |
2-HC | Hard carrying case |
119-9725-XX | Additional AC/DC power supply |
Step 7 – Select power cord option
Optional accessories | Description |
---|---|
A0 | North America power plug (115 V, 60 Hz) |
A1 | Universal Euro power plug (220 V, 50 Hz) |
A2 | United Kingdom power plug (240 V, 50 Hz) |
A3 | Australia power plug (240 V, 50 Hz) |
A5 | Switzerland power plug (220 V, 50 Hz) |
A6 | Japan power plug (100 V, 50/60 Hz) |
A10 | China power plug (50 Hz) |
A11 | India power plug (50 Hz) |
A12 | Brazil (60 Hz) |
A99 | No power cord |
E1 | Universal euro bundle |
Step 8 – Select service options
Protect your investment and your uptime with a service package for your 2 Series MSO. Optimize the lifetime value of your purchase and lower your total cost of ownership with a calibration and extended warranty plan for your 2 Series MSO. Plans range from standard warranty extensions covering parts, labor, and 2-day shipping to Total Product Protection with repair or replacement coverage from wear and tear, accidental damage, ESD or EOS. See the below table for specific service options available on the 2 Series MSO family of products. Compare factory service plans https://www.tek.com/en/services/factory-service-plans. Additionally, Tektronix is a leading accredited calibration services provider for all brands of electronic test and measurement equipment, servicing more than 140,000 models from 9,000 manufacturers. With 100+ labs worldwide, Tektronix serves as a global partner, delivering tailored whole-site calibration programs with OEM quality at a market price. View whole site calibration service capabilities https://www.tek.com/en/services/calibration-services.
Service options | Description |
---|---|
R3 | Standard warranty extended to 3 years. Covers parts, labor cost, and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free - a single call starts the process |
R5 | Standard warranty extended to 5 years. Covers parts, labor cost, and 2-day shipping within country. Guarantees faster repair time than without coverage. All repairs include calibration and updates. Hassle free - a single call starts the process |
T3 | Three year total protection plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support |
T5 | Five year total protection plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS plus preventative maintenance. Including a 5 day turnaround time and priority access to customer support |
C3 | Calibration service 3 years. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2 years calibration coverage. |
C5 | Calibration service 5 years. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4 years calibration coverage. |
D1 | Calibration data report |
D3 | Calibration data report 3 years (with option C3) |
D5 | Calibration data report 5 years (with option C5) |
Ordering information post purchase
The 2 Series products offer many options to easily add functionality after the initial purchase.
Bandwidth upgrades after purchase
The analog bandwidth of the 2 Series MSO can be upgraded after the initial purchase. Bandwidth upgrades are purchased based on the current bandwidth and the desired bandwidth. All bandwidth upgrades can be performed in the field by installing a license.
Supported model | Bandwidth option | Bandwidth before upgrade | Bandwidth after upgrade |
---|---|---|---|
MSO22 | SUP2-BW70T100-2 | 70 MHz | 100 MHz |
SUP2-BW70T200-2 | 70 MHz | 200 MHz | |
SUP2-BW70T350-2 | 70 MHz | 350 MHz | |
SUP2-BW70T500-2 | 70 MHz | 500 MHz | |
SUP2-BW100T200-2 | 100 MHz | 200 MHz | |
SUP2-BW100T350-2 | 100 MHz | 350 MHz | |
SUP2-BW100T500-2 | 100 MHz | 500 MHz | |
SUP2-BW200T350-2 | 200 MHz | 350 MHz | |
SUP2-BW200T500-2 | 200 MHz | 500 MHz | |
MSO24 | SUP2-BW70T100-4 | 70 MHz | 100 MHz |
SUP2-BW70T200-4 | 70 MHz | 200 MHz | |
SUP2-BW70T350-4 | 70 MHz | 350 MHz | |
SUP2-BW70T500-4 | 70 MHz | 500 MHz | |
SUP2-BW100T200-4 | 100 MHz | 200 MHz | |
SUP2-BW100T350-4 | 100 MHz | 350 MHz | |
SUP2-BW100T500-4 | 100 MHz | 500 MHz | |
SUP2-BW200T350-4 | 200 MHz | 350 MHz | |
SUP2-BW200T500-4 | 200 MHz | 500 MHz |
Instrument functionality upgrade with one of the option bundles
Option bundles with different levels of functionality are being offered to suit different application needs.
Feature | Description |
---|---|
2-SOURCE | AFG (Arbitrary Function Generator) and DPG (Digital Pattern Generator) |
2-SERIAL | I2C, SPI, UART, CAN, CAN-FD, SENT, LIN serial trigger and analysis |
2-ULTIMATE | 2-SOURCE, 2-SERIAL |
SUP2-MSO | Add MSO function with 16 digital channels; includes P6316 digital probe and accessories |
Additional software for extended functionality
Purchase additional software with flexible licensing to extend the capabilities of your instrument for collaboration and offline analysis. Option bundles with different levels of functionality are being offered to suit different application needs. Each of these bundles can be purchased as a 1-year subscription or as a perpetual license.
Software option | Description |
---|---|
TEKSCOPE-STARTER | TekScope PC software bundles for various applications |
TEKSCOPE-PRO-AUTO | |
TEKSCOPE-PRO-SR | |
TEKSCOPE-PRO-PWR | |
TEKSCOPE-PRO-MIL | |
TEKSCOPE-ULTIMATE | |
TEKDRIVE-STARTER | TekDrive software for T&M workspace collaboration |
TEKDRIVE-PRO | |
TEKDRIVE-ULTIMATE | |
KICKSTART-SUITE | Kickstart instrument control and data analysis software |
KICKSTART-AFG | |
KICKSTART-DL | |
KICKSTART-DMM | |
KICKSTART-IVC | |
KICKSTART-PS | |
KICKSTART-SCOPE | |
KICKSTART-HRMA2 | |
KICKSTART-ACT1/2/5 |
1 500 MHz bandwidth guaranteed from 4 mV/div to 10 V/div. 2 Guaranteed, specification valid after 30 minute warm-up and Signal Path Compensation (SPC) at ambient. 3 Available in a future release.
