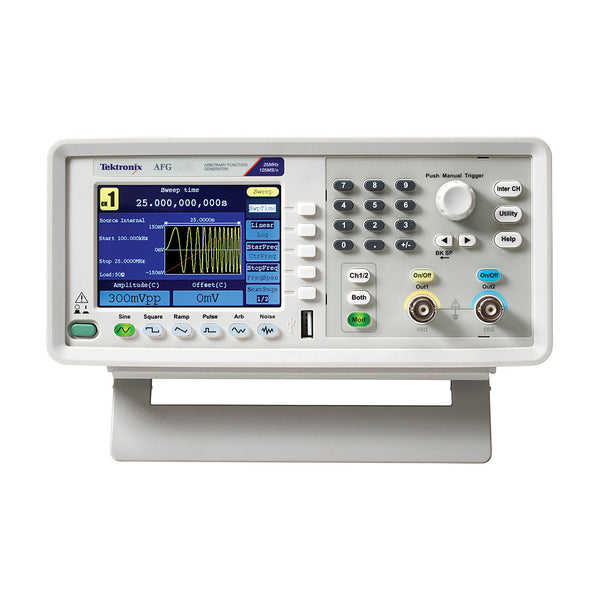

Tektronix AFG1022 Arbitrary Function Generator
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Analog Bandwidth - 25 MHz
- Analog Channels - 2
- Output Frequency - 1 uHz to 25 MHz
- Record Length - 8k points
- Sample Rate - 125 MS/s
- Vertical Resolution - 14-bit
Discover the possibilities
More information
Description
With 25 MHz or 60MHz bandwidth, 2 output channels, 1 mVpp to 10 Vpp output amplitude across full bandwidth, Tektronix AFG1000 Arbitrary/Function Generator generates all kinds of waveforms needed in a lab. Most importantly, it offers the best value for money in the Tektronix line-up of arbitrary function generators.
Features | Benefits |
| Dual-channel, 25MHz bandwidth with 1mVpp to 10Vpp output; 14-bit vertical resolution and 1uHz frequency resolution | Generate more precise waveforms for more accurate lab result. |
| 50 built-in arbitrary waveforms with continuous, modulation, sweep and burst modes | Generate all kinds of waveforms needed in a lab. |
| Dedicated 3.95” TFT LCD display, easy-to-navigate front panel and menu | Provide easy access for users to conduct experiments. |
| Built-in 200MHz, 6-digit frequency counter | Measure frequency/period/pulse width/duty cycle in a precise way without a standalone frequency counter. |
| Standard 5 year warranty | Better user experience guaranteed by Tektronix quality and service. |
