Tekbox TBMA6-P Passive Loop Antenna
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Characterized frequency range: 9 kHz to 30 MHz
- Magnetic field antenna factor: -20 dB/Ωm @ 30 MHz, typ.
- Electric field antenna factor: 31,5 dB/m @ 30 MHz, typ.
- Sensitivity: -24 dBµA/m @ 30 MHz
- Dimensions: Ф 60 cm
Discover the possibilities
More information
Description
The Tekbox TBMA6-P is a passive Loop Antenna, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.
The Tekbox TBMA6-P loop antenna is designed for radiated emission measurements in the frequency range of 9 kHz – 30 MHz, according to CISPR 16. The loop antenna has a diameter of 60 cm and provides sufficient sensitivity to carry out all relevant measurements specified in the corresponding CISPR standards for the frequency range of 9 kHz – 30 MHz.

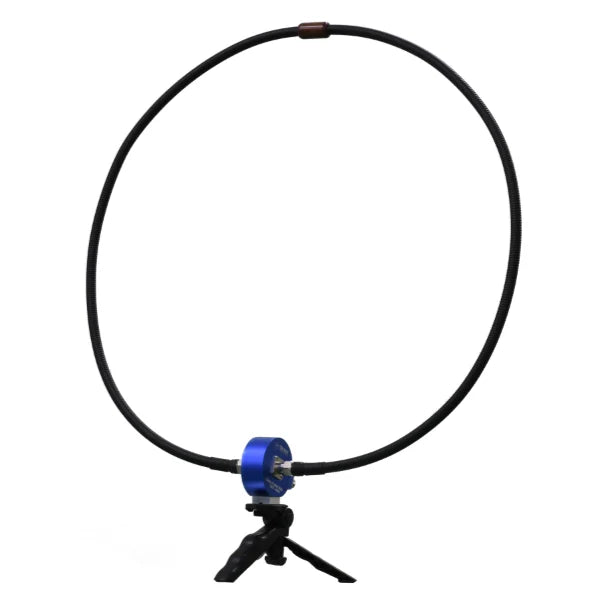

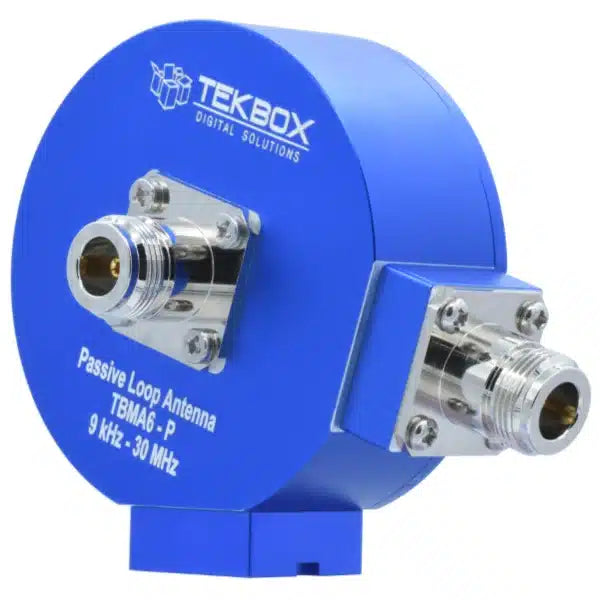

The loop is built from a corrugated coaxial cable and attached to the transducer with N-connectors. This construction provides flexibility to use it with various loop diameters. An attachment with a ¼” thread permits connectivity to standard tripods.
Specifications:
- Characterized frequency range: 9 kHz to 30 MHz
- Magnetic field antenna factor: -20 dB/Ωm @ 30 MHz, typ.
- Electric field antenna factor: 31,5 dB/m @ 30 MHz, typ.
- Sensitivity: -24 dBµA/m @ 30 MHz
- Dimensions: Ф 60 cm
- Weight: 800 g
- Connector type: N female
- Mount: ¼” thread
For more information: Tekbox
Click here for related products: Antennas
