Tekbox TBMA5B Active Monopole Antenna
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Characterized frequency range: 9 kHz to 30 MHz
- Electric field antenna factor: +5 to +7 dB/m, typ.
- Dynamic Range: 117 dB @ 10MHz, 9KHz RBW, AVG
- Electric field, lower limit: noise floor at -3 dBµV/m @ 10MHz, 9 KHz RBW, AVG
- Electric field, upper limit: 120 dBµV/m (1 V/m) @ 1 dB compression
- Output VSWR: 1.04 to 1.6 :1
- Output connector type: N female
- Battery type: 12 x NiMH, AA (not included)
- Battery life on average: up to 20 hours, depending on the battery capacity
- Charger: Mascot 2116 6-12 Cells
- Tripod mount: ¼” thread
- Impedance converter dimensions: 185 x 210 x 65 mm, 1.5 kg
- Carrying Case: Aluminum, 75 x 73 x 18 cm, 4 kg
Discover the possibilities
More information
Description
The TBMA5B is an active Monopole Antenna, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.
The monopole antenna is designed for radiated emission measurements within the frequency range 9 kHz – 30 MHz, according to CISPR 16. The monopole antenna has a rod with height of 104 cm and provides excellent sensitivity to carry out radiated emission measurements as specified in CISPR 25 or MIL-STD-461G.

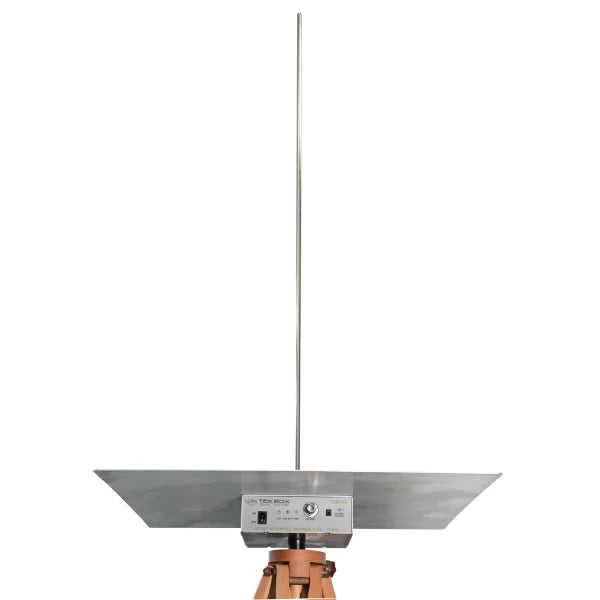

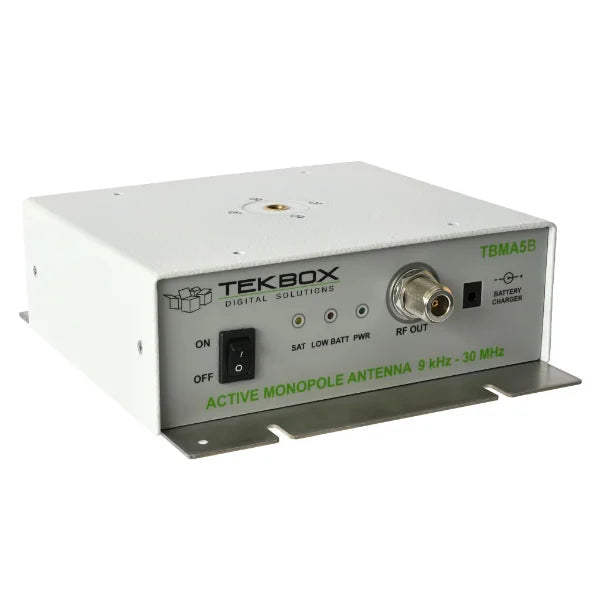

The TBMA5B consists of an impedance converter, a universal charger, a 10 mm diameter rod, a 60 cm x 60 cm ground plane and a standard 10pF calibration adapter. Furthermore, it includes the coaxial cable with ferrite and grounding equipment required under MIL-STD461G. The impedance converter is equipped with a ¼” thread to attach it to conventional tripods.
SPECIFICATIONS
- Characterized frequency range: 9 kHz to 30 MHz
- Electric field antenna factor: +5 to +7 dB/m, typ.
- Dynamic Range: 117 dB @ 10MHz, 9KHz RBW, AVG
- Electric field, lower limit: noise floor at -3 dBµV/m @ 10MHz, 9 KHz RBW, AVG
- Electric field, upper limit: 120 dBµV/m (1 V/m) @ 1 dB compression
- Output VSWR: 1.04 to 1.6 :1
- Output connector type: N female

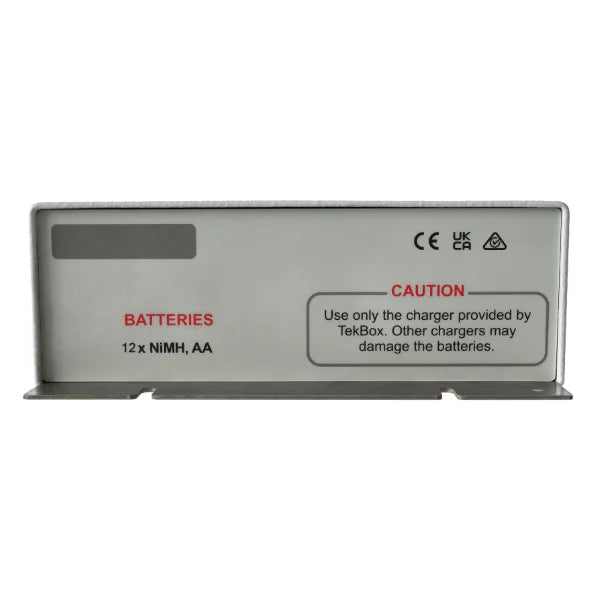

- Battery type: 12 x NiMH, AA (not included)
- Battery life on average: up to 20 hours, depending on the battery capacity
- Charger: Mascot 2116 6-12 Cells
- Tripod mount: ¼” thread
- Impedance converter dimensions: 185 x 210 x 65 mm, 1.5 kg
- Carrying Case: Aluminum, 75 x 73 x 18 cm, 4 kg
