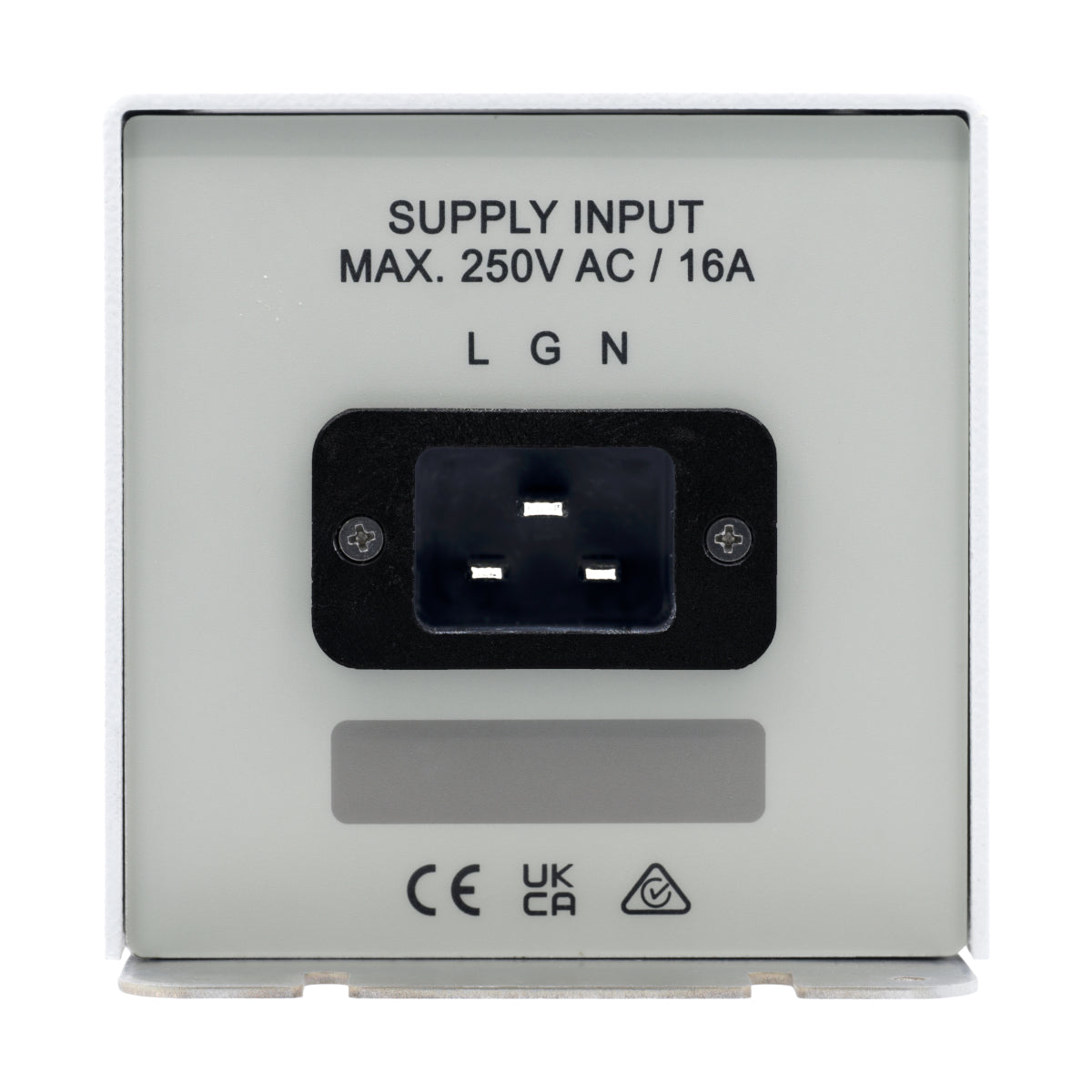

Tekbox TBLVHF-B Balanced VHF Line Impedance Stabilization Network
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Designed for mains supplied EUTs with or without protective Earth
- Frequency range: 30-300 MHz
- Maximum supply voltage: 250V AC
- Maximum supply current: 16 A rms
- Defined termination impedance
- > 40 dB isolation
- Country specific mains sockets
- Compact design
- CISPR 16-1-4 conformant
Discover the possibilities
More information
Description
The model TBLVHF-B, Balanced Very High Frequency Impedance Stabilization Network (Balanced VHF LISN) is an artificial mains network providing a defined RF termination impedance for AC mains cables supplying EUTs in radiated emission test setups. The LISN is suitable for EUTs with or without protective earth and provides defined, symmetrical line impedances, resulting in a balanced load.
Specifications
- Designed for mains supplied EUTs with or without protective Earth
- Frequency range: 30-300 MHz
- Maximum supply voltage: 250V AC
- Maximum supply current: 16 A rms
- Defined termination impedance
- > 40 dB isolation
- Country specific mains sockets
- Compact design
- CISPR 16-1-4 conformant
Specifications
Documents
Options
Video
The model TBLVHF-B, Balanced Very High Frequency Impedance Stabilization Network (Balanced VHF LISN) is an artificial mains network providing a defined RF termination impedance for AC mains cables supplying EUTs in radiated emission test setups. The LISN is suitable for EUTs with or without protective earth and provides defined, symmetrical line impedances, resulting in a balanced load.
Specifications
- Designed for mains supplied EUTs with or without protective Earth
- Frequency range: 30-300 MHz
- Maximum supply voltage: 250V AC
- Maximum supply current: 16 A rms
- Defined termination impedance
- > 40 dB isolation
- Country specific mains sockets
- Compact design
- CISPR 16-1-4 conformant
