Tekbox TBLNA-9K30 Loop Antenna Pre-Amplifier
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Frequency range: 9 kHz to 30 MHz
- Gain: 43 dB, typ.
- Input return loss: < -15 dB @ 9 kHz to 30 MHz, typ.
- Output return loss: < -20 dB @ 9 kHz to 30 MHz, typ.
Discover the possibilities
More information
Description

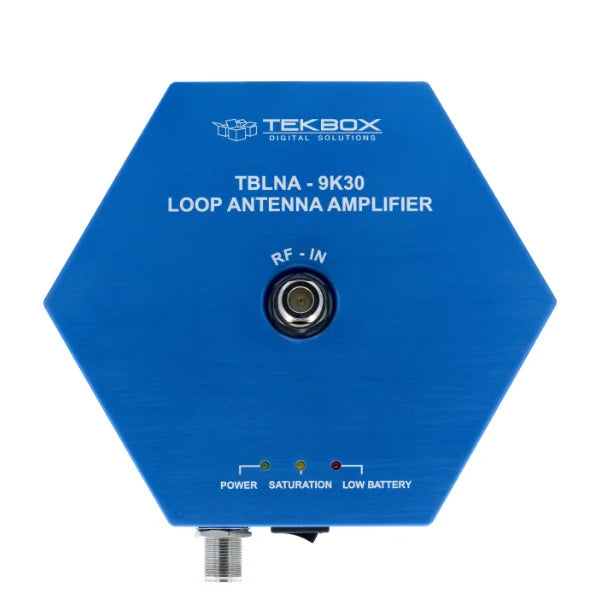

The TBLNA-9K30 is a pre-amplifier for the TBMA6-P, expanding the dynamic range of the passive loop antenna.
The pre-amplifier is designed for the TBMA6-P, but it can be used together with any passive loop antenna for the frequency range 9 kHz – 30 MHz. The pre-amplifier is equipped with a charger for 12 pieces standard AA NiMh batteries. A ¼” thread at the bottom of the TBLAA1 permits connectivity to standard tripods.
Specifications
- Frequency range: 9 kHz to 30 MHz
- Gain: 43 dB, typ.
- Input return loss: < -15 dB @ 9 kHz to 30 MHz, typ.
- Output return loss: < -20 dB @ 9 kHz to 30 MHz, typ.
- Noise voltage: 1nV / √Hz, typ.
- P1dBout: +15 dBm (indicated with yellow LED)
- IP3out: +28 dBm
- Connector type: N female
- Power supply: 12 pieces standard AA NiMh cells (not supplied)
- Charger: Mascot Type 2116
- Current consumption: 120 mA
- Operation time: ca. 10 hours, depending on NiMh battery model
- Indicators: LED indicators for Pwr On, Low Battery, Saturation
- Dimensions: ⌀ 180 mm, height 52 mm
- Weight: 1.7 kg
- Tripod mount: ¼” thread
