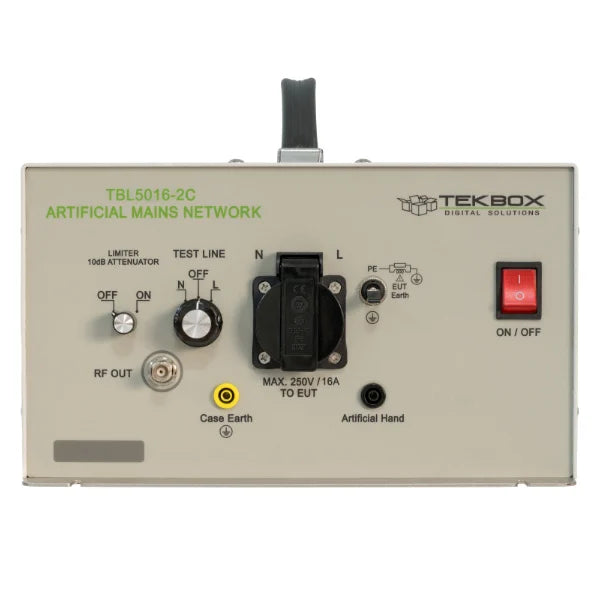

Tekbox TBL5016-2C 50mH Line Impedance Stabilization Network
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 Ω ║ (50 µH + 5 Ω)
- Artificial hand: 220 pF + 511 Ω
- Switchable PE: 50 Ω ║ 50 µH
%0AArtificial%20hand:%20220%20pF%20+%20511%20%E2%84%A6%0ASwitchable%20PE:%2050%20%E2%84%A6%20%E2%95%91%2050%20%C2%B5H%0A
){kind=link}
Discover the possibilities
More information
Description
The TBL5016-2C is a Line Impedance Stabilization Network designed to measure conducted emissions on power supply lines in the 9kHz to 30MHz frequency range, as specified by the CISPR 16-1-2 standard. The device is designed for testing single phase, AC -powered equipment with supply voltages up to maximum 2 50V and 16 A. Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2C features a line selector switch, a switchable limiter / highpass filter / attenuator, a PE switch to mimic extension cables and an artificial hand connection.
The device is available with country-specific EUT connectors.
Specifications
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 Ω ║ (50 µH + 5 Ω)
- Artificial hand: 220 pF + 511 Ω
- Switchable PE: 50 Ω ║ 50 µH
- Limiter / attenuator / highpass filter: +6dBm / 10 dB /150 kHz to 30 MHz
- Air core inductors
- Line voltage: max. 250V / 50/ 60 Hz or DC
- Max. current: 16 A @ 23°C
- EUT socket: country specific
- Measurement connector: 50 Ω BNC
- Power connector: IEC 60320 C19
- Operating Temperature Range: +5°C … + 40°C; 5% to 80% RH
