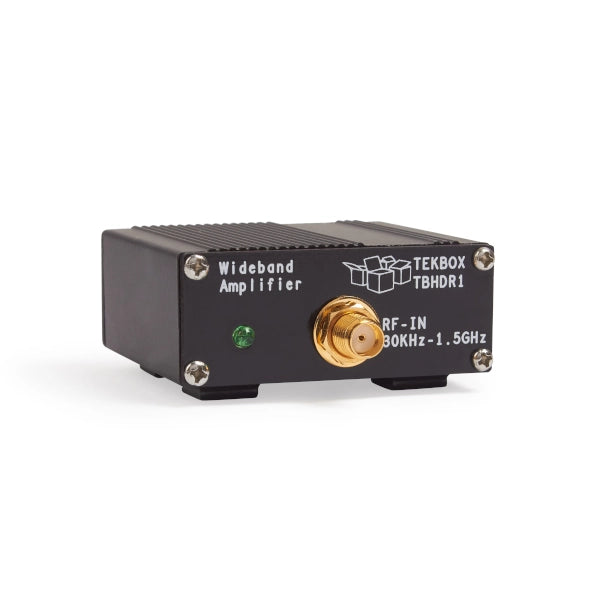

Tekbox TBHDR1 High Dynamic Range Amplifier
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
Discover the possibilities
More information
Description
The TBHDR1 is a high dynamic range amplifier with a frequency range from 30kHz to 1.5GHz. Its gain is characterized up to 6GHz.
The TBHDR1 has a high IP3 and a low noise figure which makes it an ideal alternative pre-amplifier for spectrum analyzers and receivers in EMC test applications. Due to its low noise figure, high IP3 and gain down to the kHz range it also performs very well as amplifier for active loop antennas.
Specifications
Maximum supply voltage: 5.5VMaximum input power: +10 dBm

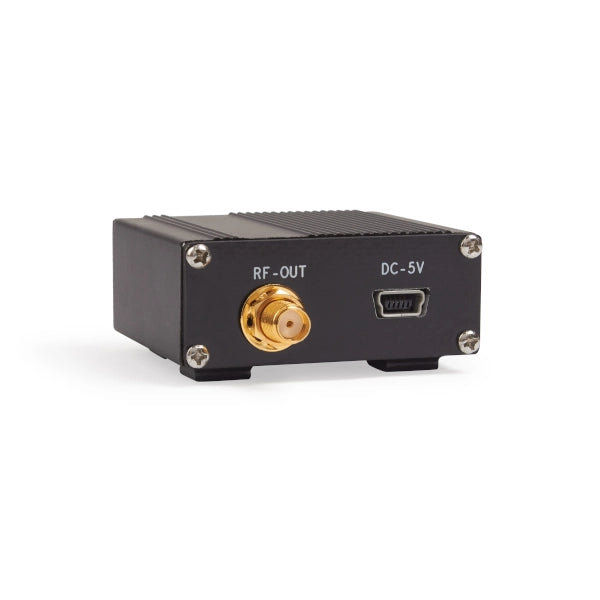

Input, Output: 50 Ohm, SMA female
Nominal supply Voltage: 5V, typ. 100mA, Mini-USB-B connector
1dB output compression point @ 100 MHz: +19.2 dBm typical
1dB output compression point @ 500 MHz: +19 dBm typical
1dB output compression point @ 1000 MHz: +18.3 dBm typical
3rd order output intercept point @ 100 MHz: +38dBm
3rd order output intercept point @ 500 MHz: +37dBm
3rd order output intercept point @ 1000 MHz: +33dBm
Reverse isolation S12: -28dB
Input matching: 30kHz-1.5GHz < - 16 dB
Output matching: 30kHz-1.5GHz < - 10 dB
Noise Figure: 2.7 dB
Gain:
|
30 kHz |
150 kHz |
1 MHz |
100 MHz |
500 MHz |
1 GHz |
1.5 GHz |
3 GHz |
6 GHz |
|
17.2 dB |
23.6 dB |
24.2 dB |
24 dB |
22.9 dB |
21.1 dB |
19.5 dB |
14.1 dB |
5.3 dB |
APPLICATION:
- general purpose gain block
- pre-amplifier in applications with low noise and high IP3 requirements
- pre-amplifier for spectrum analyzers, especially in EMC pre-compliance test applications
- Loop antenna amplifier
