Tekbox TBCP1 25mm Fixed Aperture RF Current Monitoring Probes, up to 200, 250 or 500 MHz
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Characterized frequency range - 1 kHz to 500 MHz
- Aperture diameter - 25 mm
- Outside diameter - 76 mm
- Height - 31 mm
- Weight - 320 g
- Connector type - N female
- Transfer impedance - 17 dBΩ in the flat region, typ.
- 3 dB bandwidth - 40 kHz -200 MHz, typ.
- Max. primary current (DC – 400 Hz) - 80 A
- Max. primary current (RF) - 3 A
- Max. core temperature - 125 °C
Discover the possibilities
More information
Description

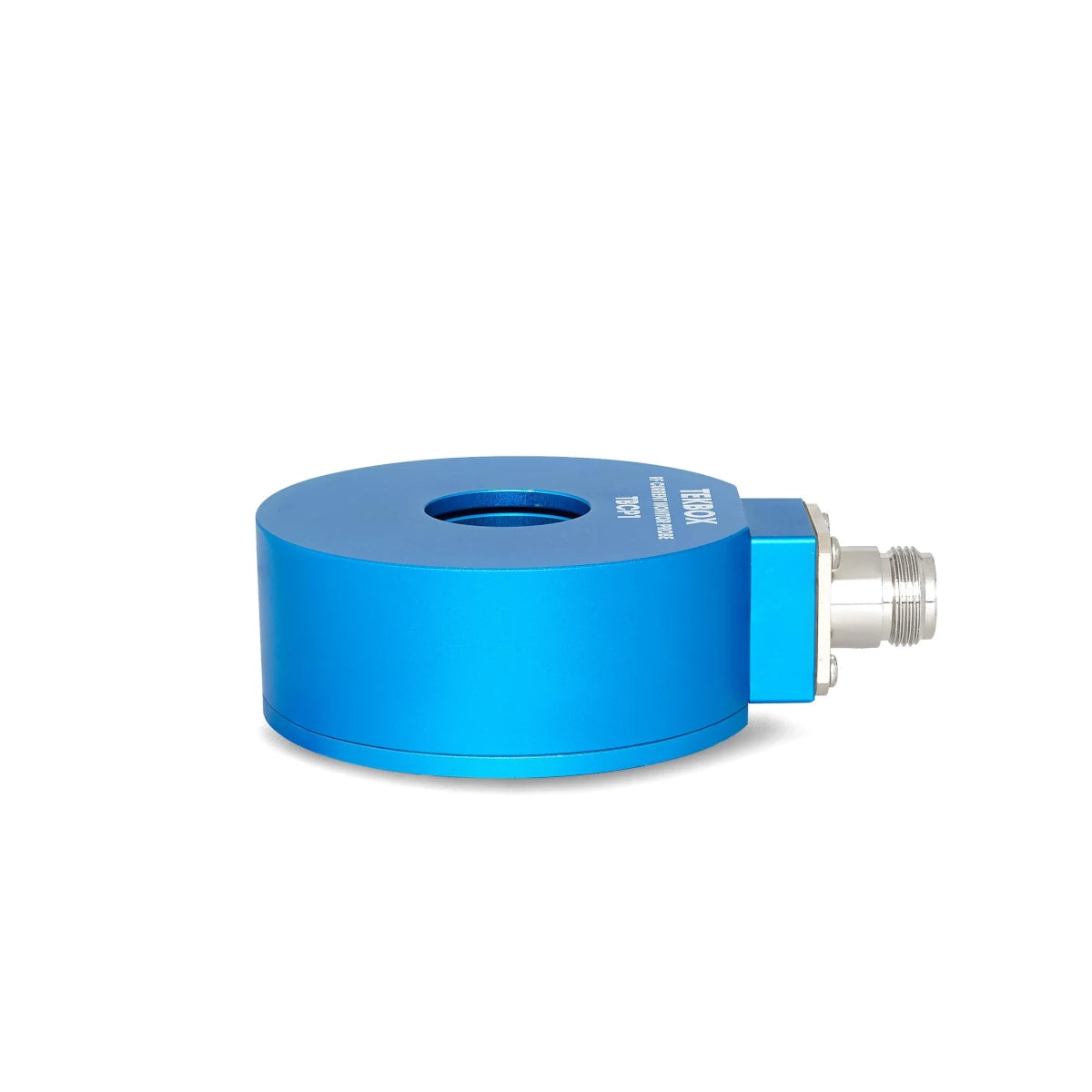

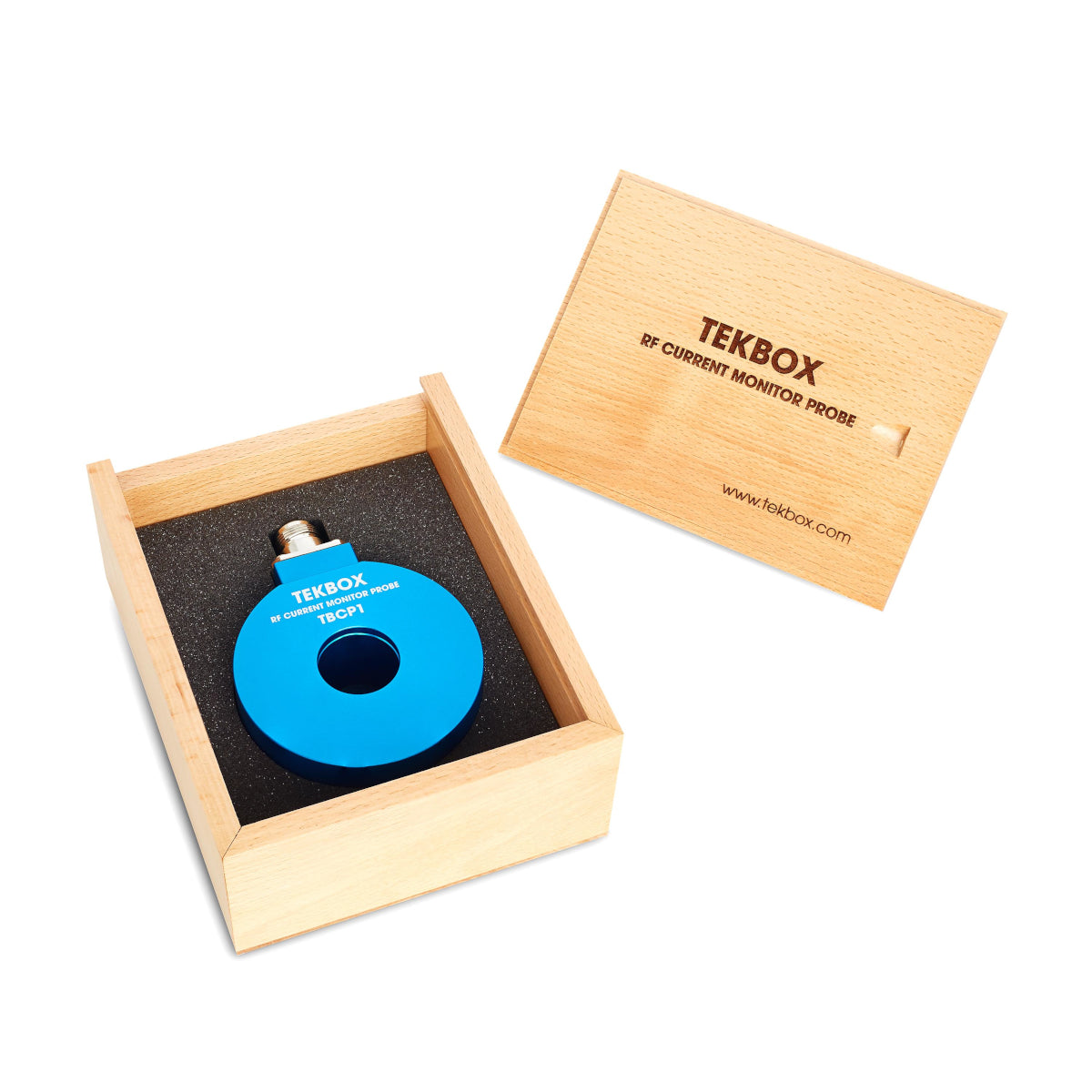

The TBCP1-200 is a fixed aperture RF current monitoring probe.
The probe has a 3dB bandwidth of approximately 200 MHz and is characterized and usable over the frequency range from 1 kHz to 500 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance. Its transfer impedance is > 17 dB Ohm with a 3 dB bandwidth from 40 kHz to 200 MHz.

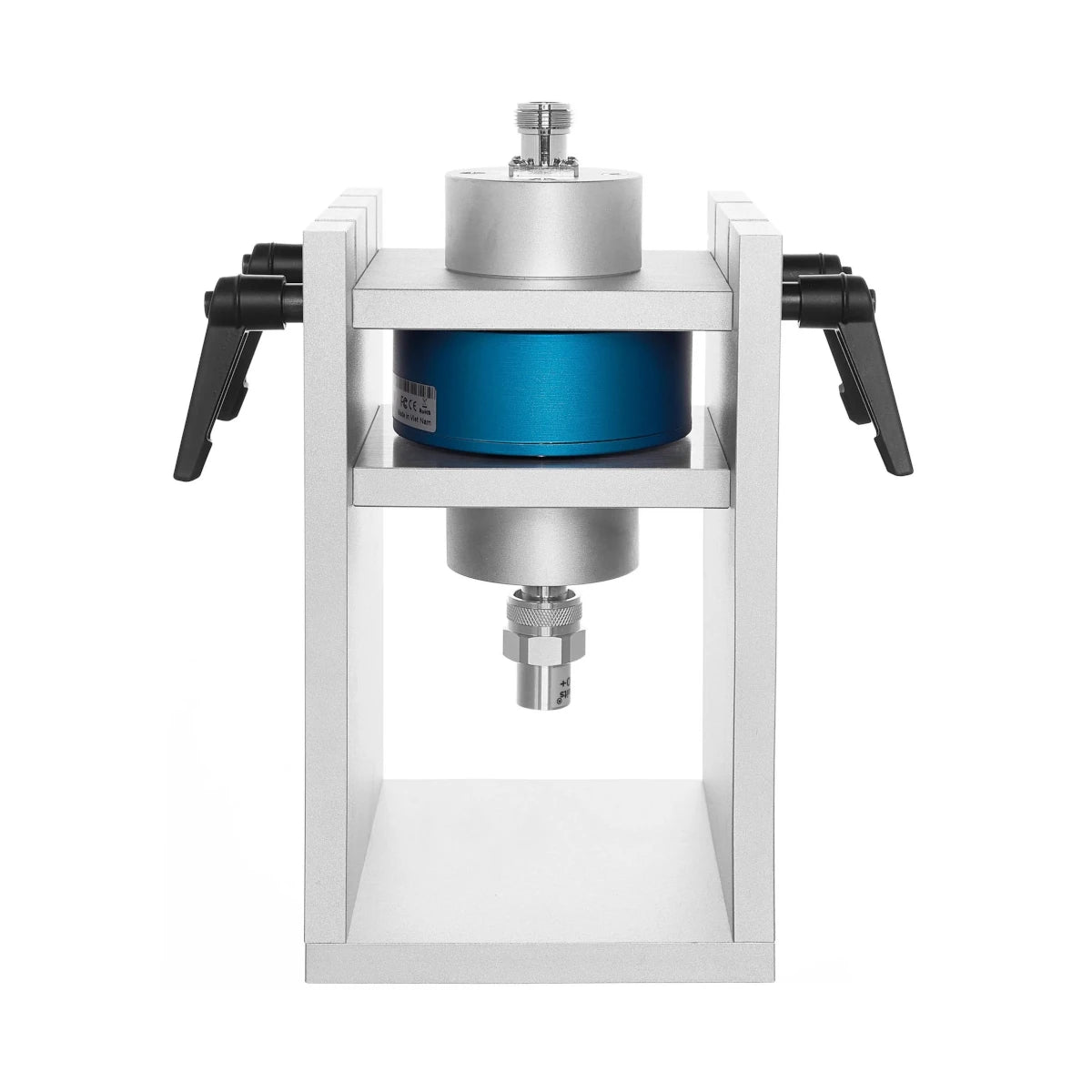

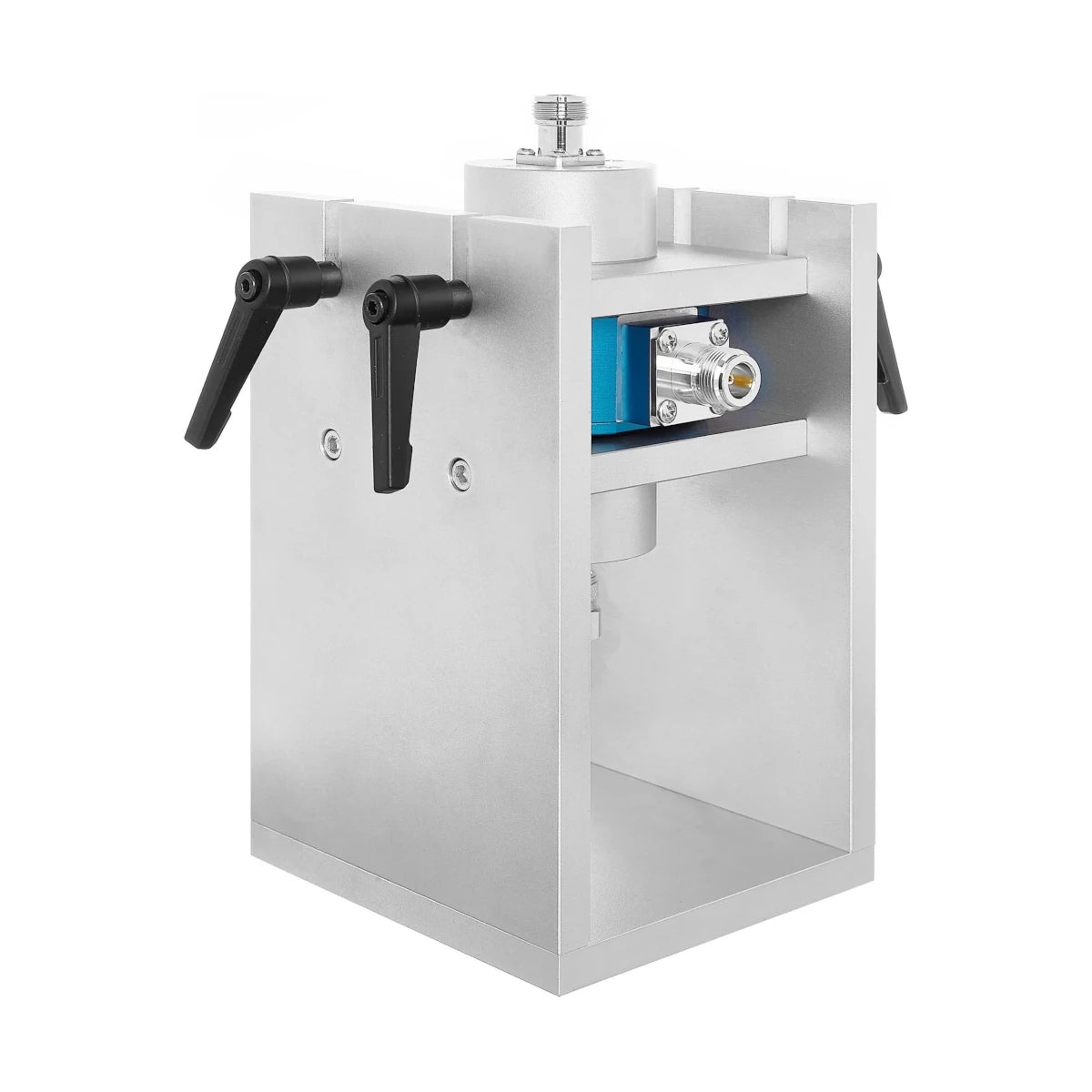

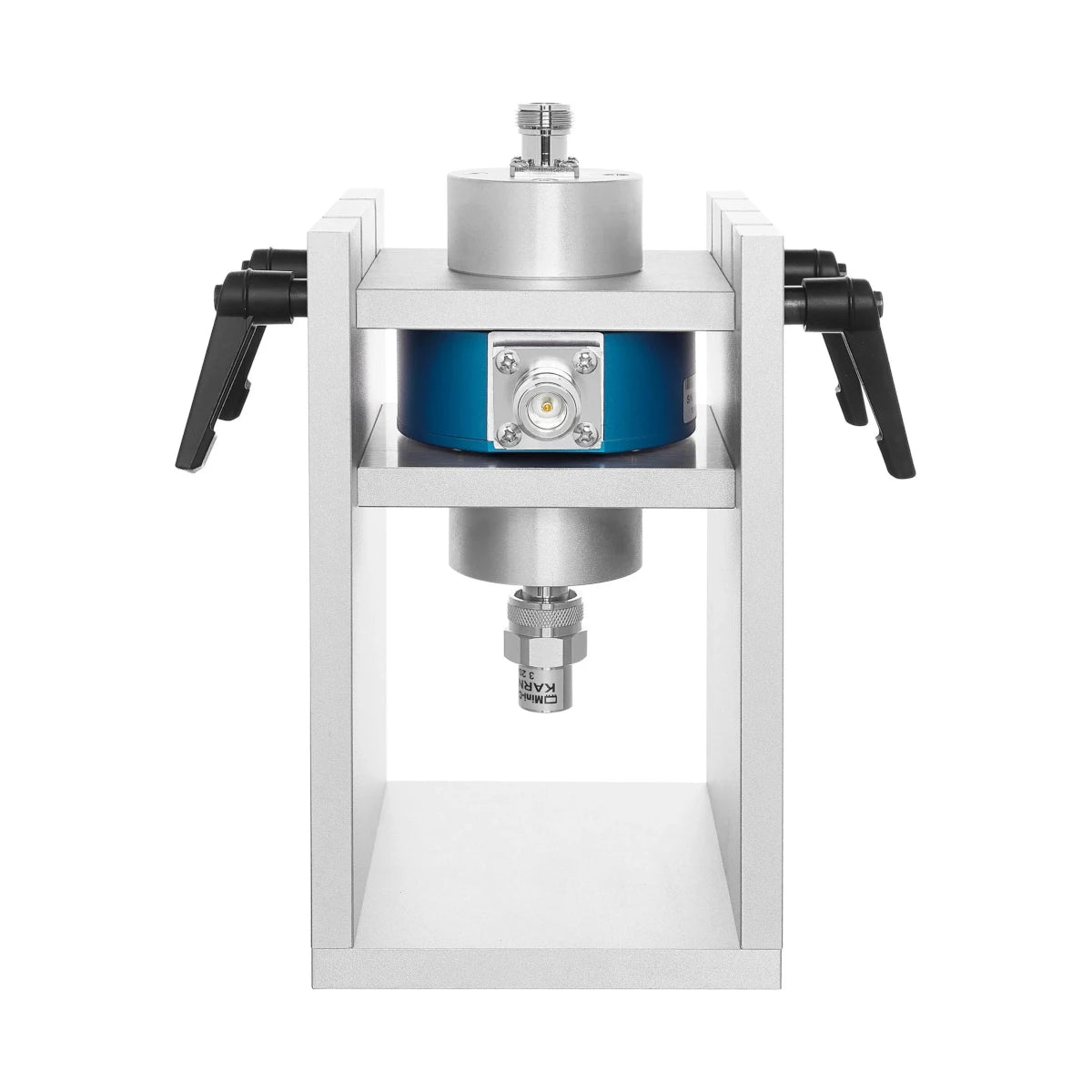

Tekbox supplies a calibration fixture corresponding with the TBCP1 current probe series.
For more information: Tekbox
Documents
Options
Video
The TBCP1-200 is a fixed aperture RF current monitoring probe.
The probe has a 3dB bandwidth of approximately 200 MHz and is characterized and usable over the frequency range from 1 kHz to 500 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance. Its transfer impedance is > 17 dB Ohm with a 3 dB bandwidth from 40 kHz to 200 MHz.
Tekbox supplies a calibration fixture corresponding with the TBCP1 current probe series.
For more information: Tekbox
