Tekbox TBAS2 SMA 6GHz Attenuator/Termination Set
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Attenuators: 3, 6, 10, 15 dB +/- 0.5 dB 20, 30 dB +/- 0.8 dB
- Frequency Range: DC – 6GHz, VSWR <1.3
- Power rating: 1W @ -40 to 70°C; up to 70°C with 50% power de-rating
- Connectors: SMA-male/SMA-female; bidirectional
- Termination: 50 Ohm
- Frequency Range: DC – 6GHz, VSWR <1.2
- Power rating: 1W @ -40 to 70°C; up to 70°C with 50% power de-rating
- Connectors: SMA-male
- Dimensions: 150mm x 95mm x 45mm
- Weight: 490g
Discover the possibilities
More information
Description

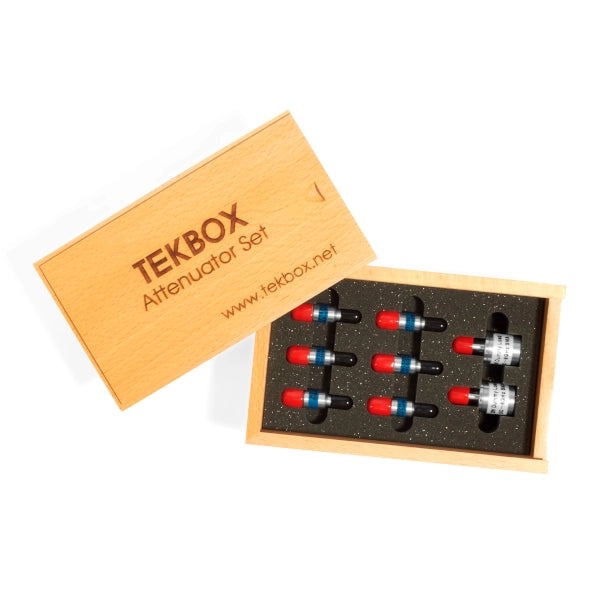

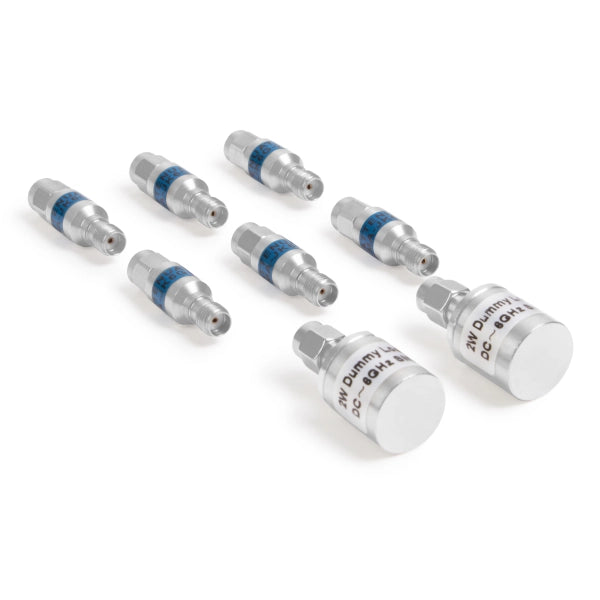

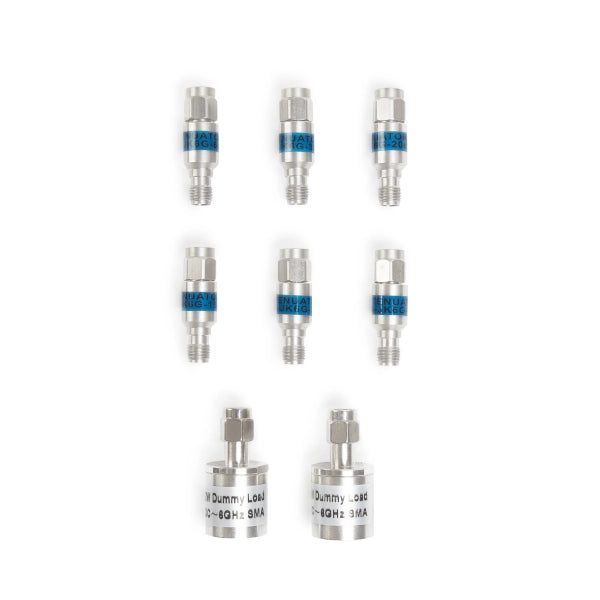

The Tekbox TBAS2 is a RF SMA attenuator/termination set consisting of a 3dB, 6dB, 10dB, 15dB, 20dB and 30dB SMA attenuators in a beech wood box. Furthermore it contains two pieces SMA 50 Ohm terminations.
For more information: Tekbox
Documents
Options
Video
The Tekbox TBAS2 is a RF SMA attenuator/termination set consisting of a 3dB, 6dB, 10dB, 15dB, 20dB and 30dB SMA attenuators in a beech wood box. Furthermore it contains two pieces SMA 50 Ohm terminations.
For more information: Tekbox
