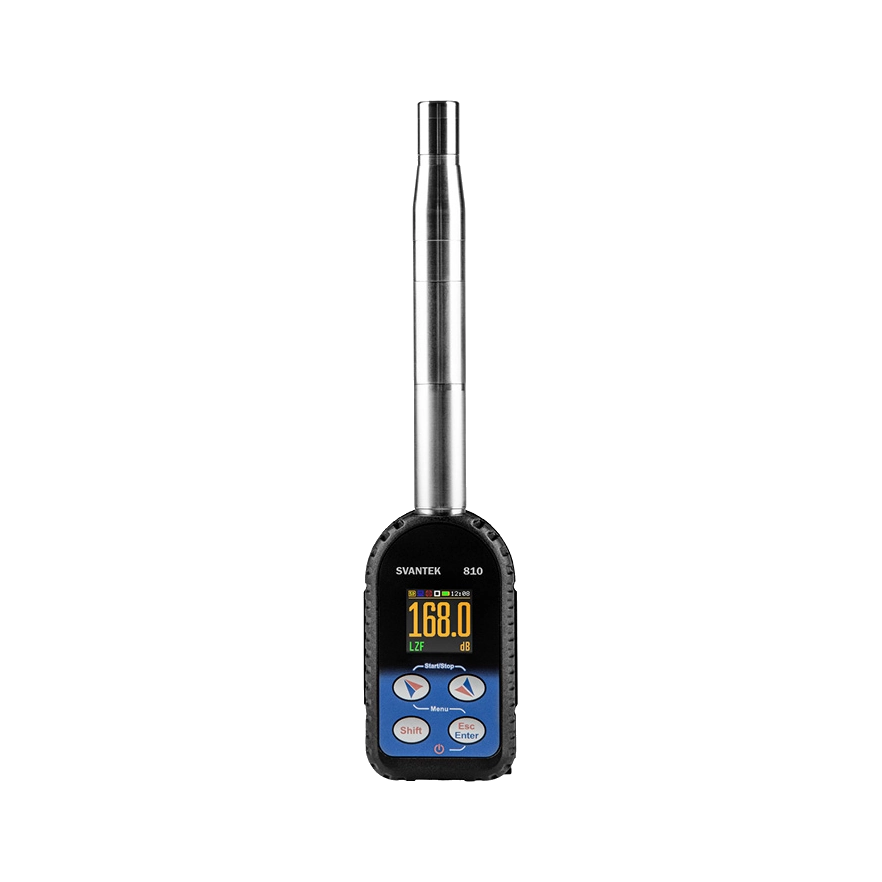

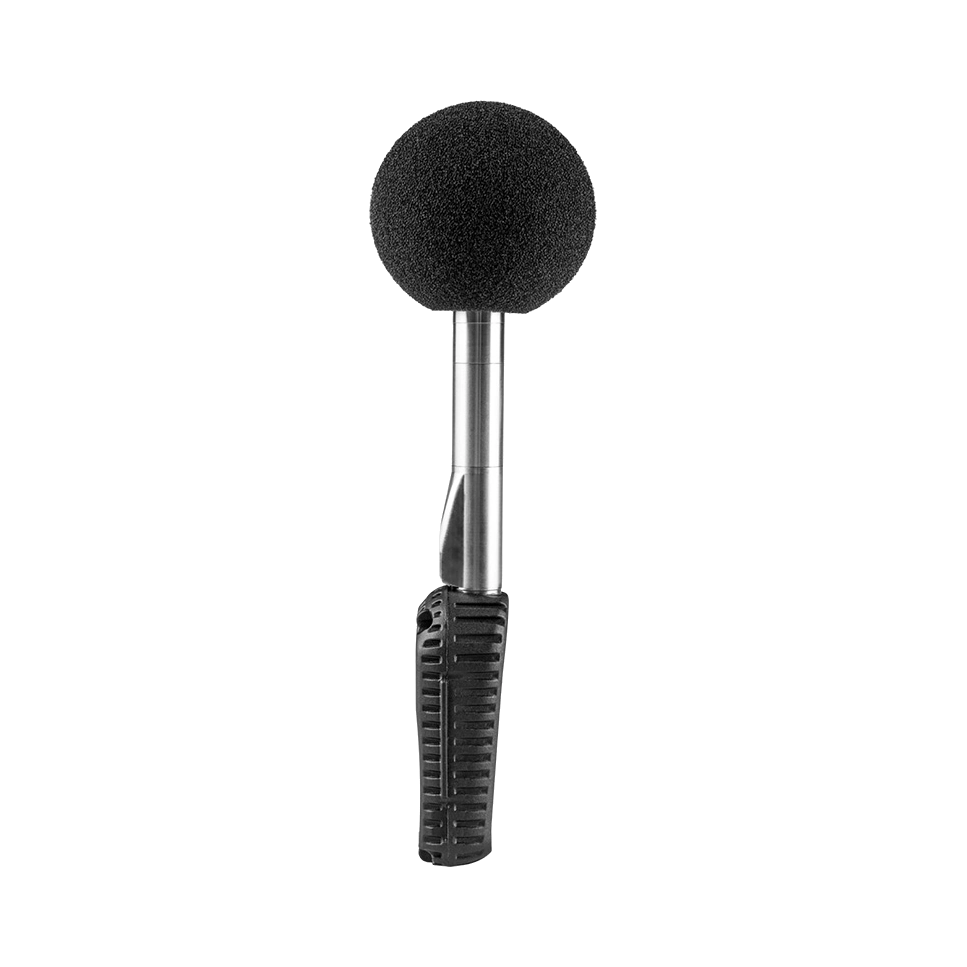

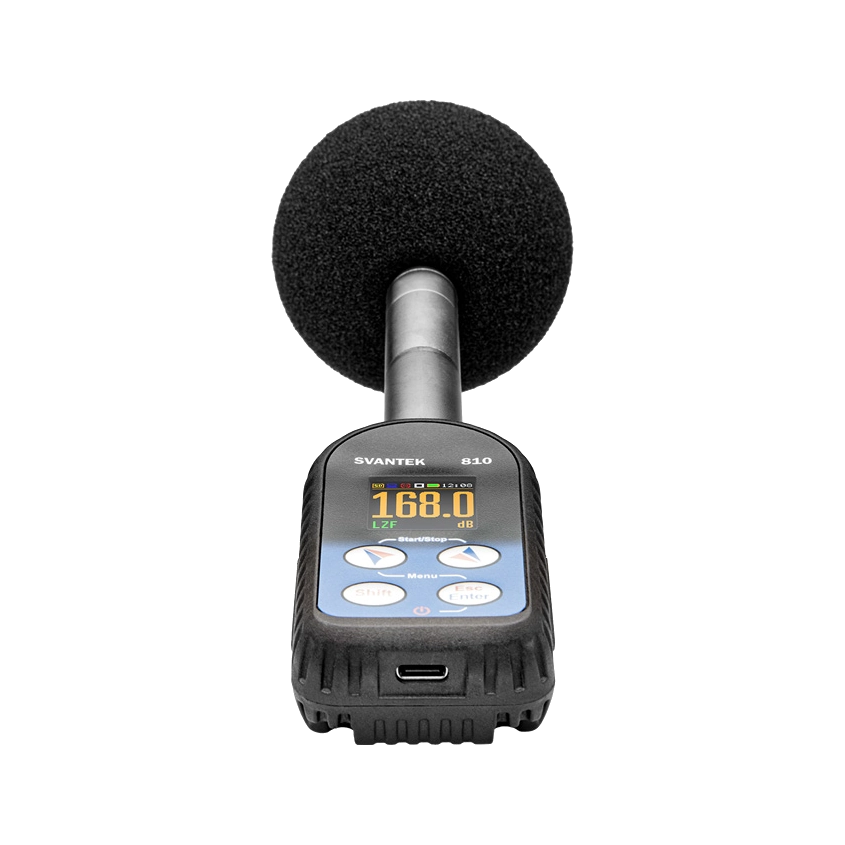

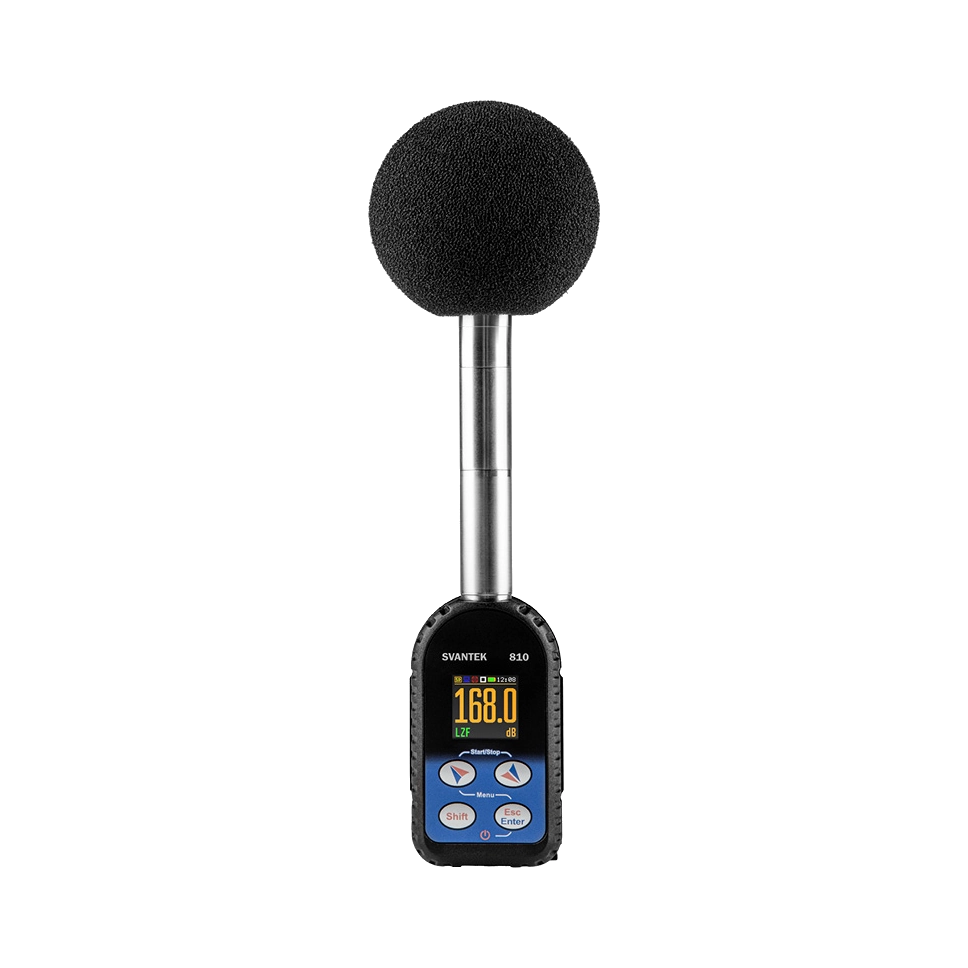

Svantek SV 810 Air-Overpressure Meter
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- ISEE 2022 Compliant
- 105–168 dB Peak
- 2–250 Hz Range
- 0.1 dB Resolution
- 1600-Line FFT
- 8-Hour Battery
- IP54 Protection
Discover the possibilities
More information
Description
The SV 810 is a dedicated air-overpressure meter designed for precise blast monitoring that fully meets the latest ISEE 2022 Performance Specifications. Whether deployed as a portable standalone device or integrated into SVANTEK Monitoring Systems (SV 803, SV 804, SD 311), it captures high-energy blast events up to 168 dB to provide legally defensible data for regulatory reporting. Equipped with an 8-hour rechargeable battery, 8 GB of integrated memory, and a rugged, weather-resistant design, it is the ultimate field solution for capturing low-frequency impulsive noise.
Product Highlights
- ISEE 2022 Compliant: Meets and exceeds the latest global performance requirements for blasting seismographs.
- Dedicated Blast Monitoring: Purpose-built for surface mining, quarries, and urban demolition to ensure strict control over detonation impacts.
- Microphone Technology: Built around a highly accurate, solid-state piezoresistive pressure transducer to ensure natural resistance and long-term stability in harsh environments.
- Comprehensive Overpressure Metrics: Directly measures Lpeak, Lmax, Lmin, Leq, and overload in both pascals and decibels.
168 dB Peak Capacity: Captures exceptionally high-energy blast events with an extended dynamic range from 105 dB to 168 dB Peak. - Low-Frequency Precision: Delivers highly accurate impulsive noise measurements from 2 Hz to 250 Hz using linear weighting.
- Defensible Data: Creates traceable WAV recordings and time-history data, automatically calculating the Dominant Frequency (DF) using standard on-board FFT analysis for strict regulatory documentation.
- True Hybrid Flexibility: Functions as an autonomous meter with internal data logging or connects to SV 803/804 stations for real-time SvanNET cloud telemetry.
- Instant On-Site Setup: Configure measurement settings instantly using the integrated OLED display and keyboard—no external devices required.
- Field Autonomy: Operates completely independently for up to 8 hours on a single charge with 8 GB of integrated memory for extensive data logging.
- Weather-Protected: IP 54 rated meter, optionally upgradable to IP 65 with the rugged SA 810 enclosure for unattended outdoor monitoring.
Features
Standalone Overpressure Monitoring
Autonomous Operation in Field

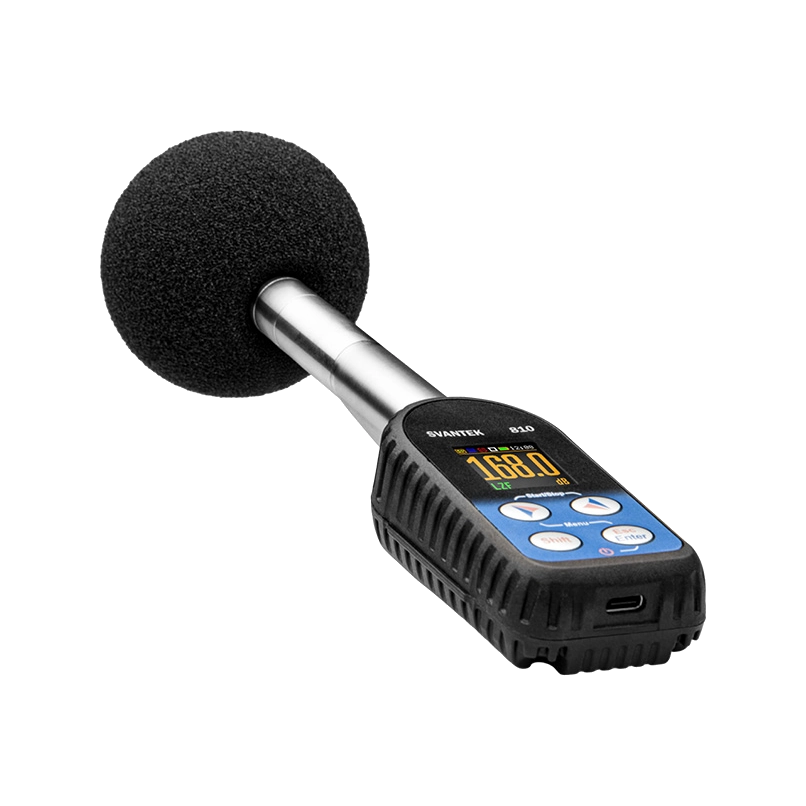

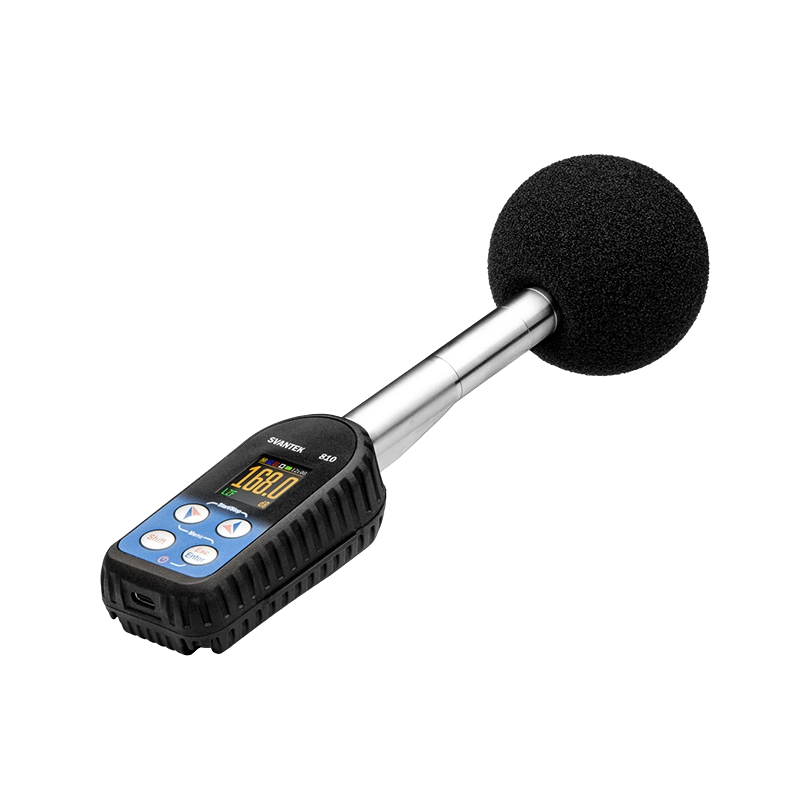

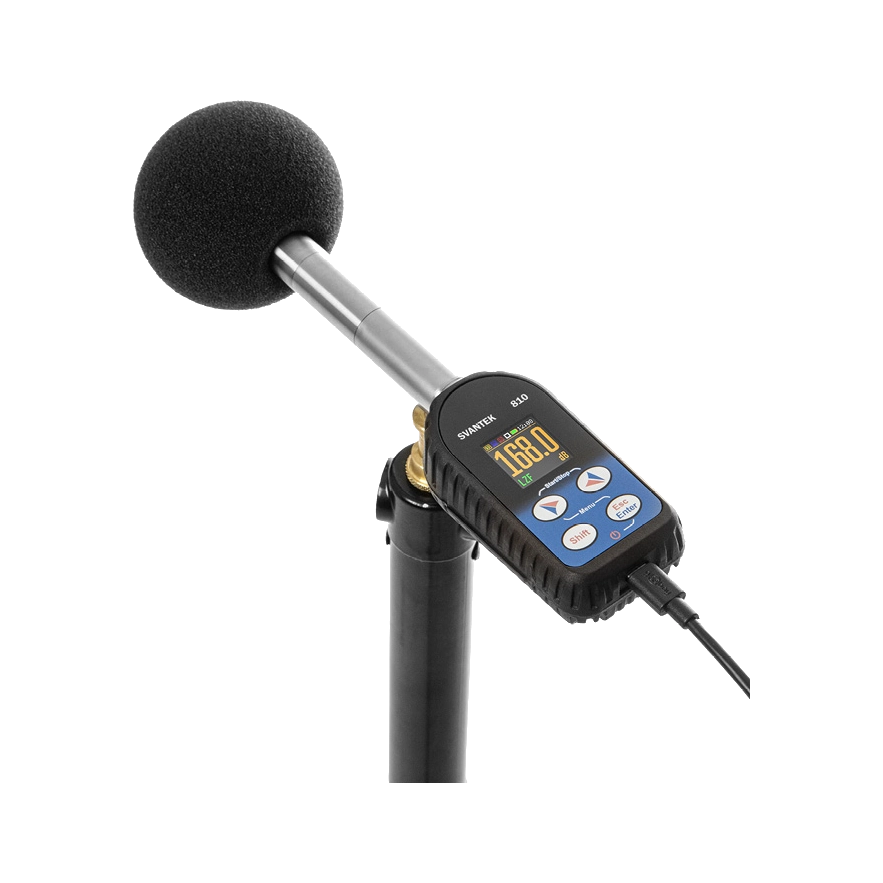

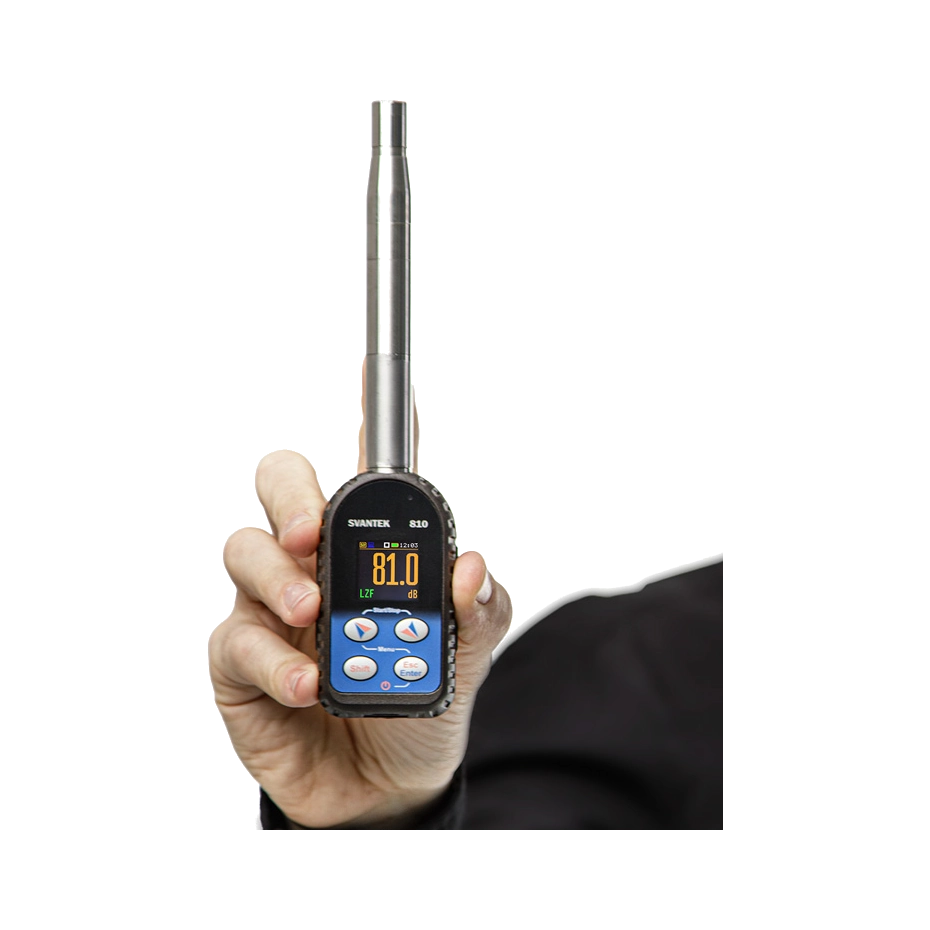

Mount the SV 810 directly on a standard tripod to operate as a fully independent air-overpressure monitor, utilizing its integrated OLED display and 4-button keyboard for rapid local setup. Because it features onboard 8 GB memory and battery power, it eliminates the need for an external data logger during temporary spot checks.
Synchronized Blast Compliance via SvanNET
Remote Connection via SV 803 / SV 804 / SD 311
Connect the SV 810 to SVANTEK stations to push synchronized vibration and air-overpressure data directly to the SvanNET cloud project management platform. This real-time integration unlocks powerful remote control, automated stakeholder alerts, and live data analysis without requiring an on-site operator.
ISEE-Compliant Measurement Performance
Engineered Around Global Blast Standards
The SV 810 is designed to meet the strict frequency-response and amplitude requirements of the ISEE 2022 Performance Specifications. With a digital true RMS detector that has 0.1 dB resolution and a low internal noise floor (< 95 dB Peak), it ensures that every low-frequency acoustic event is captured with absolute precision.
Uncompromised Durability with Pressure Transducer
Rugged Design for Harsh Outdoors

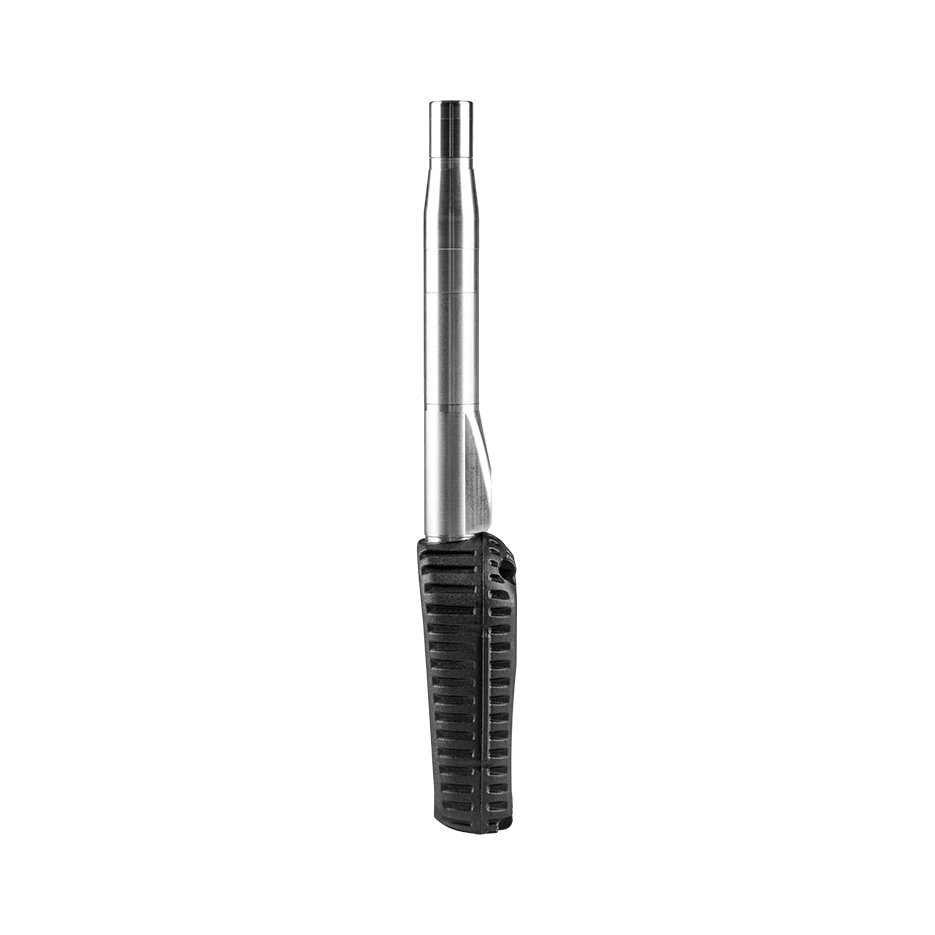

Built around a highly accurate piezoresistive pressure transducer, the SV 810 delivers natural resistance to severe environmental extremes and mechanical shocks due to its solid-state construction. When paired with the SA 810 enclosure, this IP 65-rated system protects your critical measurement data from rain, dust, and wide temperature fluctuations.
Weather-Protected Unattended Monitoring
Rugged Defense for Long-Term Projects

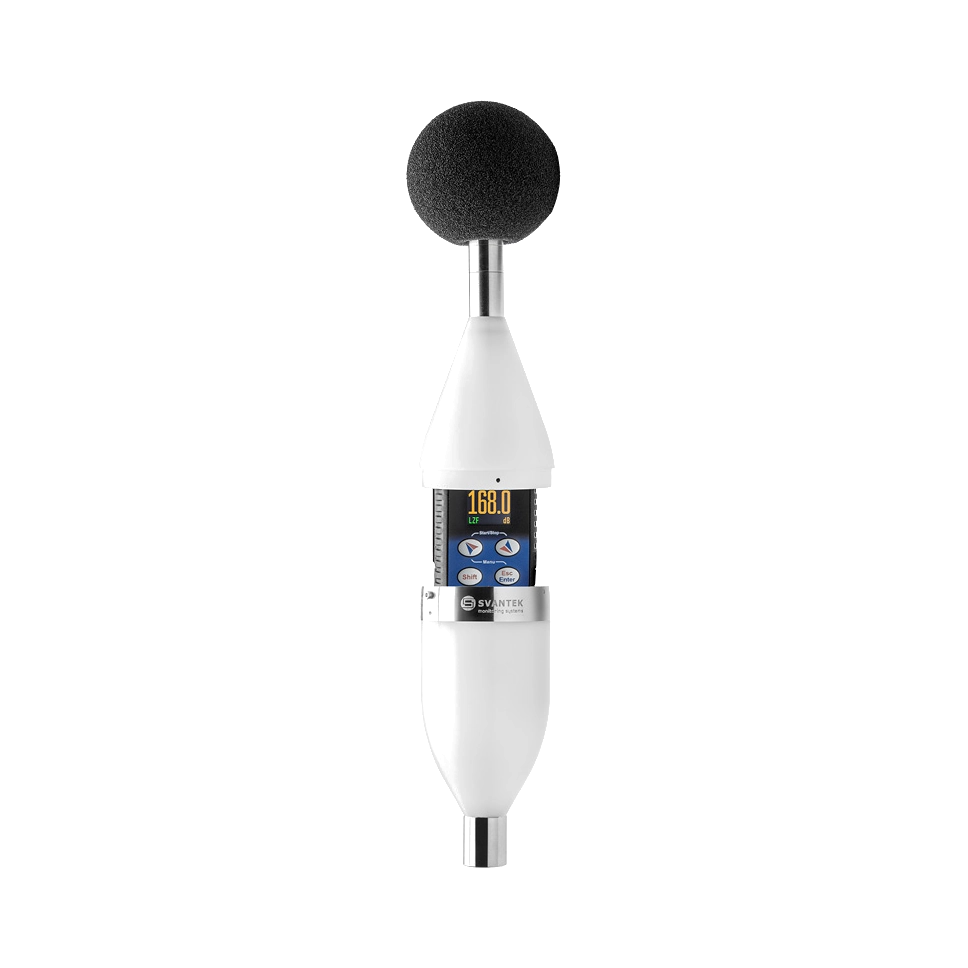

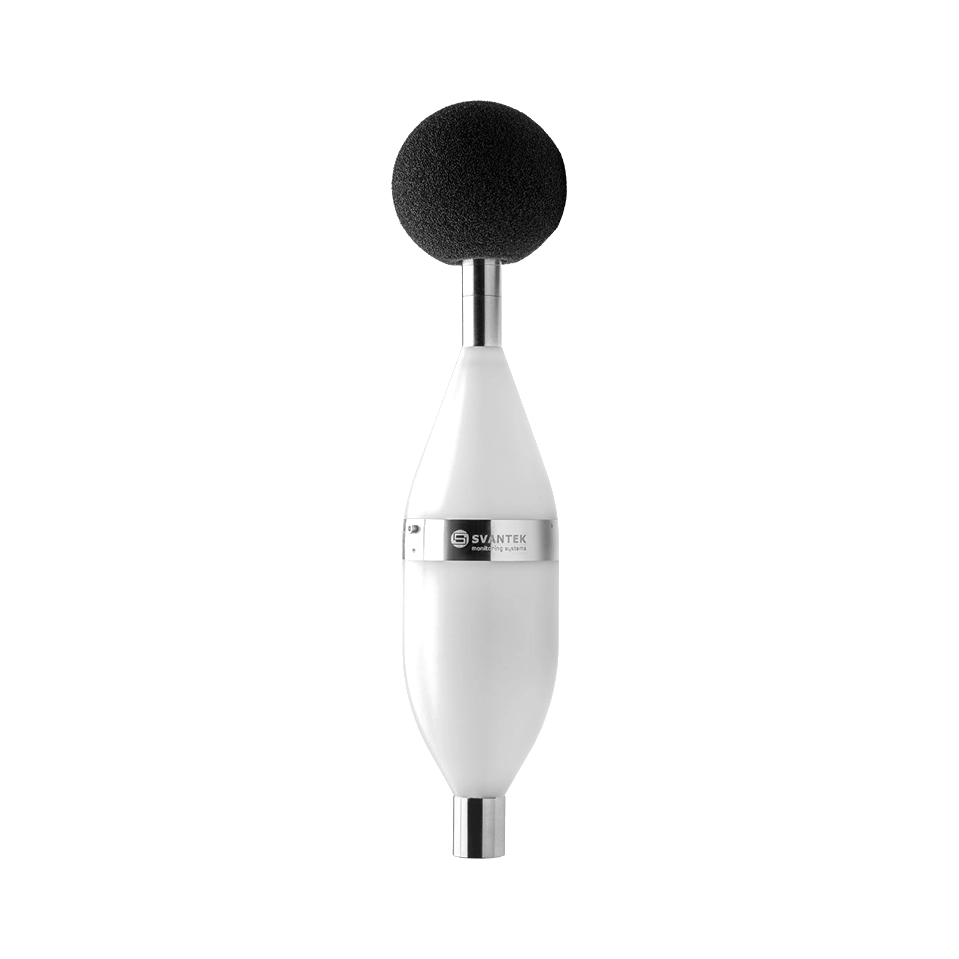

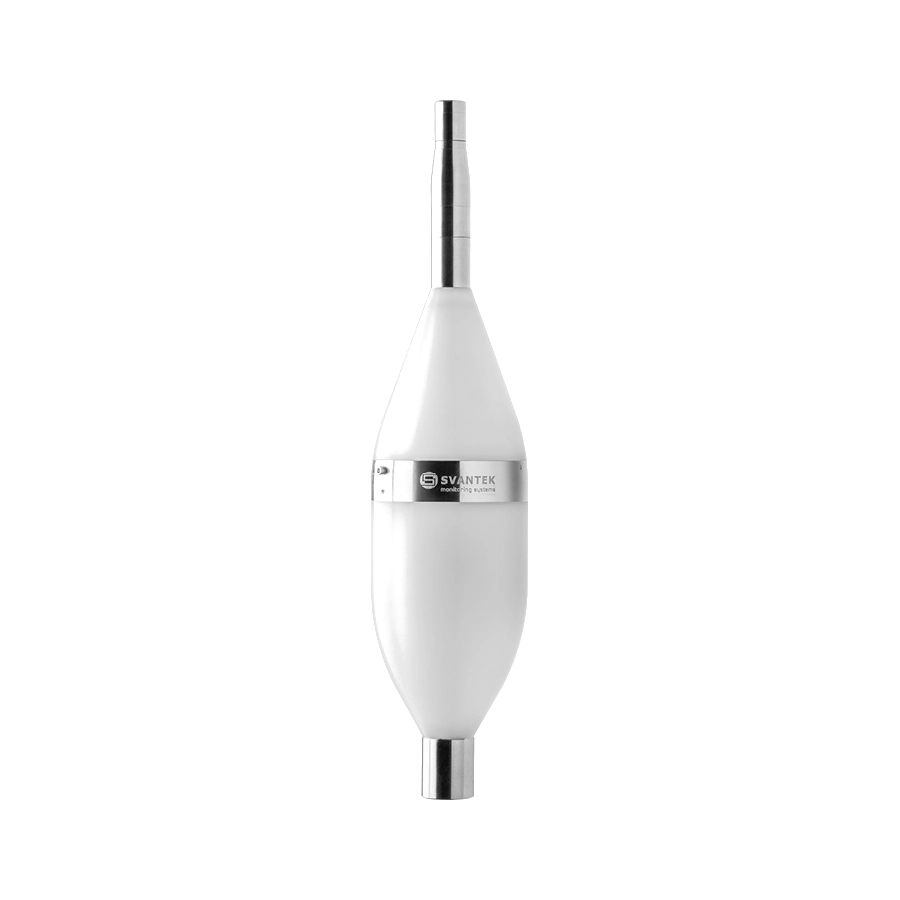

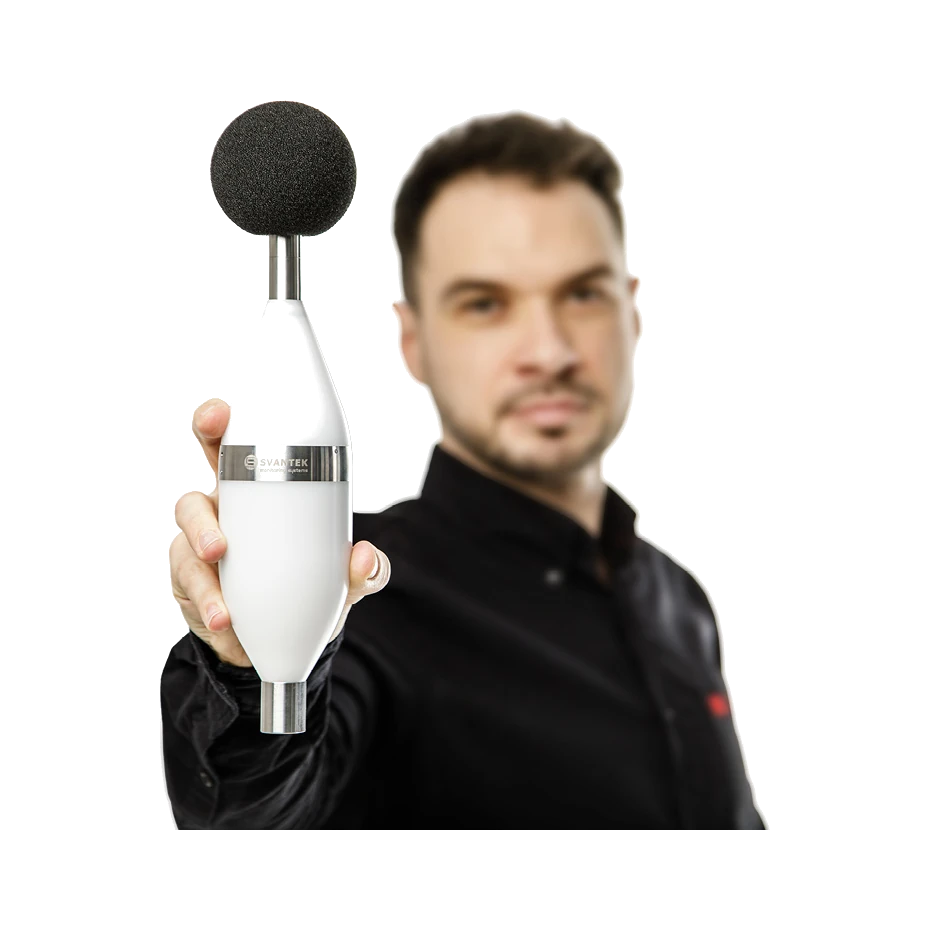

Install the meter inside the optional SA 810 protective housing to create a very strong, unattended monitoring solution that is not affected by mechanical field hazards. This configuration is ideal for long-term perimeter monitoring, allowing you to track blast histories continuously while reducing travel expenses and site visits.
Time-History Recording
Absolute Confidence for Compliance Reporting
The meter generates highly traceable measurement data tailored specifically for strict regulatory submissions, contractor validation, and dispute resolution. On-demand time-domain WAV event recordings and an optional 1600-line real-time FFT analysis make sure your blast assessments can pass strict third-party engineering reviews.
Applications
Building & Ground Vibration
Mining & Quarries, Tunnel Excavation, Construction Blasting
Accurately monitor blast-generated pressure waves to ensure strict compliance with local environmental limits during daily production, generating reliable, defensible records to protect neighboring structures. Capture and analyze intense, low-frequency blast effects within highly confined underground construction environments to ensure the structural integrity of the surrounding geology and infrastructure. Furthermore, safeguard sensitive urban environments during complex demolition or foundational blasting phases by delivering transparent, standards-based acoustic monitoring reports that easily satisfy city regulators and ease community concerns.
Read more on Building & Ground Vibration
Specifications
Documents
Options
Video
Air-Overpressure Meter for Blast Monitoring | SV 810 | SVANTEK | NEW
Meet the SV 810 Air-Overpressure Meter — designed for accurate monitoring of high-energy blast events up to 168 dB. Featuring precision low-frequency measurements from 2 Hz to 250 Hz, compliance with the ISEE Blasting Seismograph Standards (2022), rugged weather-resistant construction, 8-hour battery life, 8 GB onboard memory, and seamless integration with SVANTEK monitoring stations via real-time SvanNET cloud telemetry.
