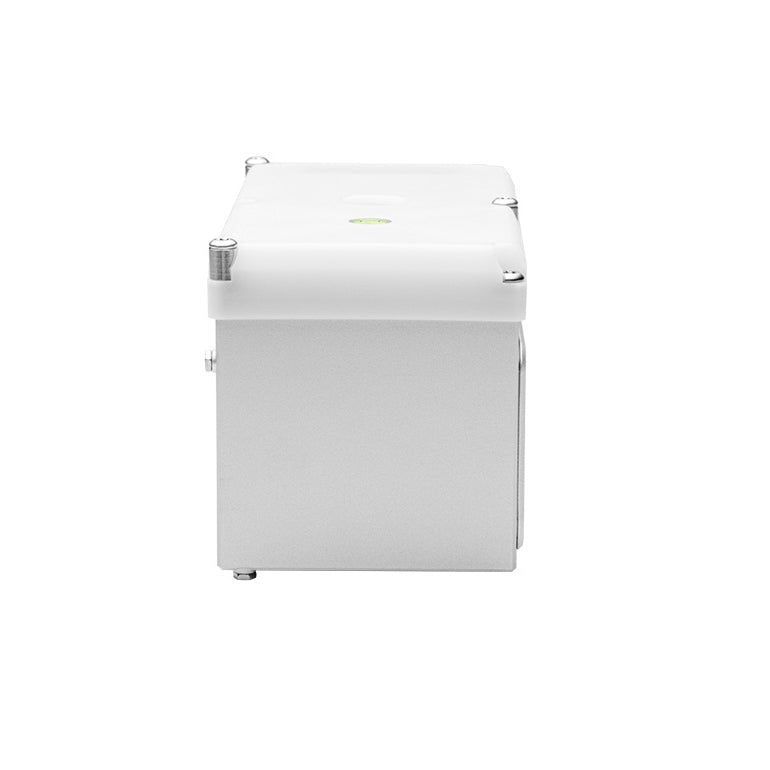

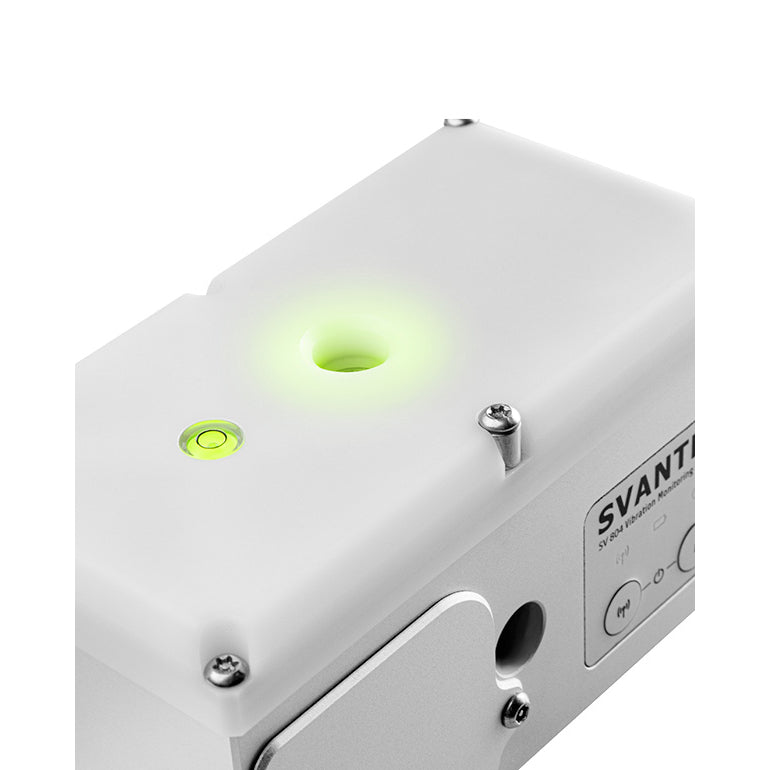

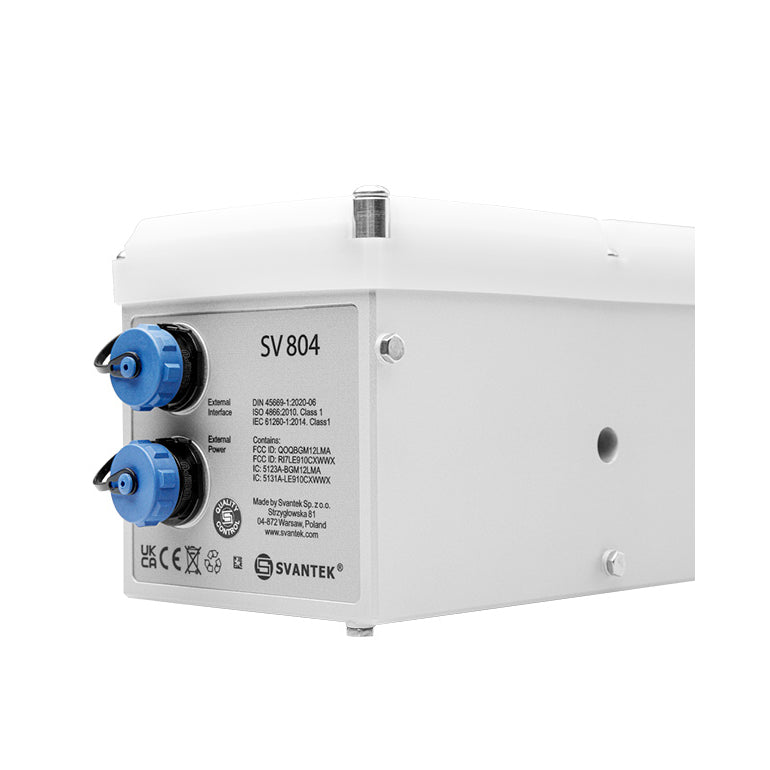

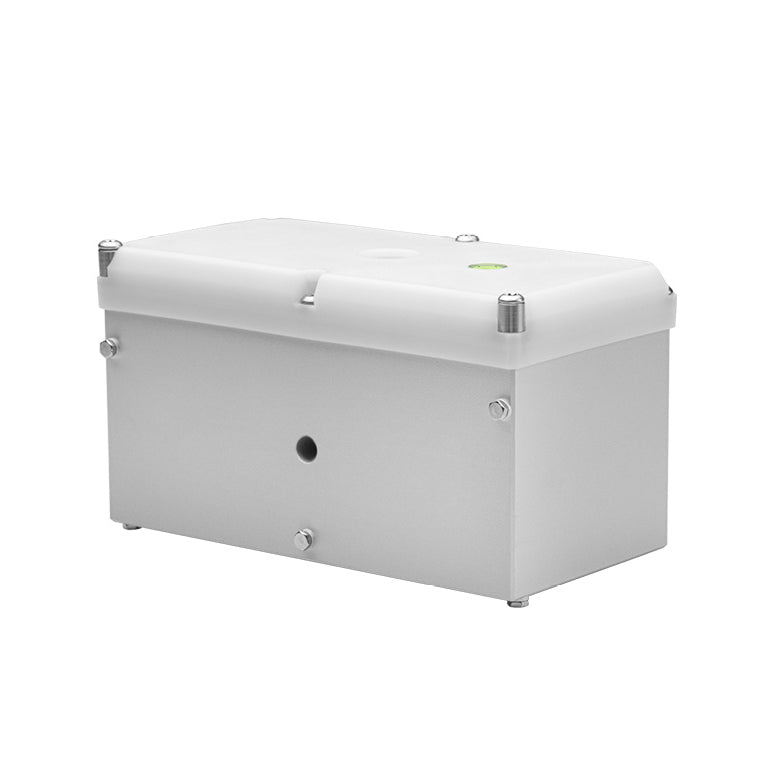

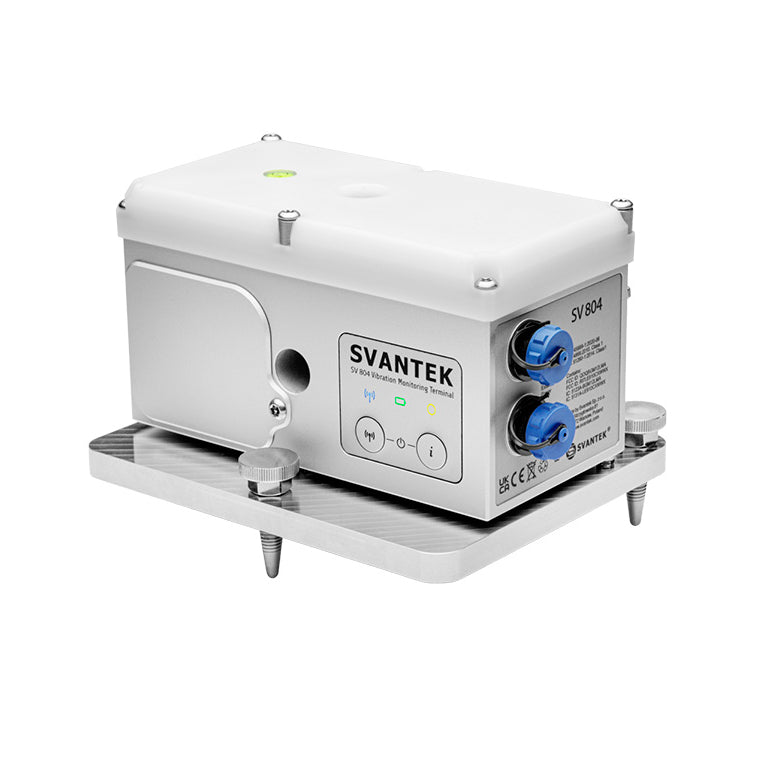

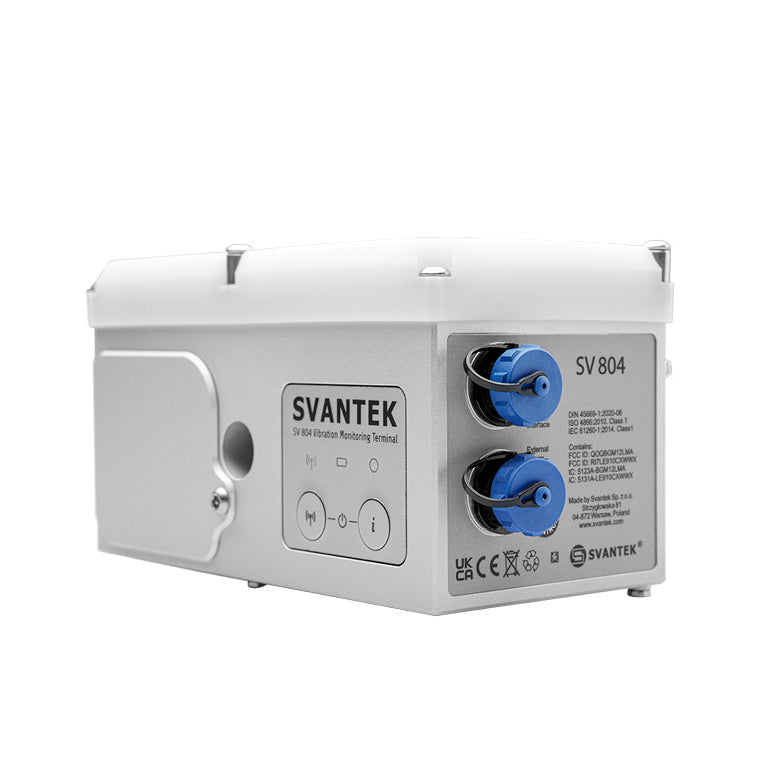

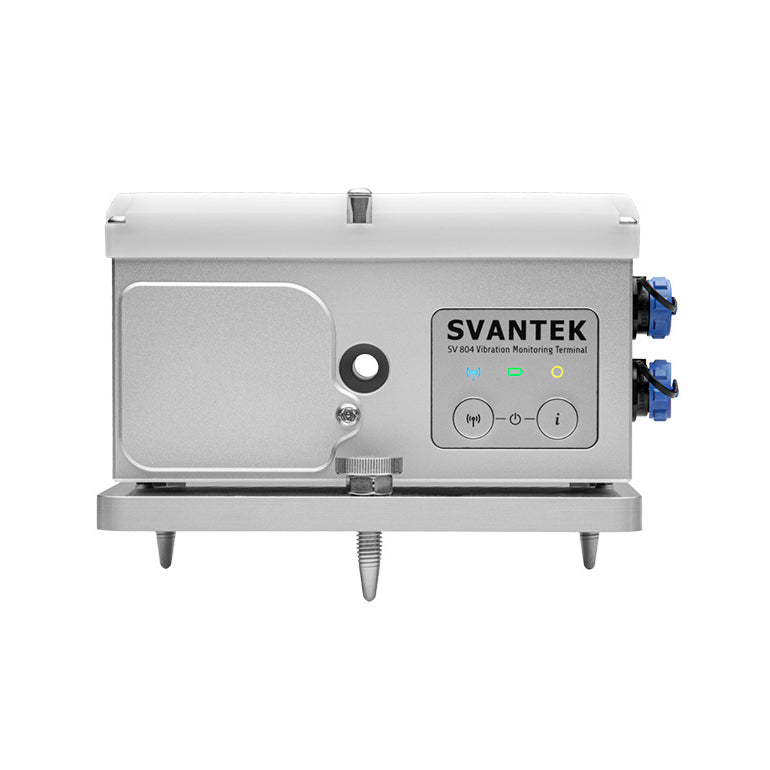

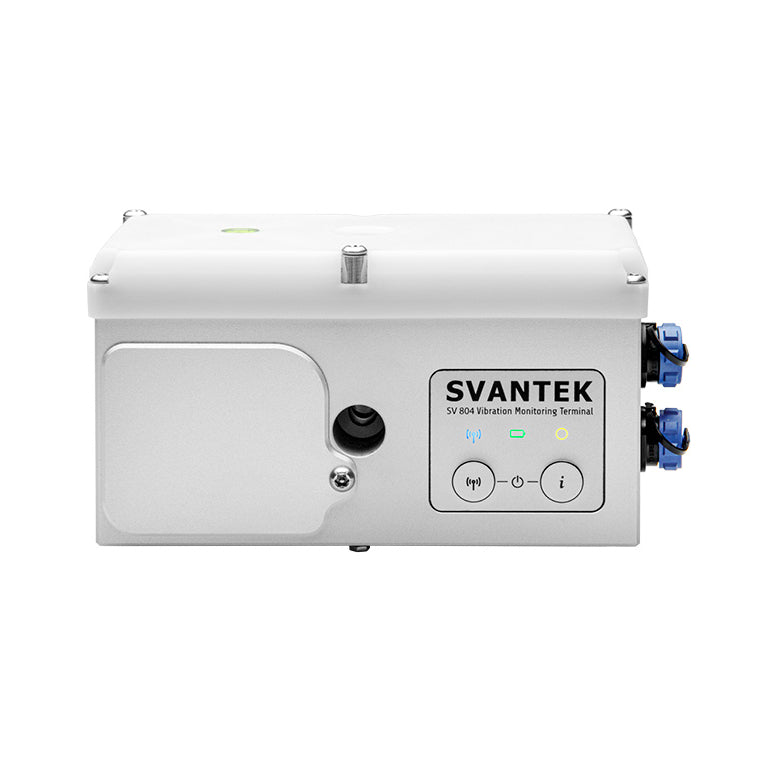

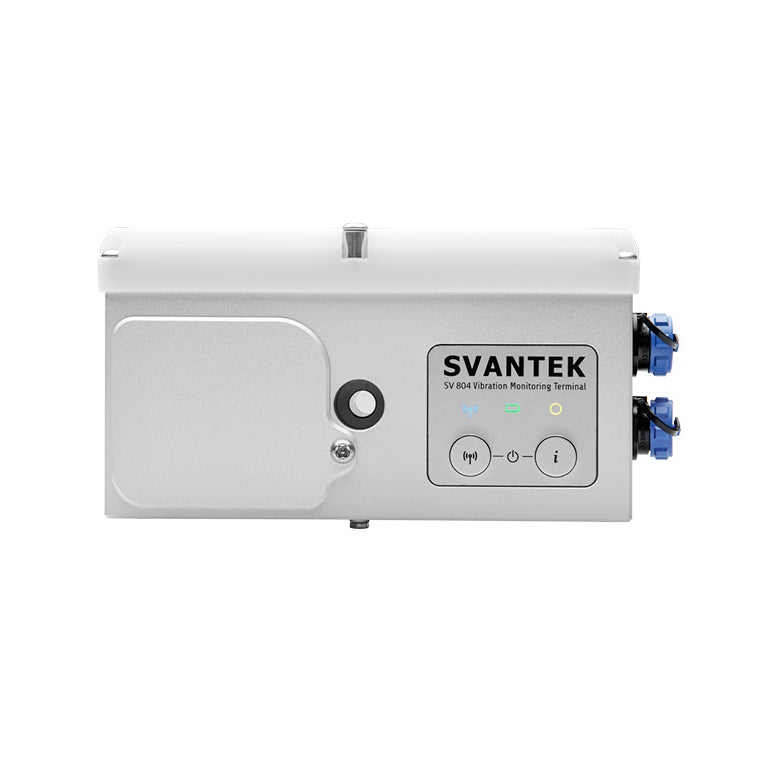

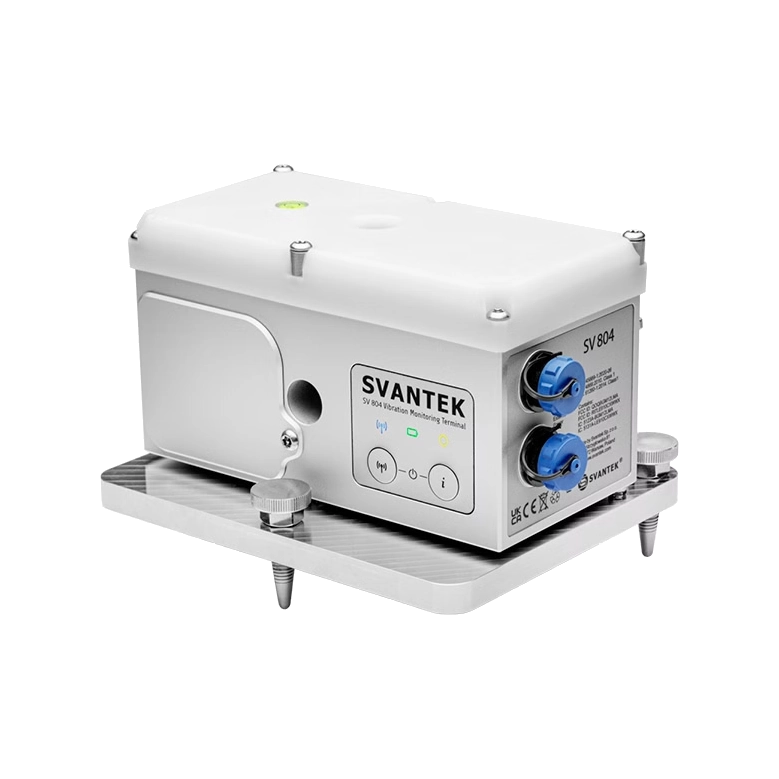

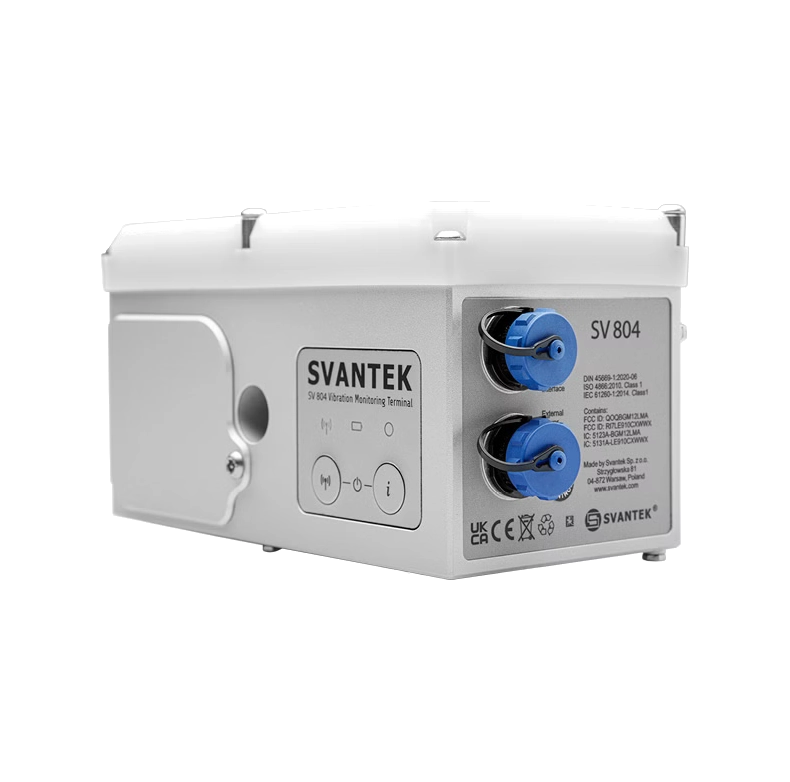

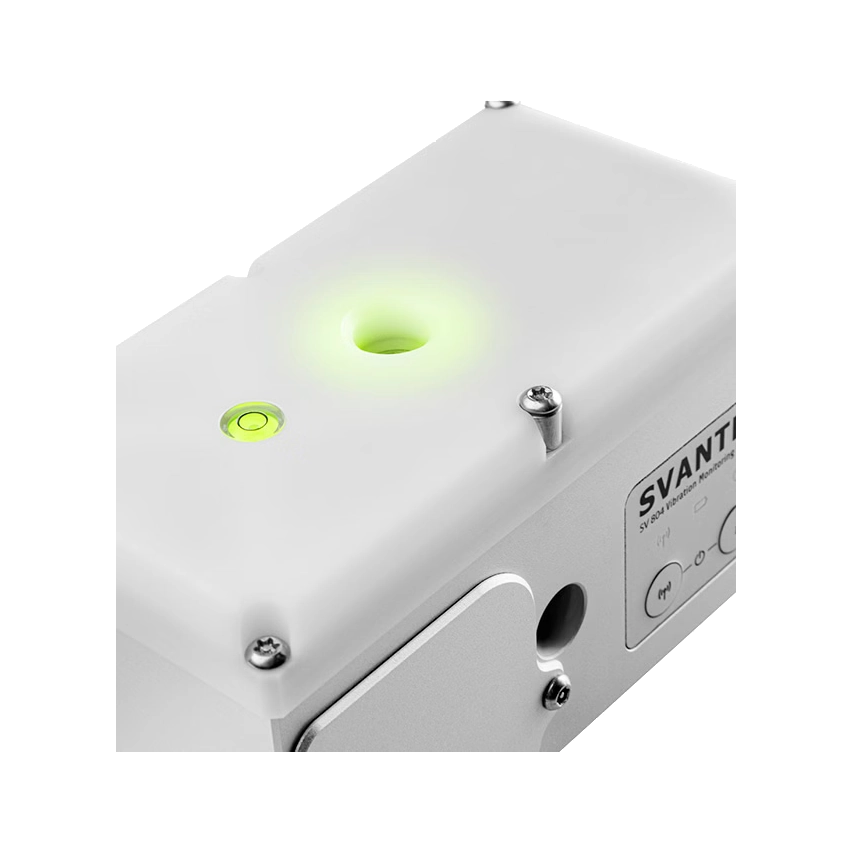

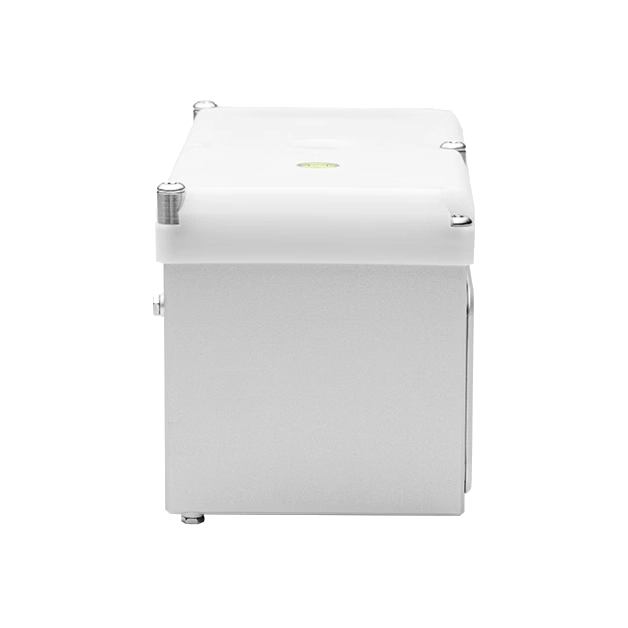

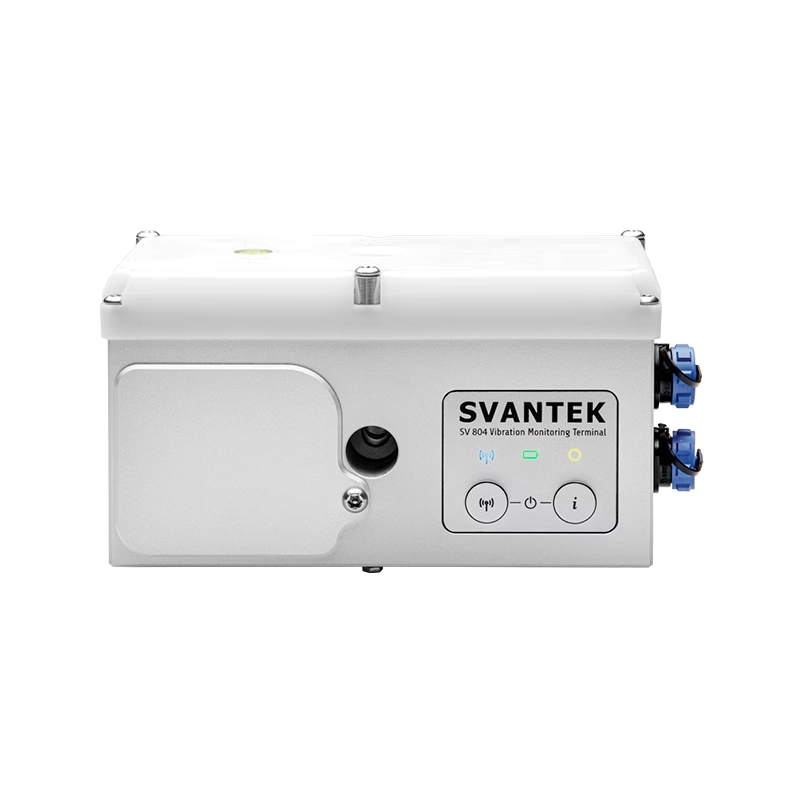

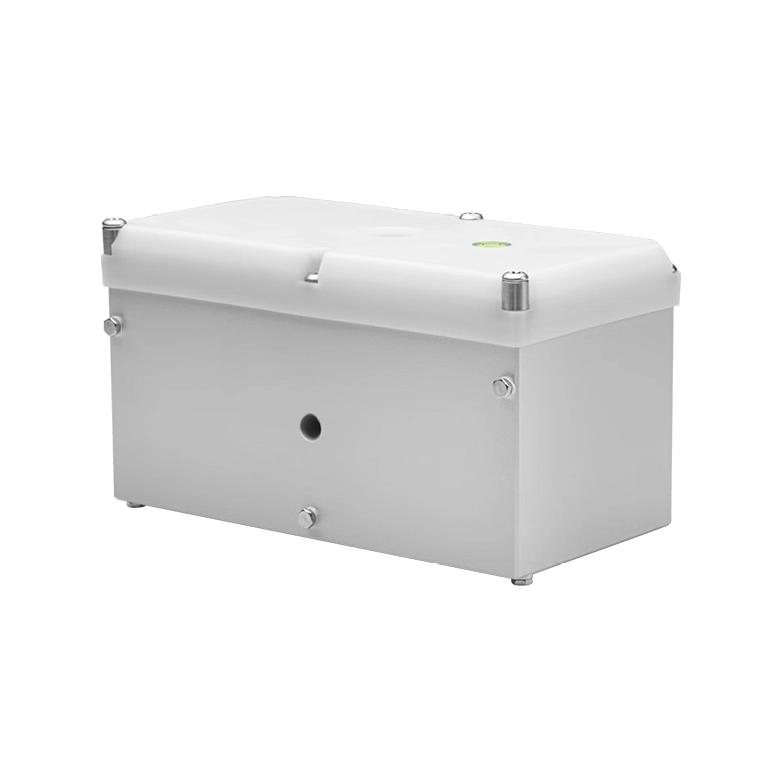

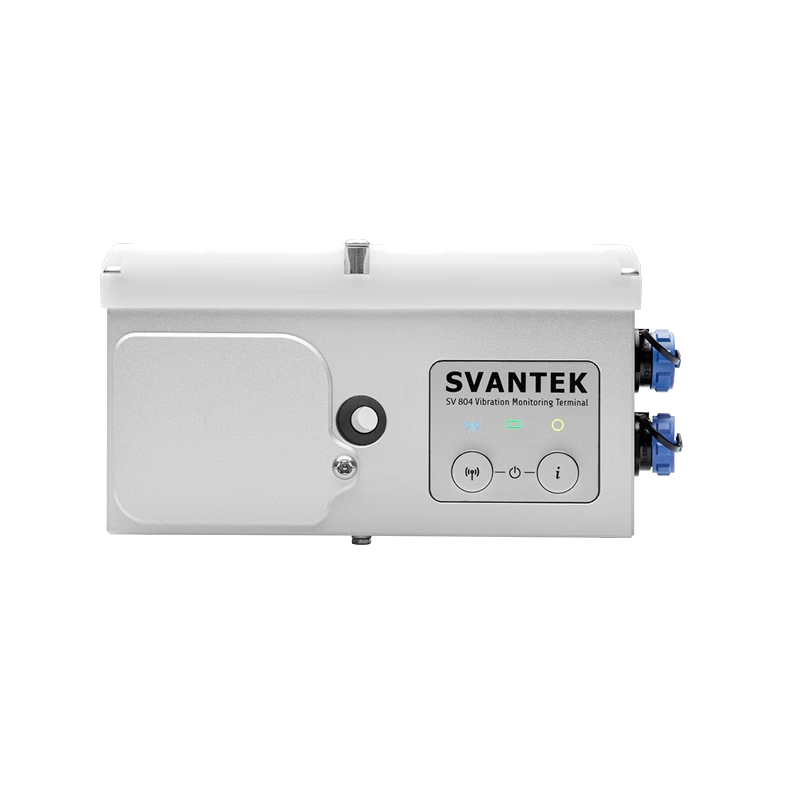

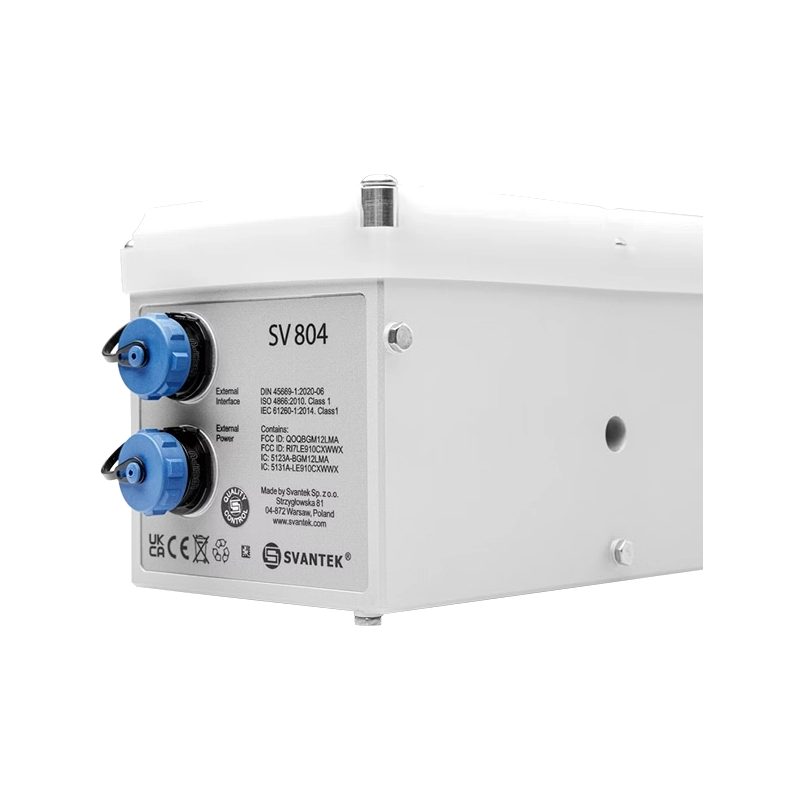

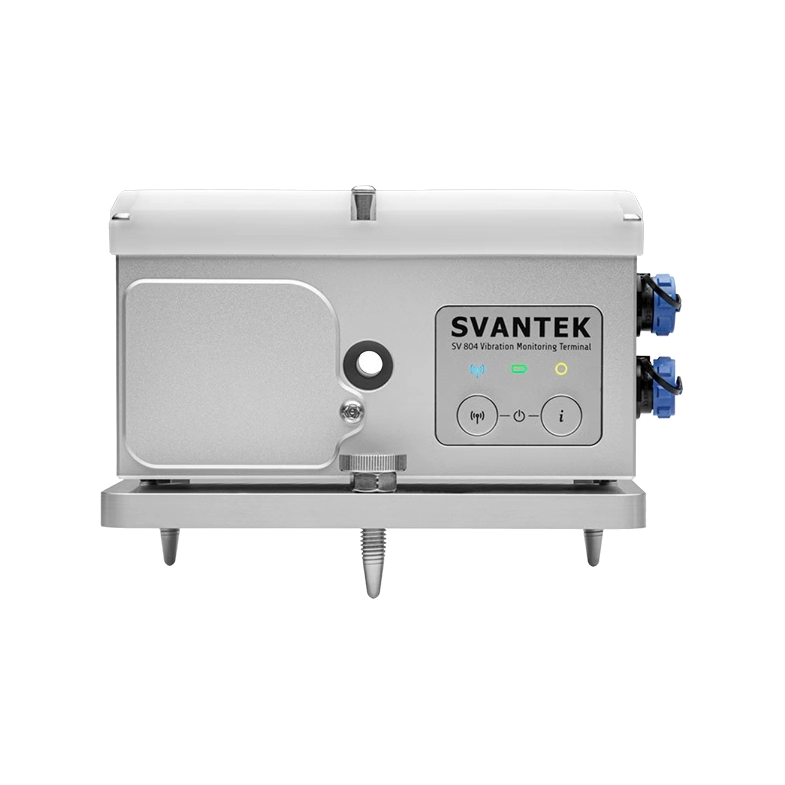

Svantek SV 804 Wireless Triaxial Vibration Monitor
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Number of channels: 3
- Frequency range: 0,8 Hz ÷ 500 Hz (-3 dB)
- Measurement range: 1 μm/s ÷ 100 mm/s RMS (141 mm/s Peak)
- Sensor type: Tri-axial geophone
- Communication Interfaces: Cellular modem, Bluetooth, 2xWEIPU
- Keyboard: 2 pushing buttons
- Memory: 32 GB
- Battery type: Li-Ion battery (easy removable)
- Operating time: UNLIMITED with SB 804 battery pack and solar panel in power saving mode
- Operating temperature range: -20 °C ÷ +50 °C
- Humidity range: 0 - 100 % RH
- Weight: 1,7 kg including battery
- Size: 171 x 85 x 83 mm
- IP rate: IP67
%0AMeasurement%20range:%C2%A01%20%CE%BCm/s%20%C3%B7%20100%20mm/s%20RMS%20(141%20mm/s%20Peak)%0ASensor%20type:%C2%A0Tri-axial%20geophone%0ACommunication%20Interfaces:%C2%A0Cellular%20modem,%20Bl...
){kind=link}
Discover the possibilities
More information
Description
The SV 804 is a new-generation monitoring station designed for structural vibration measurements in buildings and engineering structures. Its compact, lightweight design allows the device to be mounted directly to a wall or structural surface with a single screw, ensuring fast and secure installation, even in hard-to-reach locations.
The SV 804 provides fully automated, remote vibration monitoring with real-time alerts via SMS and email. The system automatically detects vibration events based on PPV thresholds and dominant frequency analysis, reducing the need for manual intervention. Measurement data is stored securely in the device and synchronized with the SvanNET cloud platform, where users can access detailed reports, event logs, and diagnostic insights anytime, anywhere.
Product Highlights
- Class 1 Structural Vibration Monitoring: Engineered to meet the rigorous standards of DIN 45669-1 and ISO 4866, Class 1, ensuring certified performance and precision for structural measurements.
- Fully Automated Remote Monitoring: Delivers unattended operation with real-time data synchronization to the SvanNET cloud platform, accessible from any web browser.
- Compact, Direct-Mount Design: The lightweight 1.7 kg device mounts directly to a structural surface with a single screw, enabling fast, one-handed setup in any orientation.
- Versatile Power Solutions: Ensures continuous operation with easy-swap internal batteries (up to 60 days), Power over Ethernet (PoE), and support for external DC or solar panels.
- Advanced Connectivity: An integrated 4G modem provides instant remote access, supplemented by wired LAN and Bluetooth for full control in areas without mobile coverage.
- Real-Time Event Alerts: Automatically detects vibration events based on PPV and dominant frequency, sending immediate alerts via SMS and email.
- WAV Recording for Diagnostics: Captures raw time-domain signals (WAV format) to allow for detailed post-processing and validation of vibration events.
- Seamless Noise & Vibration Integration: Integrates with SVANTEK noise monitors on the SvanNET platform for comprehensive environmental impact analysis.
- Seamless Noise & Vibration Integration: Creates a 4-channel system by connecting an SV 303 Class 1 noise monitor (via SP 79 cable), capturing synchronized triaxial vibration and sound data through a single device.
Features:
Compact & Direct-Mount Design
Fast, One-Handed Setup on Any Structural Surface

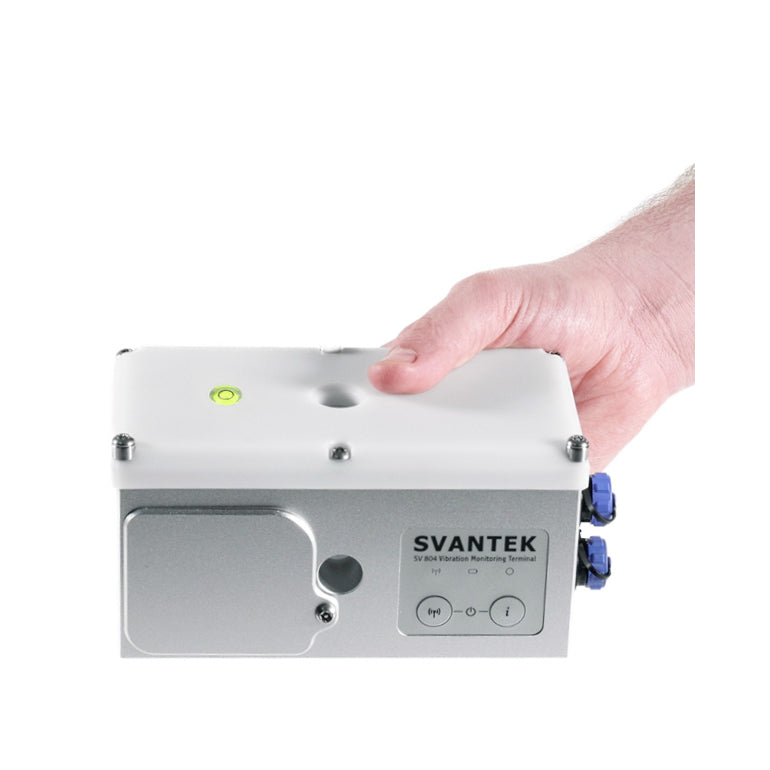

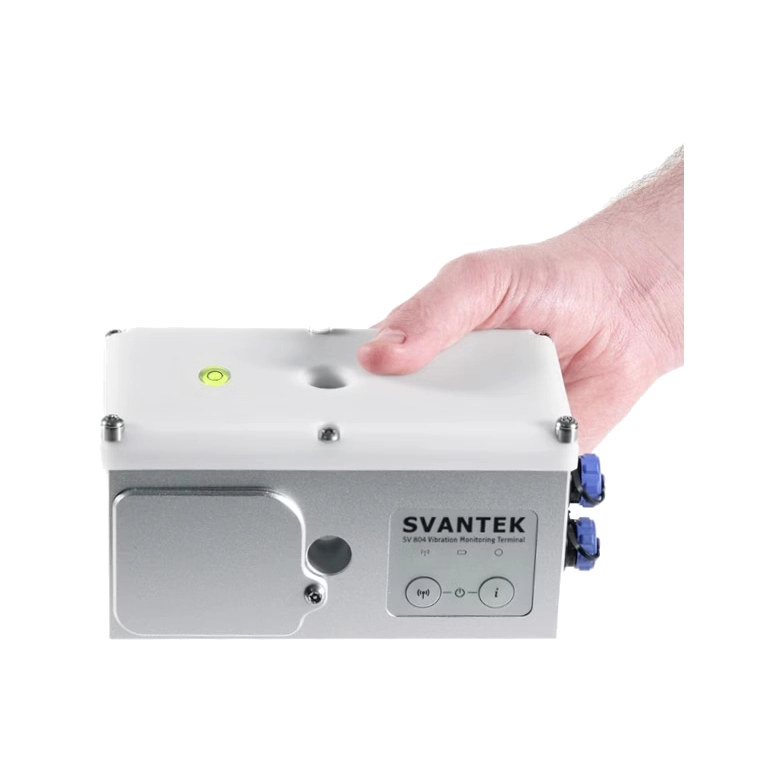

Weighing just 1.7 kg, the SV 804 is purpose-built for direct installation on structural surfaces. Its compact housing allows for a fast, one-handed setup using only a single screw. This design ensures secure mounting in any orientation, even in hard-to-reach locations, without needing to reposition the geophones.
Automated Cloud Monitoring
Real-Time Data and Alerts via SvanNET
This station provides fully automated, remote vibration monitoring by detecting events based on PPV thresholds and dominant frequency. All measurement data is securely synchronized with the SvanNET cloud platform, providing instant access to reports and event logs. Users receive real-time alerts via SMS and email, reducing the need for manual intervention.
Long-Term Autonomous Operation
Flexible Power via Battery, PoE, and Solar
The SV 804 supports up to 60 days of autonomous operation using internal, easily replaceable batteries. For extended or continuous deployment, the system offers maximum flexibility. It can be powered via external DC, Power over Ethernet (PoE), or connected to a solar panel for fully autonomous, off-grid operation.
Enhanced Connectivity
4G, LAN, and Bluetooth for Uninterrupted Access
A built-in 4G modem ensures reliable real-time data transfer and remote access via the cloud. For challenging environments like tunnels or underground locations, the device also supports wired LAN and Bluetooth. This combination guarantees full system control and data access even when a mobile signal is unavailable.
Class 1 Precision & Diagnostics
Certified Accuracy with WAV Recording
Designed to meet Class 1 standards (DIN 45669-1), the SV 804 provides certified performance for structural analysis. The system stores raw WAV data, allowing for advanced post-processing and detailed event validation. Users can analyze PPV, dominant frequency, and calculate FFT or 1/3 octave spectra to diagnose vibration sources.
Combined Noise & Vibration Monitoring
4-Channel Analysis with SV 303 Integration
Using the special SP 79 cable, users can connect a Class 1 SV 303 noise monitor directly to the SV 804. This setup creates a comprehensive 4-channel monitoring device, capturing triaxial vibration and sound simultaneously. The sound data is seamlessly integrated and time-synchronized with the vibration data, with all measurements accessible remotely through the SV 804's modem.
Applications
Building and Ground Vibration Monitoring
Ensuring Structural Safety and Environmental Compliance
The SV 804 is the ideal solution for monitoring structural vibrations caused by construction, traffic, or industrial activity. Its high-precision, Class 1 measurements are essential for protecting buildings and infrastructure from potential damage. The system provides reliable data to ensure compliance with standards (e.g., DIN 4150-3), assess human comfort, and safeguard sensitive sites.
Specifications
Documents
Options
Video
The future of vibration monitoring is here.

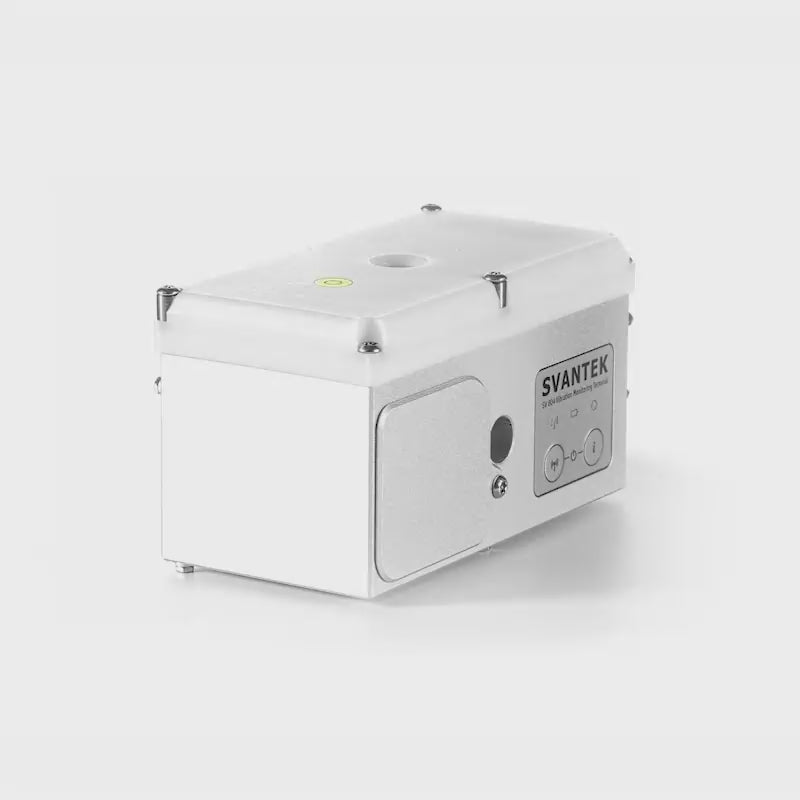

Meet the SV 804 Wireless Triaxial Vibration Monitor — a compact, powerful, and fully connected solution designed for precision and simplicity.
Wireless. Triaxial. Ready for real-world challenges.
Engineered for professionals who demand accuracy, reliability, and effortless operation in structural, environmental, and industrial vibration applications.
Discover the SV 804 and experience a new standard in wireless monitoring.
Introducing the NEW SV 804 — a compact, direct-mount Class 1 vibration monitor designed for fast installation and fully automated remote monitoring. With real-time SMS/email alerts, 4G connectivity, PPV event detection, and seamless SvanNET integration, the SV 804 delivers next-level structural vibration control in any environment.
