DEMO - Svantek SV 36 Class 1 Sound Calibrator
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
SV 36 Class 1 Sound Calibrator generates reference signals of 94 and 114 dB at 1 kHz. It is suitable for calibration of Class 1 and Class 2 sound level meters and dosimeters with 1/2 microphones. The product is covered by 36 months warranty from the registration date.
Discover the possibilities
More information
Description

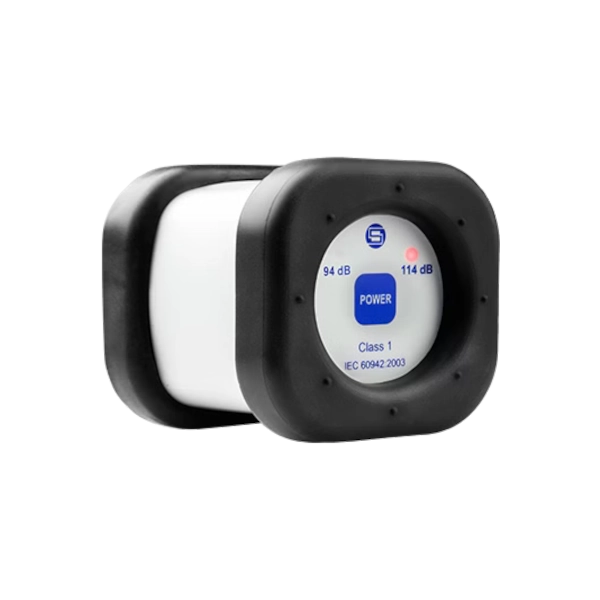

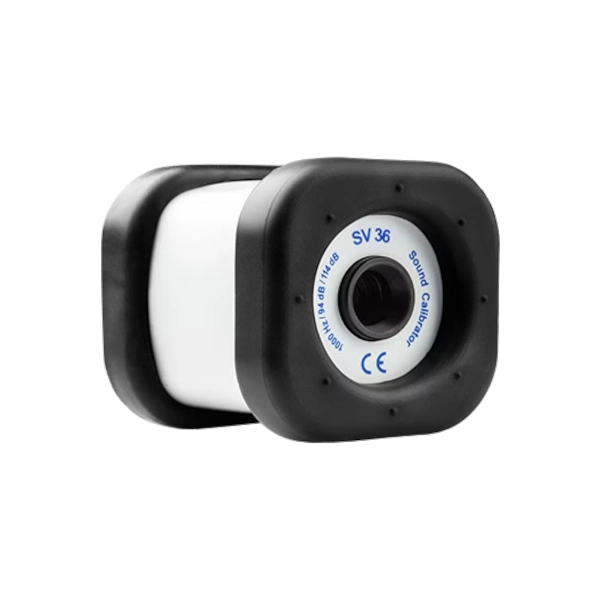

SV 36 is a Class 1 acoustic calibrator, designed to verify sound level meters at 94 dB and 114 dB at 1 kHz in accordance with IEC 60942:2017. A built-in microprocessor and reference sensors (pressure, temperature, and atmospheric) ensure automated, accurate signal correction, eliminating the need for manual adjustments. An infrared sensor detects microphone presence to switch the device on or off, making SV 36 ideal for fast, reliable calibration in professional noise monitoring.
Highlights
- Class 1 accuracy in compliance with IEC 60942:2017
- Dual calibration levels: 94 dB and 114 dB at 1 kHz
- Automatic signal correction with built-in pressure, temperature, and reference sensors
- Infrared microphone detection for auto power on/off
- Suitable for Class 1 and Class 2 sound level meters
- No manual adjustments required – operates across wide ambient conditions
- Compact and durable design powered by AAA batteries
- Calibration statement included for confidence in measurement accuracy
Practical Features in Use
Type-approved Class 1 sound calibrator
Certified accuracy for calibrating Class 1 and Class 2 sound level meters in compliance with IEC 60942:2017
SV 36 is a PTB type-approved Class 1 calibrator, designed for professional sound level meter verification in line with IEC 60942:2017. This approval confirms compliance with strict metrological standards, making the SV 36 suitable for the calibration of Class 1 and Class 2 sound level meters with ½″ or ¼″ microphones, including those used in legal metrology, occupational noise assessments, and environmental monitoring.
Dual-level calibration at 94 dB and 114 dB
Automatic signal control at 1 kHz ensures accurate and user-independent calibration
The SV 36 enables sound level calibration at 94 dB or 114 dB @ 1 kHz, making it suitable for a wide range of class 1 and class 2 sound level meters. Built-in reference sensors and microprocessor control ensure automatic adjustment of the signal, eliminating the need for manual corrections.
Automatic calibration start
Infrared sensor detects microphone presence and extends battery life
Automatic Microphone Detection simplifies the calibration process by using an infrared sensor to detect microphone presence. The calibrator powers on/off automatically, increasing ease of use and extending standby time up to two years.
Applications
Sound measurements
Required calibration for compliant noise measurements
Acoustic calibrators are essential for sound level meter verification before and after each measurement session, as required by international standards. By generating a defined sound pressure level at 1 kHz, they allow users to verify the accuracy of class 1 and class 2 instruments and adjust sensitivity if drift is detected.
Specifications
Options
Video
SV 36 is a Class 1 acoustic calibrator, designed to verify sound level meters at 94 dB and 114 dB at 1 kHz in accordance with IEC 60942:2017. A built-in microprocessor and reference sensors (pressure, temperature, and atmospheric) ensure automated, accurate signal correction, eliminating the need for manual adjustments. An infrared sensor detects microphone presence to switch the device on or off, making SV 36 ideal for fast, reliable calibration in professional noise monitoring.
Highlights
- Class 1 accuracy in compliance with IEC 60942:2017
- Dual calibration levels: 94 dB and 114 dB at 1 kHz
- Automatic signal correction with built-in pressure, temperature, and reference sensors
- Infrared microphone detection for auto power on/off
- Suitable for Class 1 and Class 2 sound level meters
- No manual adjustments required – operates across wide ambient conditions
- Compact and durable design powered by AAA batteries
- Calibration statement included for confidence in measurement accuracy
Practical Features in Use
Type-approved Class 1 sound calibrator
Certified accuracy for calibrating Class 1 and Class 2 sound level meters in compliance with IEC 60942:2017
SV 36 is a PTB type-approved Class 1 calibrator, designed for professional sound level meter verification in line with IEC 60942:2017. This approval confirms compliance with strict metrological standards, making the SV 36 suitable for the calibration of Class 1 and Class 2 sound level meters with ½″ or ¼″ microphones, including those used in legal metrology, occupational noise assessments, and environmental monitoring.
Dual-level calibration at 94 dB and 114 dB
Automatic signal control at 1 kHz ensures accurate and user-independent calibration
The SV 36 enables sound level calibration at 94 dB or 114 dB @ 1 kHz, making it suitable for a wide range of class 1 and class 2 sound level meters. Built-in reference sensors and microprocessor control ensure automatic adjustment of the signal, eliminating the need for manual corrections.
Automatic calibration start
Infrared sensor detects microphone presence and extends battery life
Automatic Microphone Detection simplifies the calibration process by using an infrared sensor to detect microphone presence. The calibrator powers on/off automatically, increasing ease of use and extending standby time up to two years.
Applications
Sound measurements
Required calibration for compliant noise measurements
Acoustic calibrators are essential for sound level meter verification before and after each measurement session, as required by international standards. By generating a defined sound pressure level at 1 kHz, they allow users to verify the accuracy of class 1 and class 2 instruments and adjust sensitivity if drift is detected.
