Svantek SV 111 Portable Vibration Calibrator
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Multi-frequency calibration, selectable from 16 Hz to 640 Hz, for acceleration, velocity, and displacement
- Amplitude range from 1 m/s² to 10 m/s², suitable for a wide variety of vibration sensors
- ISO 8041 compliance, enabling reliable field calibration of hand-arm and whole-body systems
- Built-in triaxial reference accelerometer detects cross-axis vibrations, ensuring calibration accuracy
- Automatic fault detection with LED alerts for transverse vibration interference
- Large payload support – up to 1 kg at 16 Hz, ideal for seat-pad sensors
- Rugged, portable design with 20-hour battery life, ready for in-field use
- User-friendly interface with OLED display and simple push-button control
Discover the possibilities
More information
Description
The SV 111 Portable Vibration Calibrator is a multi-frequency device for in-situ calibration checks in line with ISO 8041. It supports vibration meters across a wide range of frequencies (16–640 Hz) and amplitudes (1–10 m/s²), with a payload capacity up to 1 kg at 16 Hz. Its built-in triaxial reference accelerometer and microprocessor-controlled shaker ensure high signal accuracy, detecting cross-axis interference via LED indicators. This guarantees calibration stability regardless of test object mass. Dedicated adapters support tri-axial and seat-pad sensors, making the SV 111 ideal for field verification of hand-arm and whole-body vibration meters.
Highlights
- Multi-frequency calibration, selectable from 16 Hz to 640 Hz, for acceleration, velocity, and displacement
- Amplitude range from 1 m/s² to 10 m/s², suitable for a wide variety of vibration sensors
- ISO 8041 compliance, enabling reliable field calibration of hand-arm and whole-body systems
- Built-in triaxial reference accelerometer detects cross-axis vibrations, ensuring calibration accuracy
- Automatic fault detection with LED alerts for transverse vibration interference
- Large payload support – up to 1 kg at 16 Hz, ideal for seat-pad sensors
- Rugged, portable design with 20-hour battery life, ready for in-field use
- User-friendly interface with OLED display and simple push-button control
Practical Features in Use
Multi-frequency calibrator
Calibration at four frequencies 16 Hz, 80 Hz, 160 Hz and 636 Hz

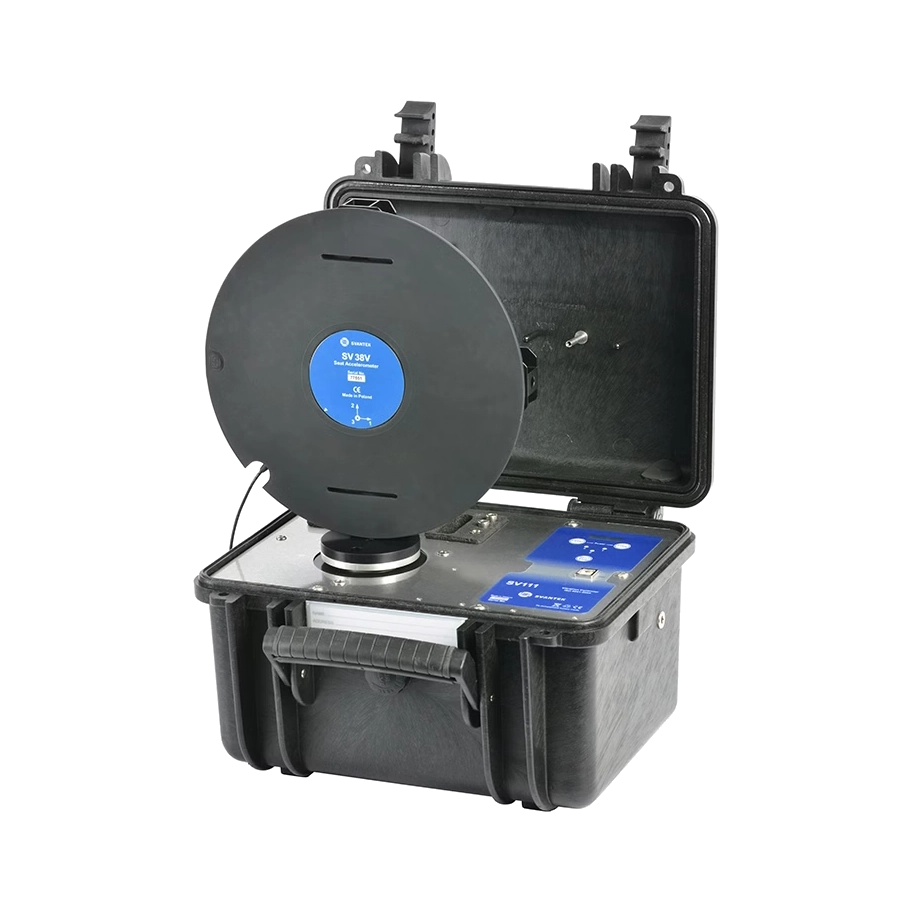

Calibrator is suitable for all types of vibration transducers for ACCELERATION, VELOCITY and DISPLACEMENT at 15.92 Hz; 79.6 Hz; 159.2 Hz and 636.6 Hz. Depending on the frequency selected, the user may choose the level of calibration from 1 m/s2 to 10 m/s2. Maximum load of 1 kg at 15.92 Hz enables the calibration of the seat accelerometers. The maximum weight of 300 grams at 79.58 Hz enables calibration of accelerometers together with mounting magnets attached.
Design in accordance to ISO8041
Dedicated for in-situ checks of seat accelerometers and hand-arm sensors

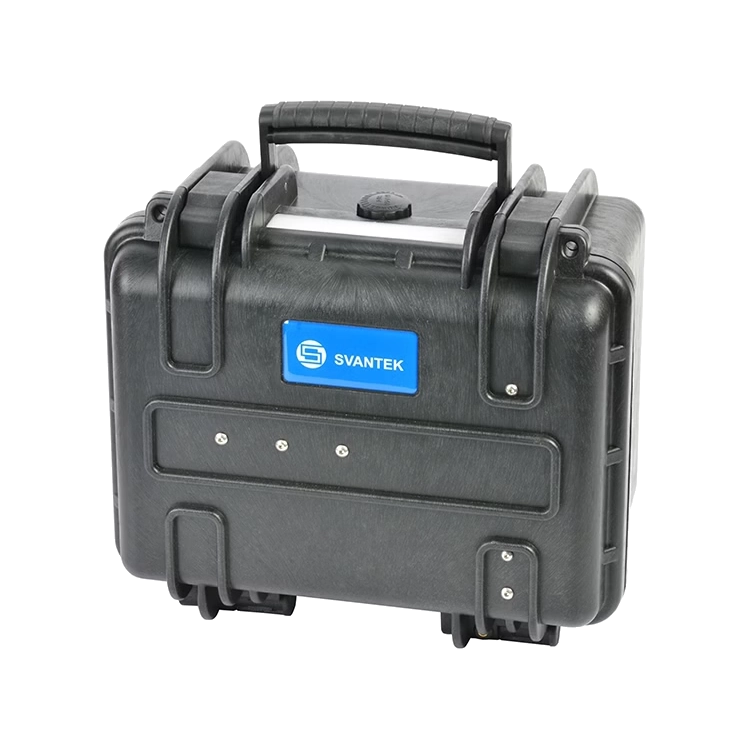

The SV111 Portable Vibration Calibratorr is designed for in-situ checks in accordance with the ISO 8041 standard - before and after series of measurements. The device is intended for operation in the field to check that an instrument is working correctly, hence the calibrator is housed in a portable hard-case.
Built-in reference sensor
System detects and signals errors during calibration
In accordance with ISO 8041 requirements the reference accelerometer will measure cross-axes / transverse vibrations to detect any interference to the calibration signal. Three LEDs will light up on the calibrator panel whenever a fault caused by transverse vibrations is detected. This unique feature ensures the stability of the calibration level & frequency independently of the object being tested.
Specifications
Applications
- Hand-arm vibration: ✓
- Whole-body vibration: ✓
- Machine vibration: ✓
- Building/ground vibration: ✓
Hardware Features
- Self-vibration detection: ✓
- Communication Interfaces: USB
- LED indicator: ✓
- Display: ✓
- Keyboard: 3 buttons
- Battery type: rechargeable 6 V / 12 Ah
- Operating time: up to 20 hours
- Operating temperature range: -10 °C ÷ 50 °C
- Humidity range: 25% ÷ 85%
- Weight: 8200 grams
- Size: 395 x 270 x 194 mm
Options
Video
Vibration calibrator tutorial
See how to use the vibration calibrator in practice
