Sealevel 2401 USB to 4-Port RS-232 DB9 Serial Interface Adapter
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Compliant with RoHS and WEEE directives
- High-speed UART with 128-byte Tx FIFO and 384-byte Rx FIFO
- Data rates to 460.8K bps
- All modem control signals implemented
- Serial and USB activity LEDs
Discover the possibilities
More information
Description

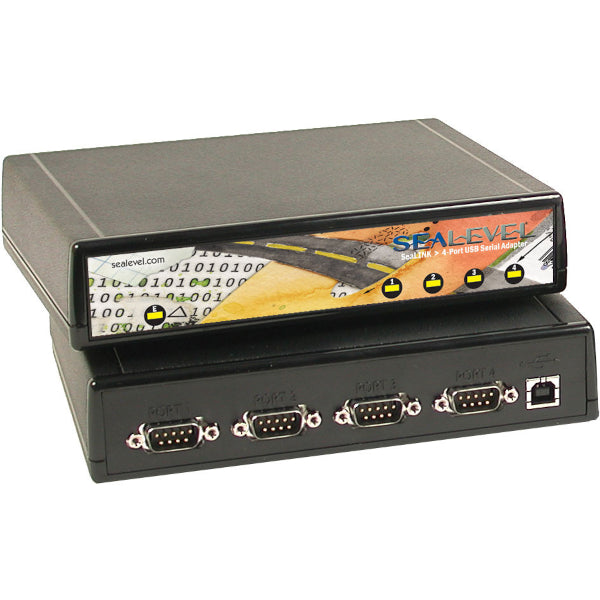

The Sealevel 2401 USB serial I/O adapter provides four RS-232 serial ports for USB connectivity to legacy or non-USB compliant devices. Data rates up to 460.8K bps are supported.
Sealevel’s SeaCOM USB software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems. After installing the software, simply connect the 2401 serial interface adapter to your USB port. The device is immediately recognized by the system. Now your non-USB peripherals can have the same connection simplicity and ease of use as USB aware peripherals.
Features
- Compliant with RoHS and WEEE directives
- High-speed UART with 128-byte Tx FIFO and 384-byte Rx FIFO
- Data rates to 460.8K bps
- All modem control signals implemented
- Serial and USB activity LEDs
- Hot-swappable
- Powered by USB connection
- Sealevel SeaCOM software supports Windows and Linux operating systems
- DB-9M connectors
- Includes 6′ USB device cable (Item# CA179)
Specifications
| Family | SeaLINK |
|---|---|
| Communications Chip | USB/UART |
| Dimensions | 7.1 (L) x 5.3 (W) x 1.5 (H) |
| Electrical Interface | RS-232 |
| High Retention USB | Yes |
| Humidity Range | 10 – 90% Relative Humidity, Non-Condensing |
| Host Interface(s) | USB |
| Max Data Distance | 50 feet |
| Max Data Rate | 460.8K bps |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| # of Ports | 4 |
| Power Requirement | +5V @ 50mA |
| RoHS Compliant | Yes |
| Serial Connector(s) | DB9M |
| Storage Temperature | -50°C to 105°C (-58°F to 221°F) |
| USB Powered | Yes |
| USB Specification | 1.1 Compliant2.0 Compatible |
For more information: Sealevel
Documents
Datasheet:
Sealevel 2401 DatasheetOptions
Video
The Sealevel 2401 USB serial I/O adapter provides four RS-232 serial ports for USB connectivity to legacy or non-USB compliant devices. Data rates up to 460.8K bps are supported.
Sealevel’s SeaCOM USB software drivers and utilities make installation and operation easy using Microsoft Windows and Linux operating systems. After installing the software, simply connect the 2401 serial interface adapter to your USB port. The device is immediately recognized by the system. Now your non-USB peripherals can have the same connection simplicity and ease of use as USB aware peripherals.
Features
- Compliant with RoHS and WEEE directives
- High-speed UART with 128-byte Tx FIFO and 384-byte Rx FIFO
- Data rates to 460.8K bps
- All modem control signals implemented
- Serial and USB activity LEDs
- Hot-swappable
- Powered by USB connection
- Sealevel SeaCOM software supports Windows and Linux operating systems
- DB-9M connectors
- Includes 6′ USB device cable (Item# CA179)
Specifications
| Family | SeaLINK |
|---|---|
| Communications Chip | USB/UART |
| Dimensions | 7.1 (L) x 5.3 (W) x 1.5 (H) |
| Electrical Interface | RS-232 |
| High Retention USB | Yes |
| Humidity Range | 10 – 90% Relative Humidity, Non-Condensing |
| Host Interface(s) | USB |
| Max Data Distance | 50 feet |
| Max Data Rate | 460.8K bps |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| # of Ports | 4 |
| Power Requirement | +5V @ 50mA |
| RoHS Compliant | Yes |
| Serial Connector(s) | DB9M |
| Storage Temperature | -50°C to 105°C (-58°F to 221°F) |
| USB Powered | Yes |
| USB Specification | 1.1 Compliant2.0 Compatible |
For more information: Sealevel
