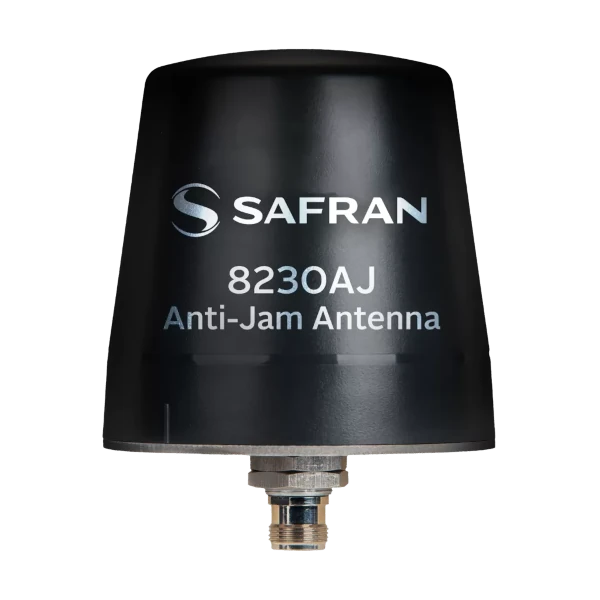

Safran 8230AJ GPS/GNSS Antenna
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- High bandwidth to receive GNSS signals (GPS L1, GLONASS L1, BeiDou B1, Galileo E1, QZSS L1)
- Unique conical antenna pattern rejects interference from the horizon
- Drop in replacement for the Model 8230 Outdoor Antenna for use in high interference situations
- Uses the same cabling as the current Model 8230 and mounts to the same pipe supports with a new L bracket.
- Designed for harsh environments (IP67 rated)
- High out-of-band rejection
- One-year limited warranty
%0A%20%09Unique%20conical%20antenna%20pattern%20rejects%20interference%20from%20the%20horizon%0A%20%09Drop%20in%20replacement%20for%20the%20M...
){kind=link}
Discover the possibilities
More information
Description
Safran 8230AJ GPS/GNSS Antenna
The Safran 8230AJ is a high gain (40 dB) GNSS Anti-Jamming outdoor antenna. It uses a three-stage low noise amplifier, a mid-section SAW, and a tight pre-filter to protect against saturation by high level sub-harmonics and L-band signals. This GNSS / GPS anti-jam technology rejects signals for the lower elevation angles – where most of the interference comes from.
Features
- High bandwidth to receive GNSS signals:
- GPS L1
- GLONASS L1
- Beidou B1
- Galileo E1
- QZSS L1
- Unique conical antenna pattern rejects interference from the horizon
- Drop-in replacement for the Model 8230 Outdoor antenna for use in high interference situations
- Designed for harsh environments (IP67 rated)
- High out-of-band rejection
- One-year limited warranty
Specifications
- Type: Active
- Frequency: 1559 to 1606 MHz
- Out-of-Band Rejection: •
- < 1500 MHz: > 50 dB
- > 1650 MHz: > 50 dB
- Gain: 40 dB from internal
- LNA Antenna Pattern: 0 dB at zenith, 15 dB or more rejection at < 30 degrees elevation
- Connector: N type, female
- Recommended Cable: Low Loss LMR-400 Equivalent
- Maximum Cable Length: 125 meters meters (400 ft.)
- Power: 2.5 to 16 Volts, 19 milliamps (typical), powered by receiver
- Size: 100 mm dia. (3.9”); 101.5 mm H (4”) from base to top; 127.2 mm H (5”) including “N” connector
- Enclosure: Radome: High Temperature UV Resistant Polycarbonate.; Base: Zamak White Metal
- Weight: 370g (13.1oz)
- Compliance: IP67 and RoHS
- Temperature Range: -40º to +85º C (–40º to +185º F)
- Mounting: L-bracket (included) for vent pipe/pole mounting via hose clamps (included), PVC pipe sold separately
Mountable & Weather-Proof
The antenna is terminated with a type “N” female connector and mounts to standard pipes via its own unique L bracket. This style of mounting makes it a drop-in replacement for existing installations. Featuring IP67 compliant weather-proof housing, the antenna has a high degree of protection against dust and water. Its cylindrical radome is made of high impact UV stabilized polycarbonate to protect against rain, ice, snow and salt spray.
Standard or AJ GNSS Antenna (Receiver) – Should I Use GNSS / GPS Anti-Jam Technology?
The standard antenna sees the entire view of sky, equally receiving signals from satellites at the horizon or the zenith and all points in between. However, there is increasing interference in the GNSS L1 band, whether unintentional from other transmitters like communications towers or intentional from illegal “privacy jammers”/GNSS jamming devices. The anti-jamming antenna rejects signals for the lower elevation angles – where most of the interference comes from – and only receives signals from the higher elevation angles where the satellites are. Of course, this reduces the number of satellites the GNSS receiver will see, but for the timing application, only a few satellites are needed. Moreover, with multi-constellation GNSS receivers, there are an increasing number of satellites available. So you get all the performance in timing accuracy you would get with a standard antenna plus 20 dB or more of interference rejection.
Antenna Cable & Accessories
Safran recommends low loss coaxial cable such as Times Microwave LMR-400 for the antenna cable. The attenuation characteristics of the LMR-400, or equivalent, at the GPS L1 frequency (1575.42 MHz), along with the high gain of the antenna allows the cable length to a maximum of about 125 meters (400 feet). Safran offers standard and plenum rated cable assemblies. For installations where the antenna cable length exceeds 125 meters Safran offers a variety of accessories to extend cable lengths including inline pre-amplifiers (Model 8227), fiber optic links and frequency down-up converters. The receiver powers the GPS antenna and most accessories. Safran recommends installing a lightning protection device in the antenna line to protect the receiver and connected devices. Safran offers a Surge Protector, Model 8226, to shunt potentially damaging voltages on the antenna coax to ground.
Standard or AJ Antenna – Which Should I Use?
The standard antenna sees the entire view of sky, equally receiving signals from satellites at the horizon or the zenith and all points in between. However, there is increasing interference in the GNSS L1 band, whether unintentional from other transmitters like communications towers or intentional from illegal “privacy jammers”. The AJ antenna rejects signals for the lower elevation angles – where most of the interference comes from – and only receives signals from the higher elevation angles where the satellites are. Of course, this reduces the number of satellites the receiver will see, but for the timing application, only a few satellites are needed. Moreover, with multi-constellation receivers, there are an increasing number of satellites available. So you get all the performance in timing accuracy you would get with a standard antenna plus 20 dB or more of interference rejection.
For more information: Safran
