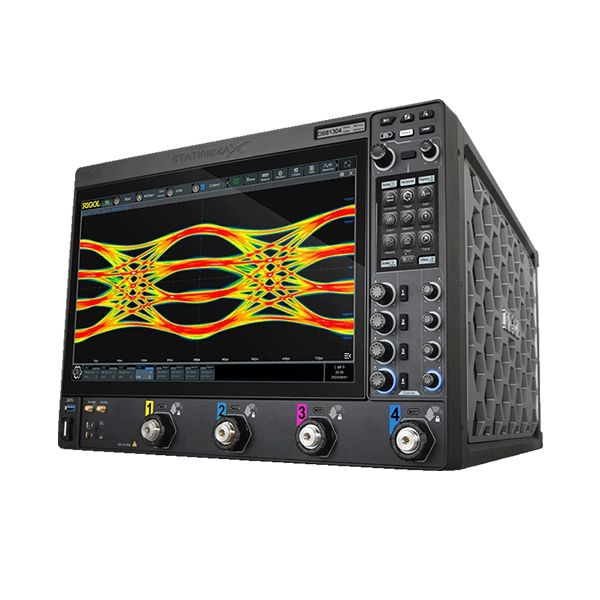

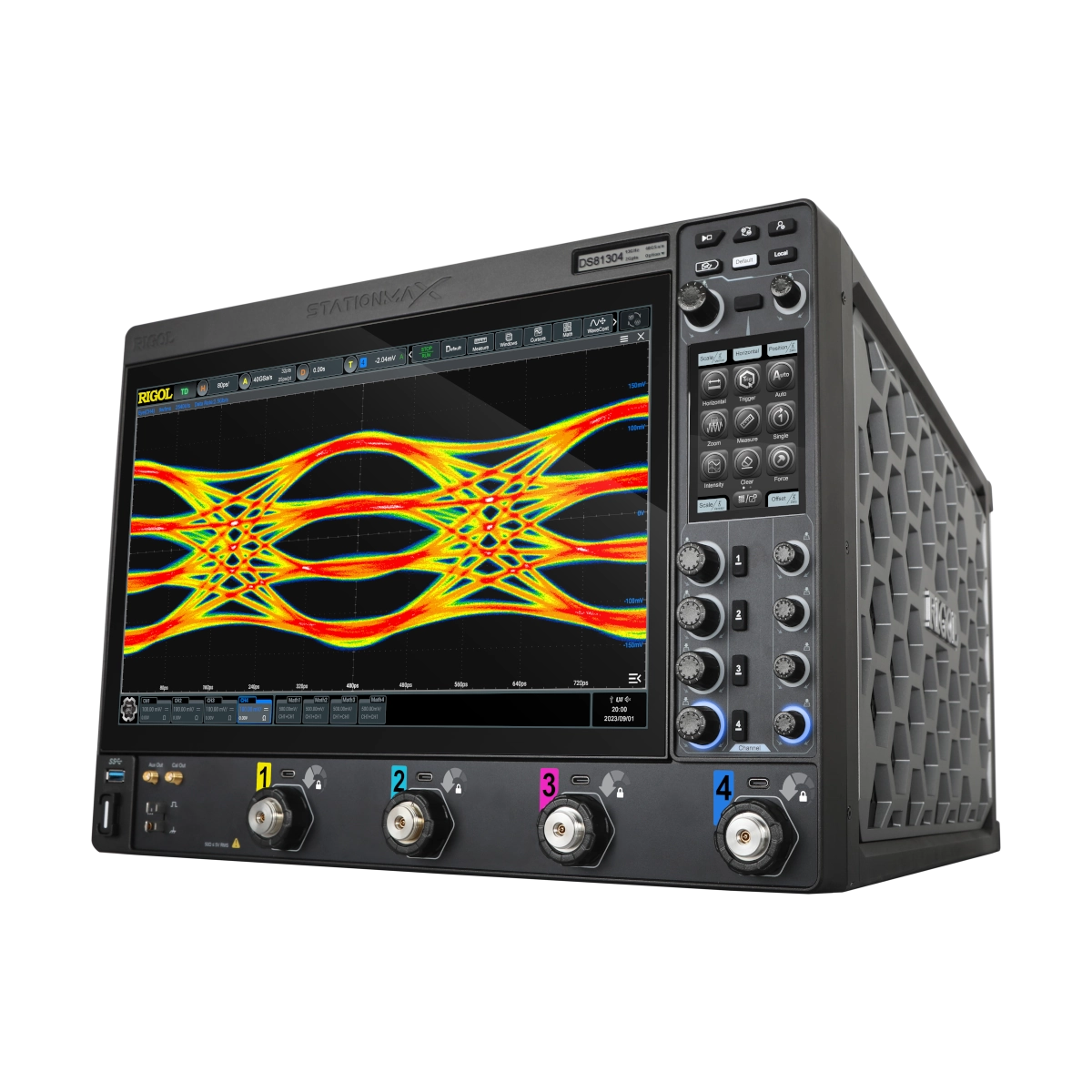

RIGOL DS81004 10 GHz Oscilloscope
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Analog Bandwidth: 10 GHz
- Analog Channels: 4
- Maximum Real-time Sample Rate: 40 GSa/s
- Maximum Memory Depth: 4 Gpts (opt.)
- Maximum Waveform Capture Rate: 250,000 wfms/s
%0AMaximum%20Waveform%20Capture%20Rate:%20250,000%20wfms/s%0A
){kind=link}
Discover the possibilities
More information
Description
Higher bandwidth, higher sampling
Based on the StationMAX II hardware technology platform, it achieves a maximum real-time sampling rate of 40GSa/s and an analog bandwidth of 13GHz, which can more realistically restore signals and cover more applications.
Deep storage high fidelity
Based on the RIGOL new generation UltraVision III platform, it achieves a maximum storage depth of 4Gpts, allowing DS80000 to have high-fidelity signal acquisition capability and capture waveforms for longer periods of time at high sampling rates.
New interface design
The DS80000 series adopts the RIGOL SmartProbe 2.0 interface, supports direct signal connection with 3.5mm connectors, and is equipped with RIGOL's self-developed probe adapter. It can also be backward compatible with the previous generation of RIGOL original probes, providing convenience for your use.
Meet more high-speed application scenarios
DS80000 has a maximum analog bandwidth of 13GHz and a maximum real-time sampling rate of 40GSa/s, which can meet the performance verification of high-speed devices and systems, high-speed bus compliance analysis, DDR debugging and other application scenarios, helping engineers solve more testing challenges.
