RIGOL DG852 Pro 50 MHz Waveform Generator
Use our chat for technical support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Maximum Output Frequency: 50MHz
- Sample Rate: 625MSa/s
- Vertical Resolution: 16bits
- Number of Channels: 2CH
- Arbitrary Waveform Length: 2M (8M opt.)
%0A%0A
){kind=link}
Discover the possibilities
More information
Description
Outstanding accuracy
625MSa/s maximum sampling rate, 16bit vertical resolution, more accurate waveform output, and cost-effective choice for entry-level signal sources.

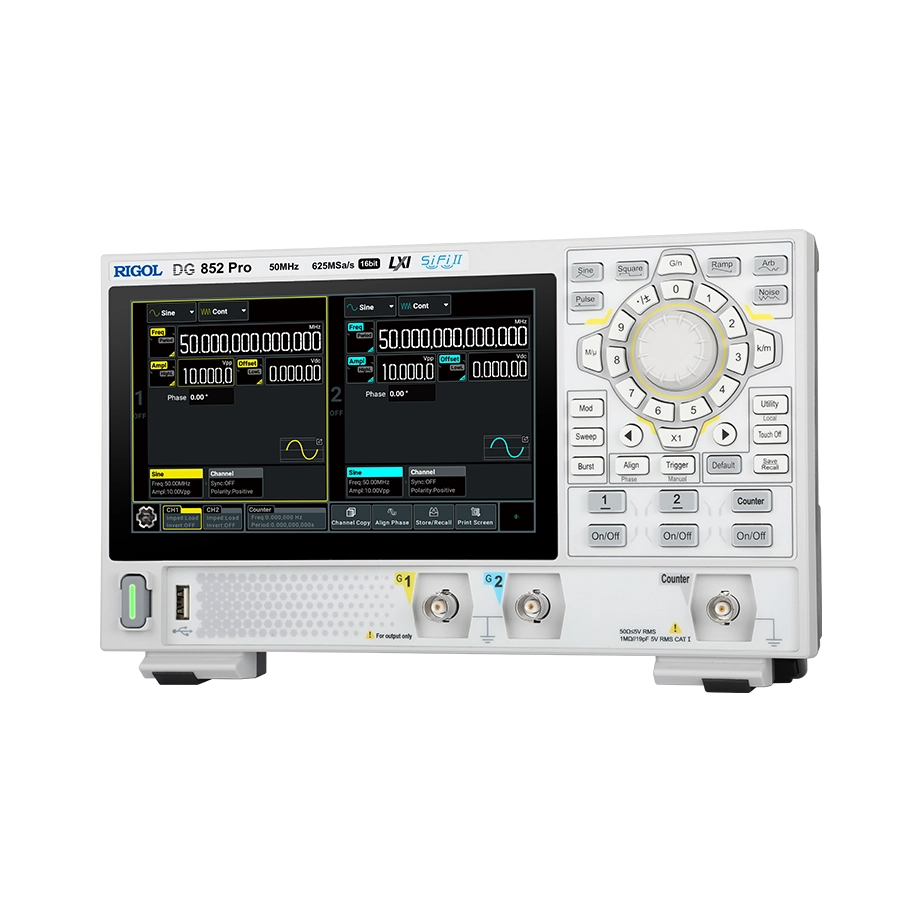

7-inch color touch screen display
7-inch color touch screen display, convenient for you to set parameters, view and edit signals for dual channel waveforms simultaneously.

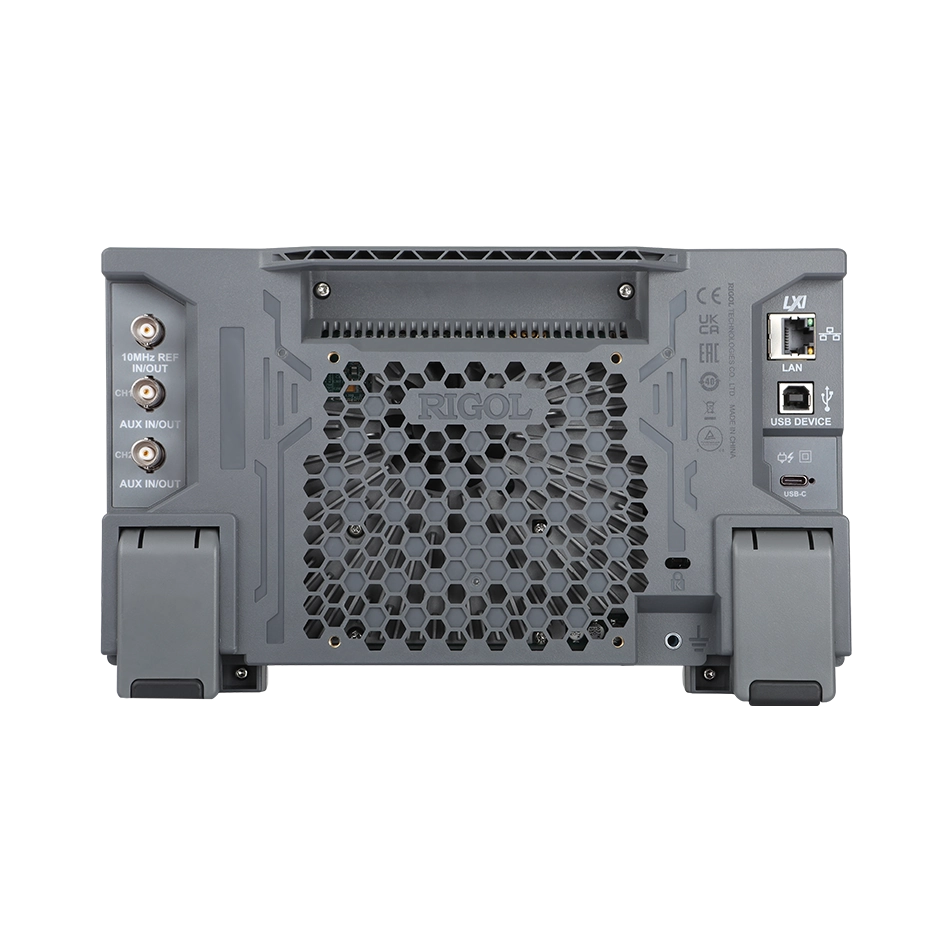

Equipped with Type-C connector
Type-C connector enable DG800 Pro to be powered up by mobile power supply, make on-site testing more convenient.
Dexterous appearance
Ultra-portable design, compact size. It also supports the use of a standard monitor stand, saving your workbench space. Dimensions: 266mm (width) x 165mm (height) x 63mm (depth), and it weighs only 1.78kg.
Fast rising edge
40MHz square wave and 25MHz adjustable edge pulse wave output, with waveform rise time as low as 3ns, meeting the waveform requirements of different applications.
Ultra-low jitter
Based on RIGOl's original SIFI II technology, the DG900 Pro/800 Pro series can generate arbitrary waves point by point and restore signals without distortion. The sampling rate is precisely adjustable. Compared with traditional DDS signal sources, the generated signals have lower jitter, and the jitter of all output signals is as low as 200ps (rms).
Rich modulation functions
Support rich modulation functions (AM, FM, PM, ASK, FSK, PSK, PWM, SUM modulation functions, etc.) to meet the requirements of communication principles, motor control, switching power supply and other application scenarios.
Sequence function
Support up to 64 waveform events, 256 repetitions, and able to load multiple test cases in a sequence that require sequential execution at once. Thus, greatly improving testing efficiency through achieving seamless switching of test cases.
Maximum 20th harmonic generation function
Up to 20 built-in waveform stacking functions provide a more accurate measurement method for performance testing of high-order filters, amplifiers, and other devices
High resolution frequency meter
A 7-bit 500MHz frequency meter that can measure parameters such as frequency, period, duty cycle, positive and negative pulse width from external input signals, and supports statistical analysis of measurement results
