Promax TV EXPLORER NG Universal TV and Spectrum Analyzer
Use our chat for personal support or contact us via +45 31 33 18 19 or salg@GOmeasure.dk

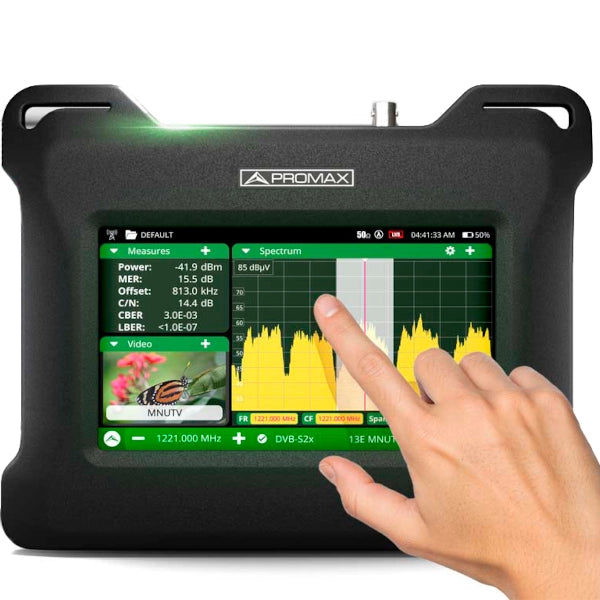

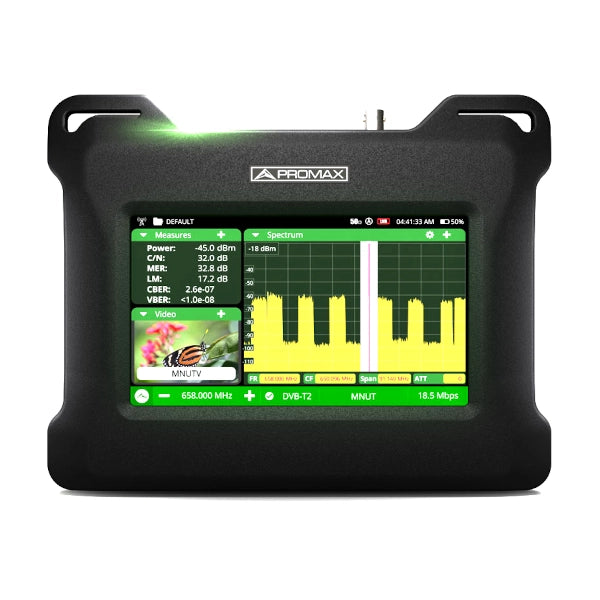

Promax TV EXPLORER NG Universal TV and Spectrum analyzer with native 4K support, DVB-T2, ISDB-T/Tb and optionally ATSC 3.0 and DVB-S2x. Its multi-touch user interface offers smartphone-like intuitiveness, making navigation effortless.
Discover the possibilities
More information
Description
The TV EXPLORER NG is the successor of the TV EXPLORER, the TV analyzer that was there for the switch to digital broadcasting. Now that we're in a totally digital world, with Ultra HD-4K taking off and DVB-S2x, DVB-T2, and ATSC 3.0 arriving, the new TV EXPLORER NG offers support for the most recent broadcasting standards.

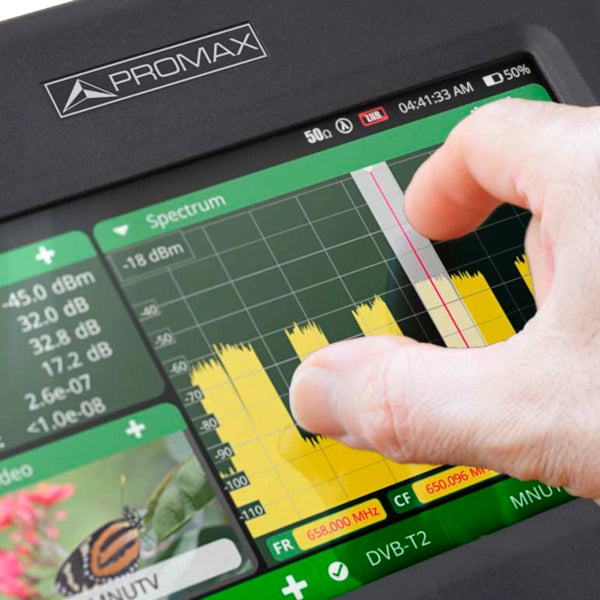

With its docking panel-based user interface with multi-touch screen makes it exactly as intuitive as a contemporary instrument should be. Furthermore, its multi-core processor ensures an immediate response. Simple like a TV EXPLORER, agile as your mobile phone.
Featuring all the necessary technologies for today's landscape: Second-generation DVB standards (optionally including DVB-S2x), ISDB-T/Tb and optionally ATSC 1.0 and ATSC 3.0. It also includes compatibility with HbbTV (Hybrid Broadcast Broadband TV) technology and effortlessly decodes video encoded in HEVC H.265, even in UHD 4K HDR 10-bit, maintaining full performance.
Instantly generate measurement reports and ensure compliance with major governmental regulations like ICT-2 (Spain), RITEL (Colombia), or DUCTOS (Chile).
Specifications
| Category | Details |
|---|---|
| BROADCAST STANDARDS |
Digital terrestrial TV / Radio: DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full seg / 1seg), DAB, DAB+ Digital cable: DVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM Digital satellite: DVB-S, DVB-S2 VCM/ACM/CCM, DSS, DVB-S2x (optional) Analogue: Analogue terrestrial (PAL, SECAM, NTSC), FM RDS |
| SPECTRUM ANALYZER |
From 5 to 1000 MHz (Terrestrial) From 950 to 2180 MHz (Satellite) |
| INPUTS AND OUTPUTS |

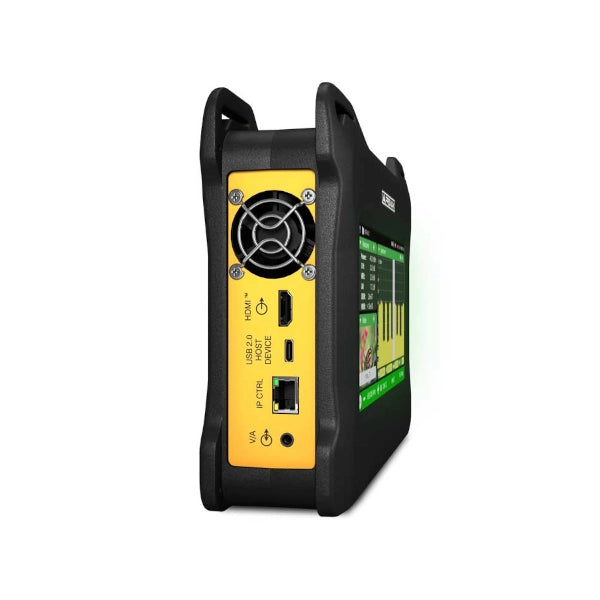

Universal RF input (BNC, female 75 Ω) Analogue audio/video input (jack 3.5 mm) HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz) USB 2.0 master/device (Type C). Mass storage and remote control commands Ethernet (RJ45) for webControl and remote control commands Optical input (FC/APC, female) Stereo headphone audio output (jack 3.5 mm) USB 3.0 host (A-type, USB-CDC devices) |
| FUNCTIONS |
Constellation diagram Dynamic echoes analysis StealthID (instant identification of tuning parameters) PLS (Physical Layer Scrambling) Ultra fast Spectrum analyzer 4K decoder MAX and MIN hold FM RDS measurement and decoding Screenshots and Datalogger for measurement reports WiFi Remote control (webControl) MER by carrier TS recording ALP recording Full band optical power measurement 8 GB internal memory, expandable via USB FM stations discovering Blind Scan search |
| OPTIONS |
ATSC 1.0 and ATSC 3.0 standards Optical fibre: Selective optical power meter DAB/DAB+ digital radio advanced measurements FM radio advanced measurements Signal coverage analysis (drive test) with GPS |
Documents
Options
Video
Promax TV Explorer NG - The loyal go-to tool
The Promax TV EXPLORER NG Universal TV and Spectrum Analyzer features native Ultra HD 4K support, along with HbbTV, DVB-T2, ISDB-T, fiber optics, DAB+ digital radio, and ATSC 3.0 capabilities.
TV EXPLORER NG - Your go-to TV analyzer... again
The TV & Spectrum analyzer with digital processing, native 4K, multistandard with an ultra fast, multitactile spectrum analyzer. Easy as your smartphone. With a custumizable user interface to adapt the meter to your workflow.
The TV EXPLORER NG is the successor of the TV EXPLORER, the TV analyzer that was there for the switch to digital broadcasting. Now that we're in a totally digital world, with Ultra HD-4K taking off and DVB-S2x, DVB-T2, and ATSC 3.0 arriving, the new TV EXPLORER NG offers support for the most recent broadcasting standards.
With its docking panel-based user interface with multi-touch screen makes it exactly as intuitive as a contemporary instrument should be. Furthermore, its multi-core processor ensures an immediate response. Simple like a TV EXPLORER, agile as your mobile phone.
Featuring all the necessary technologies for today's landscape: Second-generation DVB standards (optionally including DVB-S2x), ISDB-T/Tb and optionally ATSC 1.0 and ATSC 3.0. It also includes compatibility with HbbTV (Hybrid Broadcast Broadband TV) technology and effortlessly decodes video encoded in HEVC H.265, even in UHD 4K HDR 10-bit, maintaining full performance.
Instantly generate measurement reports and ensure compliance with major governmental regulations like ICT-2 (Spain), RITEL (Colombia), or DUCTOS (Chile).
| Category | Details |
|---|---|
| BROADCAST STANDARDS |
Digital terrestrial TV / Radio: DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full seg / 1seg), DAB, DAB+ Digital cable: DVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM Digital satellite: DVB-S, DVB-S2 VCM/ACM/CCM, DSS, DVB-S2x (optional) Analogue: Analogue terrestrial (PAL, SECAM, NTSC), FM RDS |
| SPECTRUM ANALYZER |
From 5 to 1000 MHz (Terrestrial) From 950 to 2180 MHz (Satellite) |
| INPUTS AND OUTPUTS |
Universal RF input (BNC, female 75 Ω) Analogue audio/video input (jack 3.5 mm) HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz) USB 2.0 master/device (Type C). Mass storage and remote control commands Ethernet (RJ45) for webControl and remote control commands Optical input (FC/APC, female) Stereo headphone audio output (jack 3.5 mm) USB 3.0 host (A-type, USB-CDC devices) |
| FUNCTIONS |
Constellation diagram Dynamic echoes analysis StealthID (instant identification of tuning parameters) PLS (Physical Layer Scrambling) Ultra fast Spectrum analyzer 4K decoder MAX and MIN hold FM RDS measurement and decoding Screenshots and Datalogger for measurement reports WiFi Remote control (webControl) MER by carrier TS recording ALP recording Full band optical power measurement 8 GB internal memory, expandable via USB FM stations discovering Blind Scan search |
| OPTIONS |
ATSC 1.0 and ATSC 3.0 standards Optical fibre: Selective optical power meter DAB/DAB+ digital radio advanced measurements FM radio advanced measurements Signal coverage analysis (drive test) with GPS |
