Promax RANGERNeo+ ATSC Advanced Multifunction TV & Satellite Analyzer
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
RANGERNeo ATSC is the new industry standard in field strength meters, TV and spectrum analyzers. It covers from 5 to 2500 MHz and it includes HEVC decoding.
- ATSC, DVB-C2/S2, DSS, Dolby Digital Plus
- Super spectrum analyzer with Triple split display
- Touch screen
- HEVC H.265 decoding
- Wide band LNB compatibility
- Wi-Fi analyzer
- webControl remote control
- Spectrogram
- Fibre optics and GPS options
- More than 4 hours battery time
Discover the possibilities
More information
Description
Promax RANGERNeo+ ATSC Advanced Multifunction TV & Satellite Analyzer

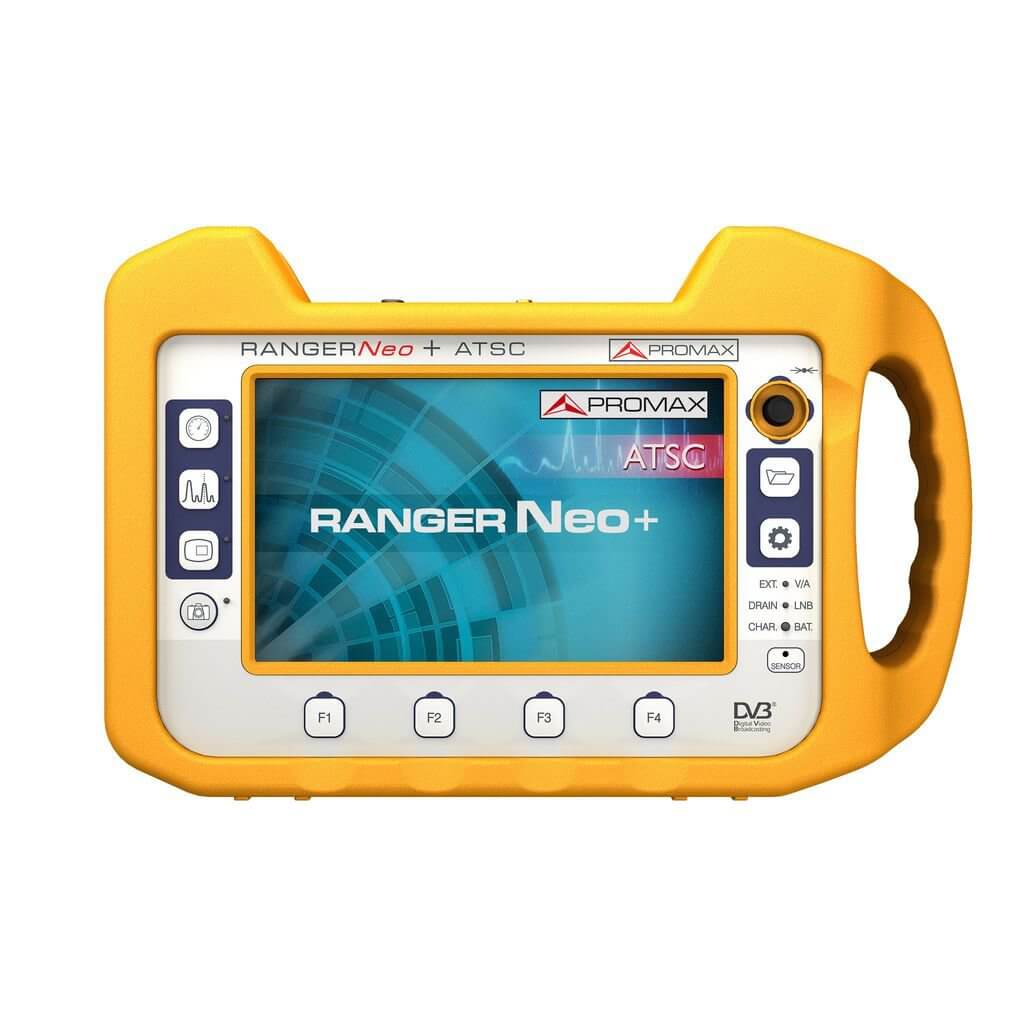

The RANGER Neo + ATSC is an advanced Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.They are intended to help expert installers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.
HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo + ATSC field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc., all in a very compact and light weight product (1600 gr) ideal for field work.
Specifications:
- Operation Modes: Hybrid operation: 7” touch screen or conventional buttons
- Digital Standards:
- ATSC
- QAM Annex B
- DVB-C
- DVB-S, DVB-S2, DVB-S2 multistream
- DSS, ACM/VCM/CCM
- Video Codecs: MPEG-2, MPEG-4 H.264, HEVC H.265
- Audio Codecs: MPEG-1, MPEG-2, HE-AAC, Dolby Digital, Dolby Digital Plus

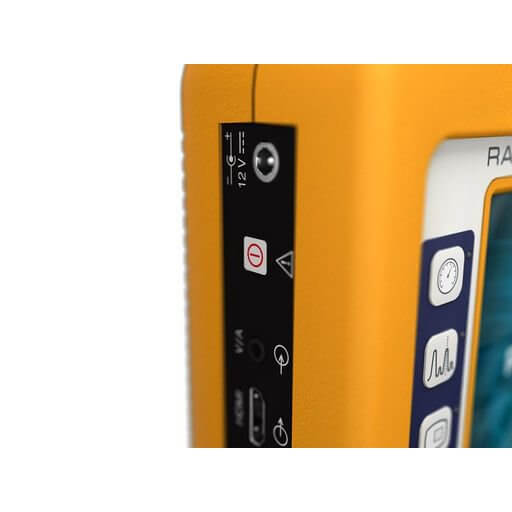

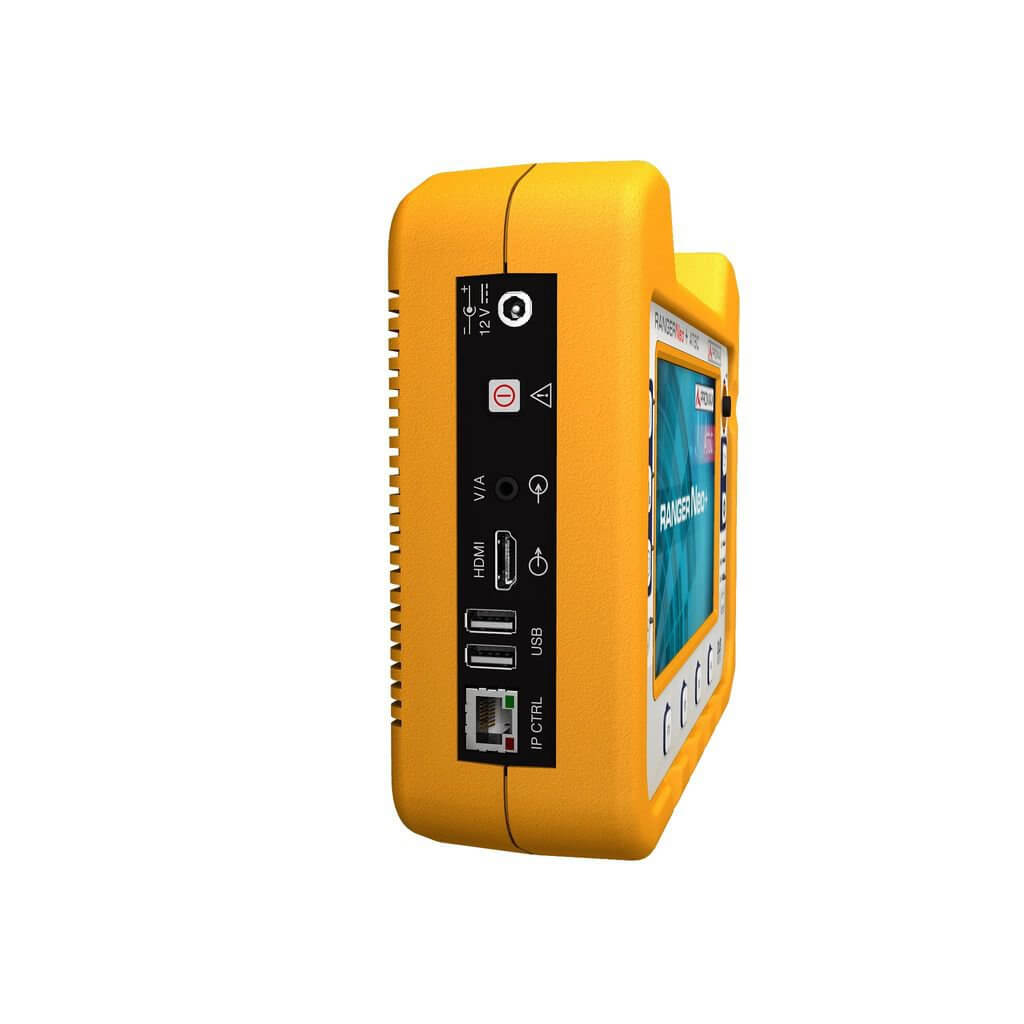

- Inputs and Outputs:
- Universal RF connector 75 Ω
- HDMI output
- IP input for remote control
- Analogue Video/Audio input
- 2xUSB for data transferring and GPS module
- Functions:
- Spectrogram
- Constellation diagram
- LTE
- Audio/Video streaming
- SCAN + TILT
- StealthID (instant identification of tuning parameters)
- PLS (Physical Layer Scrambling)
- Ultra fast spectrum analyser (70 ms sweeping time) with MAX/MIN hold
- 4K Frame grabber
- FM RDS radio measurements and decoding
- Screenshots and Datalogger for measurement reports
- Wideband LNB
- WiFi 2.4 GHz
- LTE 1.8 GHz
- OTT
- Service Recording
- DVB-S2 multistream
- Signal monitoring
- Field strength
- Task planner
- webControl
- Shoulder Attenuation
- Beacon-Flyaways SNG and VSAT
- Resolution Bandwidths:
- 100, 200 kHz
- 1 MHz
- Options:
- DAB, DAB+
- GPS Coverage Analysis
- Rack assembly 19” 4U: 482 (W.) x 178 (H.) x 205 (D.) mm
- Optical Power Meter + Optical-to-RF converter + WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
- WiFi 5 GHz + LTE 2.6 GHz + 6 GHz RF input
- PC Connection (via ethernet interface):
- NetUpdate 4 (free software)
- Free and automatic firmware updates
- Remote control (webControl)
- User customised channel plans
- Measurement reports and screenshots
- Audio/Video streaming
