Promax RANGERNeo 4 4k-UHD Top class TV & Satellite Analyzer (DVB & ISDBT)
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
RANGERNeo covers from 5 to 2500 MHz and includes HEVC decoding. On top of that, the RANGERNeo 4 features a 4K decoder displaying UHD services. The rest of RANGERNeo models feature the “4K frame grabber” tool which decodes UHD video frames and displays them in a slideshow mode.
- Touch Screen: Hybrid user interface (touch + keyboard)
- HEVC H.265: High Efficiency Video Codec
- WiFi Analyzer: Dual display, SPECTRUM and DATA
- Wideband LNB: Extended SAT band on a single SPAN
- Ultra Fast Spectrum
- Triple Split Display
- Light Weight (< 3 kg)
- Smart Battery Control
Discover the possibilities
More information
Description

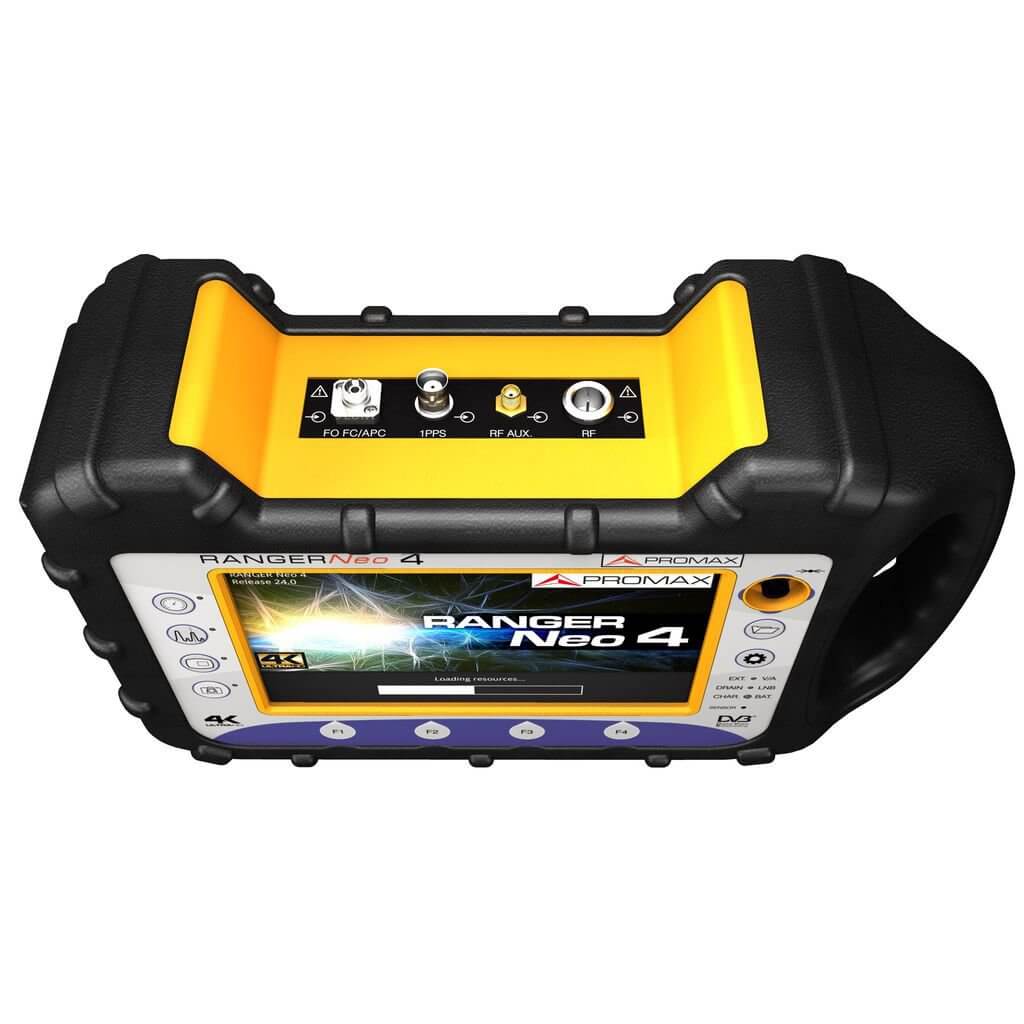

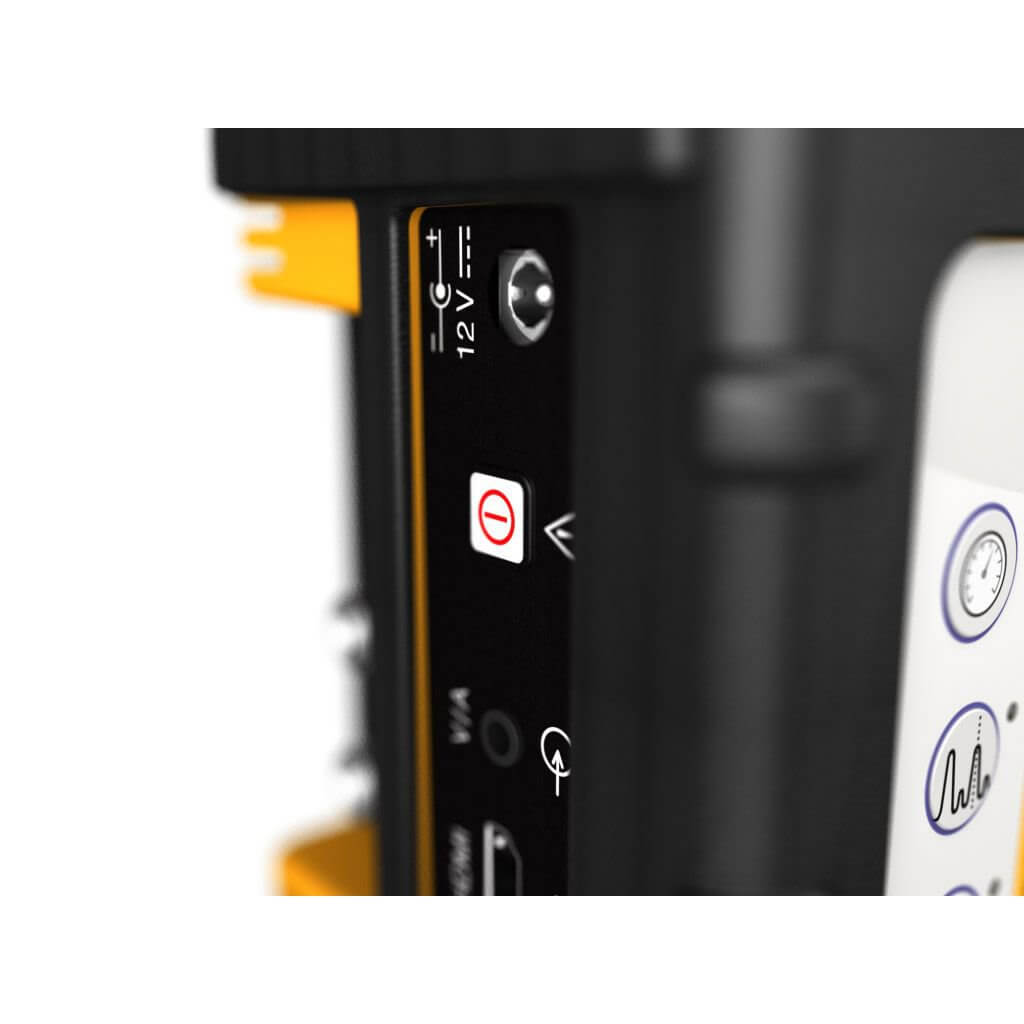

Promax RANGERNeo 4 4k-UHD Top class TV & Satellite Analyzer (DVB & ISDBT)
The RANGER Neo 4 is a professional Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.They are intended to help expert installers and broadcast engineers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.
HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo 4 field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product ideal for field work.
- 4K decoder
- DVB-T2/C2/S2, DSS, Dolby Digital Plus
- ISDB-T/Tb
- Network Delay Margin (DVB)
- T2-MI analysis
- GPS for drive test measurements
- DAB and DAB+ digital radio
- Super spectrum analyzer with Triple split display
- IPTV analyzer
- High resolution filters

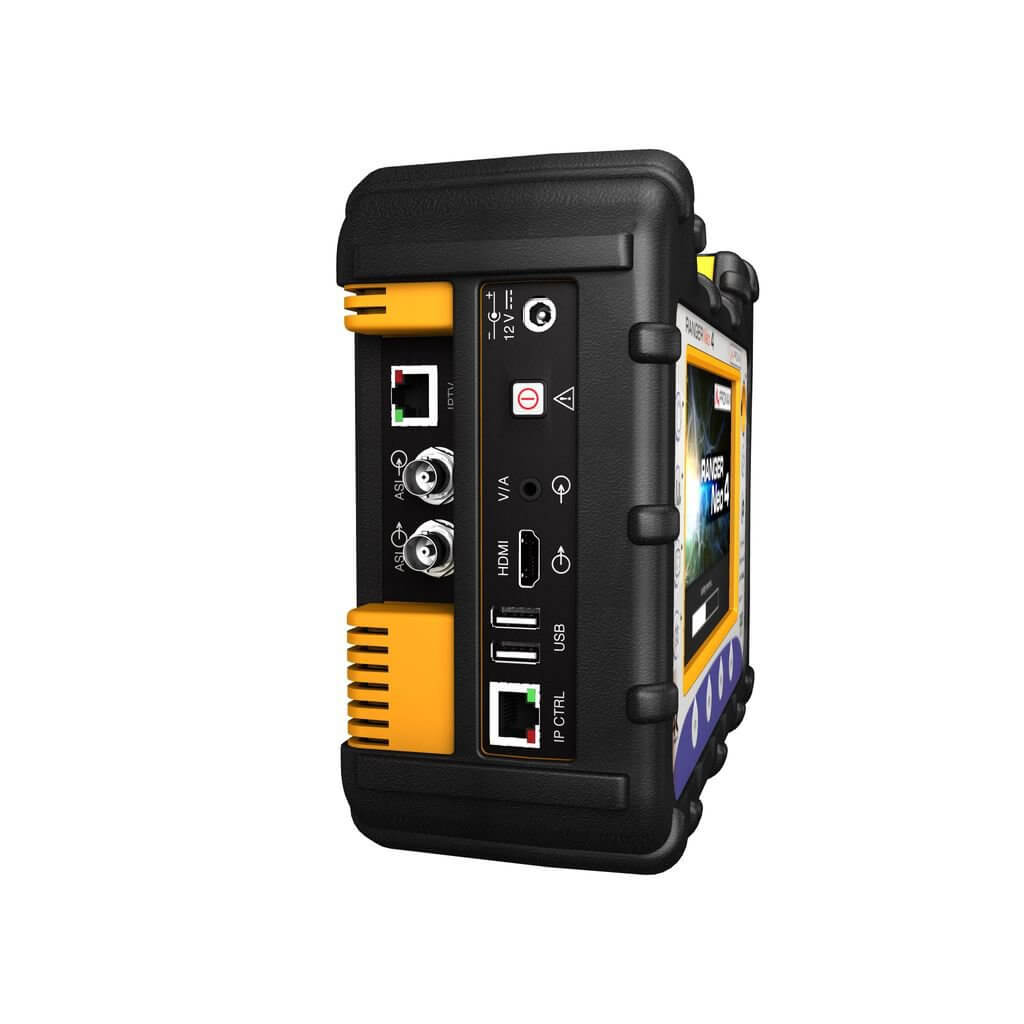

- TS-ASI input and output

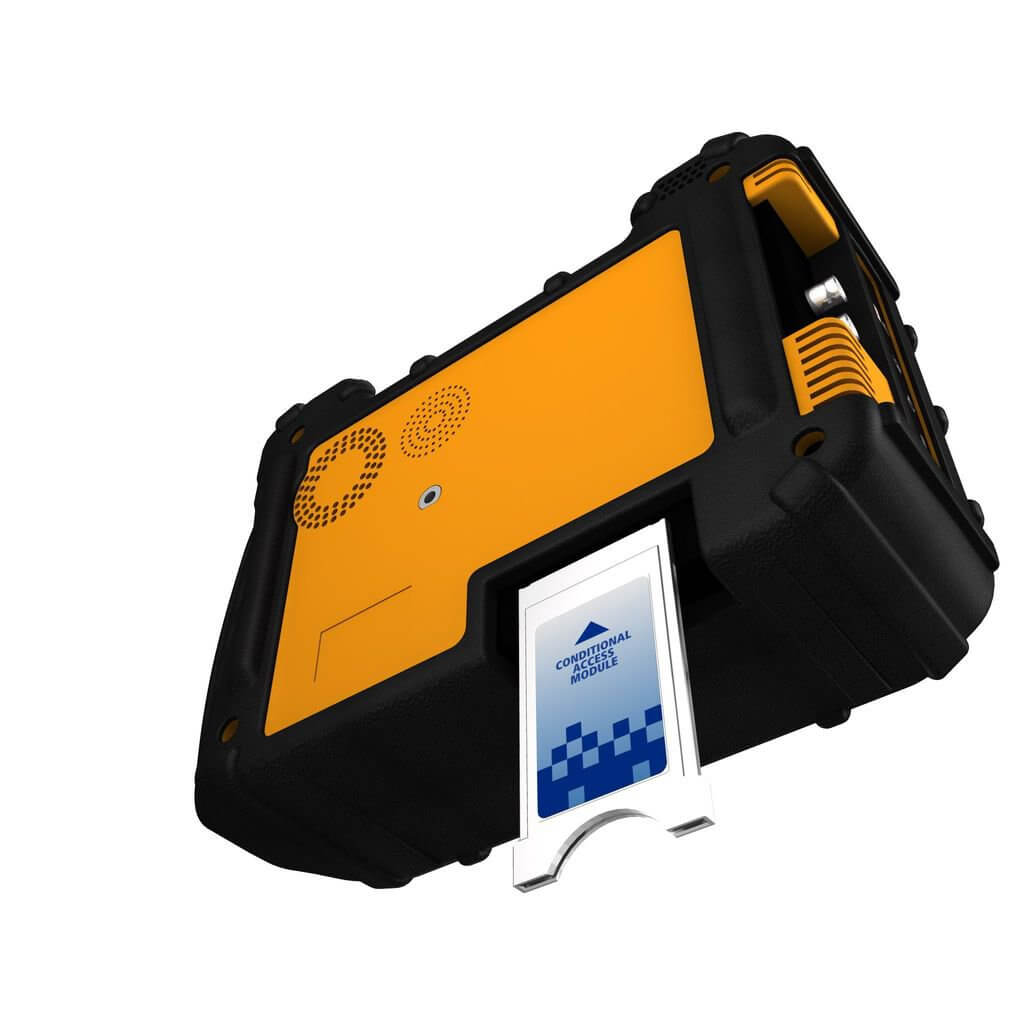

- Common Interface slot
- Transport stream analyzer, recorder and player
- Dynamic echoes analysis
- Touch screen
- HEVC H.265 decoding
- Wide band LNB compatibility
- Wi-Fi analyzer
- webControl remote control
- Merogram and Spectrogram
- Fibre optics
- More than 4 hours battery time
Documents
Promax RANGERNeo 4 4k-UHD Top class TV & Satellite Analyzer (DVB & ISDBT)
Promax RANGERNeo 4 - DatasheetOptions
Video
Promax RANGERNeo 4 4k-UHD Top class TV & Satellite Analyzer (DVB & ISDBT)
The RANGER Neo 4 is a professional Field Strength Meter and Spectrum Analyzer that is part of a new breed of multifunction, TV, Satellite, CATV and WIFI analyzers.They are intended to help expert installers and broadcast engineers not only to make their classic installation and troubleshooting work easier but also to deal with the many challenges brought about by the wireless world and the new video delivery platforms.
HEVC H.265 decoding and exceptional spectrum analyser capabilities are at the heart of the RANGER Neo 4 field strength meter surrounded by many functions such as WiFi analysis (including real spectrum display), wide band LNB compatibility, constellation diagram, dynamic echoes analysis, etc..., all in a very compact and light weight product ideal for field work.
- 4K decoder
- DVB-T2/C2/S2, DSS, Dolby Digital Plus
- ISDB-T/Tb
- Network Delay Margin (DVB)
- T2-MI analysis
- GPS for drive test measurements
- DAB and DAB+ digital radio
- Super spectrum analyzer with Triple split display
- IPTV analyzer
- High resolution filters
- TS-ASI input and output
- Common Interface slot
- Transport stream analyzer, recorder and player
- Dynamic echoes analysis
- Touch screen
- HEVC H.265 decoding
- Wide band LNB compatibility
- Wi-Fi analyzer
- webControl remote control
- Merogram and Spectrogram
- Fibre optics
- More than 4 hours battery time
