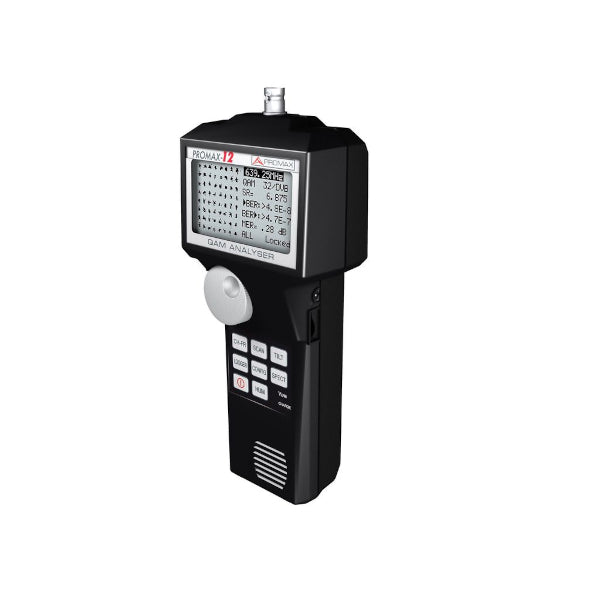

PROMAX 12: Cable TV QAM Analyser

The PROMAX-12 incorporates the measurements for installation, verification and maintenance of reception and distribution systems for FM radio, MATV, CATV and MMDS, including the sub-band (return path).

PROMAX-12 is a QAM analyser that also enables the measurement of DVB-T (COFDM) signals by installing the OP-012-O option.

Now it includes a new function to measures power level measurement over a complete frequency band, very useful for detecting saturation in the input of some broadband demodulators. PROMAX-12 is a multistantard instrument, so it can be used in any network in the world.

Specifications:

FUNCTIONS Level meter, Logger, Scan, Tilt, Spectrum analyser, Transient detector, Cable digital analyser

DIGITAL MEASUREMENTS Channel power, C/N, Bit Error Rate /Pre-BER, Post-BER), MER, DVB-QAM constellation

ANALOGUE MEASUREMENTS HUM, Level, C/N, C/A ratio, CSO-CTB intermodulation

INCLUDED ACCESSORIES Mains Power Adapter, Mains cable, Soft Carrying bag, F/F Connector Adapter, Rubber Shock Protector.

OPTIONAL ACCESSORIES Car lighter adapter, F/BNC connector adapter, F/IEC connector adapter, Hard transport case, F/F RF cable.

COFDM MEASUREMENT OPTION OP-012-O option.

For more information: PROMAX
