PONTIS EMC HDCam7 HD Video EMC Hardened Advanced Camera
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- For high demands in HD
- High performance Full HD Camera
- 1080 p from sensor to display
- For difficult light conditions
- CISPR 25 Class 5, -20 dB
- Integrated microphone
Discover the possibilities
More information
Description

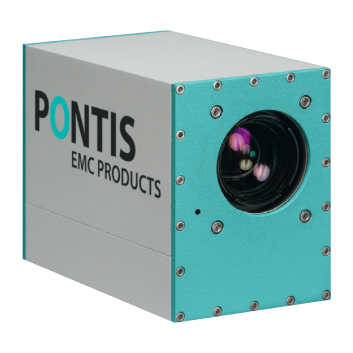

PONTIS EMC HDCam7 HD Video EMC Hardened Advanced Camera
The HDCam7 camera is shielded up to 200 V/m at a resolution of 3.3 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme Zoom is needed. The combination of 30 times optical and 12 times digital zoom gives a zoom range of 360. The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Features like e.g. manual iris control make it especially suitable for difficult light conditions like e.g. viewing displays.The camera can be operated remotely by the PONTIS EMC HD camera controllers.Features:
- RF-immunity 200 V/m up to 18 GHz
- EMC compliant to CISPR 25 Class 5, -20 dB
- Automatic / manual focus
- Compact housing (108 x 80 x 158 mm)
- Integrated microphone for audio surveillance and intercom
- 30 times zoom
- Iris control (manually, for difficult light conditions)
- Image stabilizer / wide dynamic range / long time exposure
- Full HD: 1080 p from sensor to display
Accessories:
Required:- Power supply: PSMxx, optional battery PSBxx
- Controller (zoom, focus, P/T): HDCONxxx
- Fibre optic cables: variable lengths ST/FSMA- connector
- Monitor: HDMI, DVI
Optional:
- Remotely controlled Pan/Tilt
- Tripods and wall mounts
- External DVR device
- Remote access via external LAN
- Controller with integrated LAN-Pecos_DVR for customized event detection and recording
Documents
PONTIS EMC HDCam7 HD Video EMC Hardened Advanced Camera
PONTIS-EMC-HDCam7-DS-2018-07-18-MROptions
Video
PONTIS EMC HDCam7 HD Video EMC Hardened Advanced Camera
The HDCam7 camera is shielded up to 200 V/m at a resolution of 3.3 Megapixel. It offers the best resolution available and is especially suited where the HD resolution (1080p) is needed (e.g. for monitoring HD displays) or an extreme Zoom is needed. The combination of 30 times optical and 12 times digital zoom gives a zoom range of 360. The video signal is transferred uncompressed in HD-SDI (HD-CCTV) format to the controller. Features like e.g. manual iris control make it especially suitable for difficult light conditions like e.g. viewing displays.The camera can be operated remotely by the PONTIS EMC HD camera controllers.Features:
- RF-immunity 200 V/m up to 18 GHz
- EMC compliant to CISPR 25 Class 5, -20 dB
- Automatic / manual focus
- Compact housing (108 x 80 x 158 mm)
- Integrated microphone for audio surveillance and intercom
- 30 times zoom
- Iris control (manually, for difficult light conditions)
- Image stabilizer / wide dynamic range / long time exposure
- Full HD: 1080 p from sensor to display
Accessories:
Required:- Power supply: PSMxx, optional battery PSBxx
- Controller (zoom, focus, P/T): HDCONxxx
- Fibre optic cables: variable lengths ST/FSMA- connector
- Monitor: HDMI, DVI
Optional:
- Remotely controlled Pan/Tilt
- Tripods and wall mounts
- External DVR device
- Remote access via external LAN
- Controller with integrated LAN-Pecos_DVR for customized event detection and recording
