PONTIS EMC foEthernet
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Autodetect: 10Base-TX, 100Base-TX, 1000Base-T
- >100 m due to fibre optic cables
- 4 x port version available on request
- EMC compliant to CISPR 25, Class5
Discover the possibilities
More information
Description

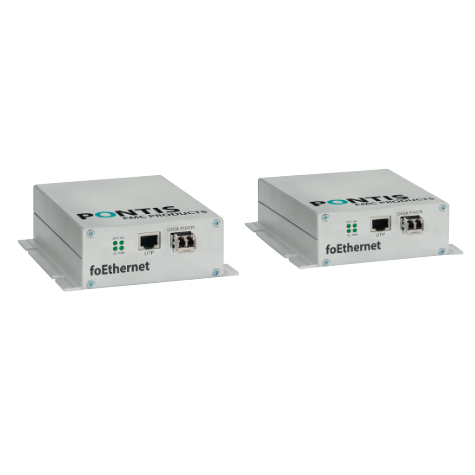

PONTIS EMC foEthernet
In complex testing environments it is often needed that electrical signals have to be transmitted into the chamber or out of the chamber to the test equipment.
For that purpose we offer a variety of different interfaces that convert electrical signals into optical signals and back. Such the signal can be transmitted via fibre optics and is immune against electrical fields.
A sophisticated shielding and filtering concept ensures that the interfaces are highly immune against radiation and do not deliver out any significant emission.
In most cases both units are shielded.
Features
- RF-Immunity: Antenna radiated 200 V/m, 200 MHz – 18GHz, ISO11452-2, CW, AM, PM Stripline 200 V/m, 10 – 1 GHz, ISO11452-5, CW, AM, PM
- Emission: EMC compliant to CISPR25 Class 5, 150 k – 4 GHz
- Battery (approx. 8 hours operation) or mains powered
- Compact metal housing
- No galvanic connection between test equipment and measurement instruments
- ACK and network speed indication
- Battery version: fast charge, long operation, also for 1 GBit/s
- On Request: a special version with 4 x Ethernet ports is available
Accessories
Standard:- One set consists of two shielded converter units
- All converters are shipped with the appropriate power supply or battery and charger
Optional:
- Fibre optic cables: variable lengths ST/FSMA- connector or ST/ST-connector
- FO-Patches (Feed Through wall Patches)
