PONTIS EMC foCAN (v 4.0)
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- High speed ISO11989-2
- 50–1000 KBaud(down to 10 on request)
- Unbuffered
- Distance depends on speed
- EMC compliant to CISPR 25, Class 5. Battery version -10 dB
%20%09Unbuffered%20%09Distance%20depends%20on%20speed%20%09EMC%20compliant%20to%20CISPR%2025,%20Class%205.%20Battery%20version%20-10%20dB%0A
){kind=link}
Discover the possibilities
More information
Description

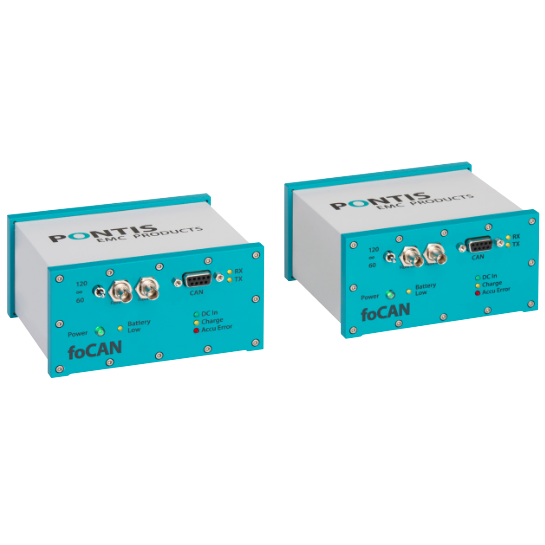

PONTIS EMC foCAN (v 4.0)
In complex testing environments it is often needed that electrical signals have to be transmitted into the chamber or out of the chamber to the test equipment.
For that purpose we offer a variety of different interfaces that convert electrical signals into optical signals and back. Such the signal can be transmitted via fibre optics and is immune against electrical fields.
A sophisticated shielding and filtering concept ensures that the interfaces are highly immune against radiation and do not deliver out any significant emission.
In most cases both units are shielded.
Features
- RF-Immunity: Antenna radiated 200 V/m, 200 MHz –18 GHz, ISO11452-2, CW, AM, PM Stripline 600 V/m, 10 – 1 GHz, ISO11452-5, CW, AM, PM
- Emission: EMC compliant to CISPR25 Class 5, 150 k-4 GHz, Battery version: -10 dB
- Battery (approx. 8 hours operation) or mains powered
- Compact metal housing
- No galvanic connection between test equipment and measurement instrument
- Max. distance: 10 m at 1000 kbit (longer length at lower speed possible)
Accessories
Standard:- One set consists of two converter units
- All interfaces are shipped with the appropriate power supply or battery and charger
Optional:
- Fibre optic cables: variable lengths ST/FSMA- connector or ST/ST-connector
- FO-Patches (Feed Through wall Patches)
