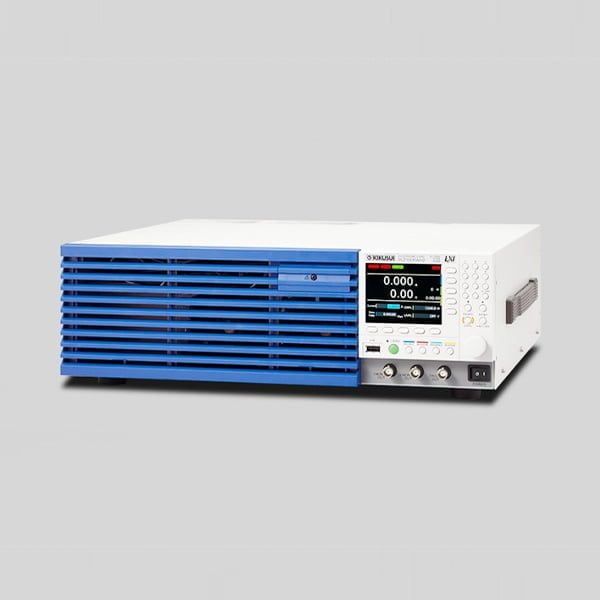

Kikusui PLZ4005WH2 Compact High Voltage DC Electronic Load
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Operating voltage: 10 V to 1000 V (Min. 1.5 V)
- 20 kW capacity in a single, compact unit (PLZ20005WH2)
- 100 kW/ 2000 A with parallel operation (Max. 5 units), connectable with different models.
- Synchronized operation: Load-on/off control and sequence execution can be synchronized for multiple PLZ-5WH2 series units.
- Sequence function Program can be saved/loaded via USB memory
- Arbitrary IV characteristic (ARB) mode
- New high visibility color display.
- Data-logging function: voltage/current/power/elapsed time/ integrated current/integrated power measurements. (Measurement display, programmable internal memory, stored as CSV format onto a USB memory.)
- Superposition of sinusoidal current (sine function, 1 Hz to 10 kHz)
- Cutoff function: The load can be turned off when the elapsed time, the voltage drop, the integrated current, or the integrated power reaches the specified value.
- LAN (LXI Compliant)/USB/RS232C standard interface *GPIB optional
%0A20%20kW%20capacity%20in%20a%20single,%20compact%20unit%20(PLZ20005WH2)%0A100%20kW/%202000%20A%20with%20parallel%20operation%20(Max.%205%20units),%20connectable%20with%20different%20models.%0ASync...
){kind=link}
Discover the possibilities
More information
Description
Ideal for high-capacity power supply and rechargeable battery evaluation! Testing with hyper-realistic load simulation made possible!
The PLZ-5WH2 high power DC electronic load ser ies is where durable, reliable ingenuity meets multifunctional and high power design. Providing 5 variety of power range line-ups, from 1 kW bench top style model to high power model that can sink up to 20kW of power in a single unit. Possible to easily selects applicable power range depends on the load. Load simulation can be achieved faster than ever before thanks to the reliable, high speed design of the PLZ-5WH current control circuits. Accurate current measures can be made with extremely high setting resolution. A color LCD display allows for highly visible, user- friendly front panel operation. RS232C, USB, and LAN digital interfaces are included as standard for simple integration into any system.
Documents
Datasheet:
Options
Video
Ideal for high-capacity power supply and rechargeable battery evaluation! Testing with hyper-realistic load simulation made possible!
The PLZ-5WH2 high power DC electronic load ser ies is where durable, reliable ingenuity meets multifunctional and high power design. Providing 5 variety of power range line-ups, from 1 kW bench top style model to high power model that can sink up to 20kW of power in a single unit. Possible to easily selects applicable power range depends on the load. Load simulation can be achieved faster than ever before thanks to the reliable, high speed design of the PLZ-5WH current control circuits. Accurate current measures can be made with extremely high setting resolution. A color LCD display allows for highly visible, user- friendly front panel operation. RS232C, USB, and LAN digital interfaces are included as standard for simple integration into any system.
