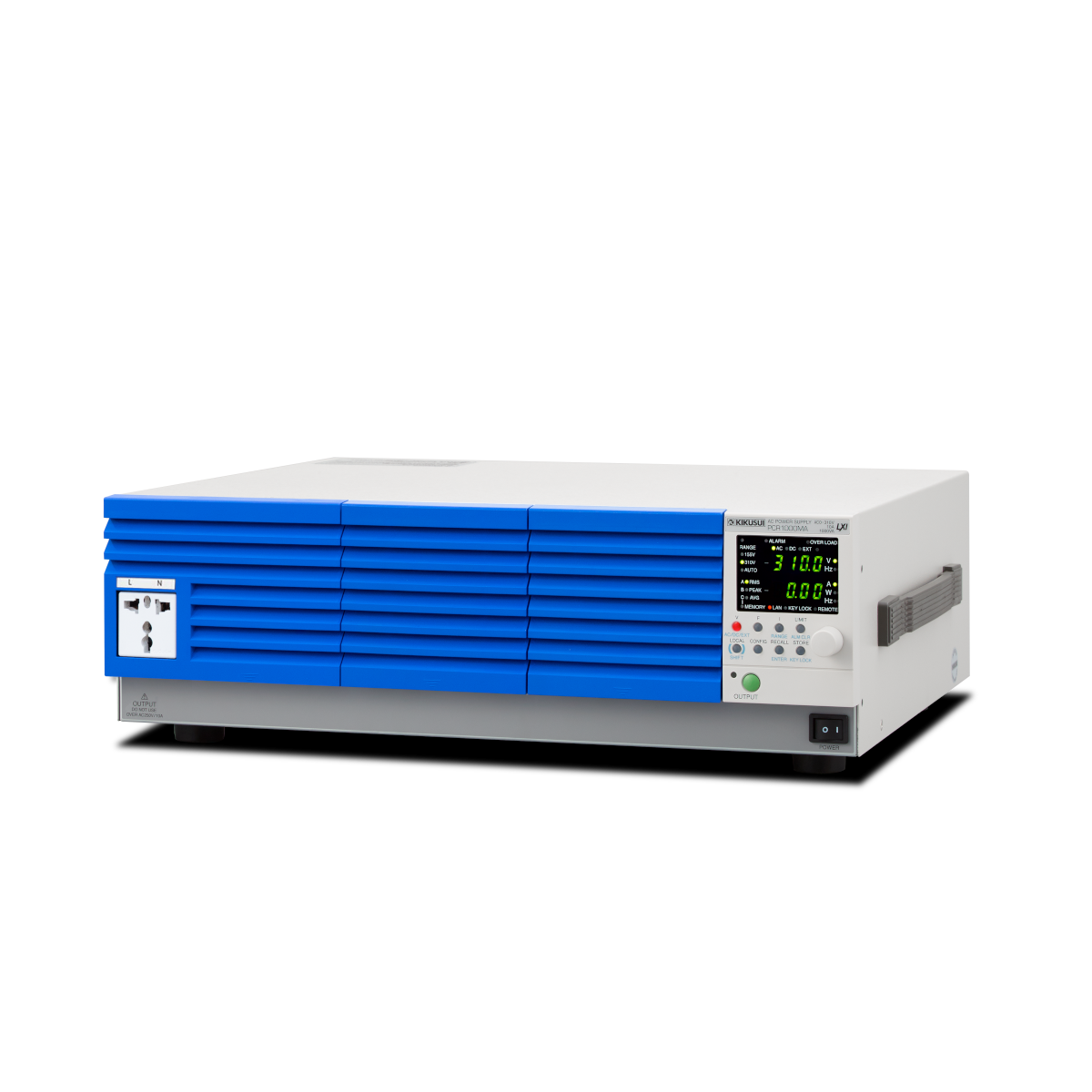

Kikusui PCR1000MA Compact AC Power Supply
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Circuit method (AC) - PWM inverter system
- Output: Phase - Single phase
- Voltage - 0V to 155V 0V to 310V (2 ranges)
- Maximum current - 10A/5A
- Power capacity - 1kVA
%20-%20PWM%20inverter%20system%0AOutput:%20Phase%20-%20Single%20phase%0AVoltage%20-%200V%20to%20155V%200V%20to%20310V%20(2%20ranges)%0AMaximum%20current%20-%2010A/5A%0APower%20capacity%20-%201kVA%0A
){kind=link}
Discover the possibilities
More information
Description
Wide-range, programable output voltage up to 310 Vrms with a user friendly interface designed for maximum practicality and convenience.
The PCR-MA AC power supply series is a PWM inverter type (switching) power supply that builds on the success of our conventional model, the PCR-M. Maximum output voltage has been increased to 310 Vrms AC while maintaining a compact, portable design. The digital interface now includes LAN (LXI) and USB as standard, with GPIB as a option for easy integration into any test system. The LXI compliant LAN interface allows the operator to easily monitor and control the instrument via virtual interface wherever they are. Various features including a remote sensing function have been introduced to ensure precise voltage and current measurements. Other features including DC mode, memory functions, and various protections make the PCR-MA the most accessible AC power supply on the market.
Documents
Datasheet:
Options
Video
Wide-range, programable output voltage up to 310 Vrms with a user friendly interface designed for maximum practicality and convenience.
The PCR-MA AC power supply series is a PWM inverter type (switching) power supply that builds on the success of our conventional model, the PCR-M. Maximum output voltage has been increased to 310 Vrms AC while maintaining a compact, portable design. The digital interface now includes LAN (LXI) and USB as standard, with GPIB as a option for easy integration into any test system. The LXI compliant LAN interface allows the operator to easily monitor and control the instrument via virtual interface wherever they are. Various features including a remote sensing function have been introduced to ensure precise voltage and current measurements. Other features including DC mode, memory functions, and various protections make the PCR-MA the most accessible AC power supply on the market.
