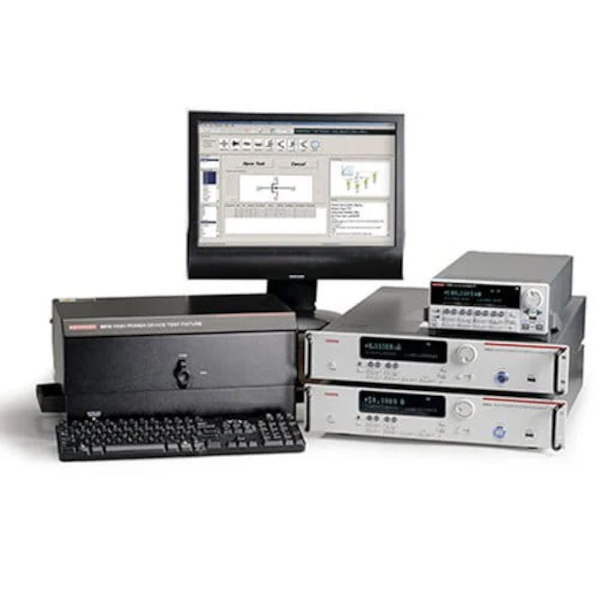

Keithley 2600-PCT-xB Parametric Curve Tracer Configurations
Use our chat for personal support. Or contact us via +45 31 33 18 19 or salg@GOmeasure.dk
- Complete solutions engineered for optimum price and performance
- Field upgradable and reconfigurable -- convert your PCT to a reliability or wafer sort tester
- Configurable power levels:
- From 200V to 3kV
- From 1A to 100A
- Wide dynamic range:
- From µV to 3kV
- From fA to 100A
- Full range of capacitance-voltage (C-V) capability:
- fF to µF
- Supports 2-, 3-, and 4-terminal devices
- Up to 3kV DC bias
- High performance test fixture supports a range of package types
- Probe station interface supports most probe types including HV triax, SHV coax, standard triax, and others
Discover the possibilities
More information
Description
Keithley 2600-PCT-xB Parametric Curve Tracer Configurations
Developing and using MOSFETS, IGBTs, diodes and other high power devices requires comprehensive device-level characterization such as breakdown voltage, on-state current and capacitance measurements. Keithley's line of high power Parametric Curve Tracer configurations supports the full spectrum of device types and test parameters. Keithley's Parametric Curve Tracer configurations include everything necessary for the characterization engineer to develop a complete test system quickly.
Documents
Keithley 2600-PCT-xB Parametric Curve Tracer Configurations
2600-PCT-xBOptions
Keithley 2600-PCT-xB Parametric Curve Tracer Configurations
| Model | Description | High Voltage Mode | High Current Mode | List Price |
|---|---|---|---|---|
| 2600-PCT-1B | Low Power | 200 V/10 A 200 V/10 A | 200 V/10 A 200 V/10 A | Configure & Quote |
| 2600-PCT-2B | High Current | 200 V/10 A 200 V/10 A | 40 V/50 A 40 V/50 A | Configure & Quote |
| 2600-PCT-3B | High Voltage | 3 kV/120 mA 3 kV/120 mA | 200 V/10 A 200 V/10 A | Configure & Quote |
| 2600-PCT-4B | High Current and High Voltage | 3 kV/120 mA 3 kV/120 mA | 40 V/50 A 40 V/50 A | Configure & Quote |
Video
Keithley 2600-PCT-xB Parametric Curve Tracer Configurations
Developing and using MOSFETS, IGBTs, diodes and other high power devices requires comprehensive device-level characterization such as breakdown voltage, on-state current and capacitance measurements. Keithley's line of high power Parametric Curve Tracer configurations supports the full spectrum of device types and test parameters. Keithley's Parametric Curve Tracer configurations include everything necessary for the characterization engineer to develop a complete test system quickly.
Keithley 2600-PCT-xB Parametric Curve Tracer Configurations
2600-PCT-xBKeithley 2600-PCT-xB Parametric Curve Tracer Configurations
| Model | Description | High Voltage Mode | High Current Mode | List Price |
|---|---|---|---|---|
| 2600-PCT-1B | Low Power | 200 V/10 A 200 V/10 A | 200 V/10 A 200 V/10 A | Configure & Quote |
| 2600-PCT-2B | High Current | 200 V/10 A 200 V/10 A | 40 V/50 A 40 V/50 A | Configure & Quote |
| 2600-PCT-3B | High Voltage | 3 kV/120 mA 3 kV/120 mA | 200 V/10 A 200 V/10 A | Configure & Quote |
| 2600-PCT-4B | High Current and High Voltage | 3 kV/120 mA 3 kV/120 mA | 40 V/50 A 40 V/50 A | Configure & Quote |
